Automatic Transaxle Shift Control: Removal

  1. Remove the console upper cover plate and than remove the console upper cover.

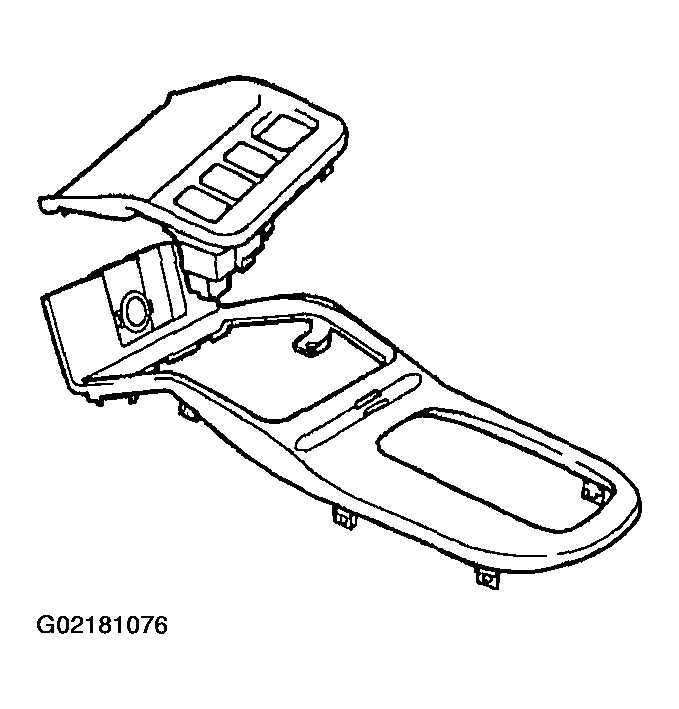

    Fig 1: Removing Console Upper Cover Plate
    G02181076
  2. Remove the floor console. Refer to CONSOLE.
  3. Remove the nut and washer.
  4. Remove the control cable clip.

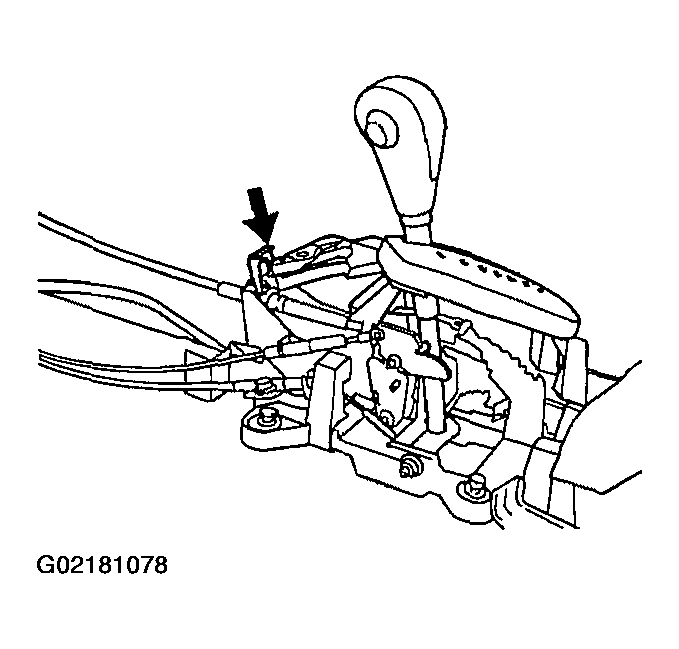

    Fig 2: Removing Control Cable Clip
    G02181078
  5. Remove the shift lever mounting bolts and the bulb connector.
  6. Remove the shift lever assembly.
  7. Remove the knob mounting screw.
  8. Remove the selector knob.

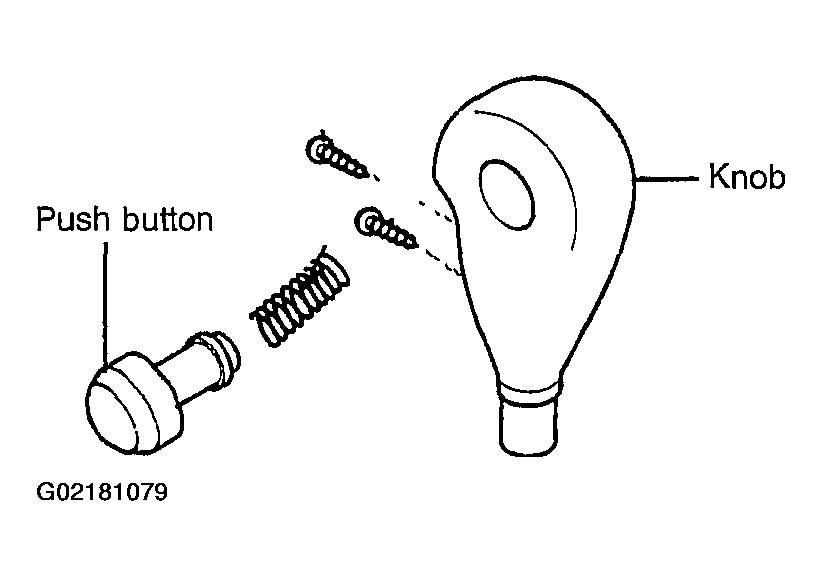

    Fig 3: Removing Selector Knob
    G02181079
  9. Remove the indicator.

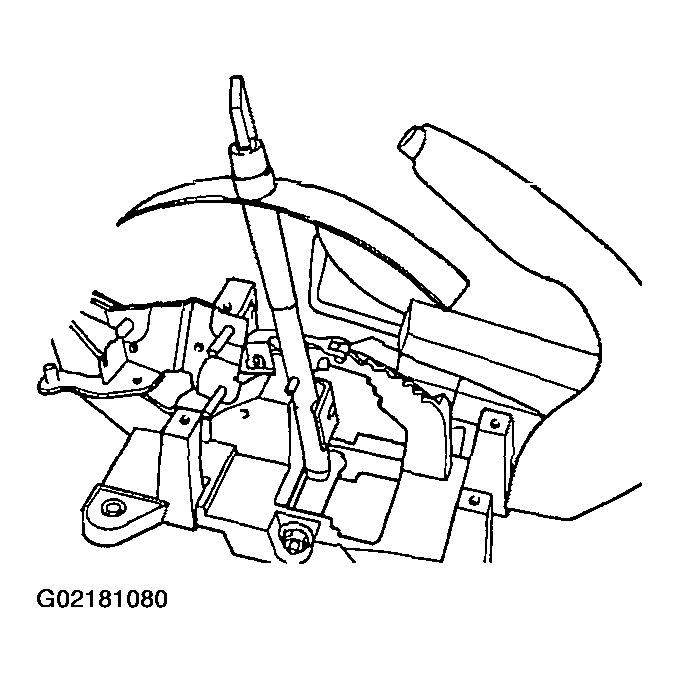

    Fig 4: Removing Indicator
    G02181080
  10. Remove the clip, flange nut from the transaxle sides.
  11. Remove the transaxle control cable assembly.
  12. Remove the shift lock cable and the key lock cable.

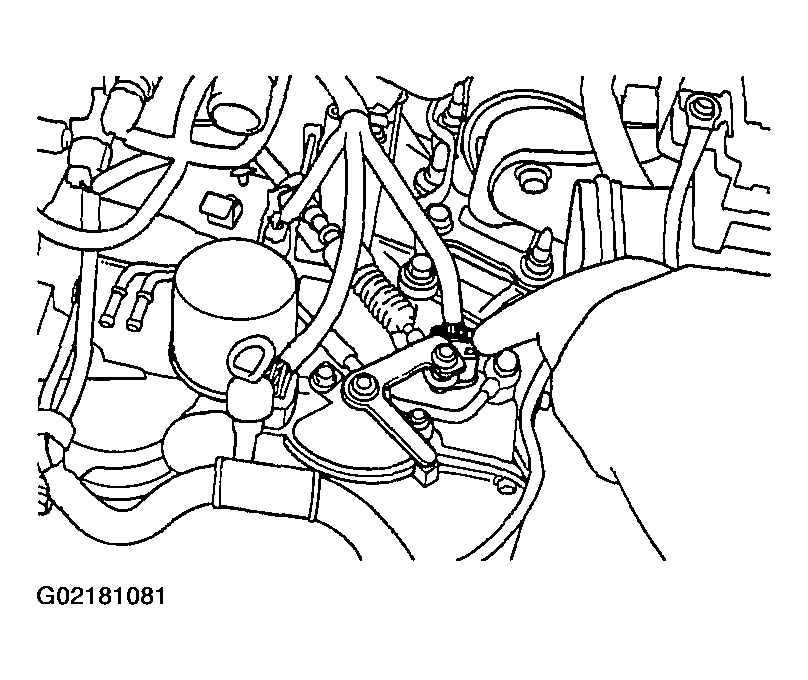

    Fig 5: Identifying Control Cable
    G02181081
