Engine Control Module Location

ECM LOCATION

Application Location
Sonata Behind Center Of Instrument Panel

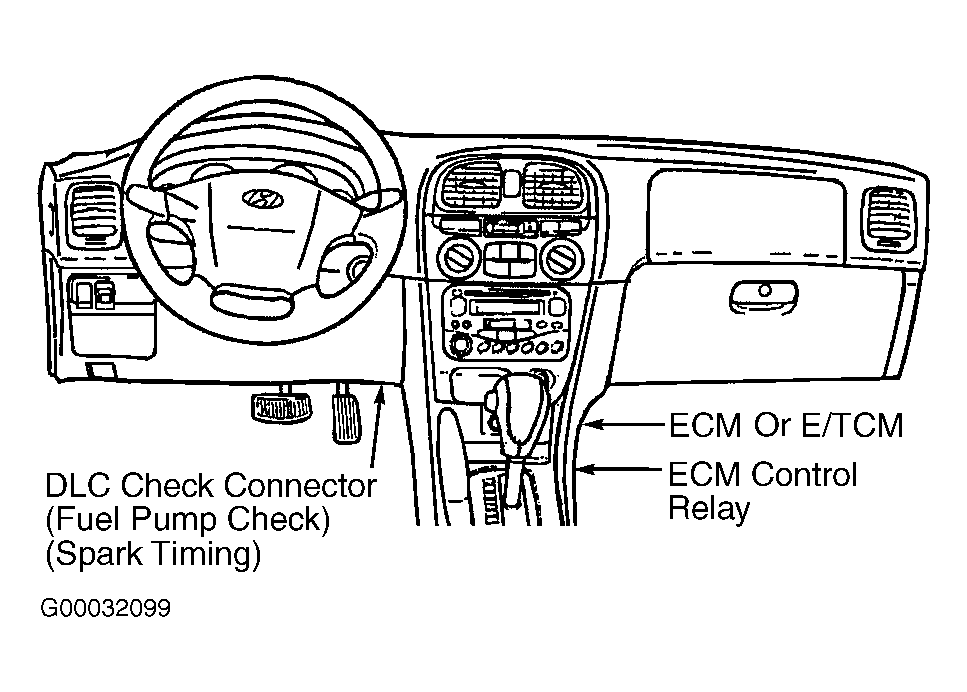

Fig 1: Locating ECM, ECM Control Relay & Data Link Connector (DLC)
G00032099Courtesy of HYUNDAI MOTOR CO.
