Connector Locations

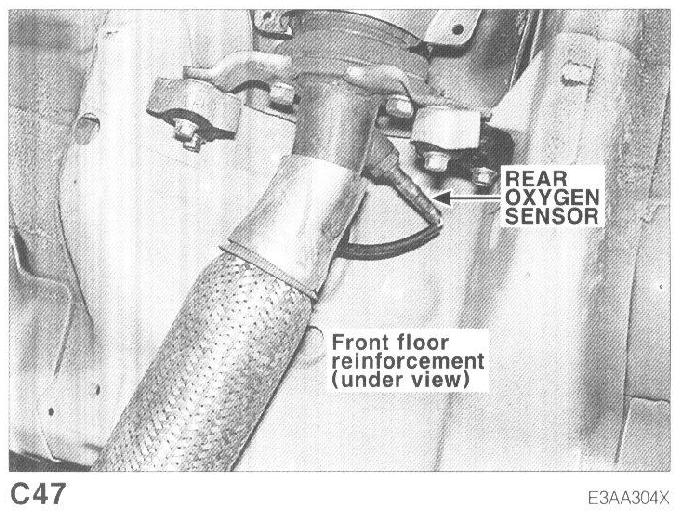

C47 Rear Oxygen Sensor:

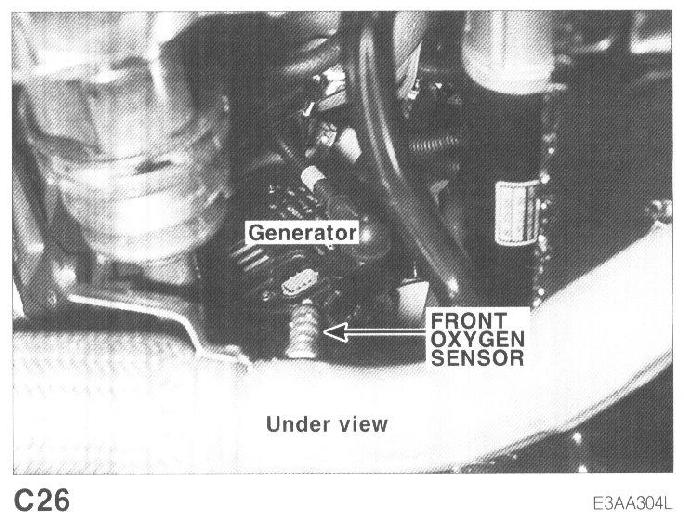

C26 Front Oxygen Sensor:

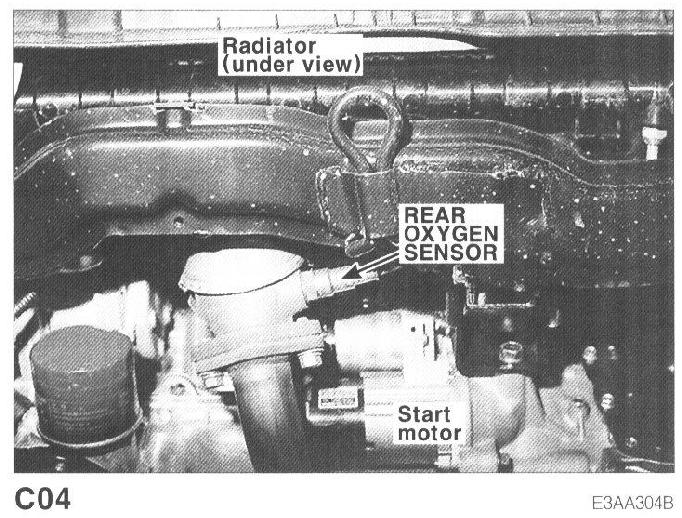

C04 Rear Oxygen Sensor:

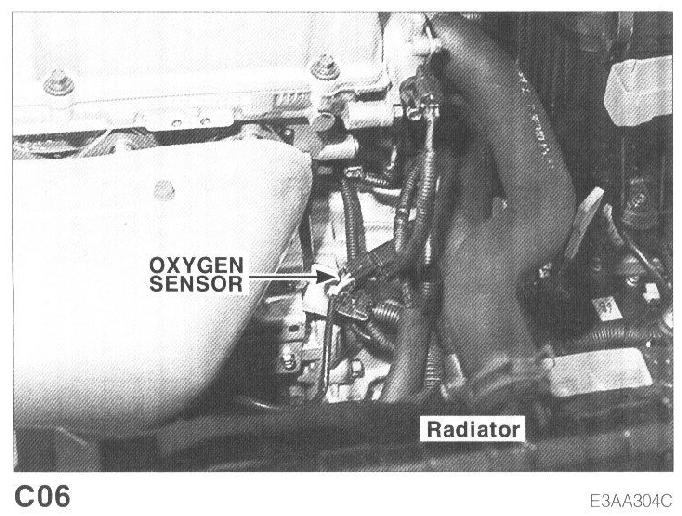

C06 Oxygen Sensor:
