Automatic Transaxle System Troubleshooting
>>
Troubleshooting (A/T)
>>
Element In Use At Each Position Of Selector Lever
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Element In Use At Each Position Of Selector Lever

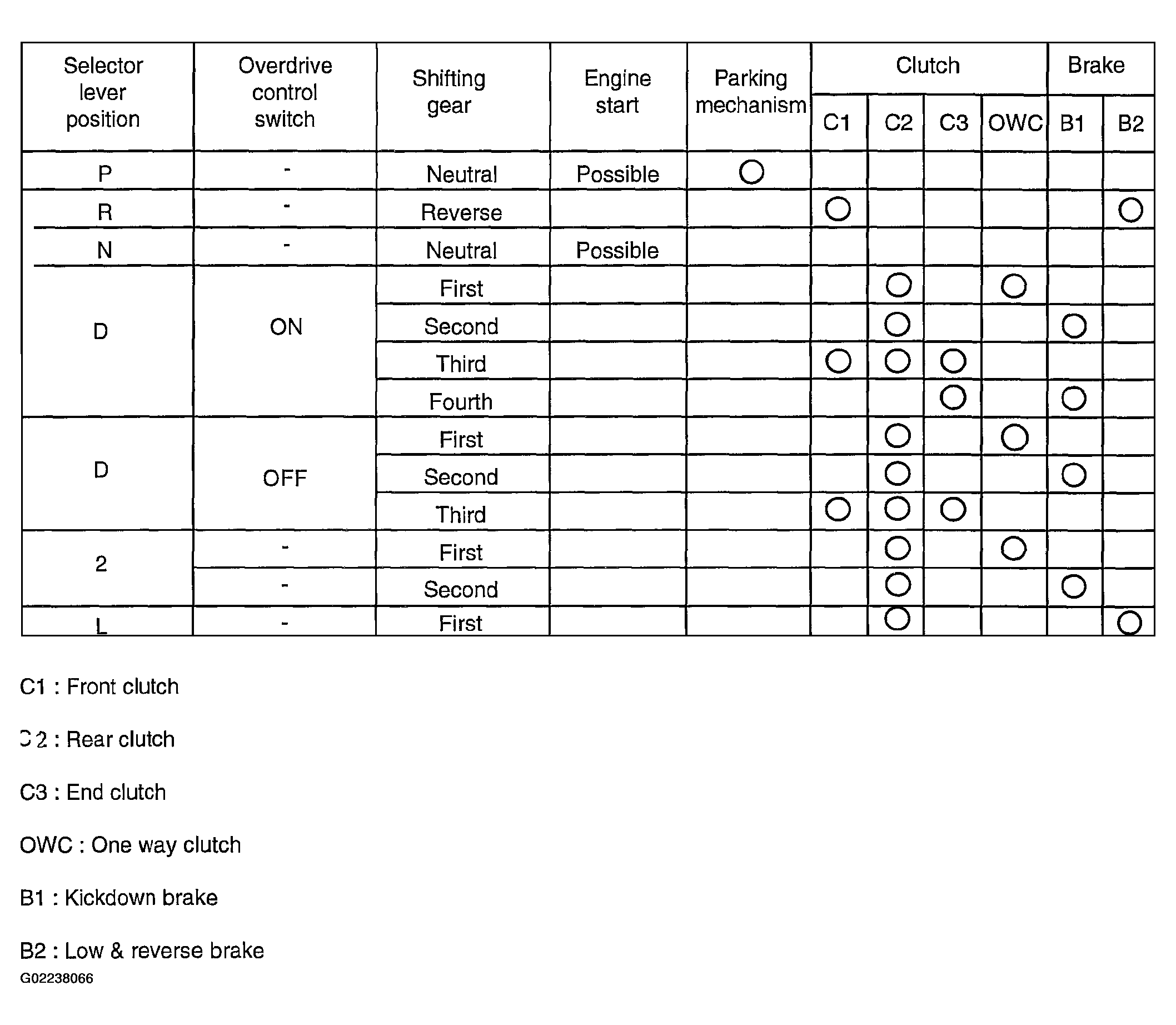

Fig 1: Element In Use At Each Position Of Selector Lever Table
