Troubleshooting Guide

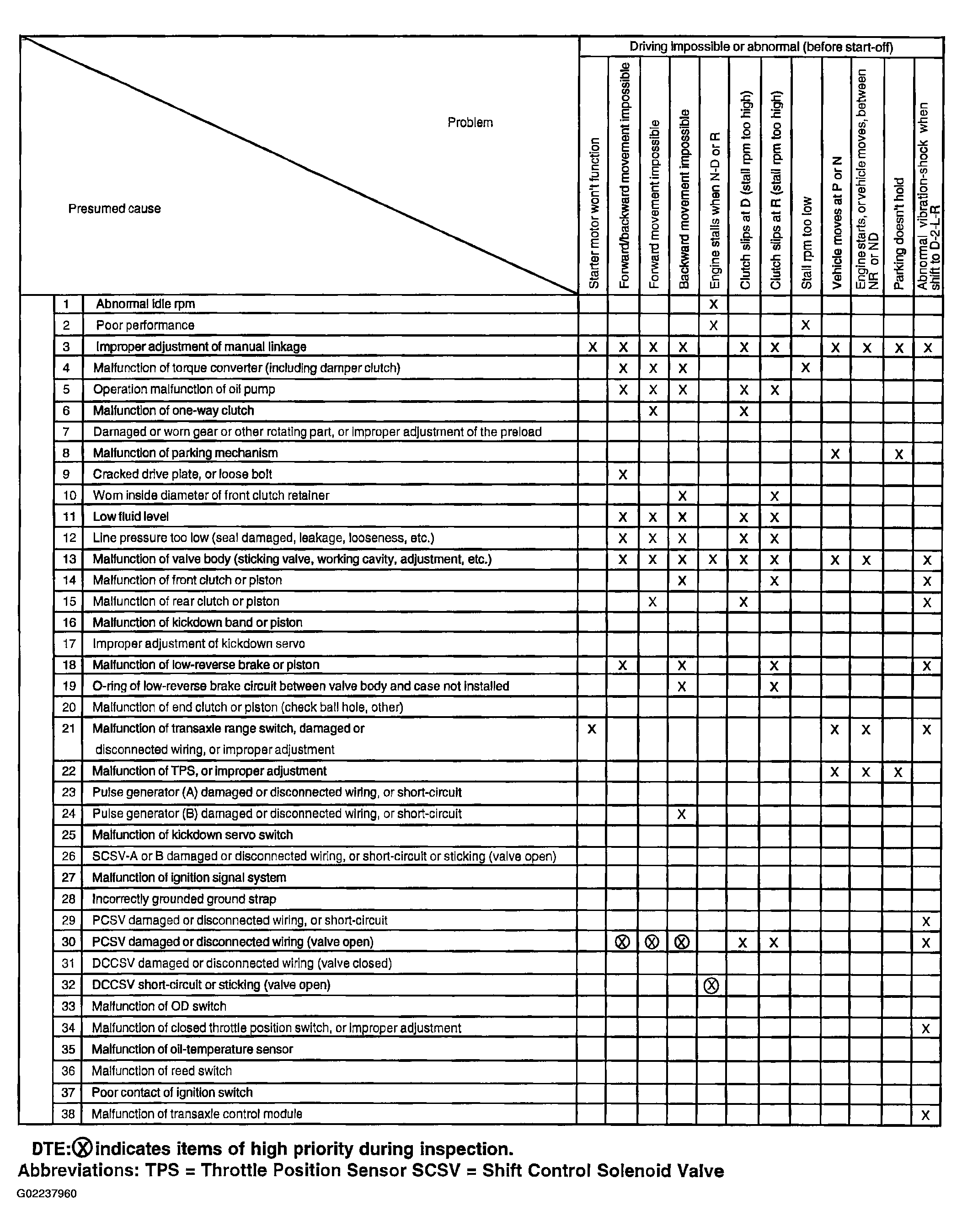

Fig 1: Troubleshooting Guide (1 Of 2)

G02237960

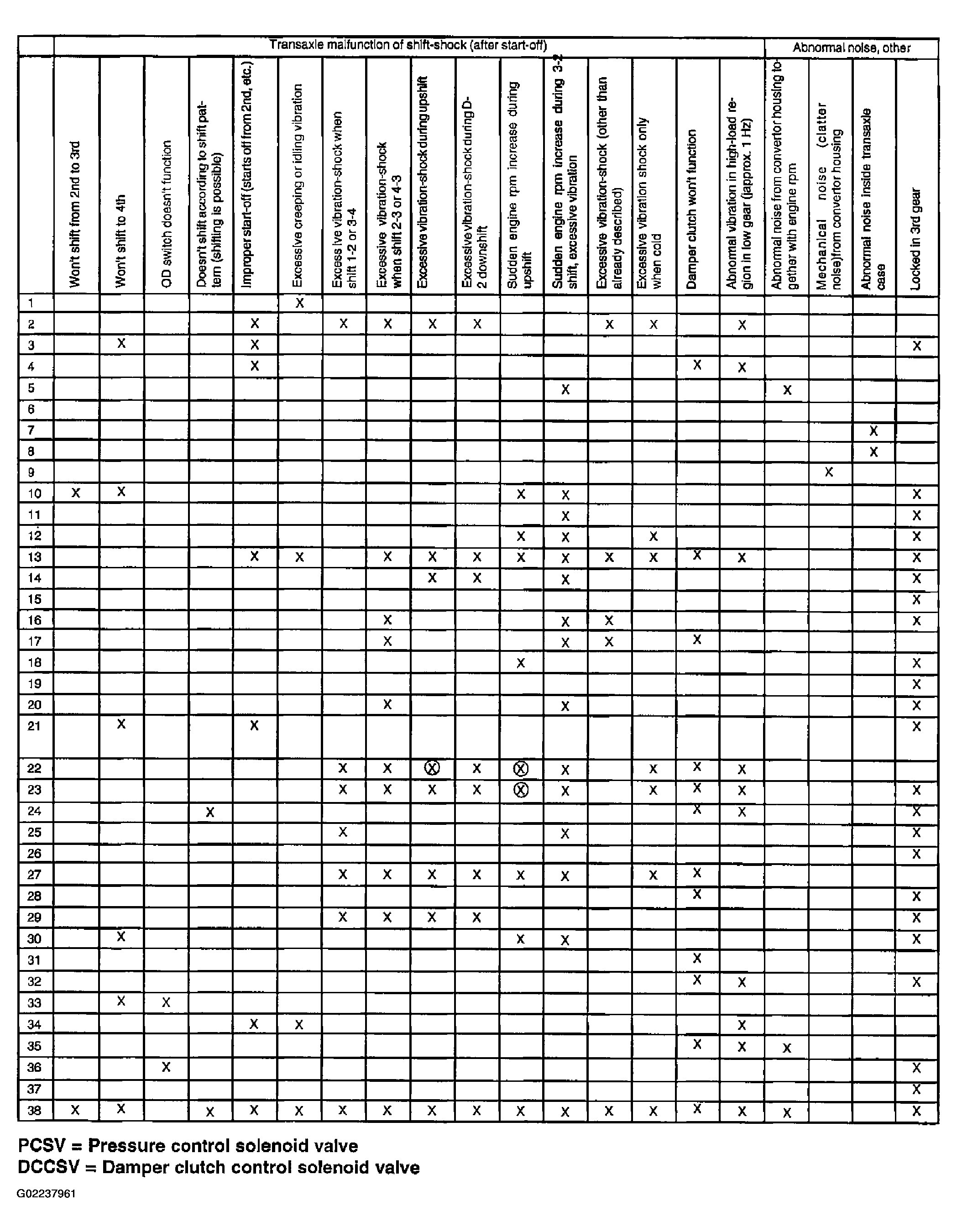

Fig 2: Troubleshooting Guide (2 Of 2)

G02237961
