Inspection Of Electronic Control System Components

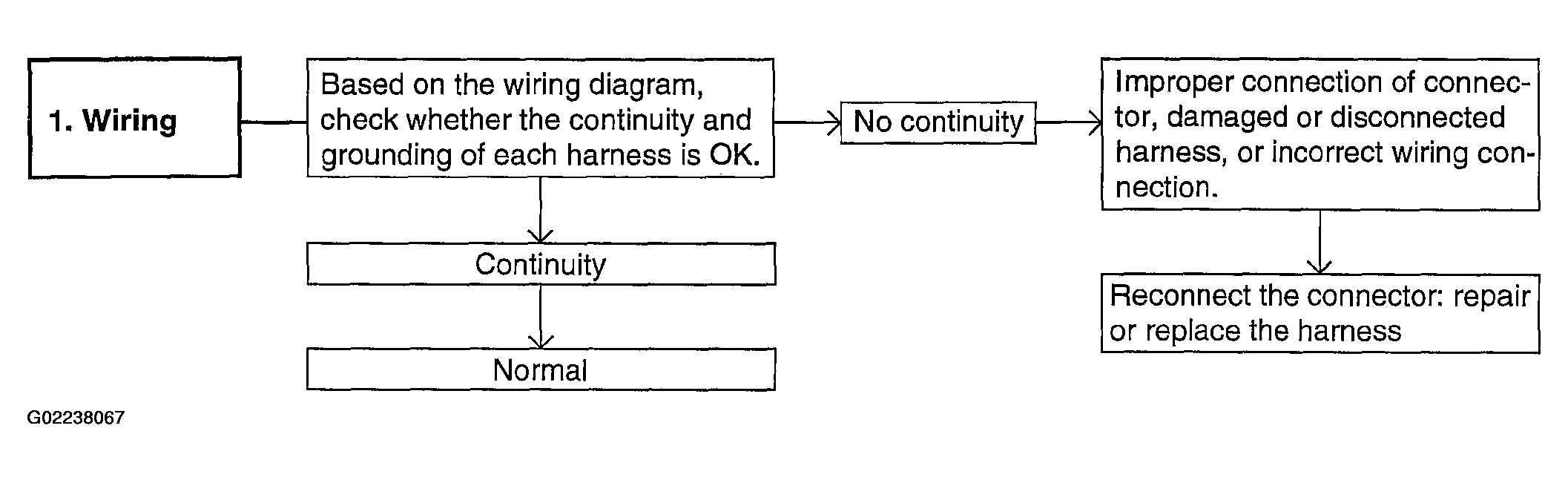

Fig 1: Wiring

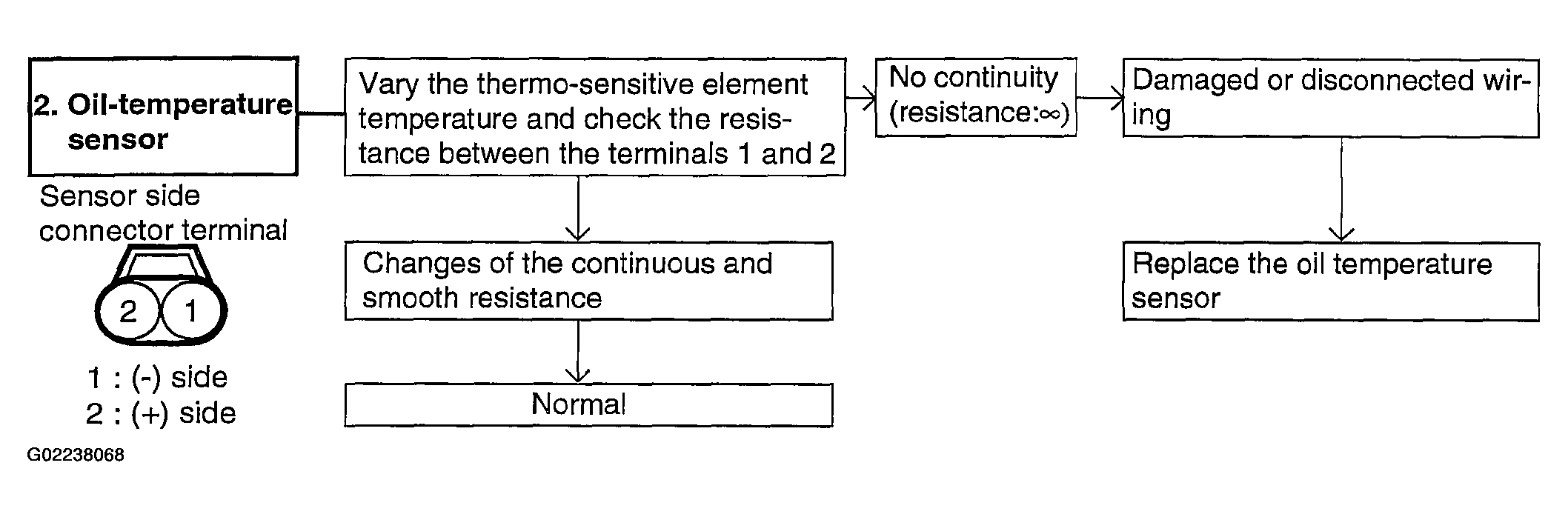

Fig 2: Oil Temperature Sensor

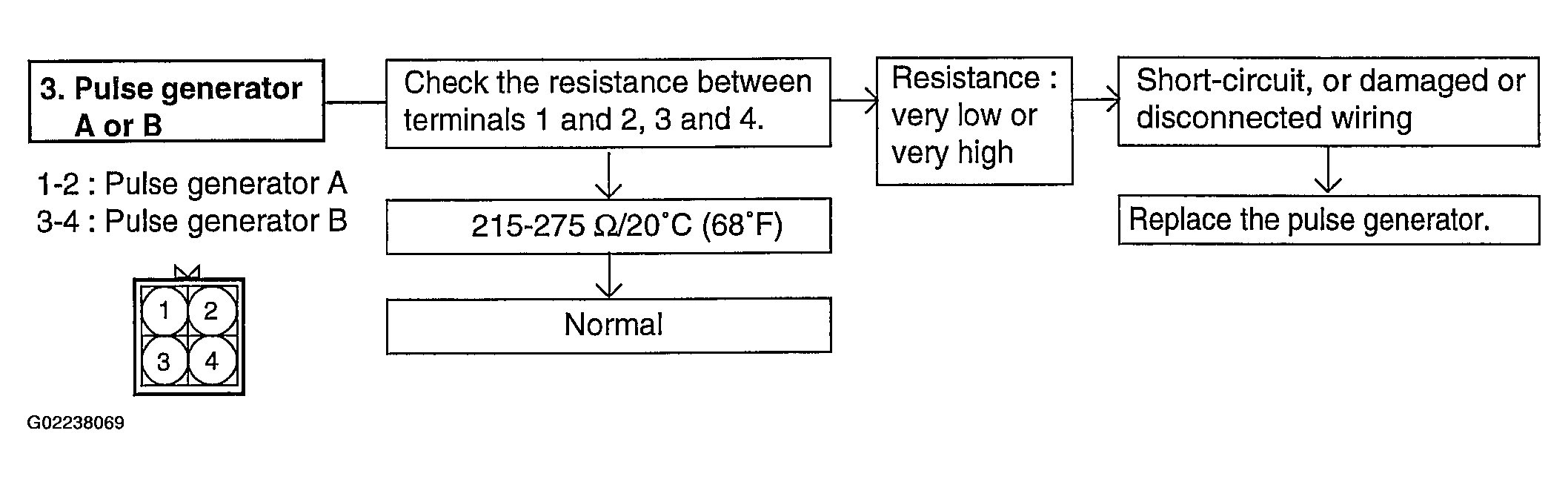

Fig 3: Pulse Generator A Or B

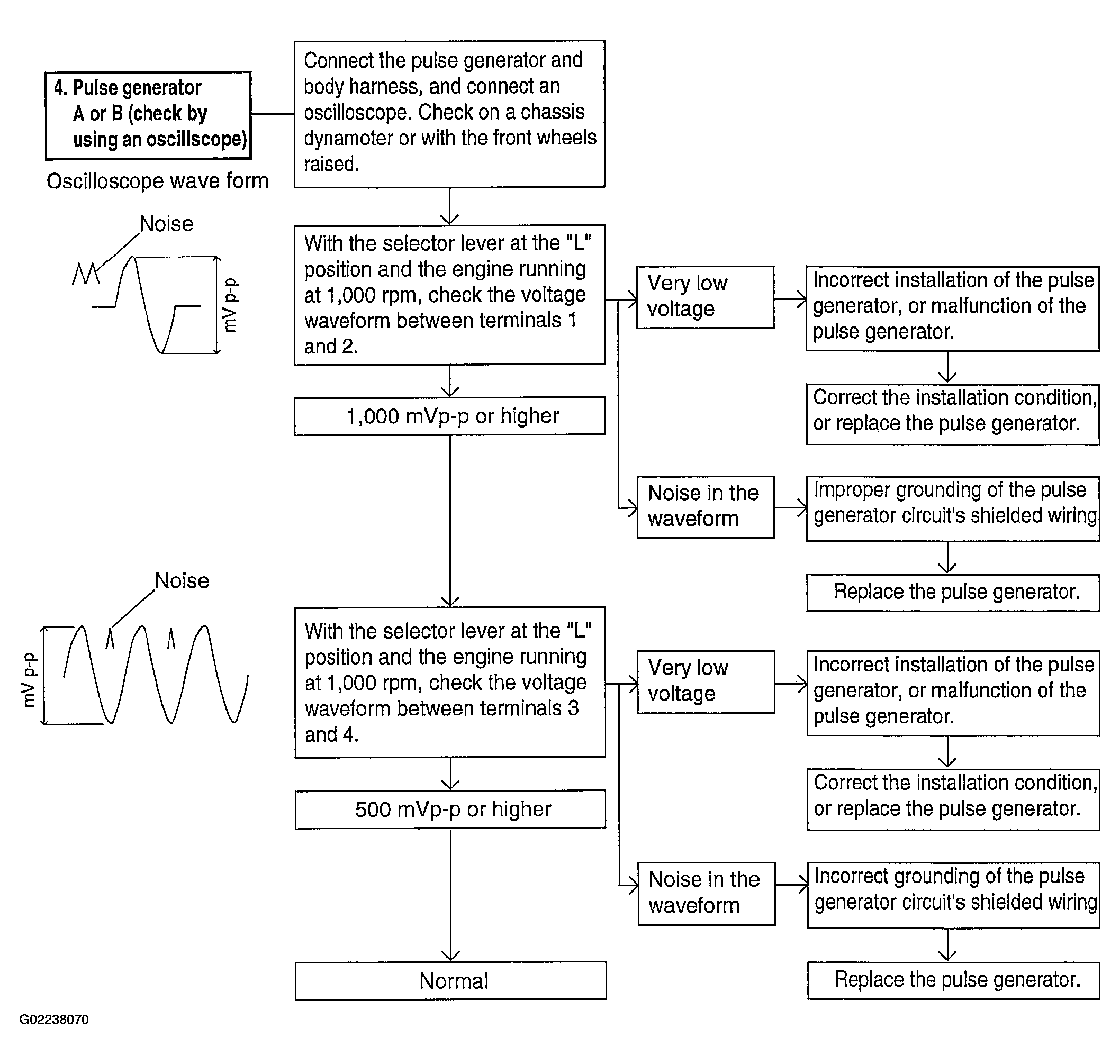

Fig 4: Pulse Generator A Or B (Check By Using An Oscilloscope)

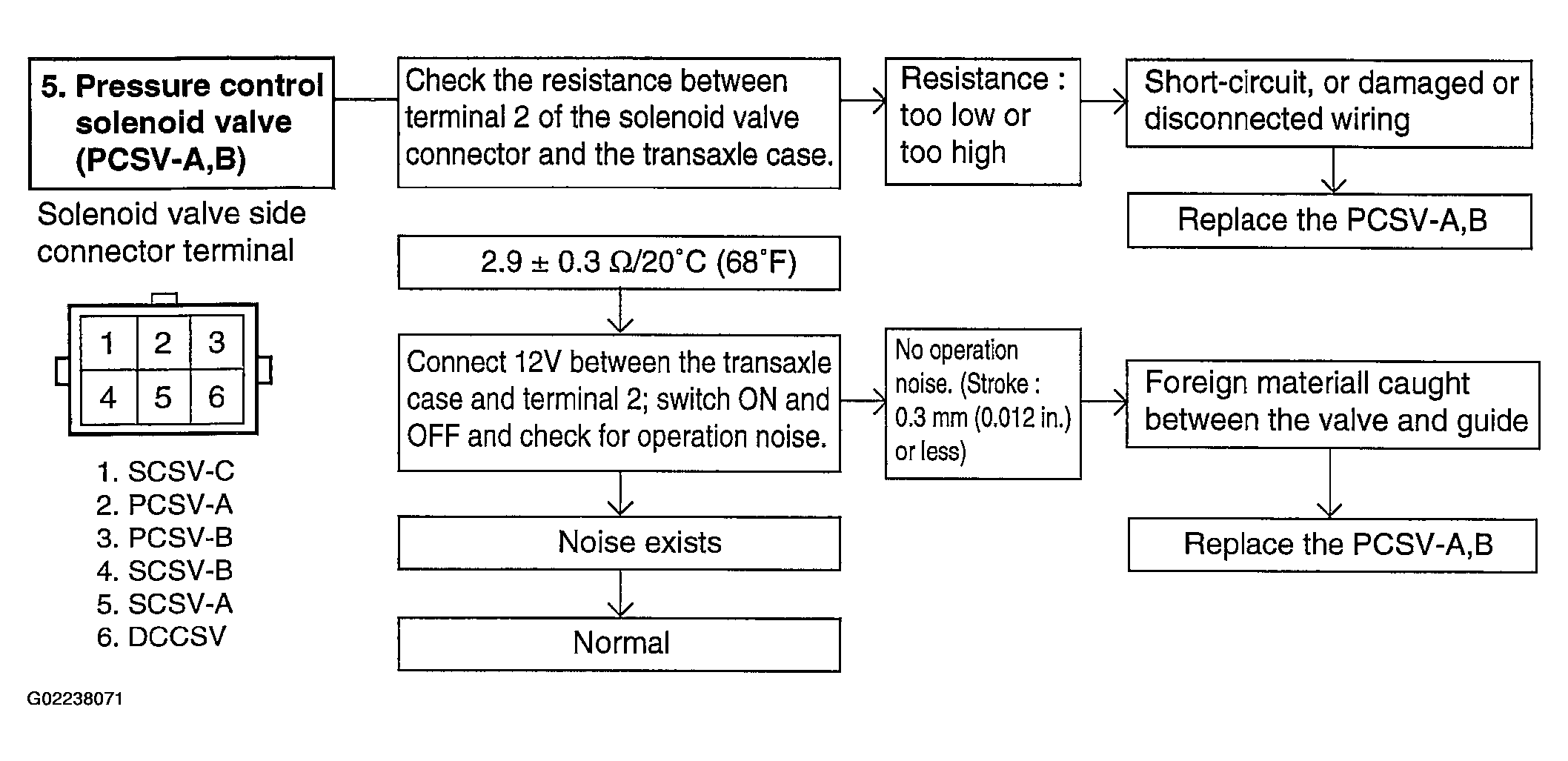

Fig 5: Pressure Control Solenoid Valve (PCSV-A,B)

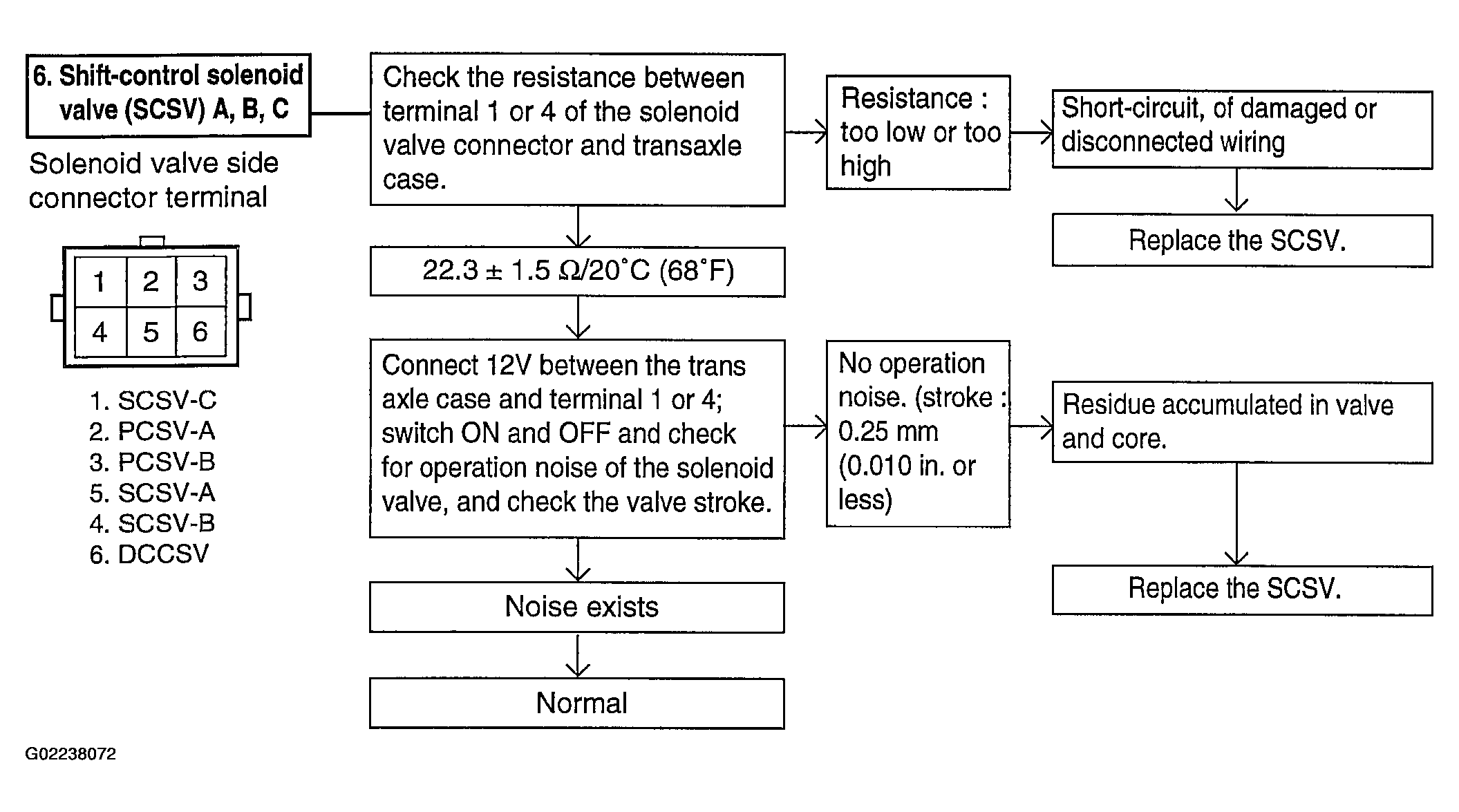

Fig 6: Shift Control Solenoid Valve (SCSV-A,B,C)

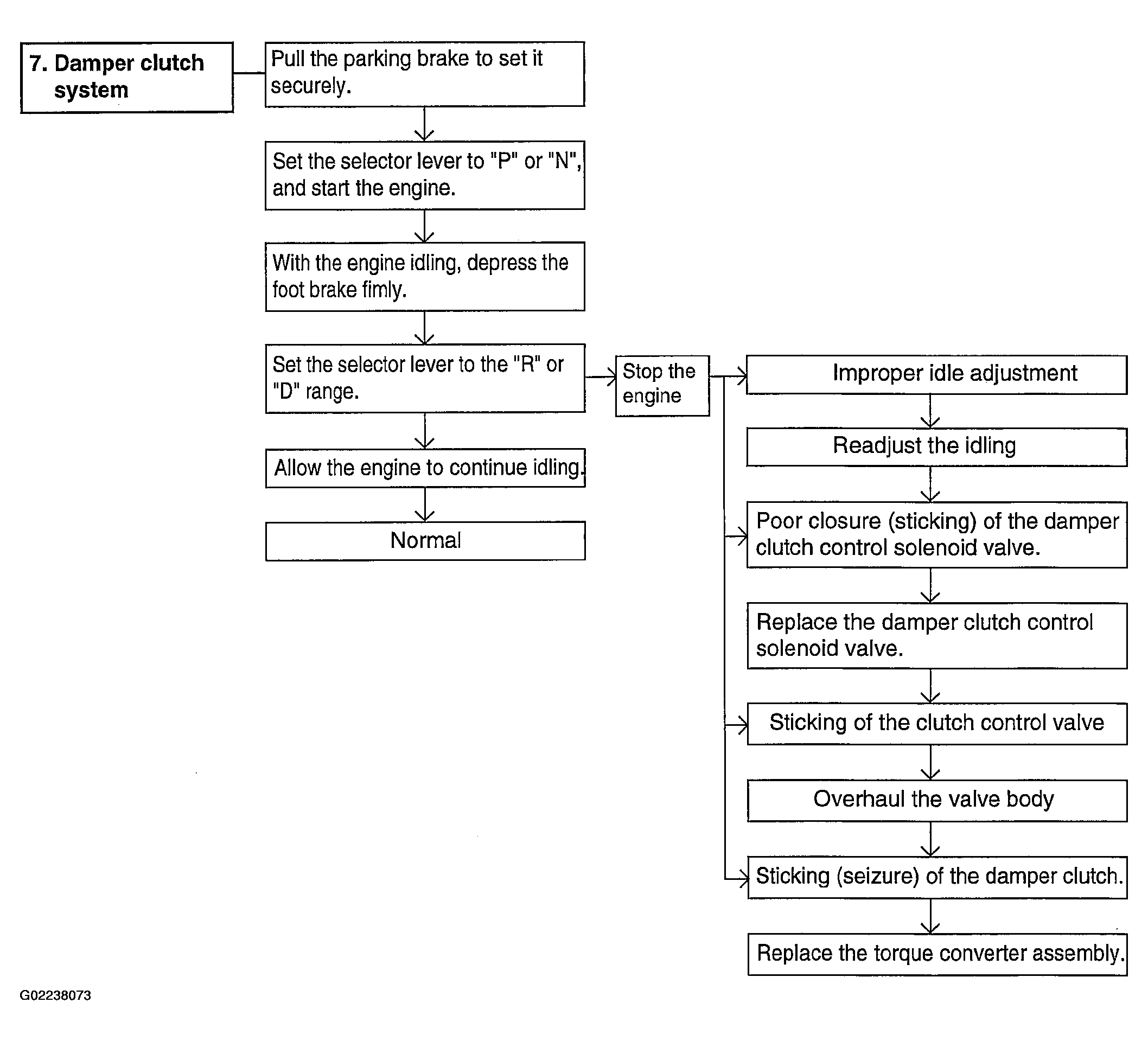

Fig 7: Damper Clutch System

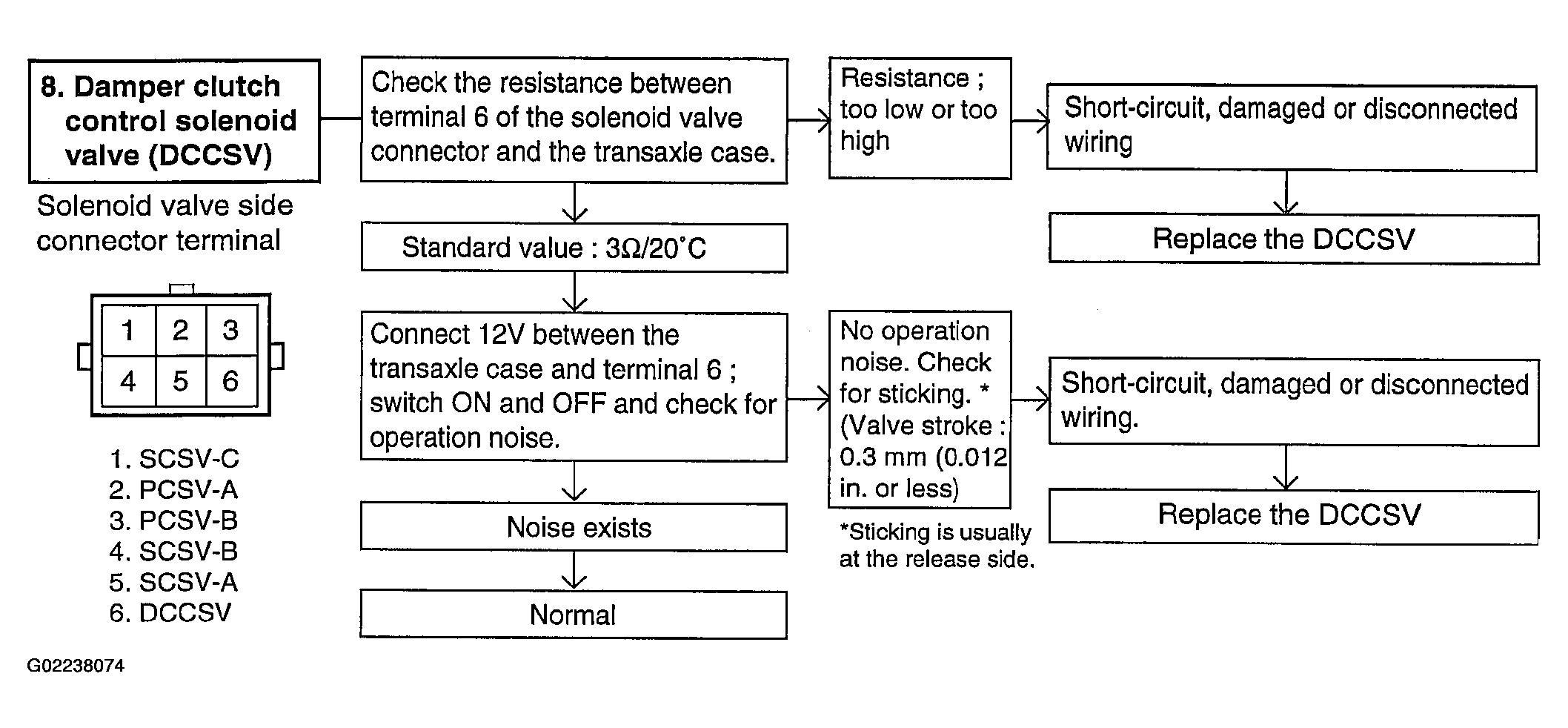

Fig 8: Damper Clutch Control Solenoid Valve (DCCSV)

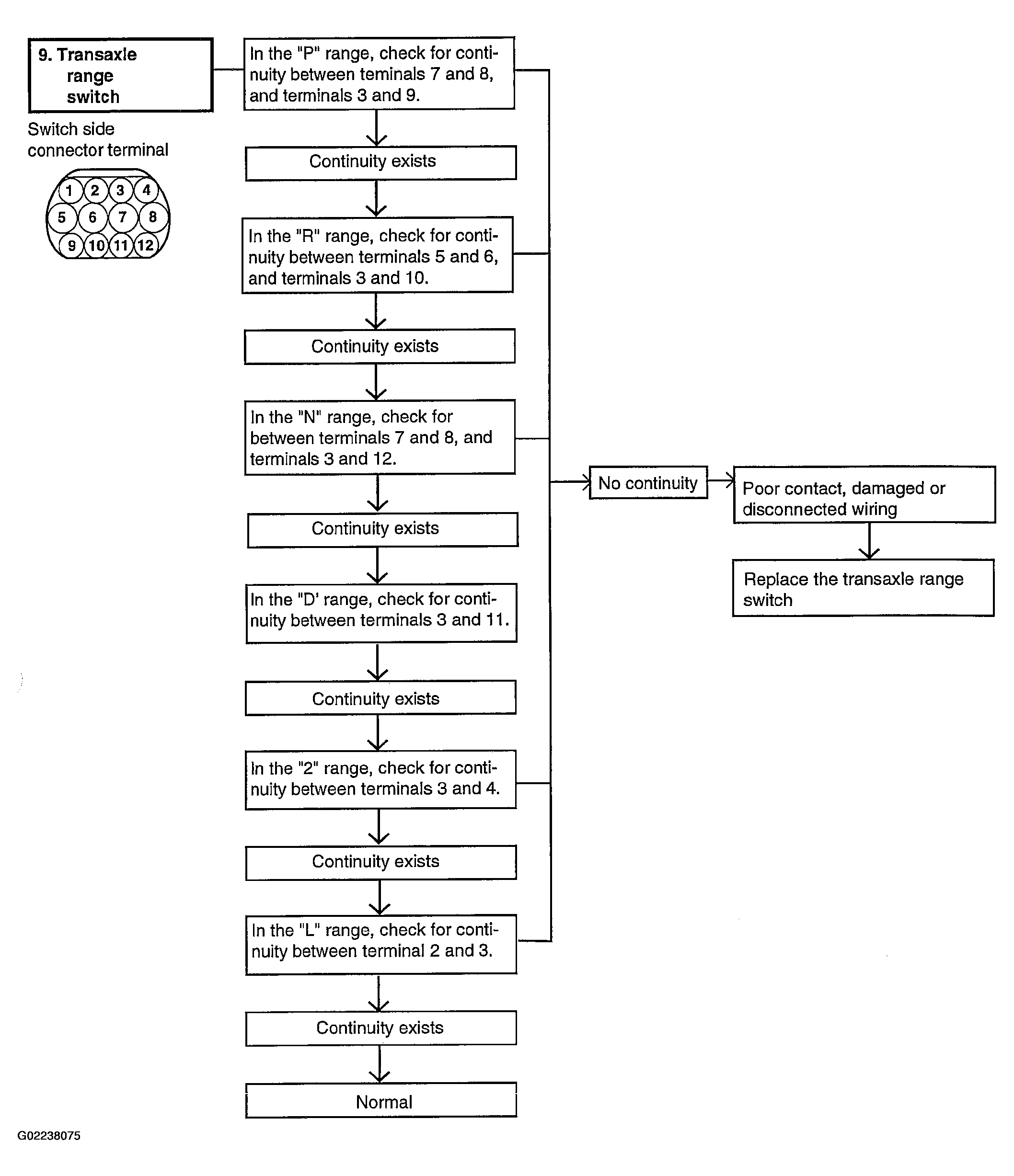

Fig 9: Transaxle Range Switch

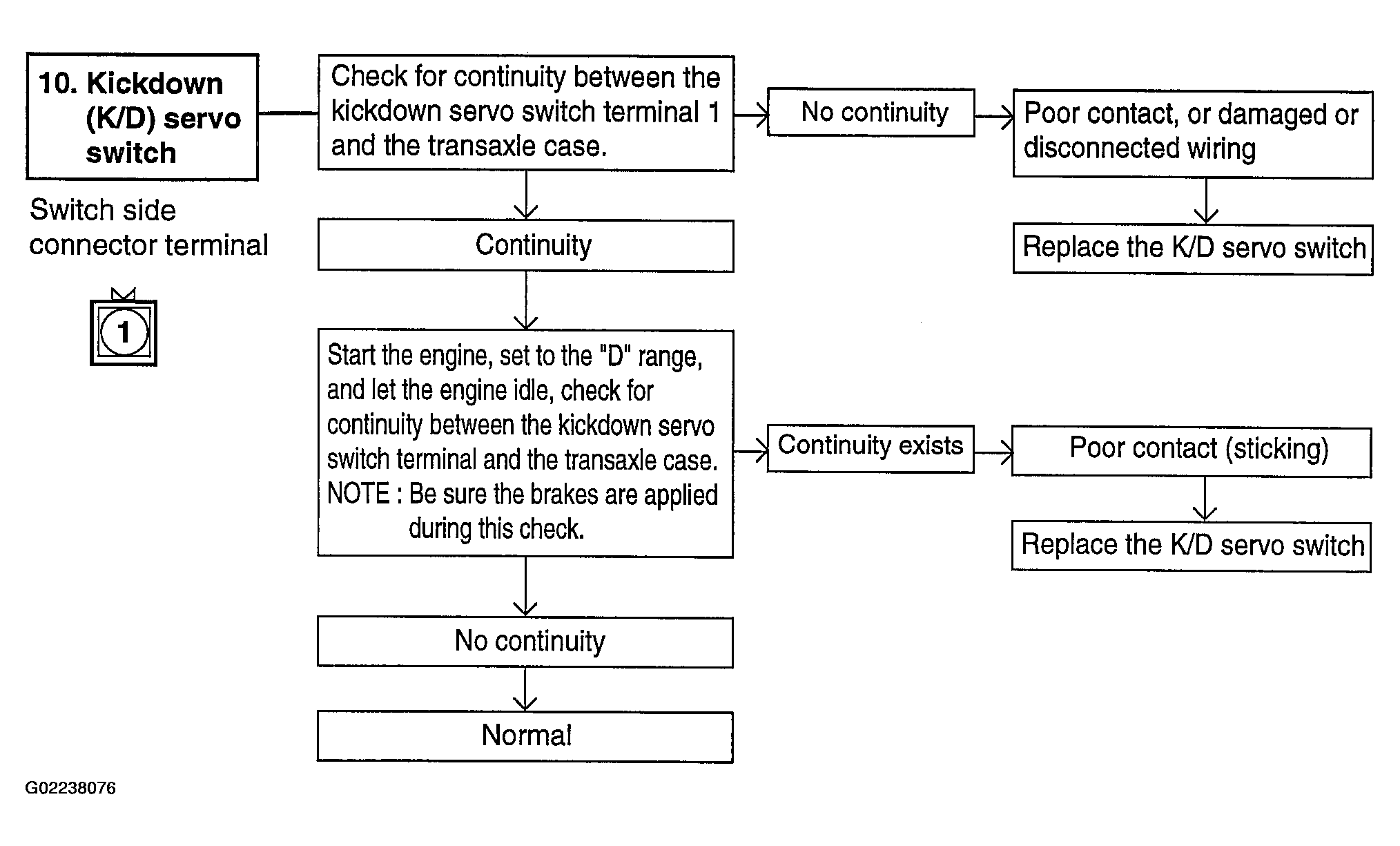

Fig 10: Kickdown Servo Switch

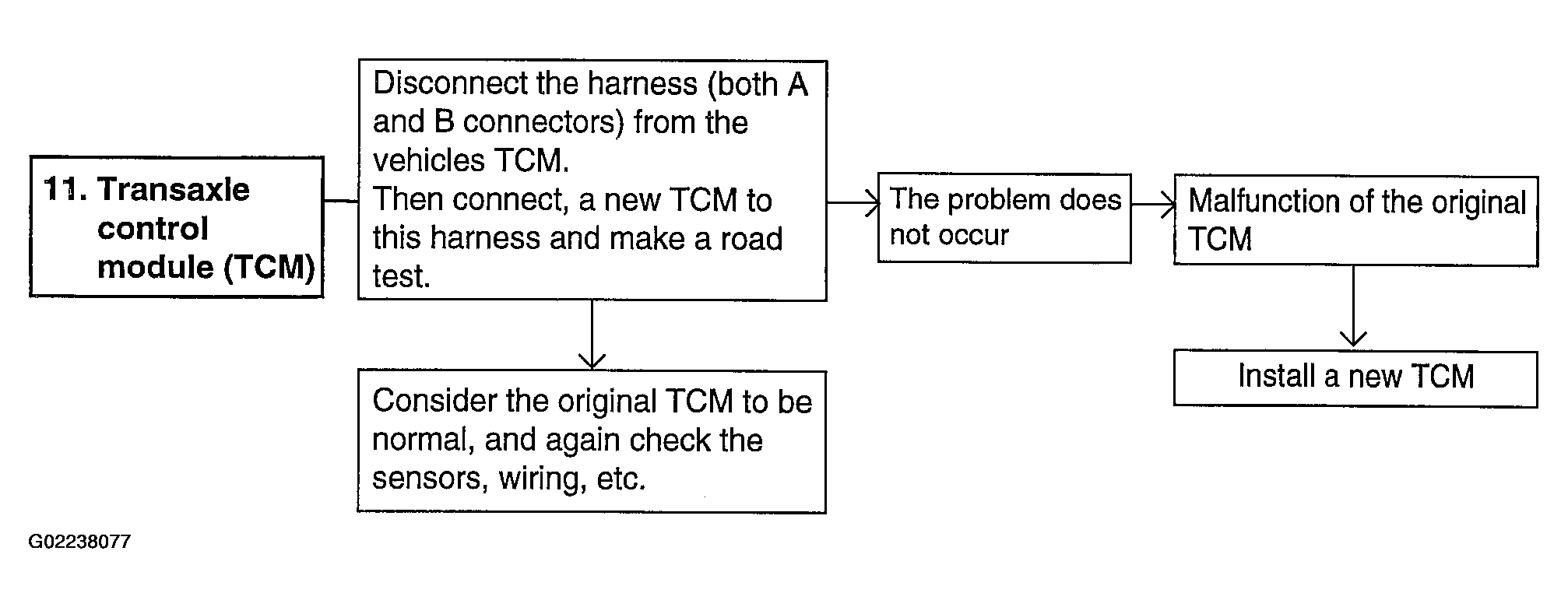

Fig 11: Transaxle Control Module
