Automatic Transaxle System Troubleshooting
>>
Troubleshooting (A/T)
>>
Troubleshooting Flow Chart
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Troubleshooting Flow Chart

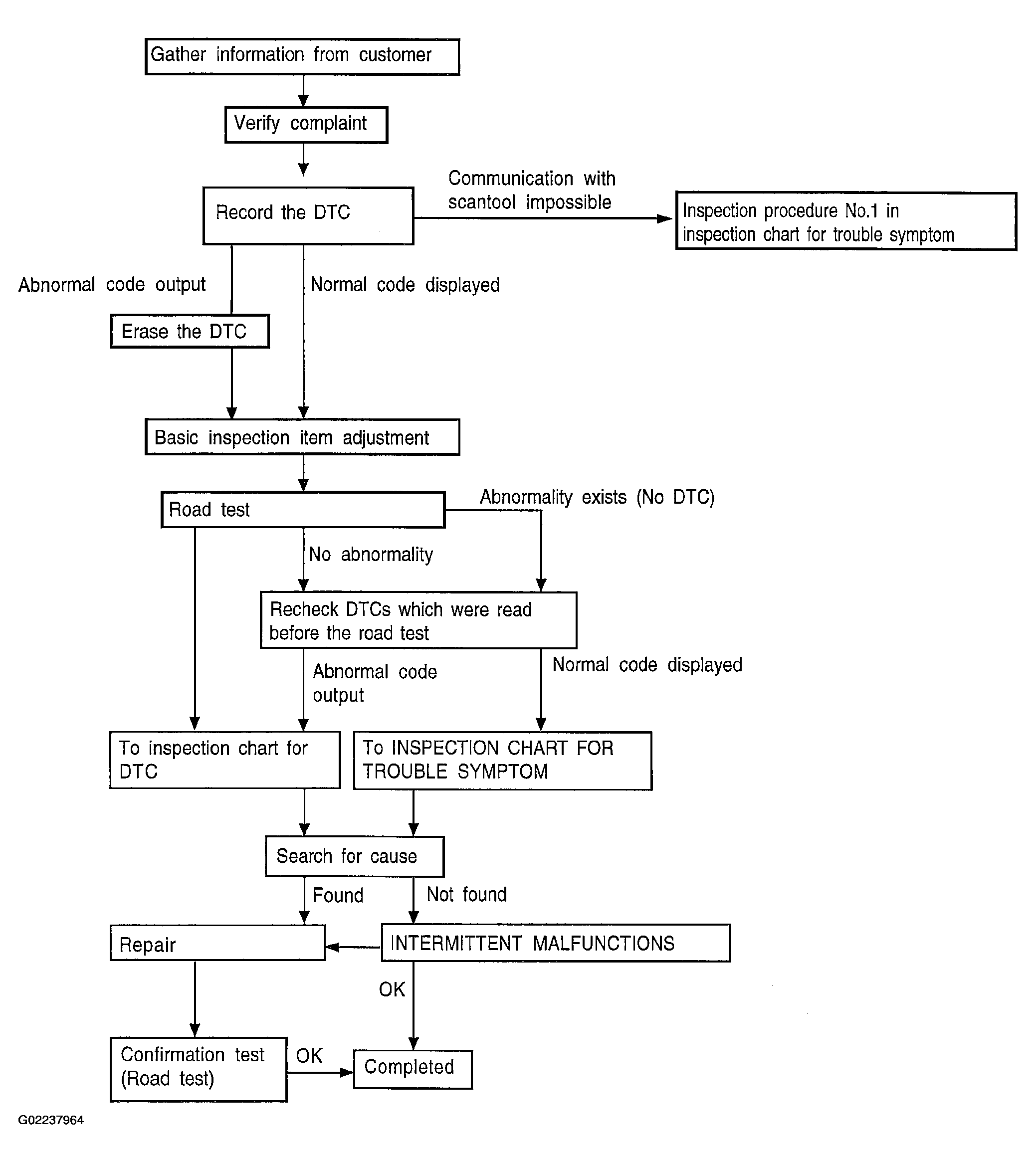

Fig 1: Troubleshooting Flow Chart
