Engine Mounting

REMOVAL





Attach an engine hoist to the engine hooks, and raise just enough so that there is no pressure on the insulators.

Engine Mounting





1. Remove the engine mount insulator bolts.
2. Remove the engine mount bracket from the engine.

Transaxle Mounting
1. For vehicles with a 5-speed manual transaxle, remove the select control valve.





2. Remove the transaxle mount bolt.





3. Detach the cap from the inside of the right fender shield, remove the transaxle mounting bolts.
4. Remove the transaxle mounting bracket.

Front Roll Stopper





Remove the front roll stopper bracket from the center member.

Rear Roll Stopper





Remove the rear roll stopper from the center member.

Center member
1. Remove the under cover.
2. Remove the front roll stopper mounting bolts.
3. Remove the rear roll stopper mounting bolts.





4. Remove the center member from the body.

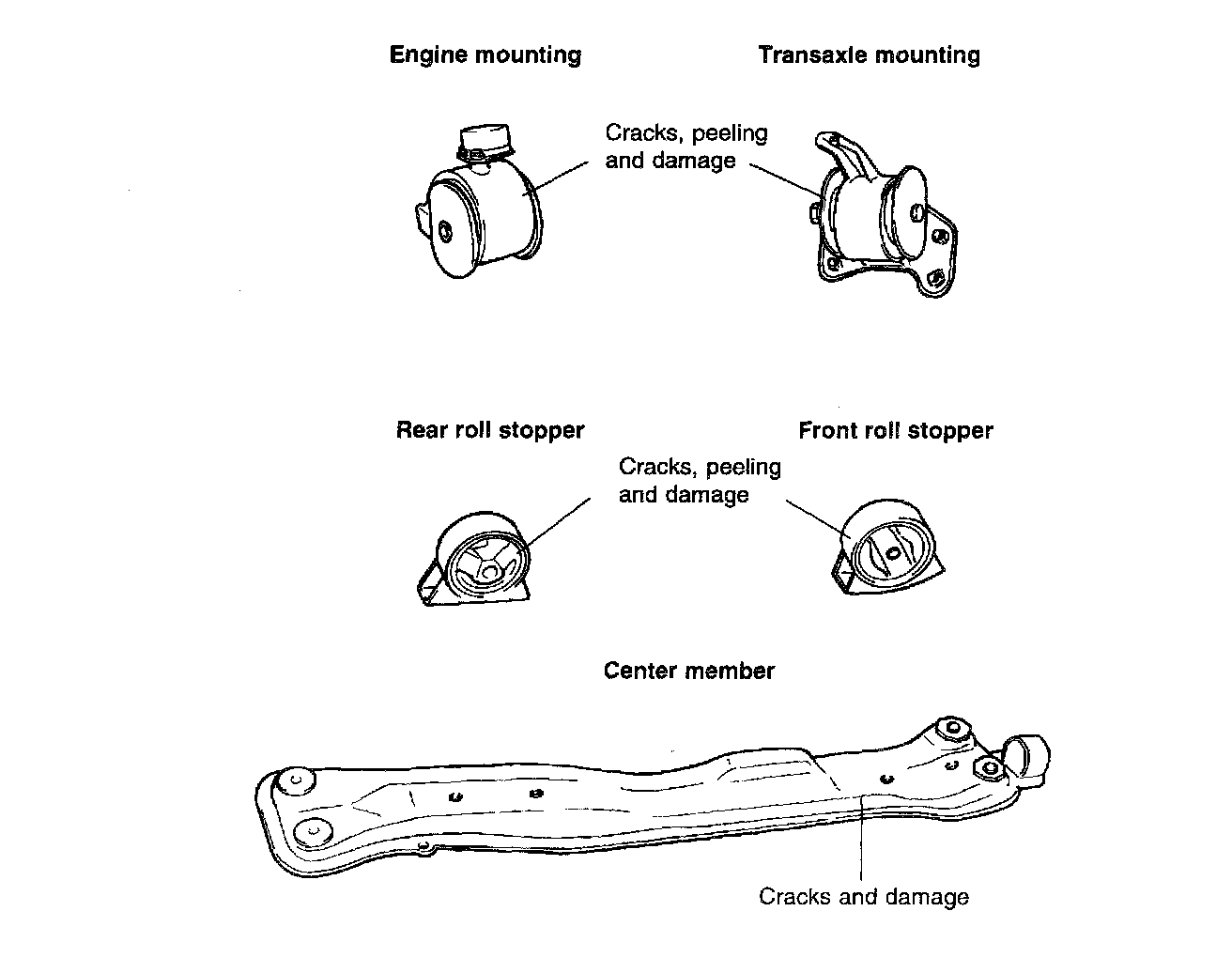

INSPECTION ITEMS
