ECM Reprogramming To Improve Acceleration After An Initial Cold Start (03-36-013)

Publication date: 2003-06-01
Reference number: 03-36-013

ECM REPROGRAMMING TO IMPROVE ACCELERATION AFTER AN INITIAL COLD START

ECM REPROGRAMMING TO IMPROVE ACCELERATION AFTER AN INITIAL COLD START

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-36-013, Date of Issue:  June, 2003
HYUNDAI: 2001 XG300
GROUP: 36 - Engine Electrical

DESCRIPTION

Some 2001 XG300 vehicles may experience the following symptoms:

This bulletin describes the procedure for updating the ECM software with new logic to improve the above condition by using the Hi-Scan Pro.

VEHICLES AFFECTED

ECM SPECIFICATION TABLE

ECM SPECIFICATION

Model ECM P/N (Powertrain Control Module) Previous ROM ID New ROM ID
XG300 39110-39011 EH8000F0; EH8000F1; EH8000F2; EH8000F3; EH8000F4 EH8000F5

CAUTIONS BEFORE REPROGRAMMING

  1. Conduct reprogramming with the ignition key in the "ON" position.
  2. Be careful not to disconnect any cables connected to the vehicle or Hi-Scan Pro during reprogramming.
    WARNING: If reprogramming is interrupted, the manual update procedure must be used.
  3. Do not start the engine during reprogramming.
  4. Do not turn the ignition key off during reprogramming.

ECM REPROGRAMMING PROCEDURE

NOTE: Verify that the vehicle is affected by identifying the vehicle production date.

AUTOMATIC UPDATE PROCEDURE

  1. Remove the Data Link Connector (DLC) cable from the Hi-Scan Pro (Fig 1 ) and attach the reprogramming adapter.

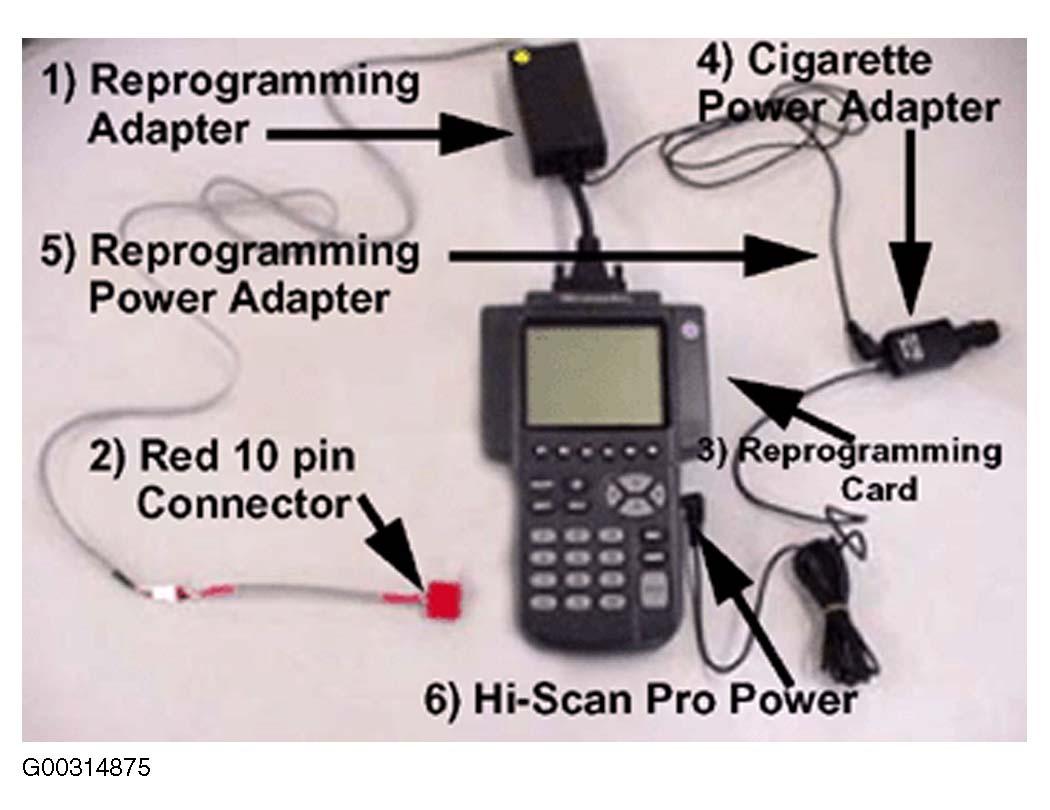

    Fig 1: Hi-Scan Pro
    G00314875
  2. Connect the red 10-pin adapter to the reprogramming adapter.
  3. Remove the current software card from the Hi-Scan Pro and insert the reprogramming software pack card into the Hi-Scan Pro.
  4. Insert the Hi-Scan Pro cigarette power adapter. (Fig 2 )

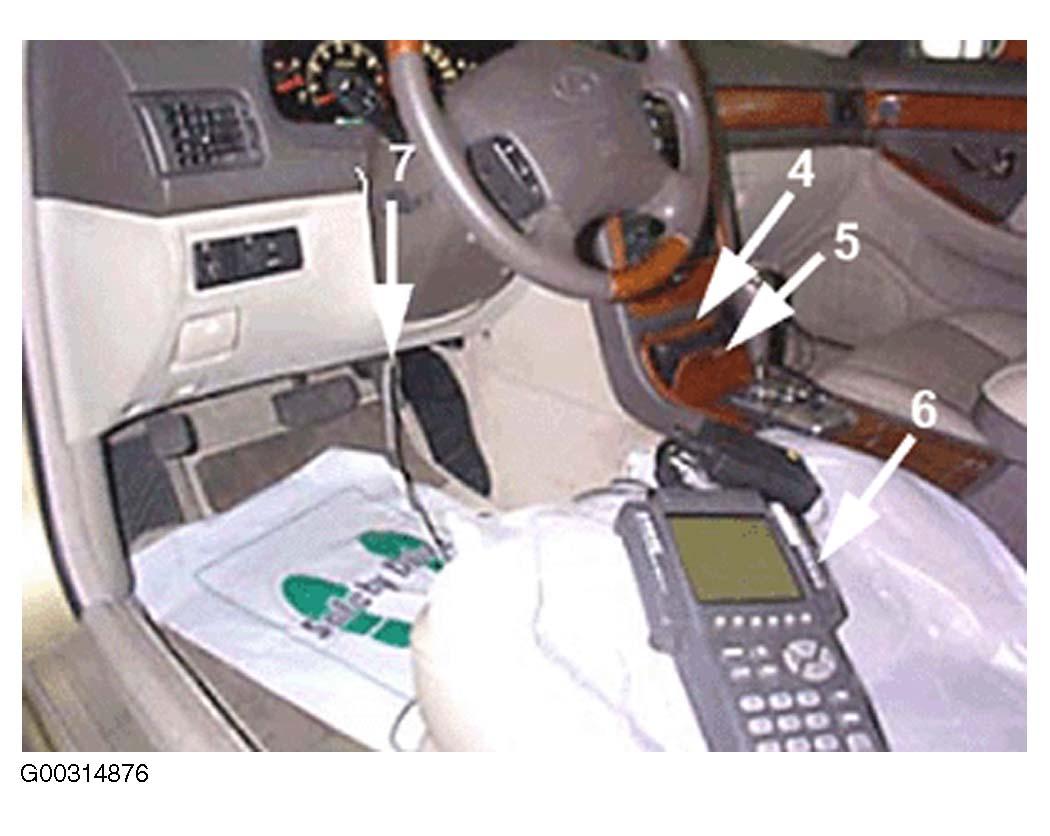

    Fig 2: Hi-Scan Pro Power
    G00314876
  5. Plug the power connector from the reprogramming adapter into the cigarette adapter. (Fig 2 )
  6. Plug the power connector from the cigarette adapter into the Hi-Scan Pro. (Fig 2 )
  7. Connect the red 10 pin connector from the reprogramming adapter into the white connector next to the DLC located under the driver's side instrument panel.
  8. Turn the ignition to the ON position.
  9. Turn the Hi-Scan Pro ON and press ENTER.
  10. Select option "28. XG 300 COLD STUMBLE " and press ENTER. (Fig 3 )

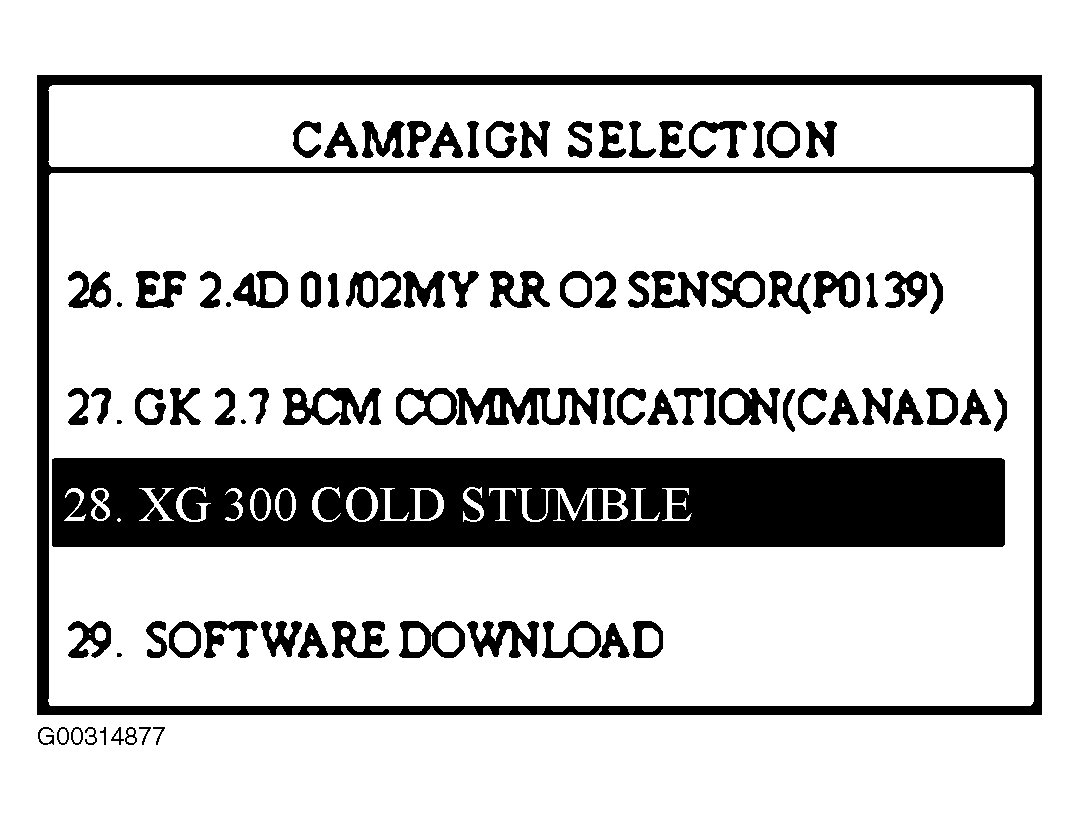

    Fig 3: Select "Cold Stumble"
    G00314877
  11. Select option "01. XG 300 COLD STUMBLE [AUTO MODE]" and press ENTER. This option automatically detects the ECM type and downloads the correct program. (Fig 4 )

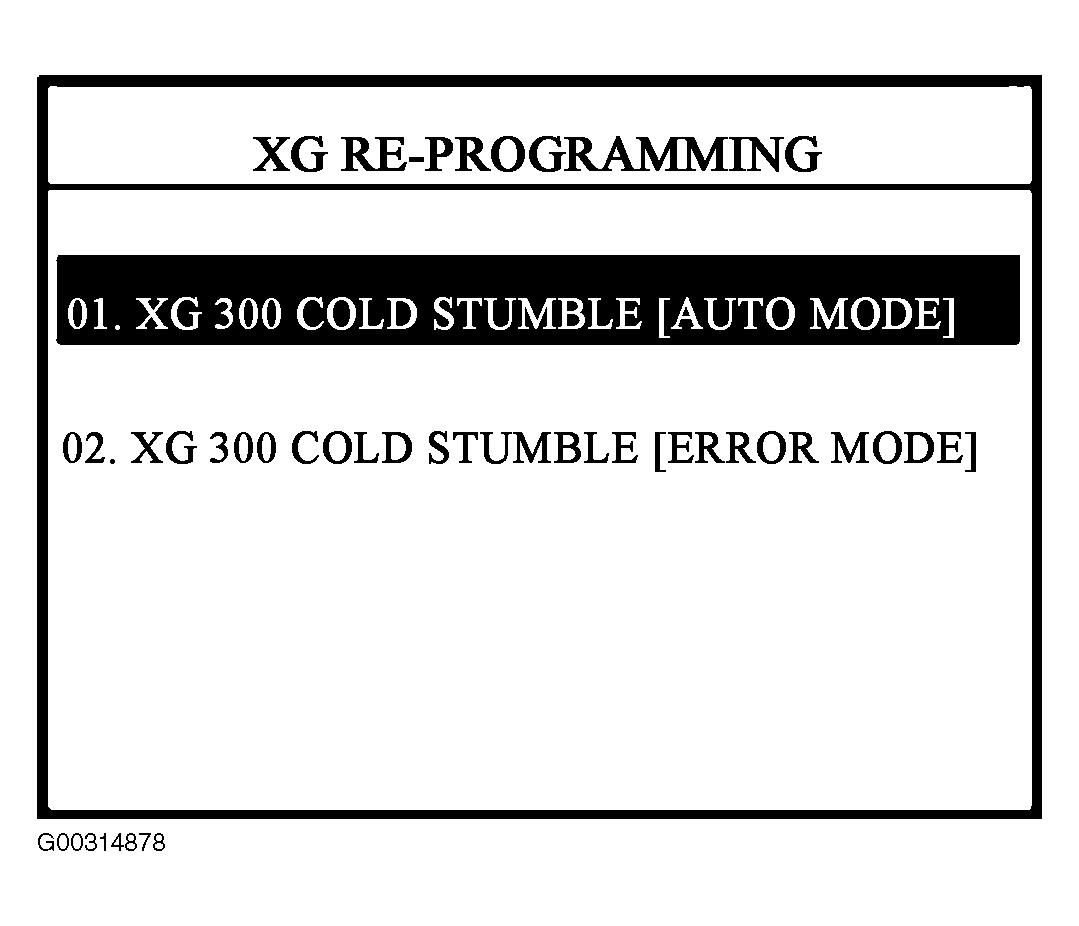

    Fig 4: Choose "Auto Mode"
    G00314878
  12. Enter "1229" as the password for the automatic update mode and press ENTER. (Fig 5 )

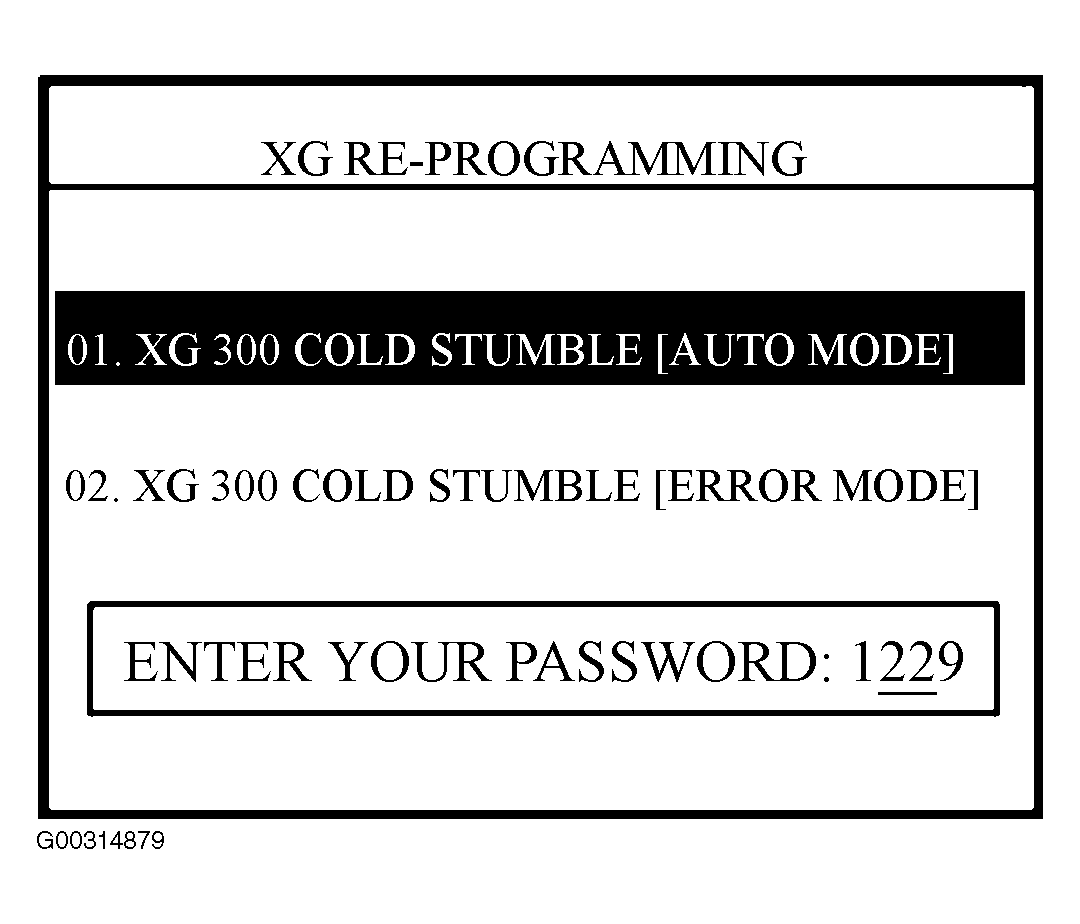

    Fig 5: Enter "1229" as Password
    G00314879
  13. The Hi-Scan Pro will establish communication and check the ECM ID. The Hi-Scan Pro will reprogram the ECM automatically.

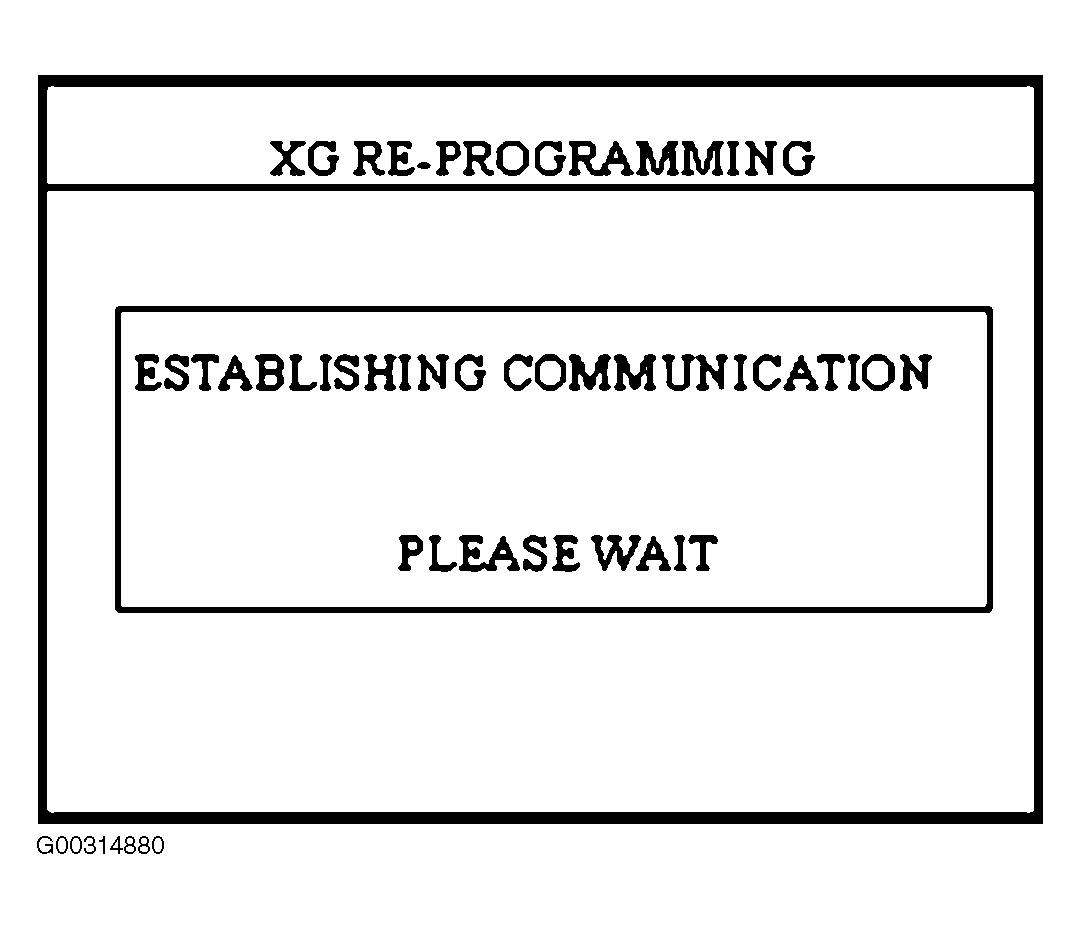

    Fig 6: Communicating
    G00314880
    NOTE: The Hi-Scan Pro detects the current ECM ID and displays it for about 1 second (Fig 7 ).
    Fig 7: ECM ID
    G00314881

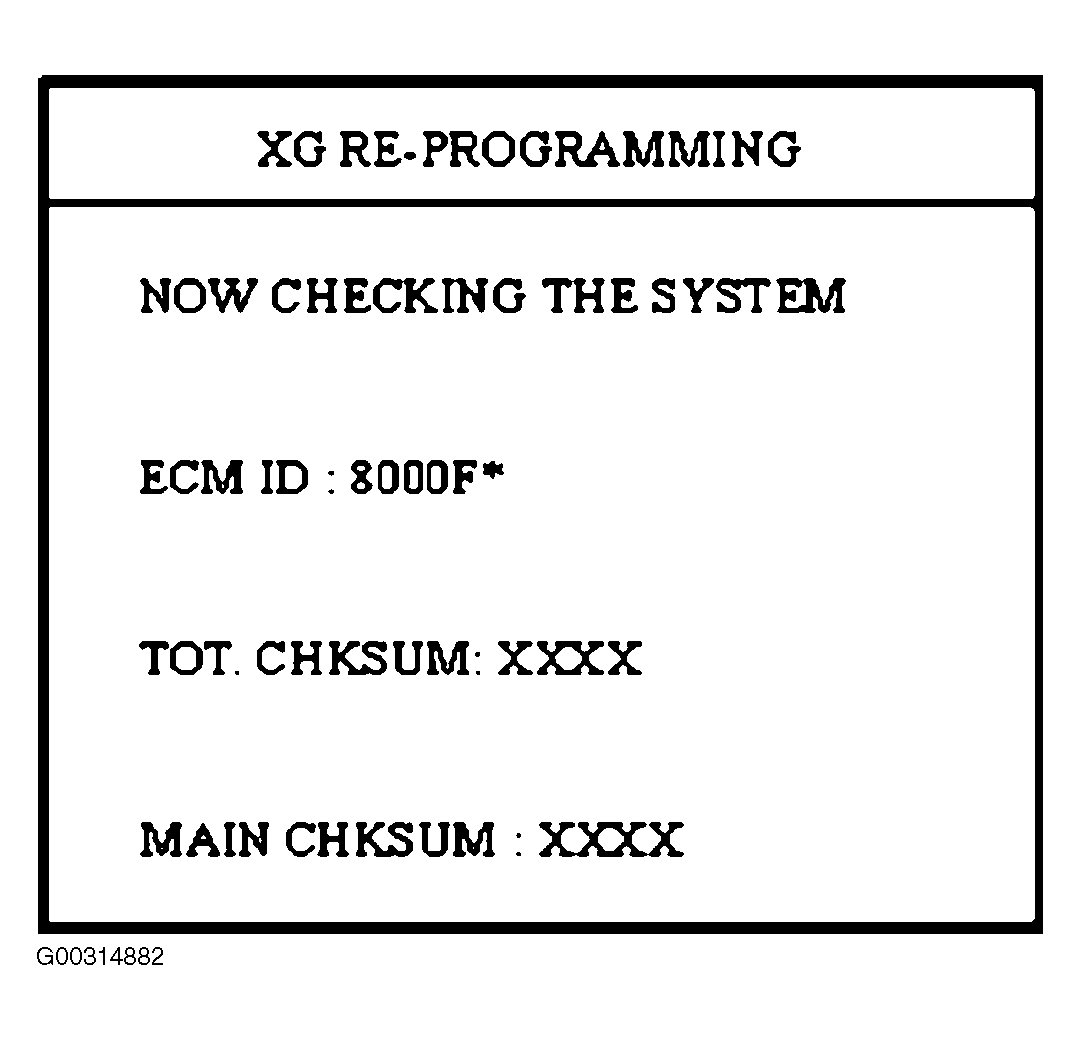

    Fig 8: Checksums
    G00314882
  14. The boot program will download first, then the main program and the interrupt vector program.

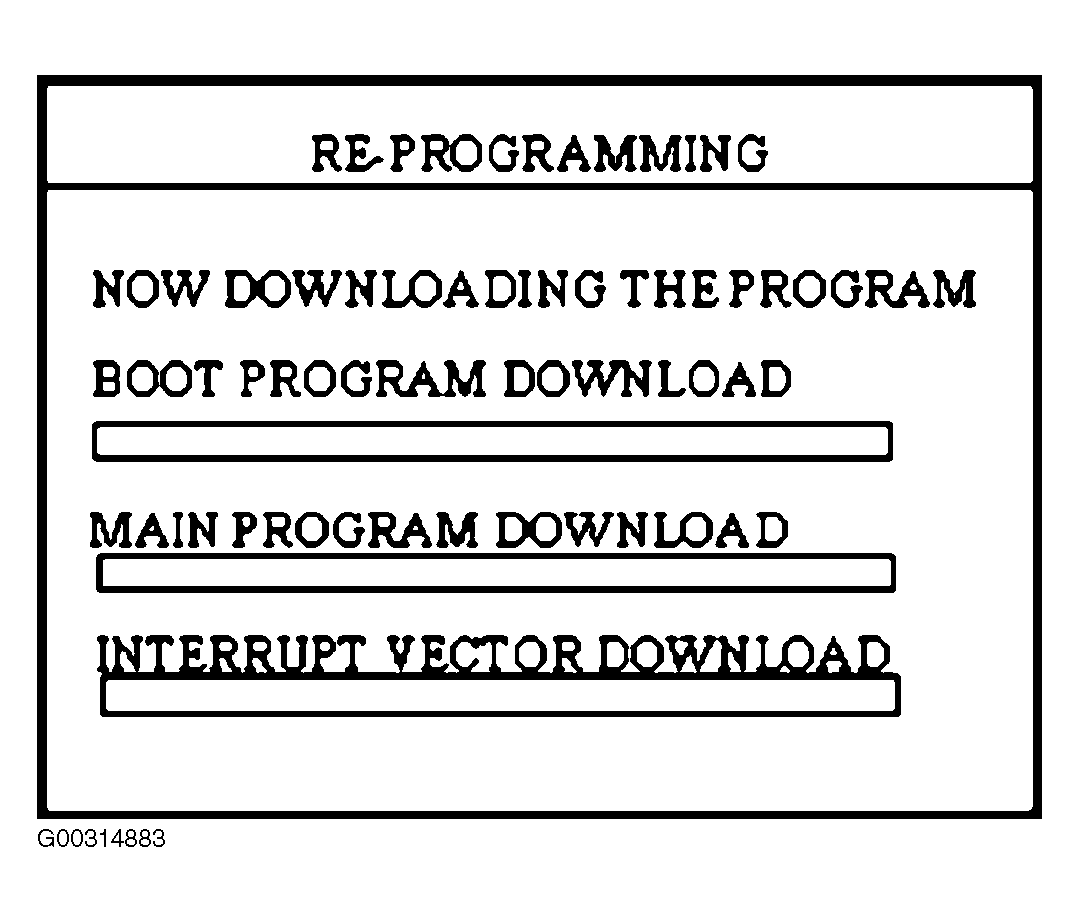

    Fig 9: Download Screen
    G00314883
    NOTE: If the Hi-Scan Pro does not automatically download the program, use the Manual Update Procedure following this section.
    WARNING: Do not interrupt the reprogramming at any time. The ECM will be rendered inoperative if the program does not download completely.
  15. The Hi-Scan Pro re-initializes the system. (Fig 10 )
    Fig 10: Re-initialization
    G00317884
  16. When the "COMPLETED" message is displayed, the ECM reprogramming process is complete. (Fig 11 )

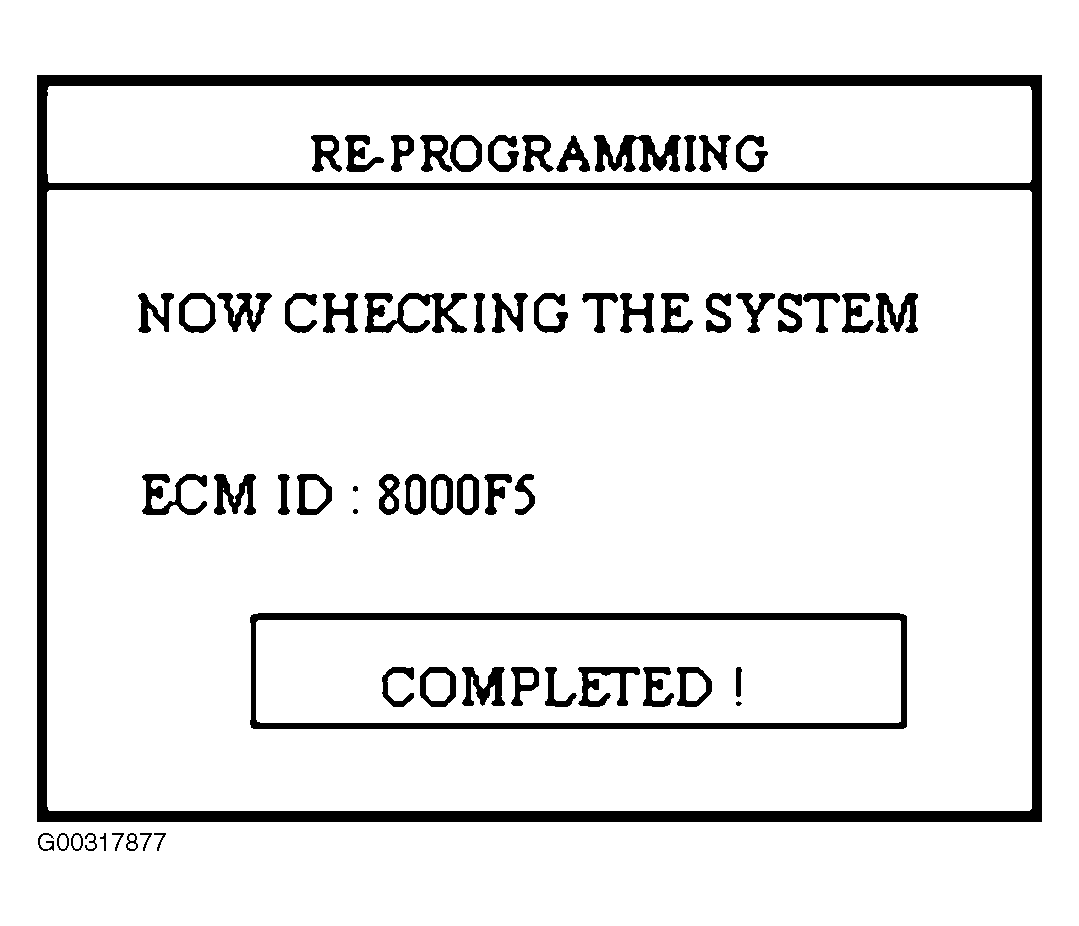

    Fig 11: Completion
    G00317877
    • The new ECM ID is displayed when the new ECM software download process is complete.
    • Check the new ECM ID displayed on the Hi-Scan Pro screen to verify that the correct ECM software has been downloaded.
    • Refer to ECM SPECIFICATION  .
  17. When the reprogramming is completed successfully, turn the ignition to the OFF position for 20 seconds and then start the engine to check for proper operation.

MANUAL UPDATE PROCEDURE

NOTE: In the event that option "01. XG 300 COLD STUMBLE [AUTO MODE]" fails to download the new ECM program, option "02. XG 300 COLD STUMBLE [ERROR MODE]" must be used.
  1. Turn the ignition to the ON position.
  2. Turn the Hi-Scan Pro ON and press ENTER.
  3. Select option "28. XG 300 COLD STUMBLE" and press ENTER. (Fig 3 )
  4. Select option "02. XG 300 COLD STUMBLE [ERROR MODE] " and press ENTER. (Fig 12 )

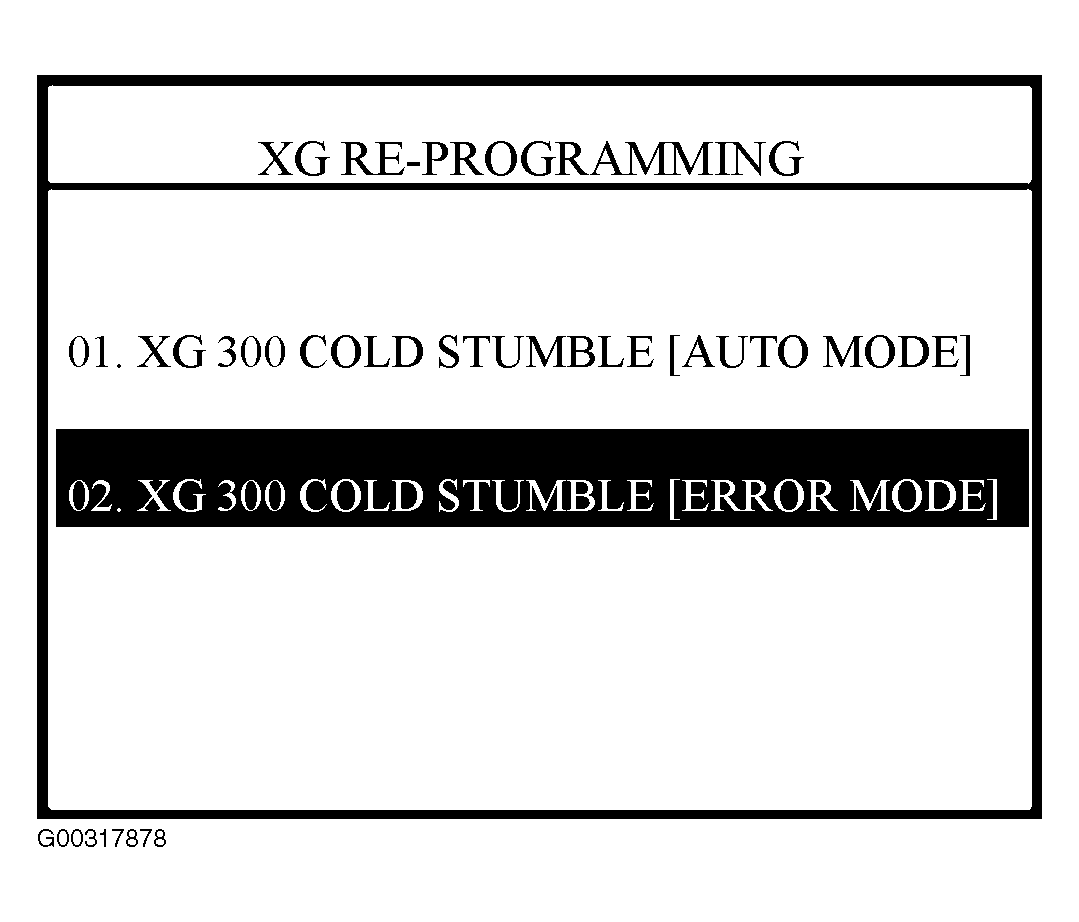

    Fig 12: Select "ERROR MODE"
    G00317878
  5. Select option "01. XG 300 COLD STUMBLE: 39110-39077 " (Fig 13 ) and press ENTER.
    Fig 13: Select Option 01
    G00317879
  6. Enter "9077" as the password (Fig 14 ) for the manual update procedure and press ENTER .

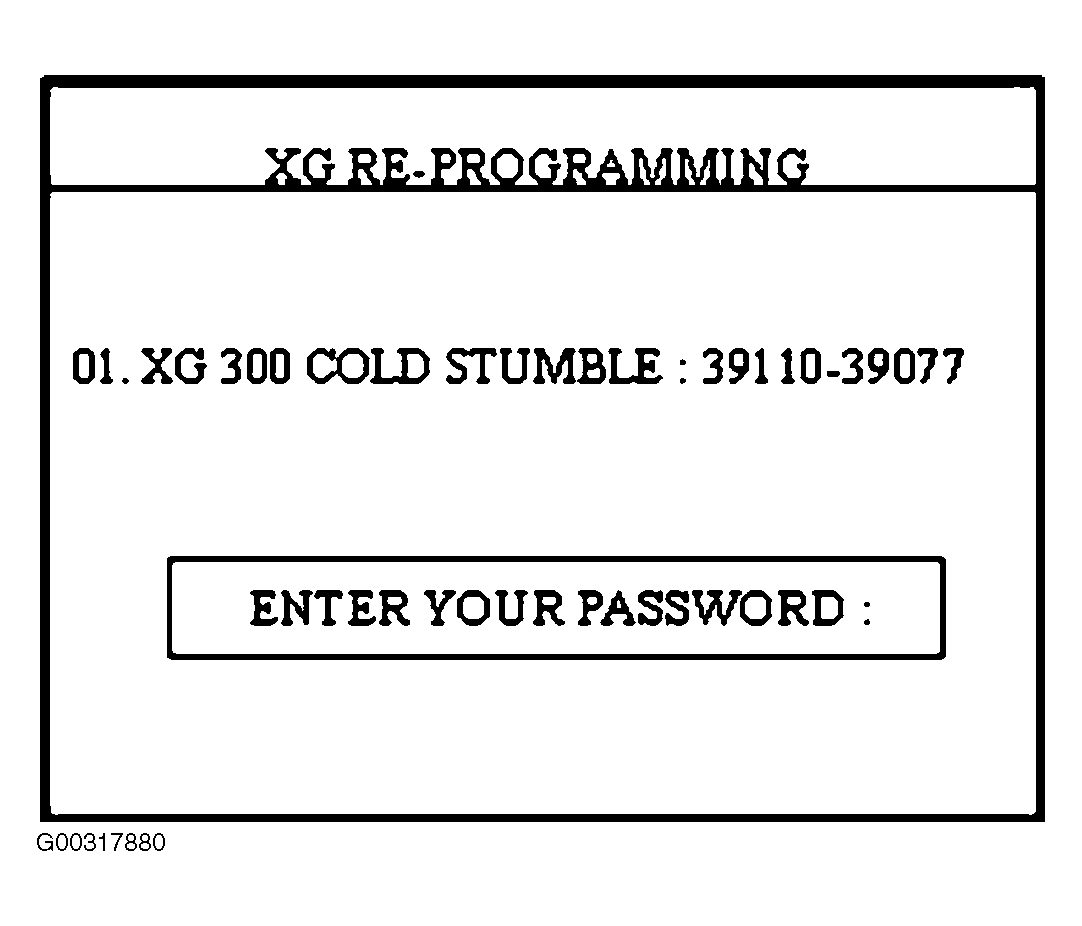

    Fig 14: Enter "9077" as Password
    G00317880
    NOTE: Input the correct password to prevent the Hi-Scan Pro from downloading the wrong ECM program.
  7. The Hi-Scan Pro will reprogram the ECM automatically (Fig 15 ). Wait until the reprogramming is complete.

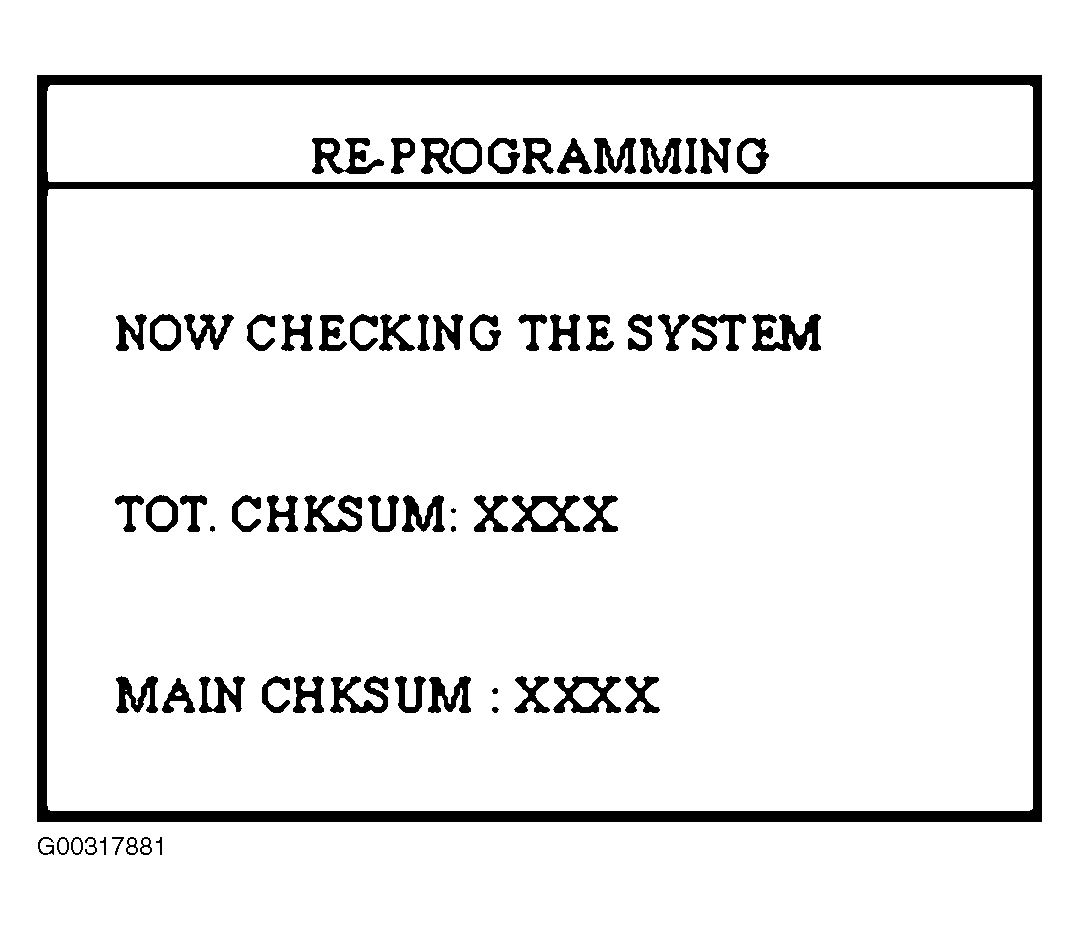

    Fig 15: Checksums
    G00317881
    WARNING:
    • Do not interrupt the reprogramming at any time. The ECM will be rendered inoperative if the program does not download completely.
    • If the program does not download during the manual update mode, turn the ignition off for 2-3 minutes and try again.
  8. The Hi-Scan Pro re-initializes the system. (Fig 10 )
  9. When the "COMPLETED" message is displayed, the ECM reprogramming process is complete. (Fig 11 )
    NOTE:
    • The new ECM ID is displayed when the new ECM software download process is complete.
    • Check the new ECM ID displayed on the Hi-Scan Pro screen to verify that the correct ECM software has been downloaded.
    • Refer to ECM SPECIFICATION TABLE  .
  10. When the reprogramming is completed successfully, turn the ignition to the OFF position for 20 seconds and then start the engine to check for proper operation.

EXPLANATION OF ERROR MESSAGE

  1. "INVALID PASSWORD": Please enter the exact password again.
  2. "REPROGRAMMING ERROR, PLEASE WAIT FOR RETRY": An error occurred during reprogramming, the Hi-Scan Pro will retry reprogramming automatically.
  3. "ALREADY REPROGRAMMED" or "INCORRECT TARGET ID": The reprogramming has previously been done on this vehicle or the ECM/TCM is not the type subject to the reprogramming procedure.
  4. "REPROGRAM ERROR, PLEASE CHECK THE SYSTEM": In this case, you must reprogram manually after selecting the menu option "02. XG 300 AT 4-5 SHUDDER [ERROR MODE]".

WARRANTY INFORMATION

WARRANTY INFORMATION

Op Code Operation Op Time Causal P/N Nature Code Cause Code
39155R0F ECM Reprogramming 0.3 M/H 39110-39077 (1) N13 (2) C40
(1) N13: Poor acceleration

(2) C40: Improper adjustment
