Pcm Reprogramming For P0128 2-3 Shift Logic And Other Issues (02-36-011)

Publication date: 2002-03-01
Reference number: 02-36-011
Supersedes refnos: 01-36-007

PCM REPROGRAMMING FOR P0128 2-3 SHIFT LOGIC AND OTHER ISSUES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-36-011, Date of Issue: March, 2002

HYUNDAI:	2001 XG300
GROUP:	Engine Electrical

Superceded Bulletin(s): 01-36-007, Date of Issue: May, 2001

NOTE: This bulletin supersedes Technical Service Bulletin 01-36-007 dated May, 2001.

2001 XG300 PCM REPROGRAMMING FOR P0128 2-3 SHIFT LOGIC AND OTHER ISSUES

This bulletin provides a procedure to reprogram the PCM (combined ECM/TCM in XG300 vehicles) using a Hi-Scan Pro.

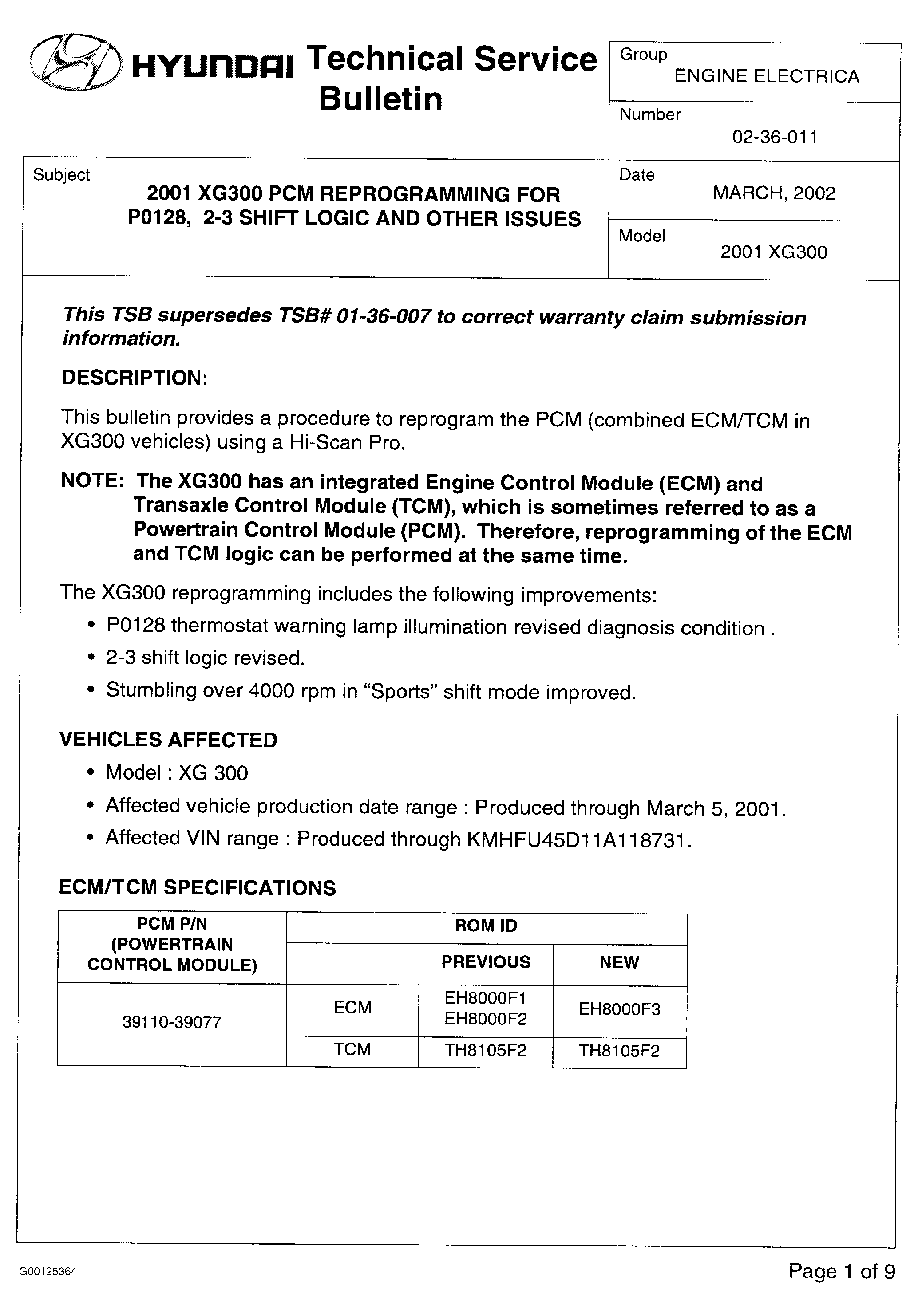

Fig 1: Page 1 of Bulletin

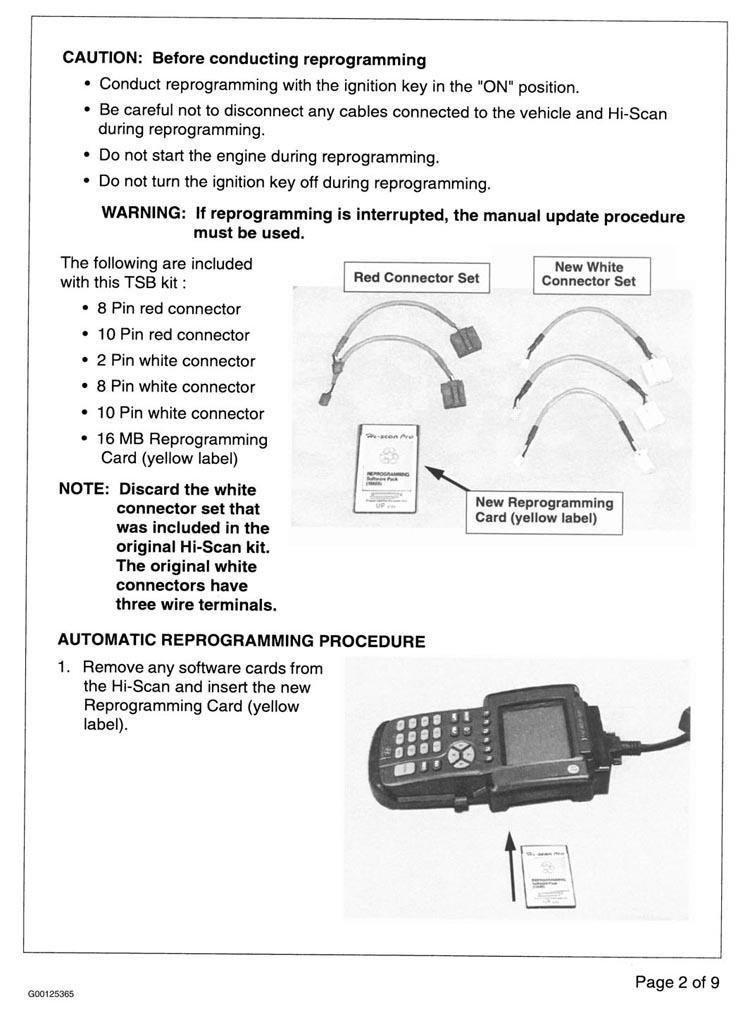

Fig 2: Page 2 of Bulletin

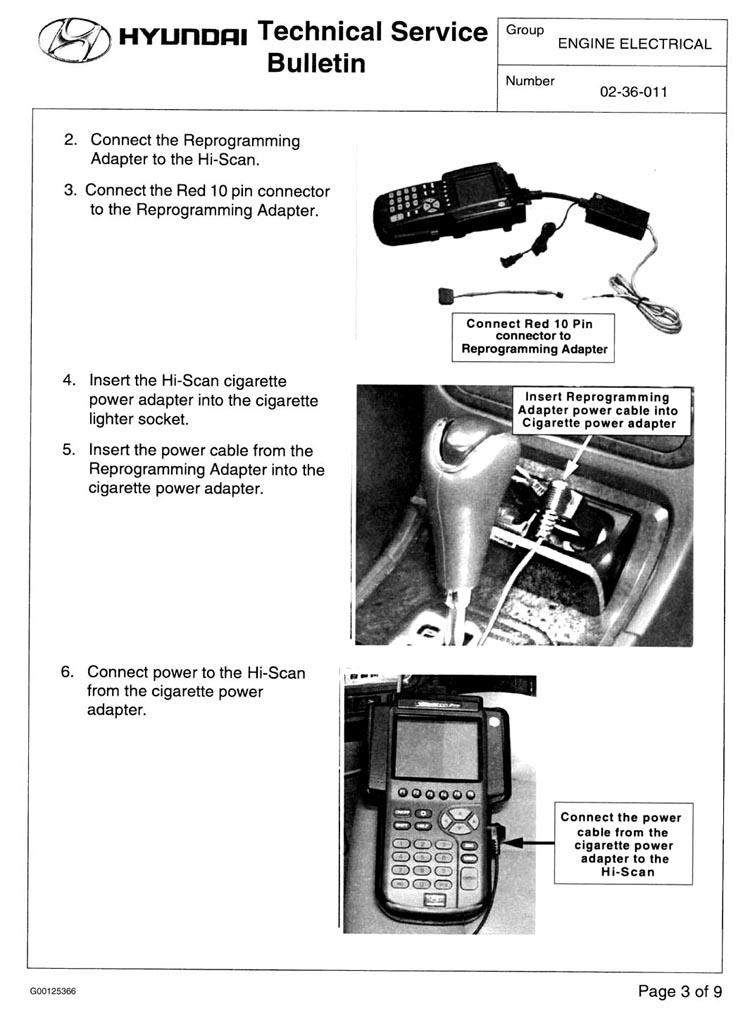

Fig 3: Page 3 of Bulletin

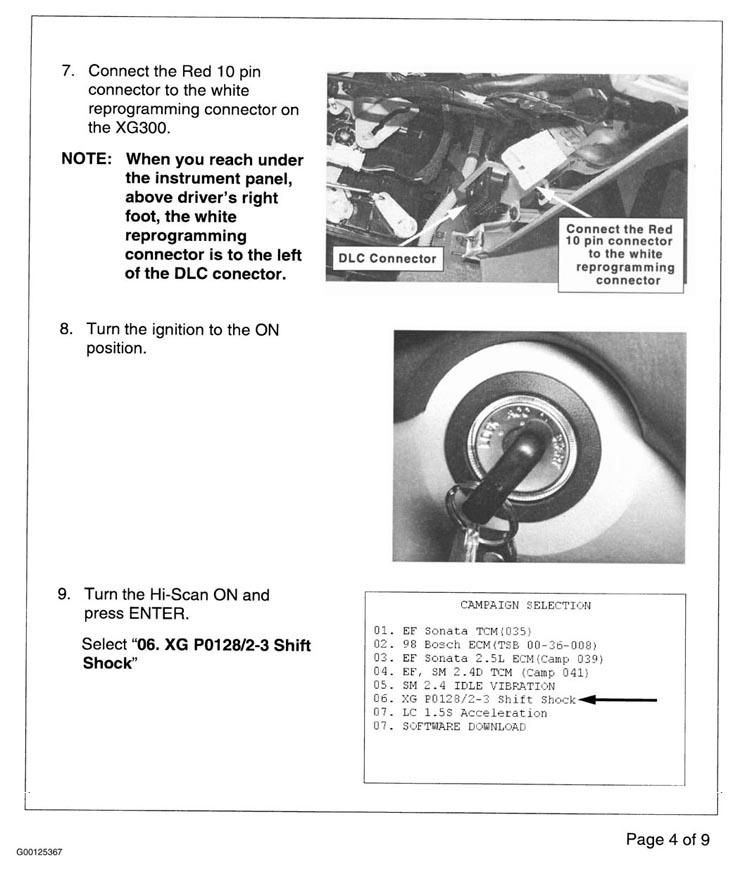

Fig 4: Page 4 of Bulletin

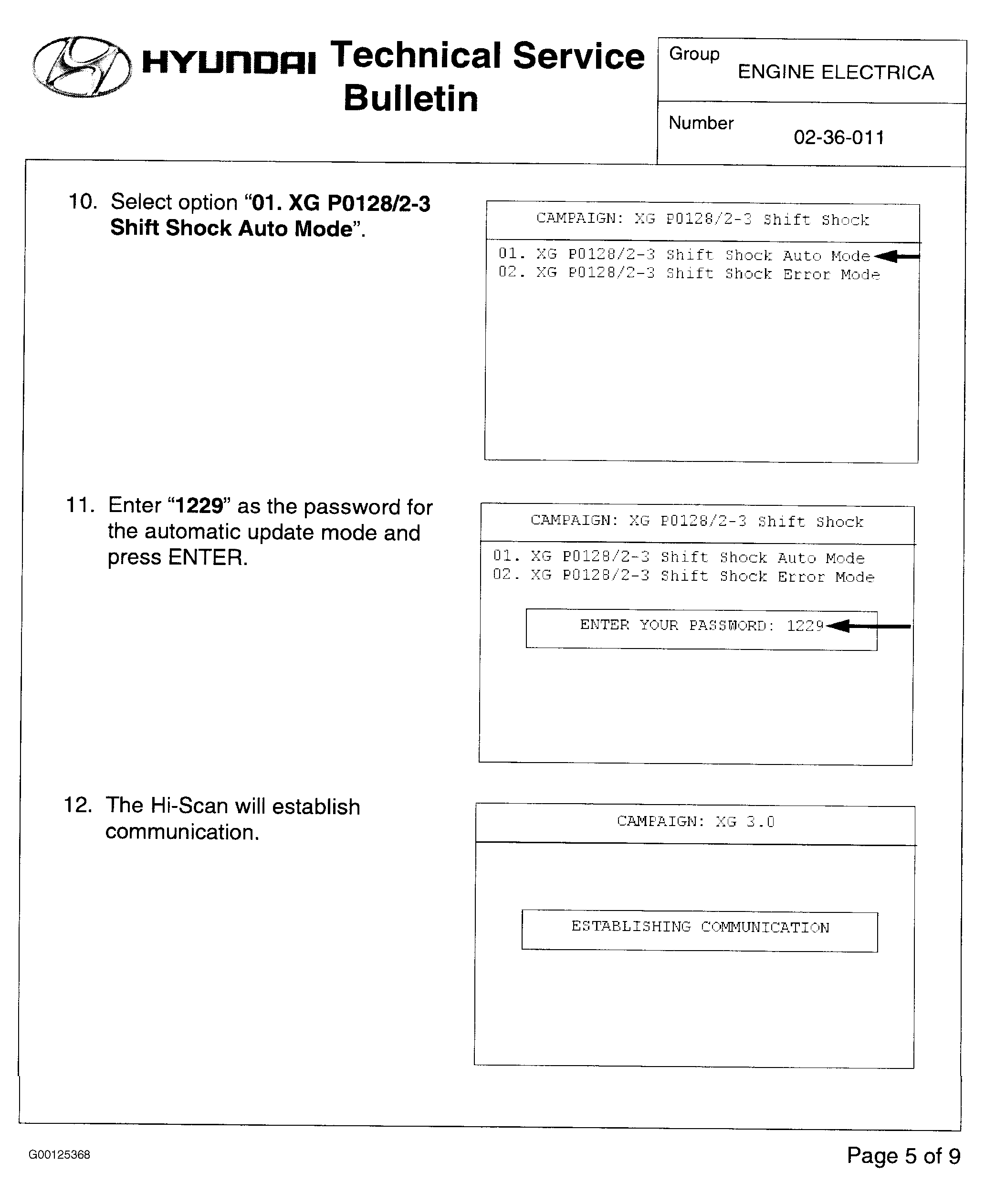

Fig 5: Page 5 of Bulletin

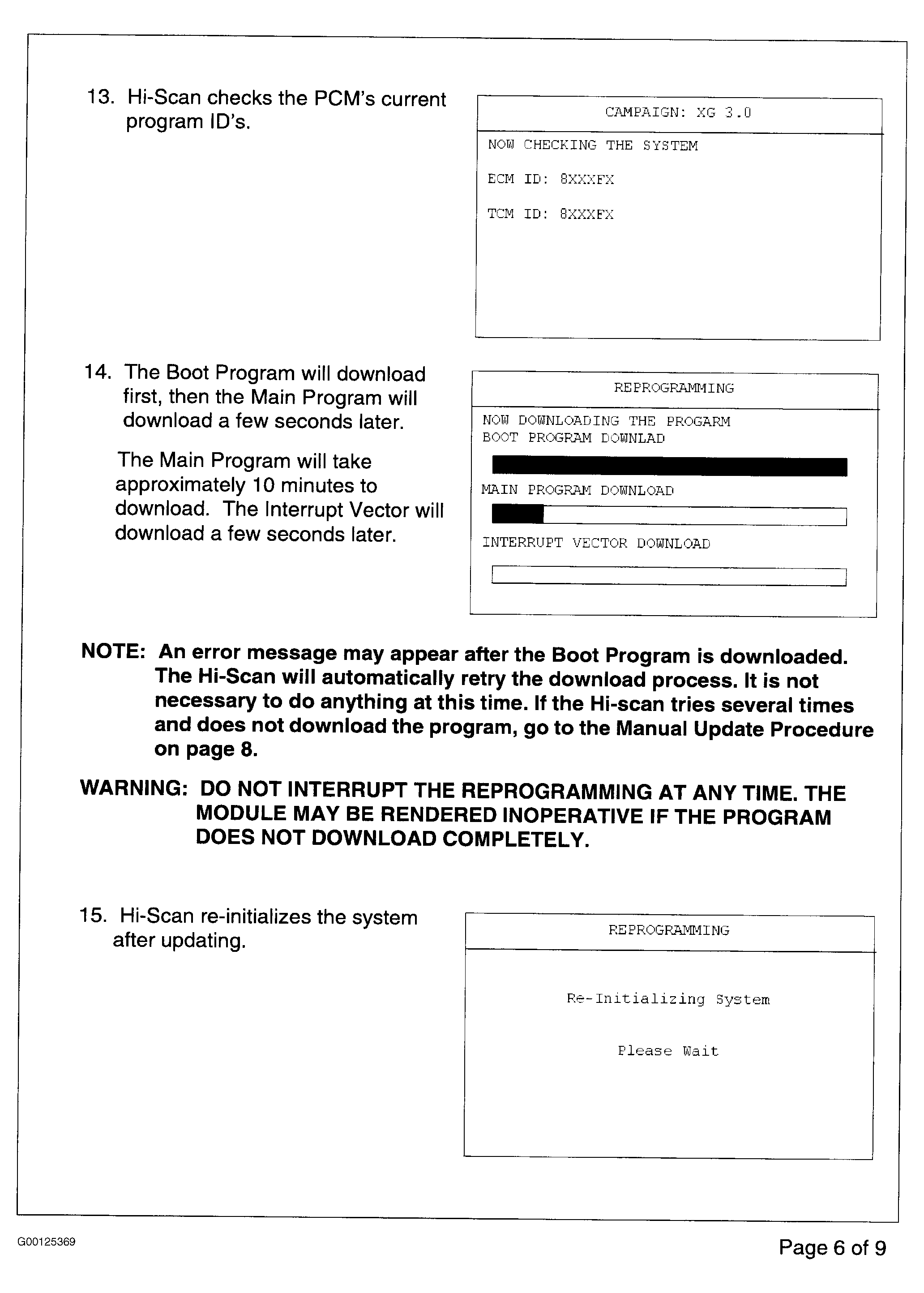

Fig 6: Page 6 of Bulletin

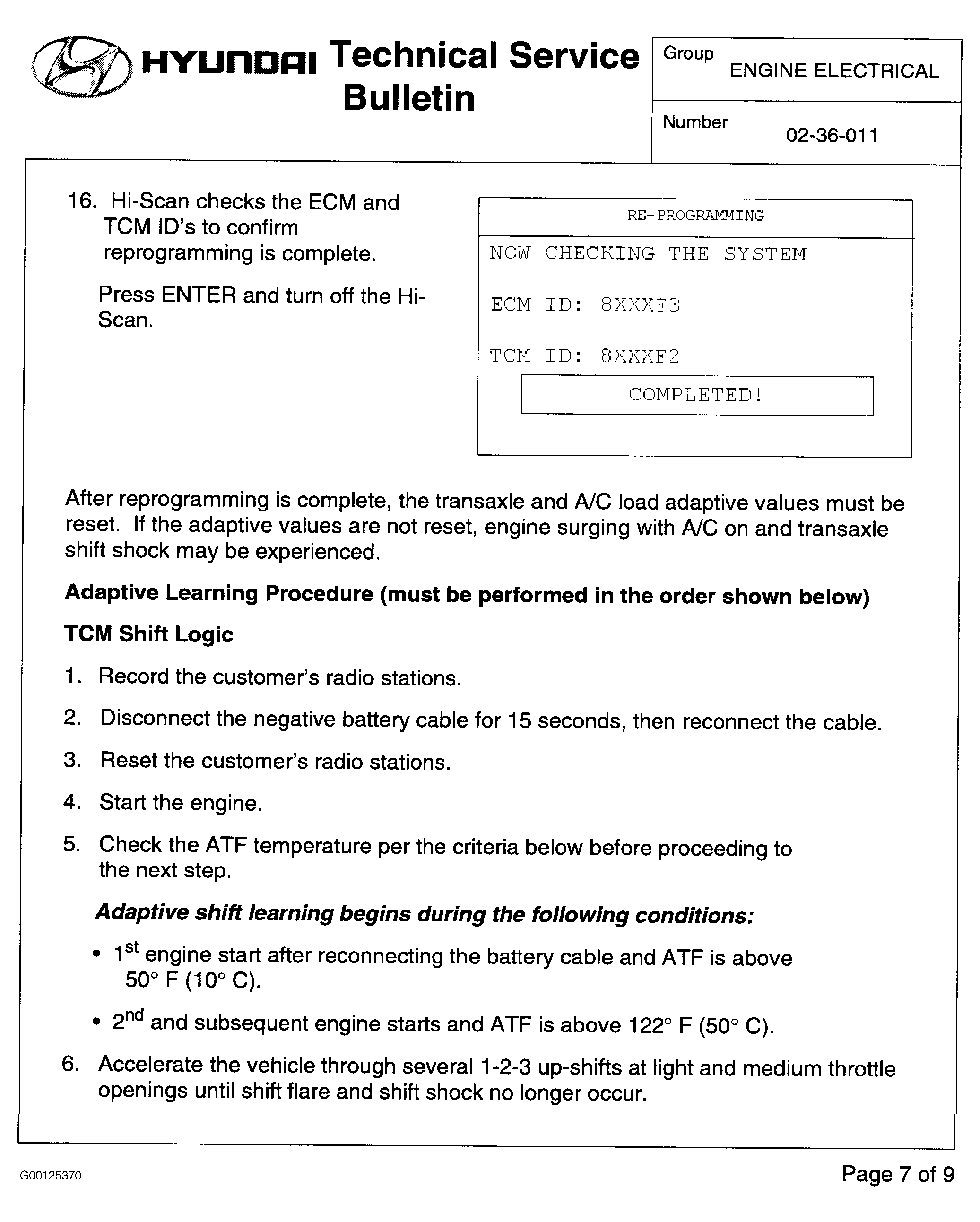

Fig 7: Page 7 of Bulletin

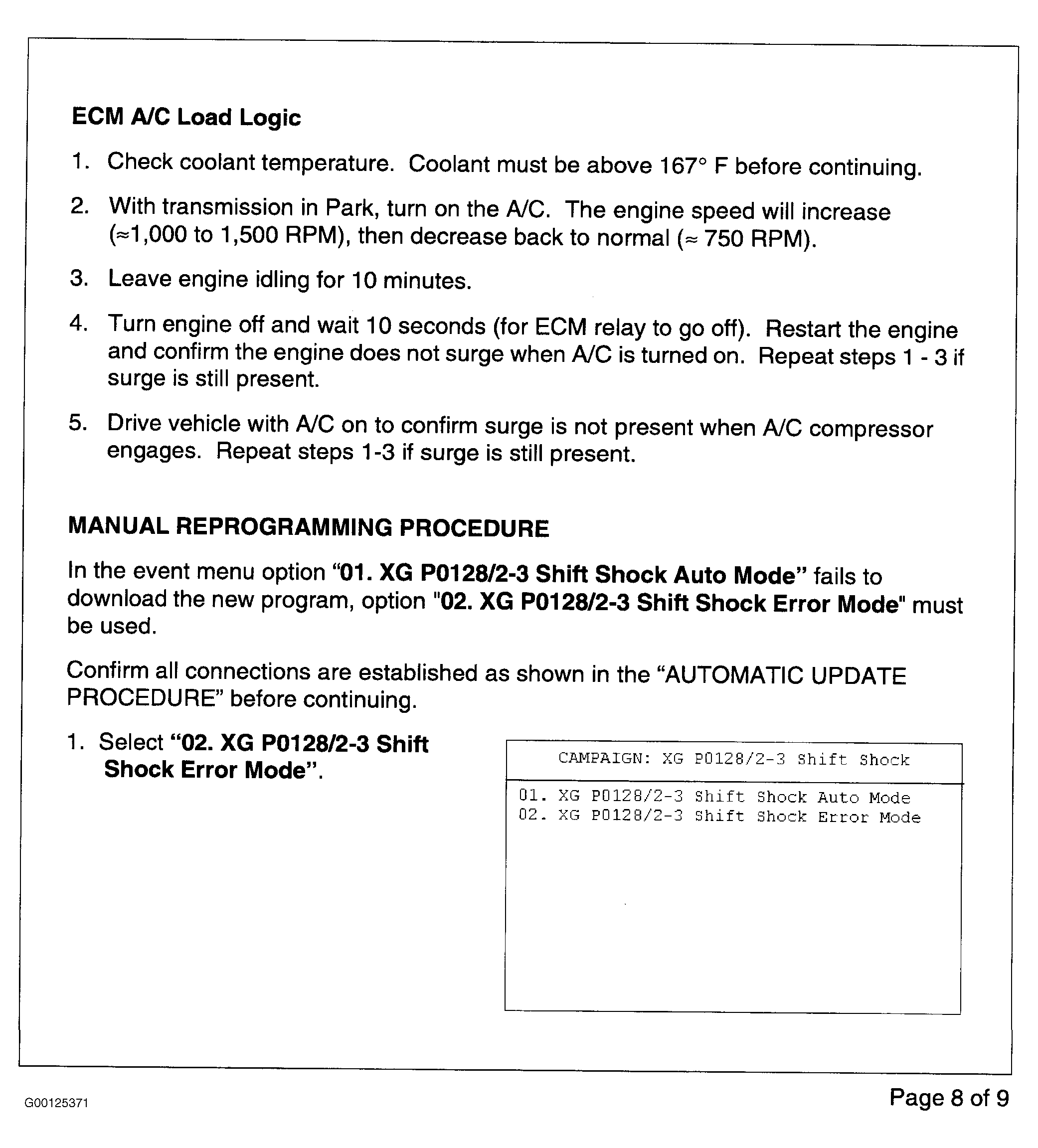

Fig 8: Page 8 of Bulletin

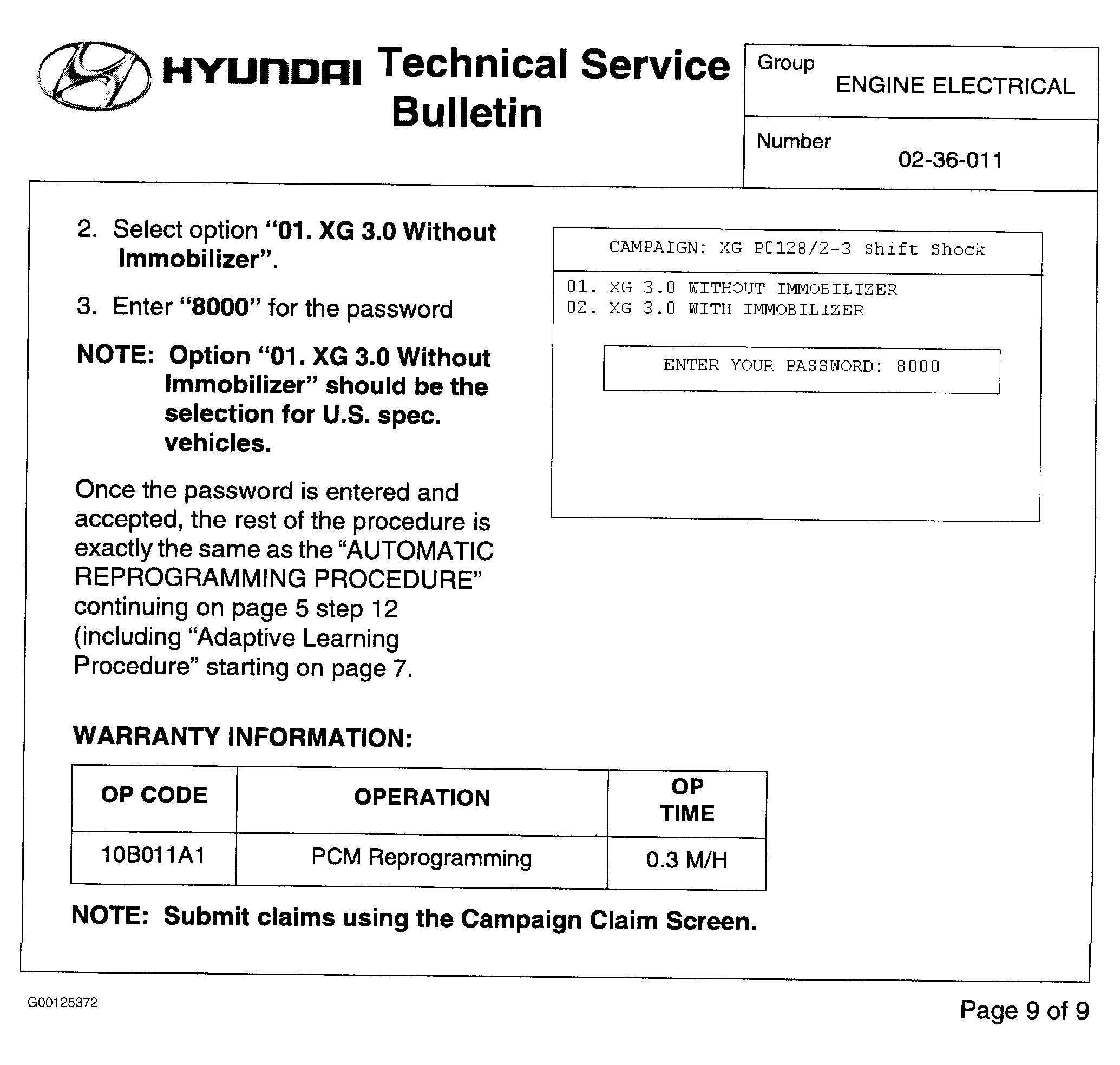

Fig 9: Page 9 of Bulletin
