Timer/Control Unit, Accessory Control

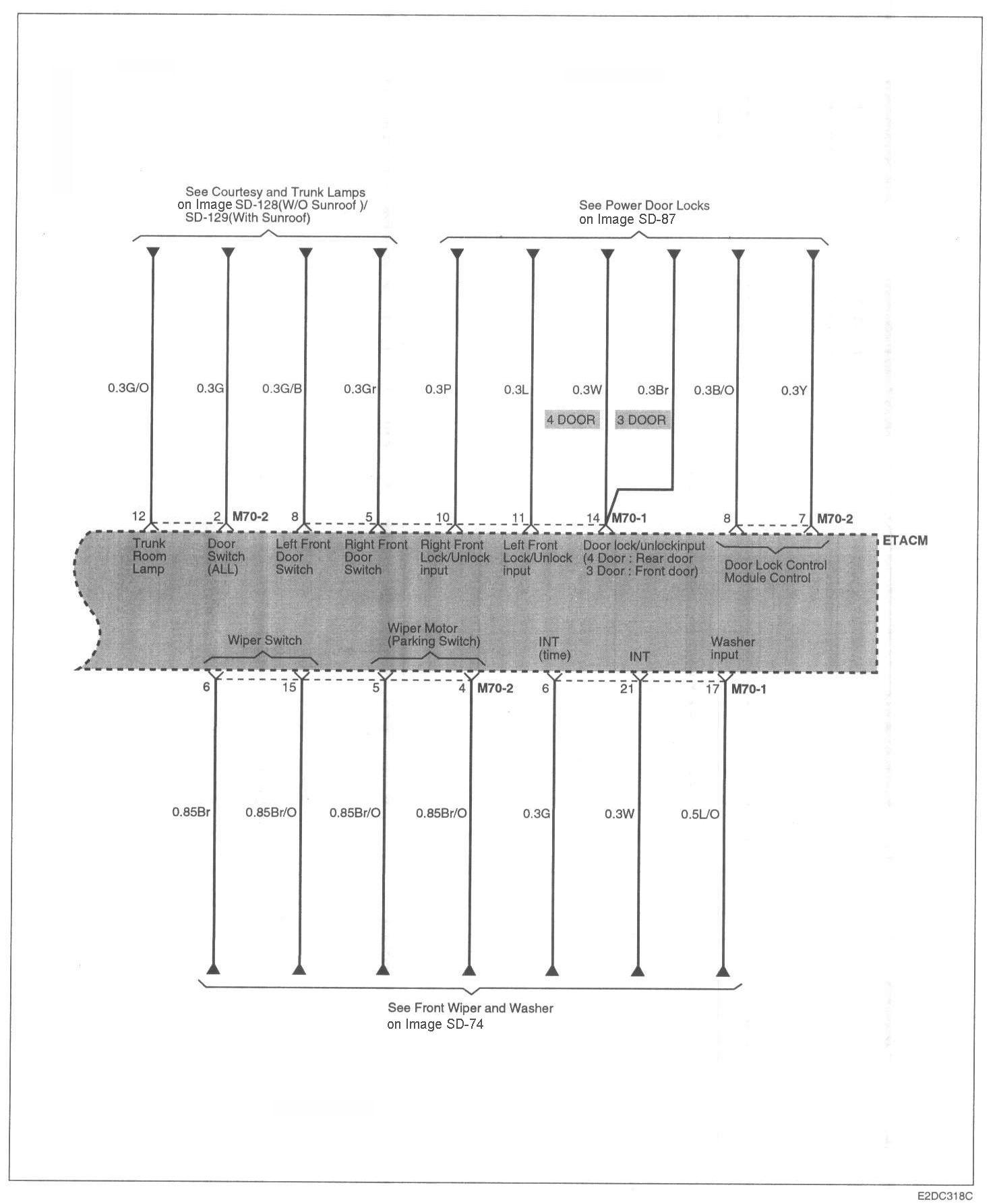

Image SD-70 ETACS (Electronic Time & Alarm Control System) (1):

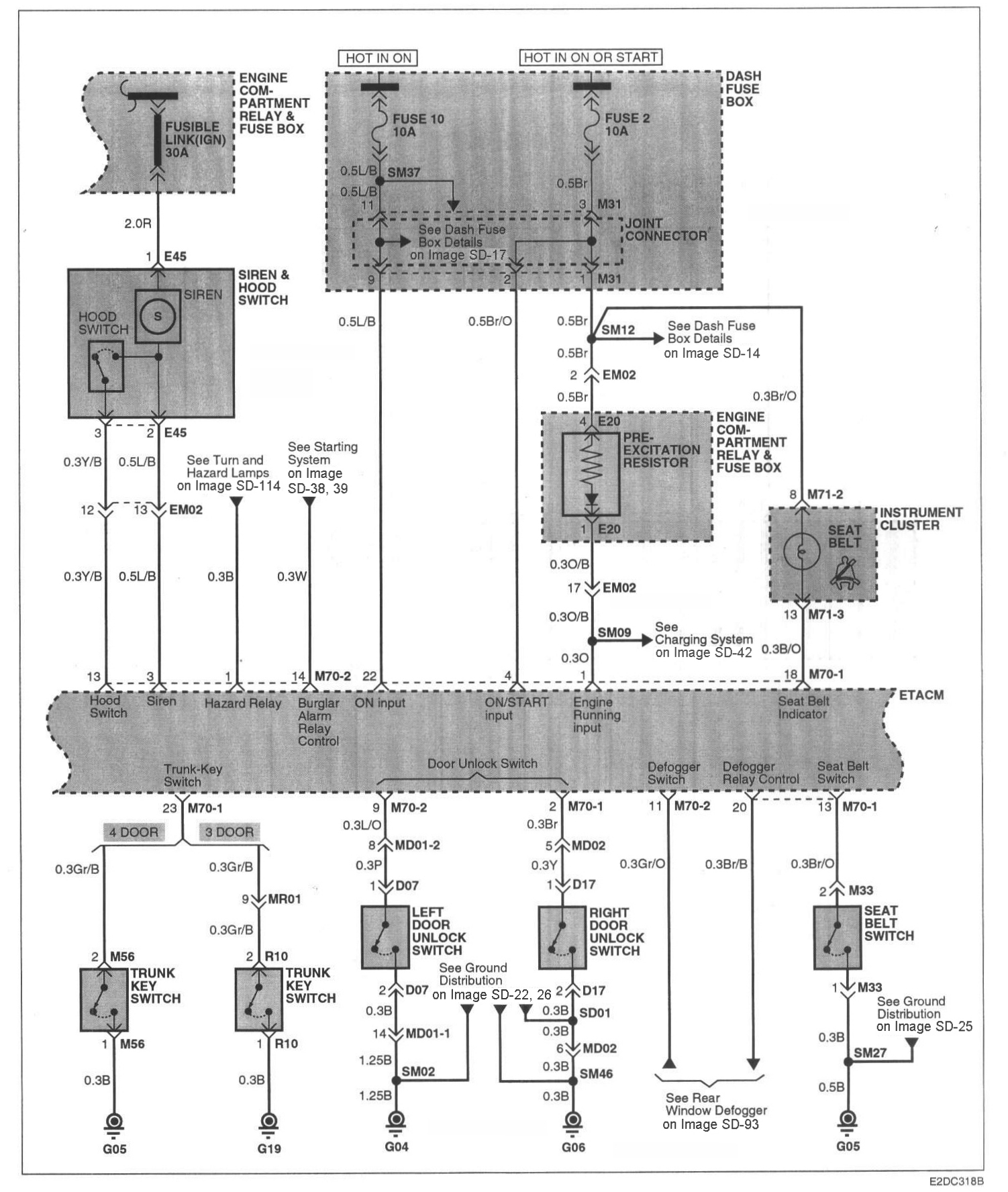

Image SD-71 ETACS (Electronic Time & Alarm Control System) (2):

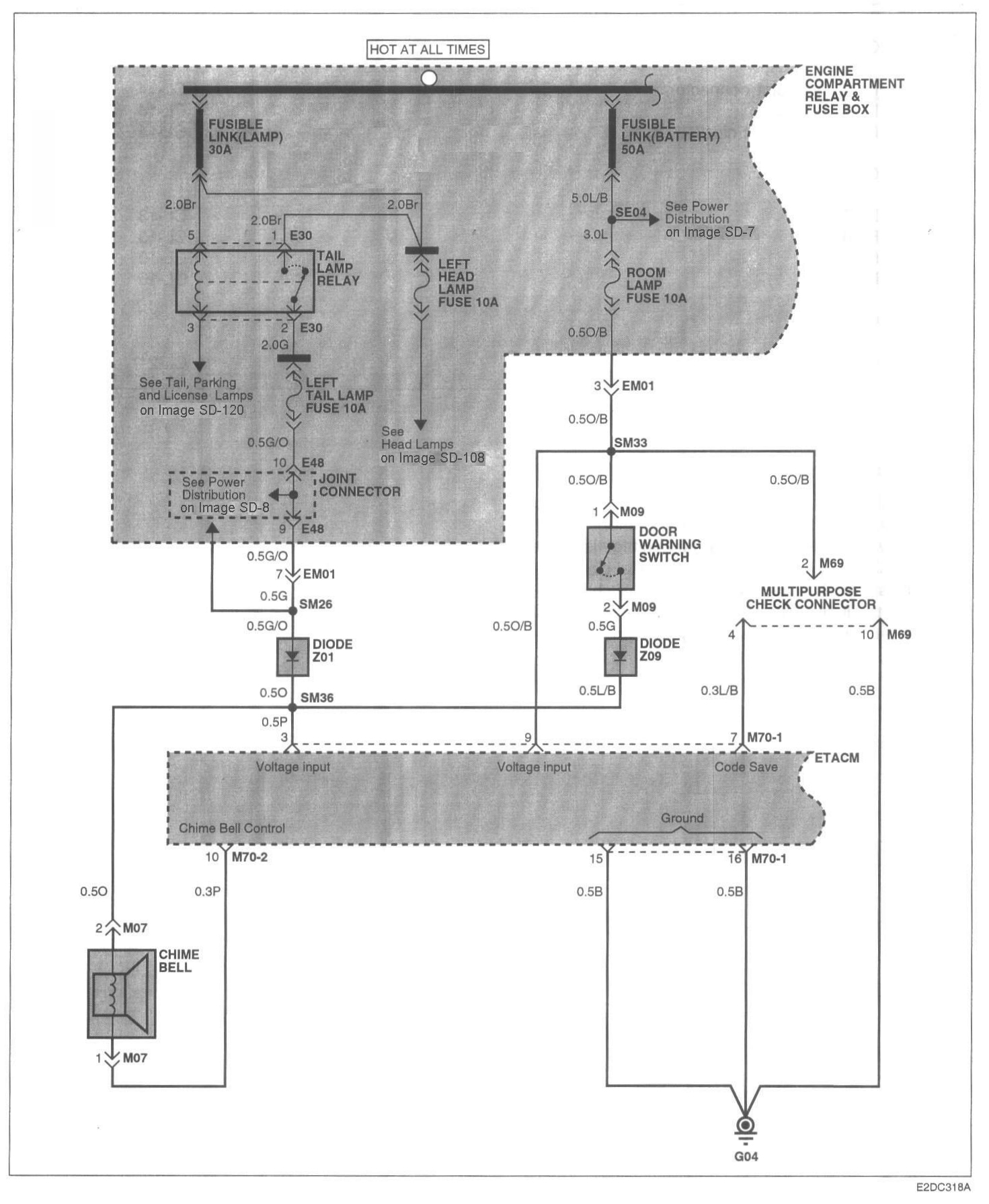

Image SD-72 ETACS (Electronic Time & Alarm Control System) (3):
