Connector Locations

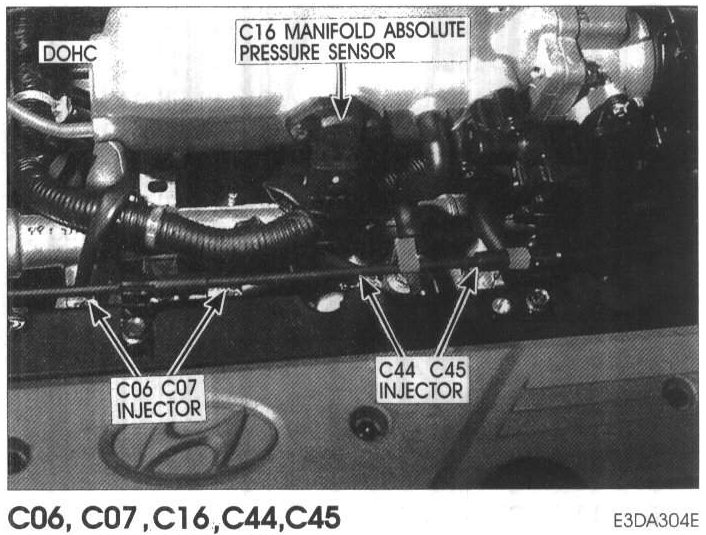

C06 Injector #1, C07 Injector #2, C16 MAP Sensor, C44 Injector #3, C45 Injector #4:
