Adjustment Of Control Cable

WARNING: This page is about a different variant/trim than selected.
  1. Eliminate slack from the control cable with the adjusting flange nut and check that the select lever operates smoothly.
  2. Driving the car, check that the transaxle is set in the proper range when the select lever is shifted to each position.

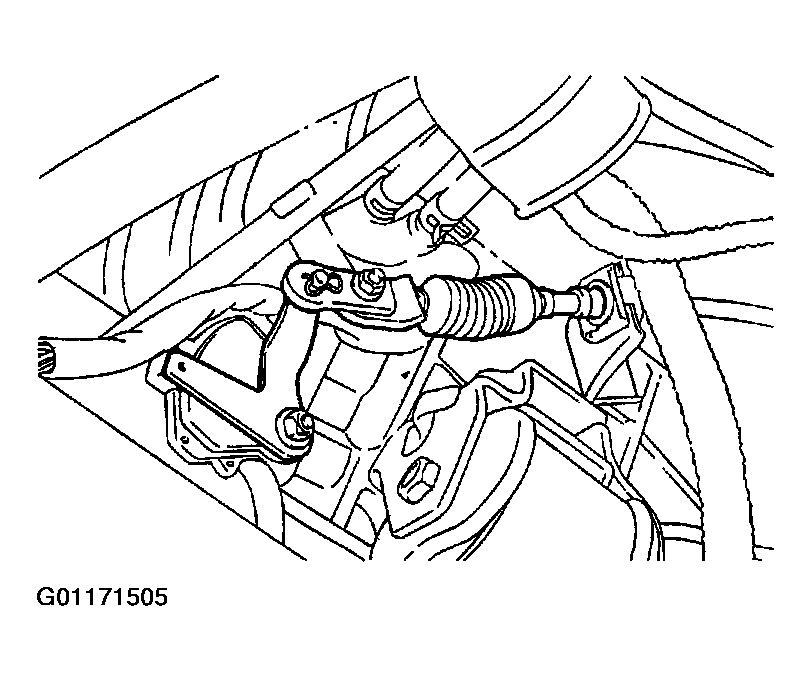

    Fig 1: Checking Transaxle Setting In Proper Range
    G01171505Courtesy of HYUNDAI MOTOR CO.
