Checking The Control System

WARNING: This page is about a different variant/trim than selected.

(WHEN A HI-SCAN PRO IS USED)

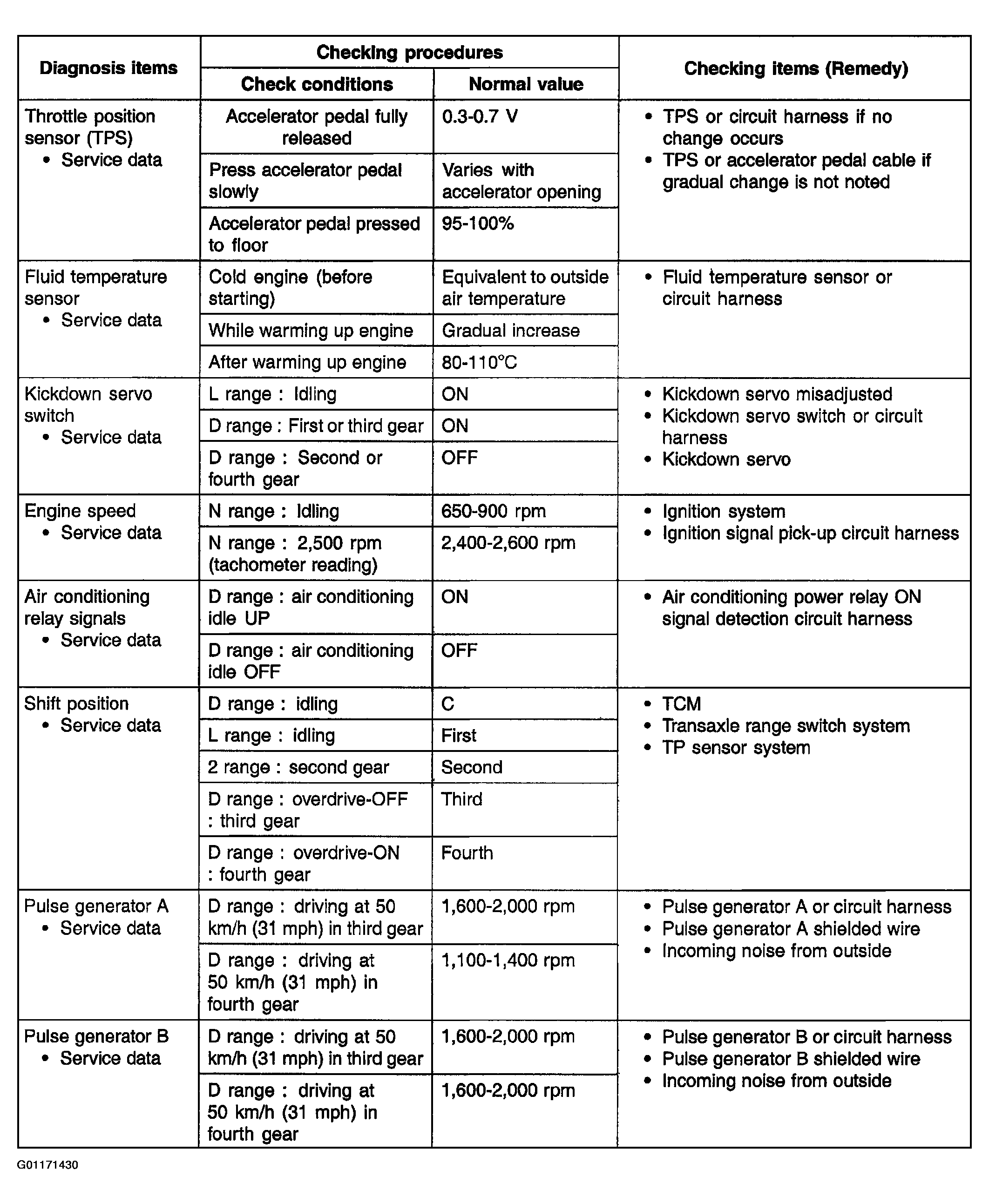

Fig 1: Checking Control System (1 Of 2)
G01171430Courtesy of HYUNDAI MOTOR CO.

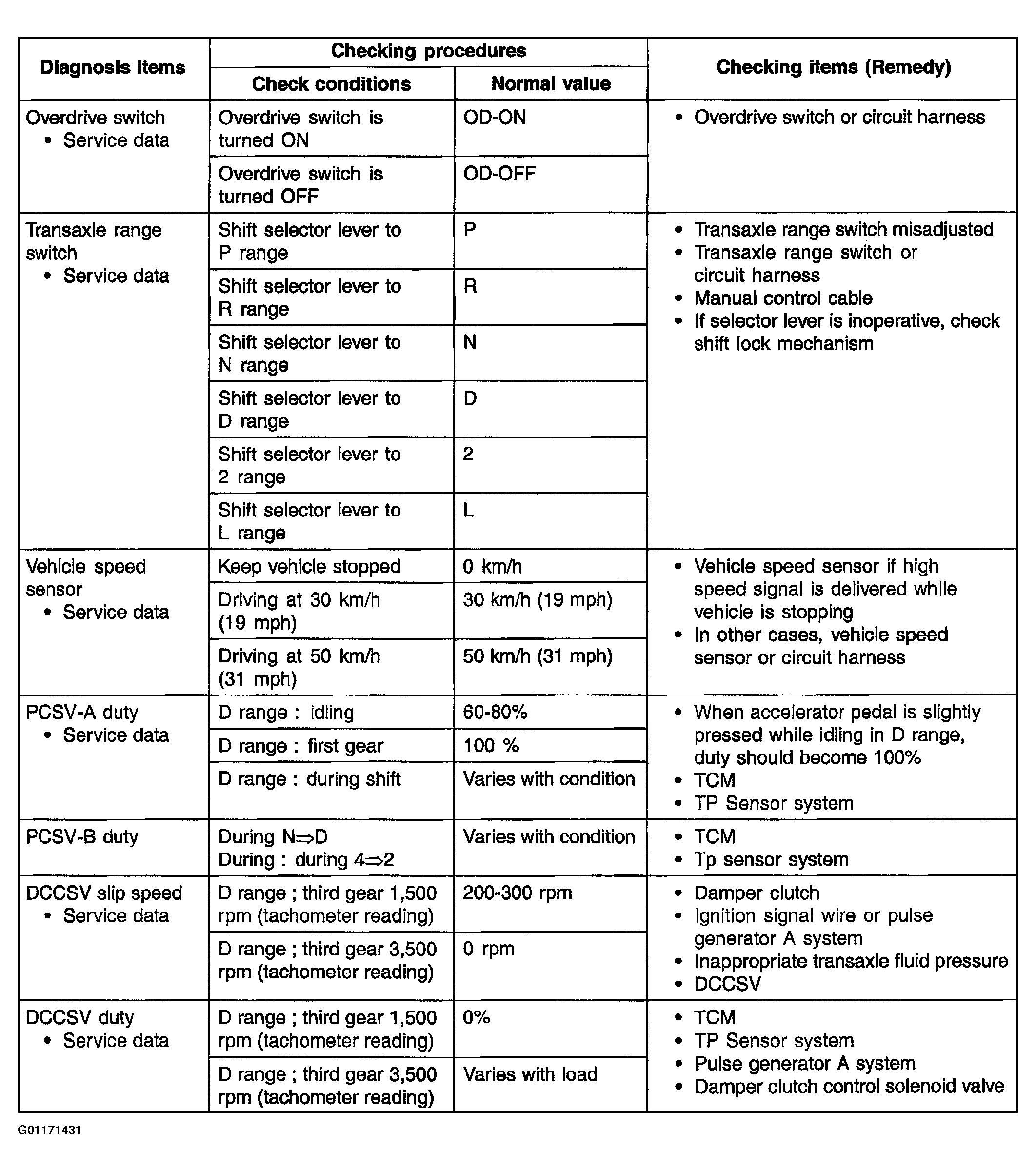

Fig 2: Checking Control System (2 Of 2)
G01171431Courtesy of HYUNDAI MOTOR CO.
