Inspection Of Electronic Control System Components

WARNING: This page is about a different variant/trim than selected.

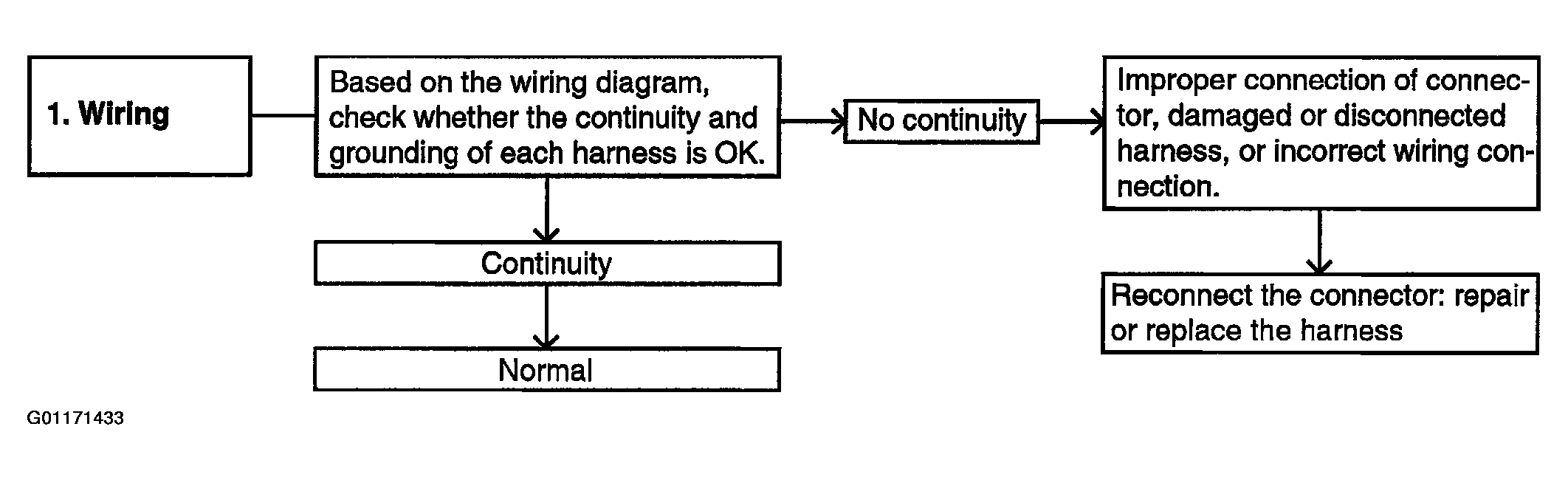

Fig 1: Inspecting Electronic Control System Components - Wiring

Courtesy of HYUNDAI MOTOR CO.

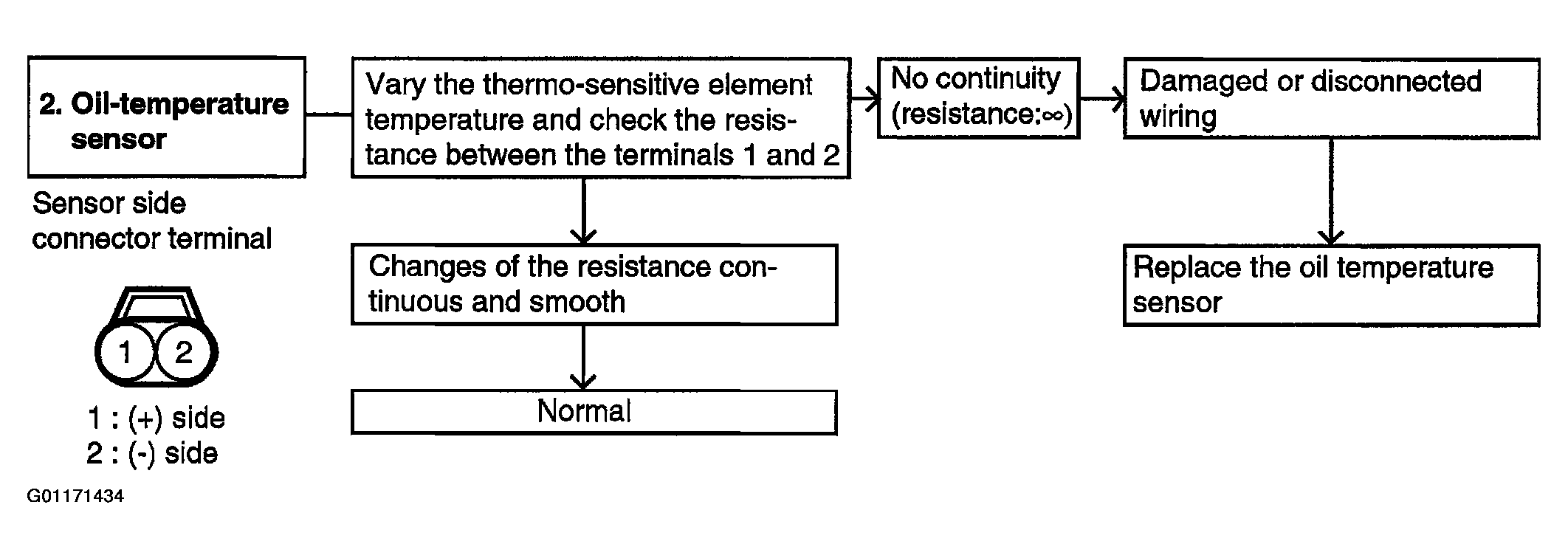

Fig 2: Inspecting Electronic Control System Components - Oil Temperature Sensor

Courtesy of HYUNDAI MOTOR CO.

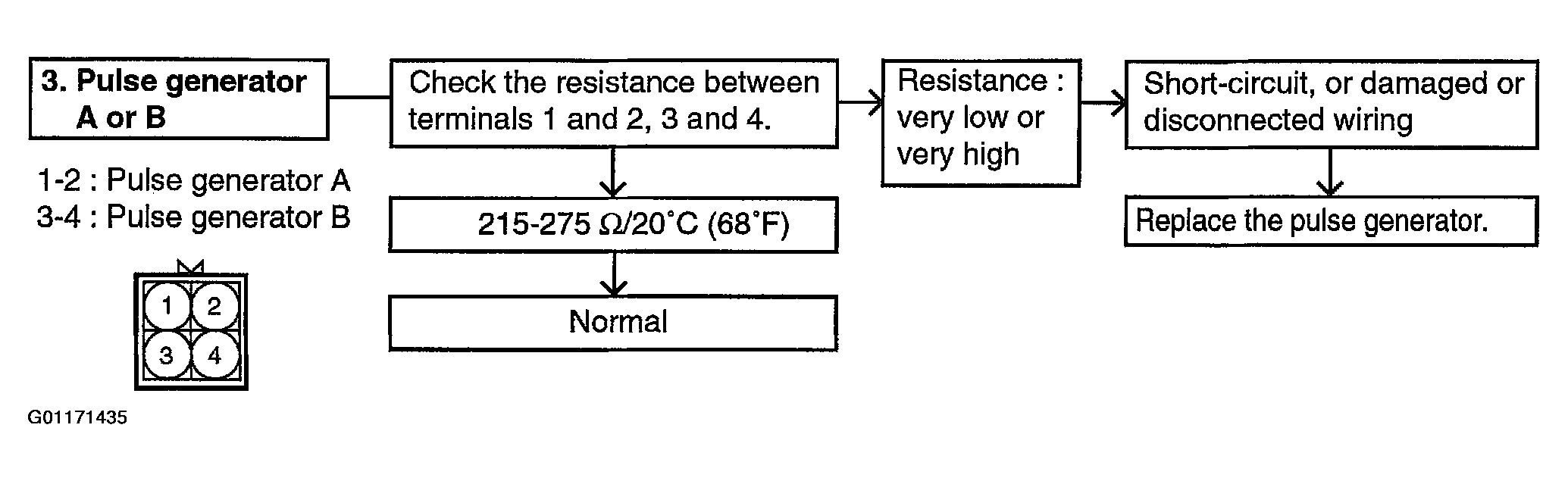

Fig 3: Inspecting Electronic Control System Components - Pulse Generator A & B

Courtesy of HYUNDAI MOTOR CO.

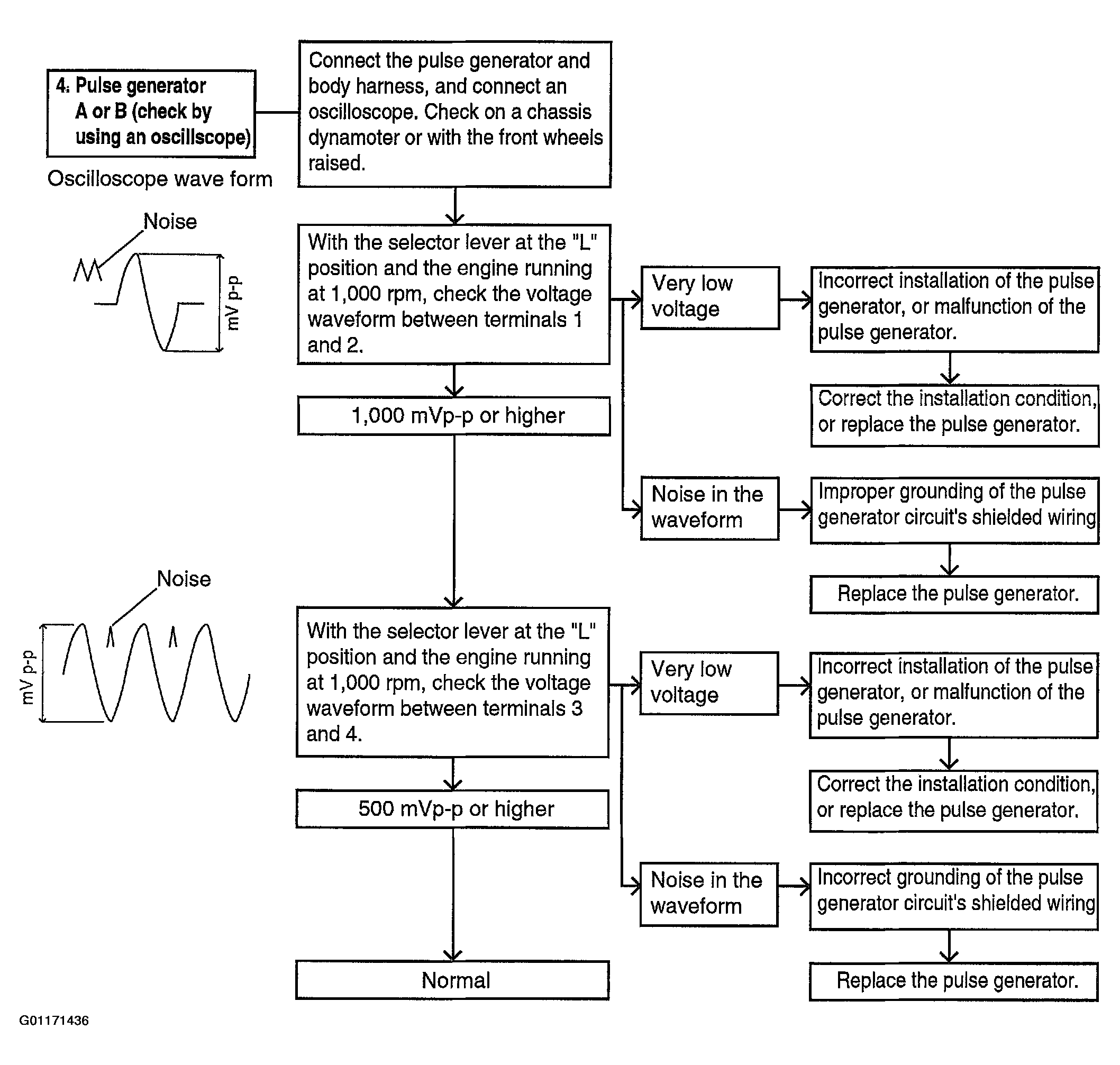

Fig 4: Inspecting Electronic Control System Components - Pulse Generator A & B (Using Oscilloscope)

Courtesy of HYUNDAI MOTOR CO.

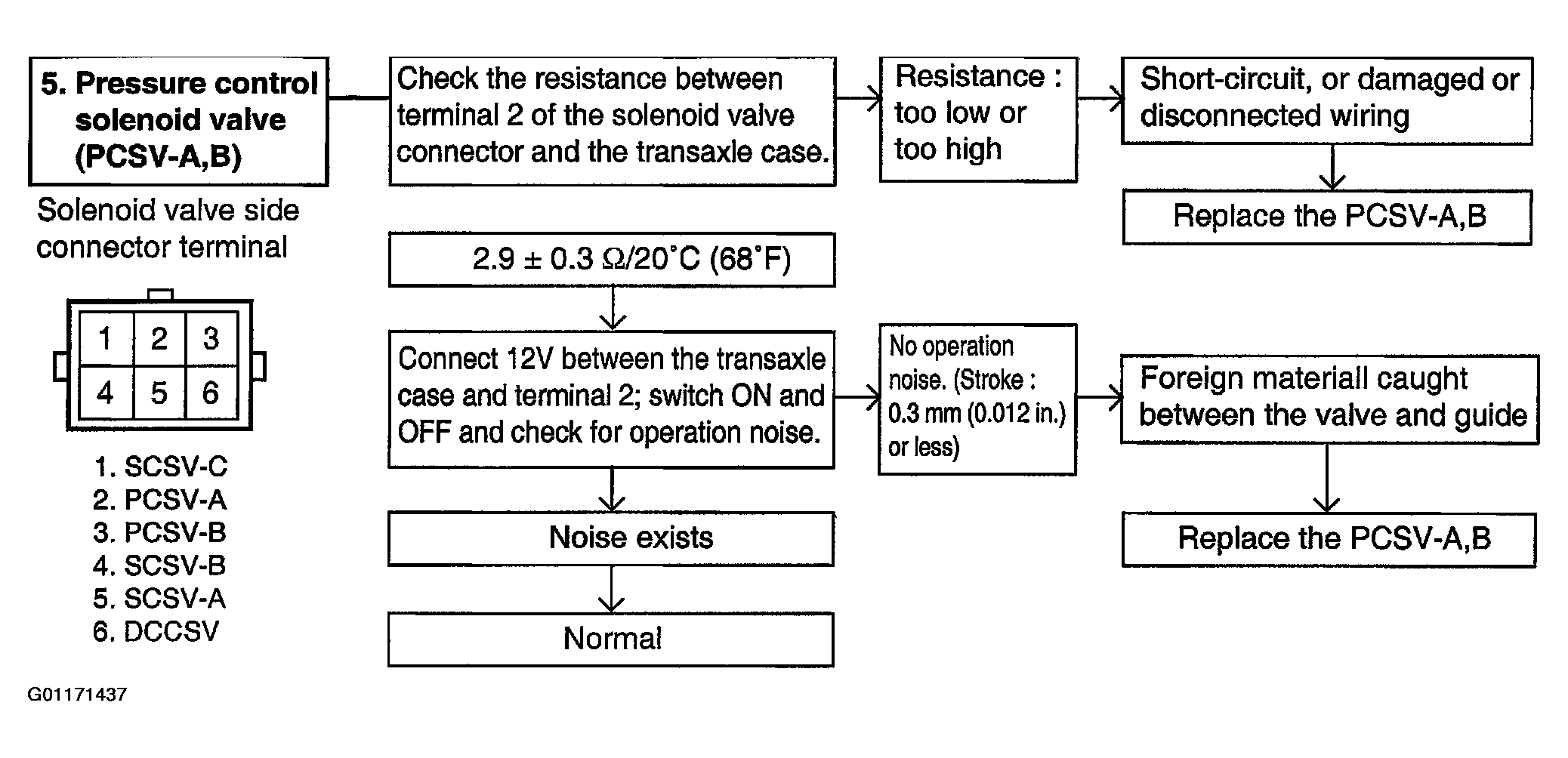

Fig 5: Inspecting Electronic Control System Components - Pressure Control Solenoid Valve A & B

Courtesy of HYUNDAI MOTOR CO.

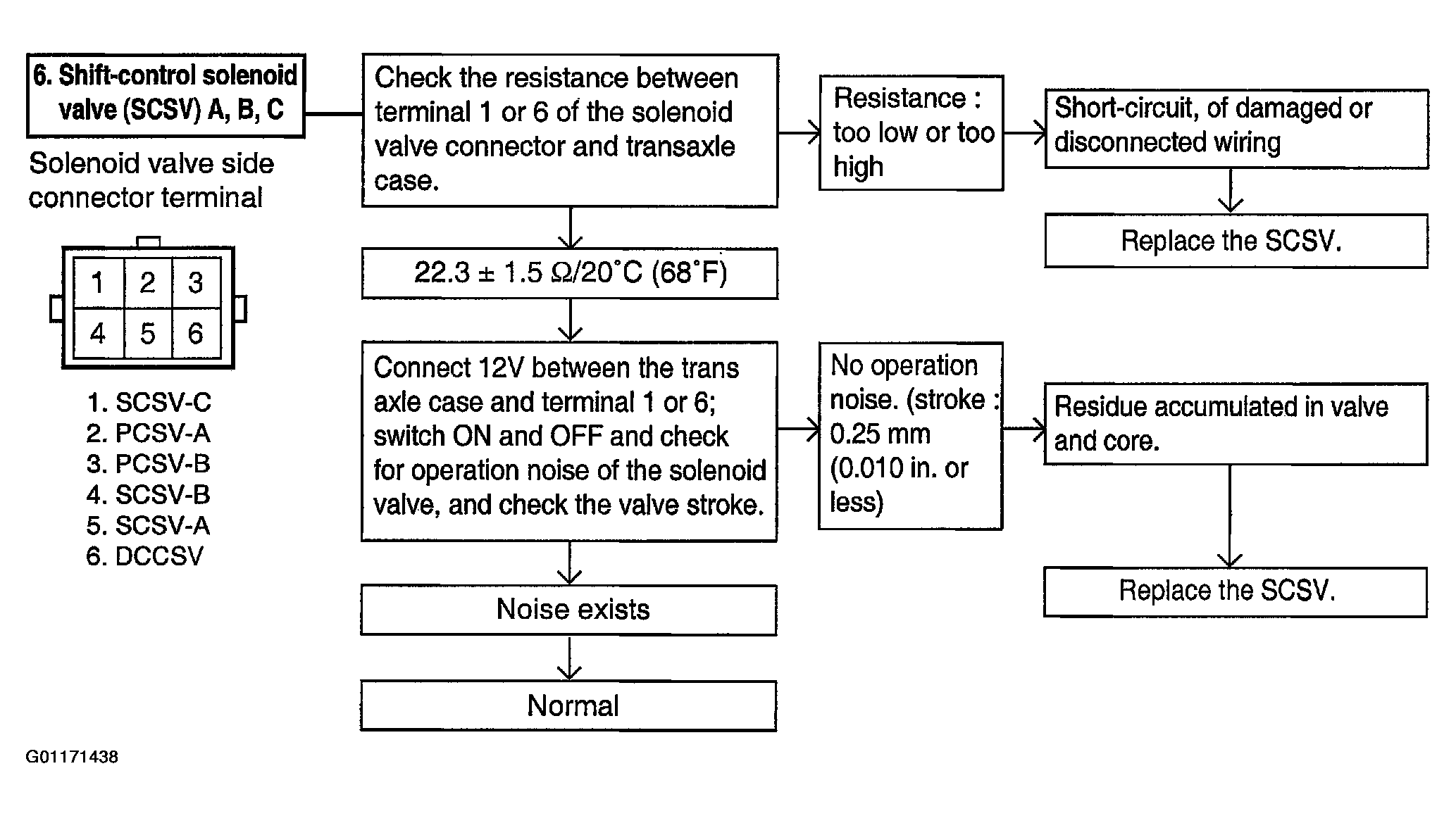

Fig 6: Inspecting Electronic Control System Components - Shift Control Solenoid Valve A, B & C

Courtesy of HYUNDAI MOTOR CO.

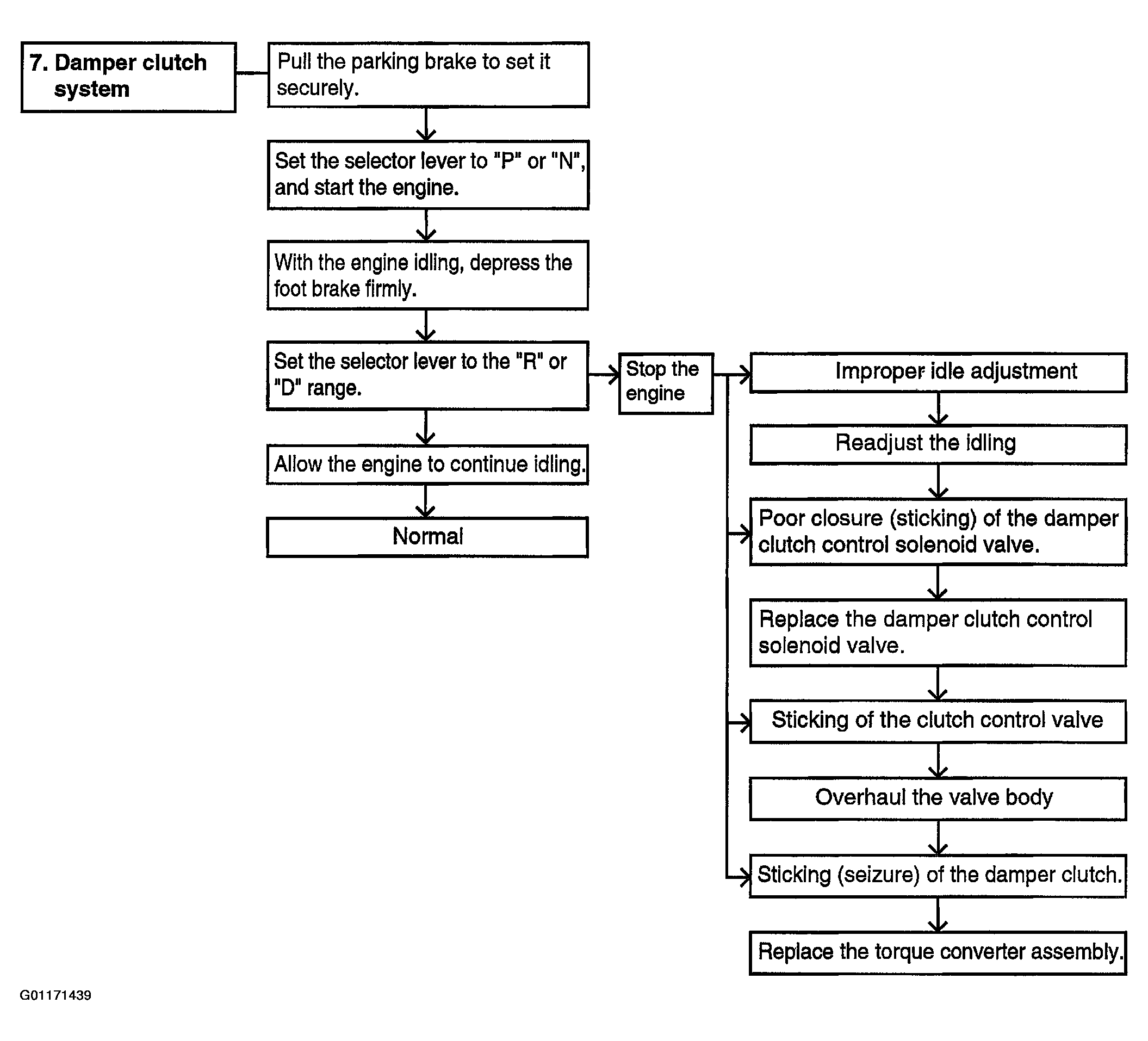

Fig 7: Inspecting Electronic Control System Components - Damper Clutch System

Courtesy of HYUNDAI MOTOR CO.

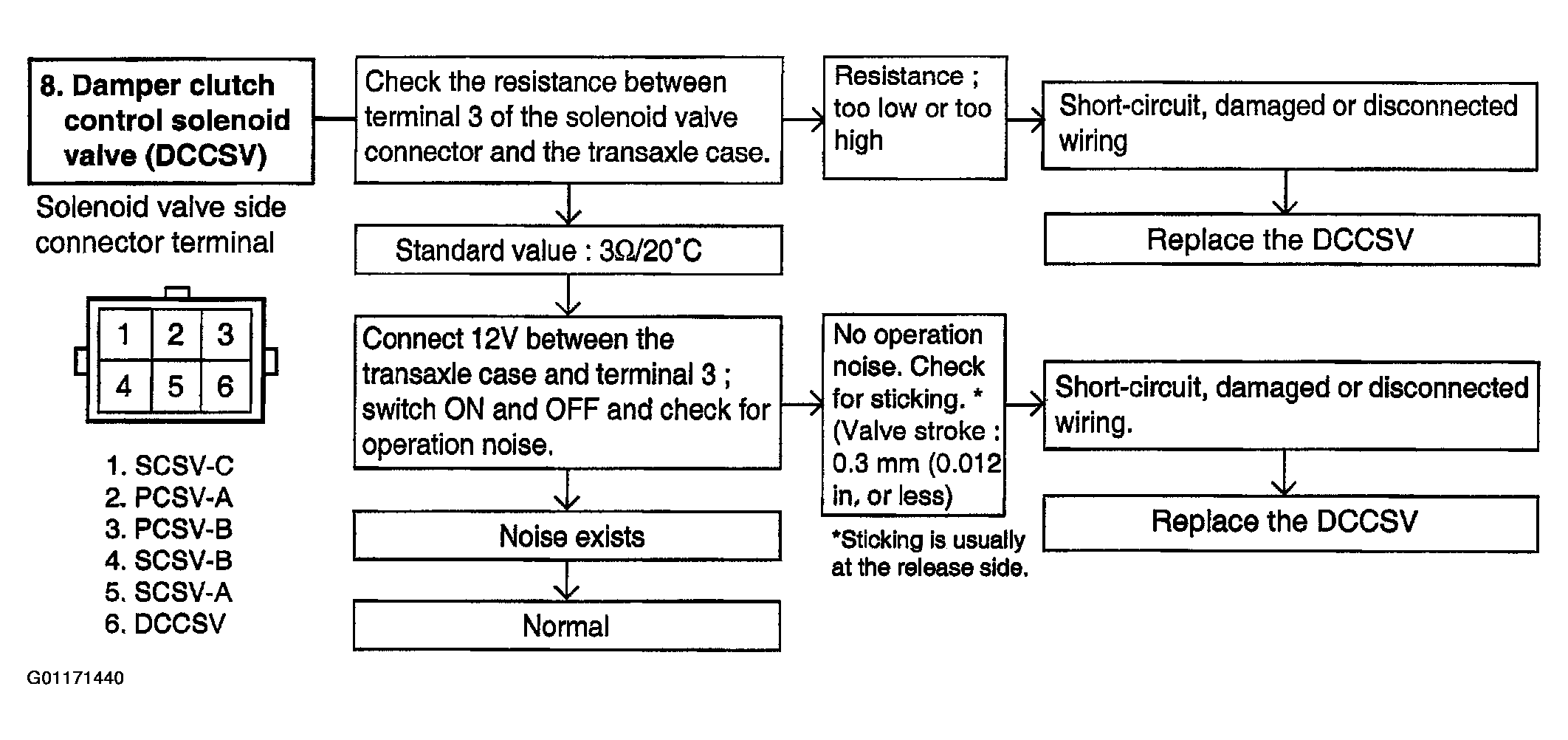

Fig 8: Inspecting Electronic Control System Components - Damper Clutch Control Solenoid Valve

Courtesy of HYUNDAI MOTOR CO.

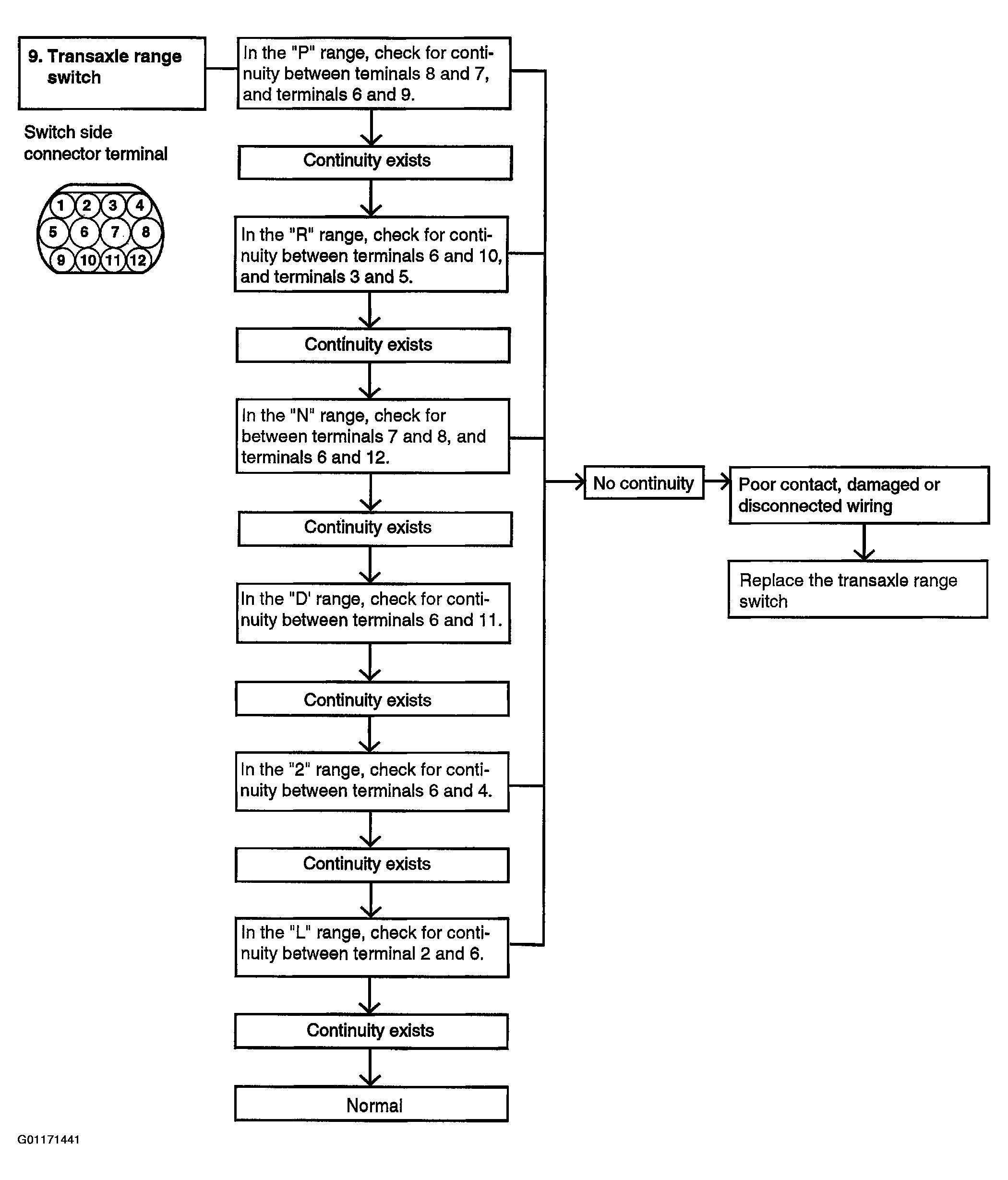

Fig 9: Inspecting Electronic Control System Components - Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.

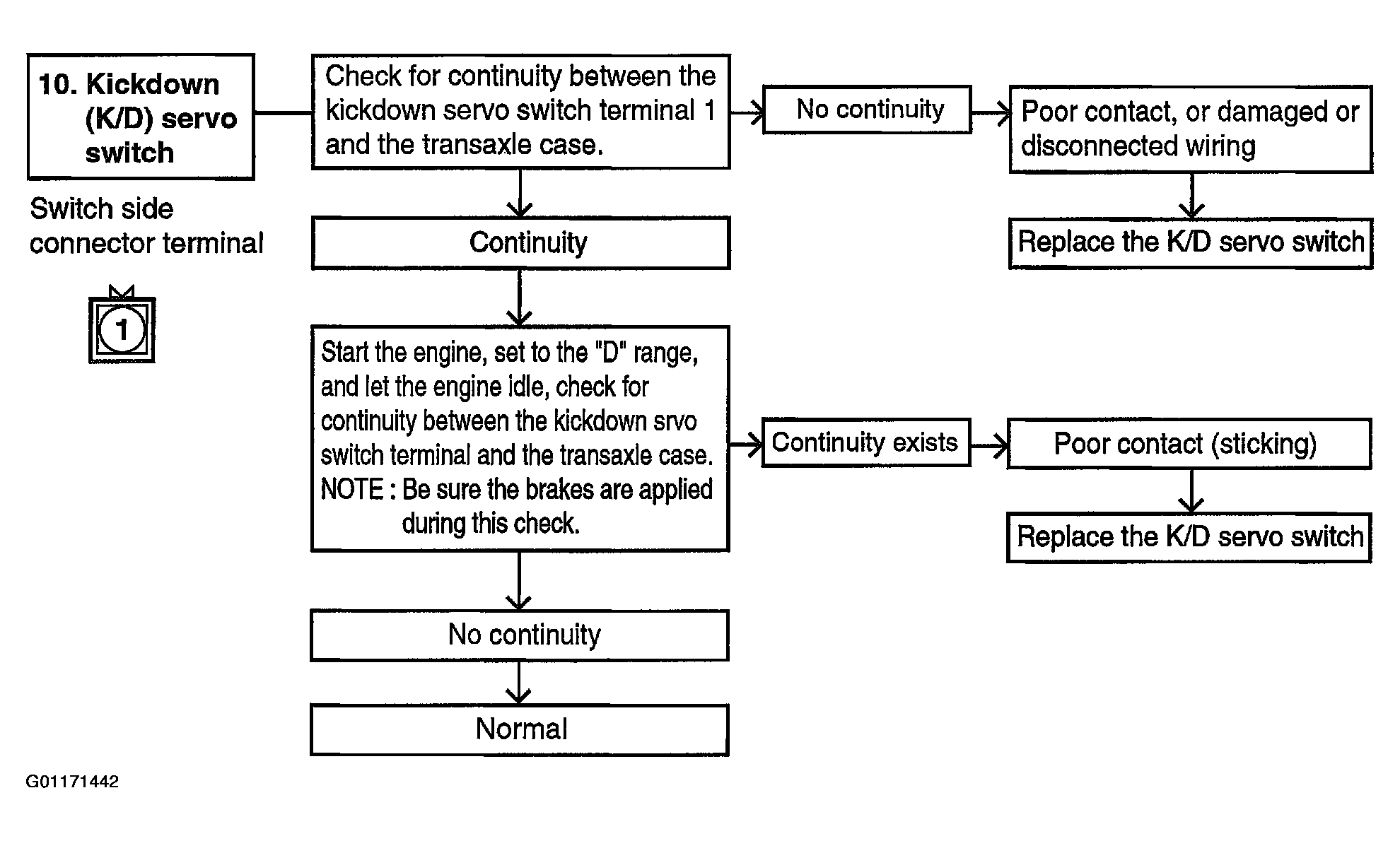

Fig 10: Inspecting Electronic Control System Components - Kickdown Servo Switch

Courtesy of HYUNDAI MOTOR CO.

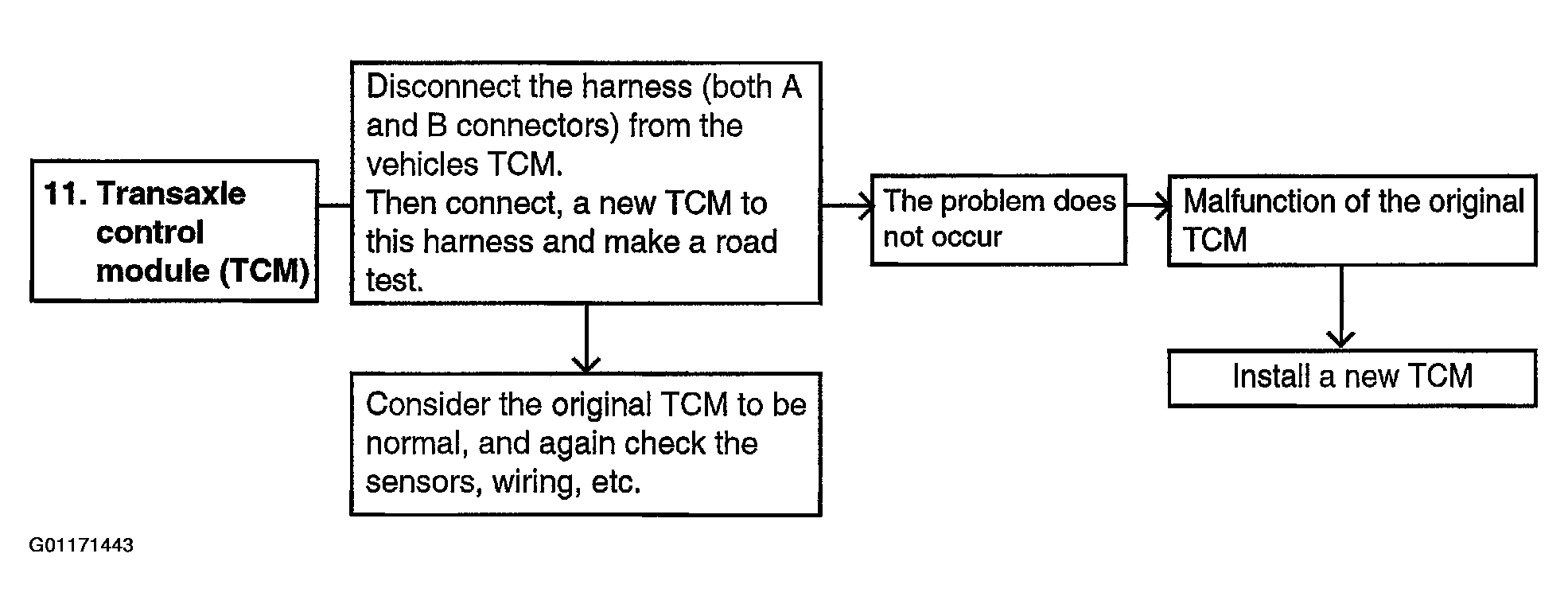

Fig 11: Inspecting Electronic Control System Components - Transaxle Control Module

Courtesy of HYUNDAI MOTOR CO.
