Transaxle Range Switch Adjustment

WARNING: This page is about a different variant/trim than selected.
  1. Place selector lever in "N" (Neutral) position.
  2. Loosen the manual control lever lock nut to separate the cable and lever.

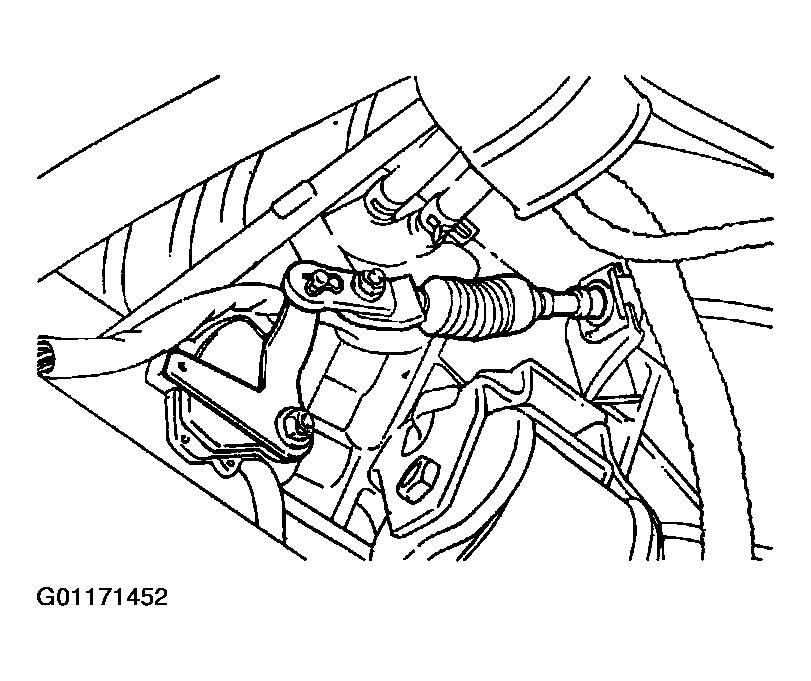

    Fig 1: Locating Manual Control Lever Lock Nut
    G01171452Courtesy of HYUNDAI MOTOR CO.
  3. Place the manual control lever in the "N" (Neutral) position.
  4. Turn the transaxle range switch body until the 12 mm (0.47 in.) wide end of the manual control lever aligns with the switch body flange [12 mm (0.472 in.) wide portion].
  5. Tighten the attaching bolts (2 pcs.) to the specified torque. Transaxle Range Switch Attaching Bolt: 10-12 Nm (100-120 kg.cm, 7-9 lb.ft)
    NOTE: When setting up the switch body, be careful O-ring not to drop from the switch body. Tighten the attaching bolts carefully.

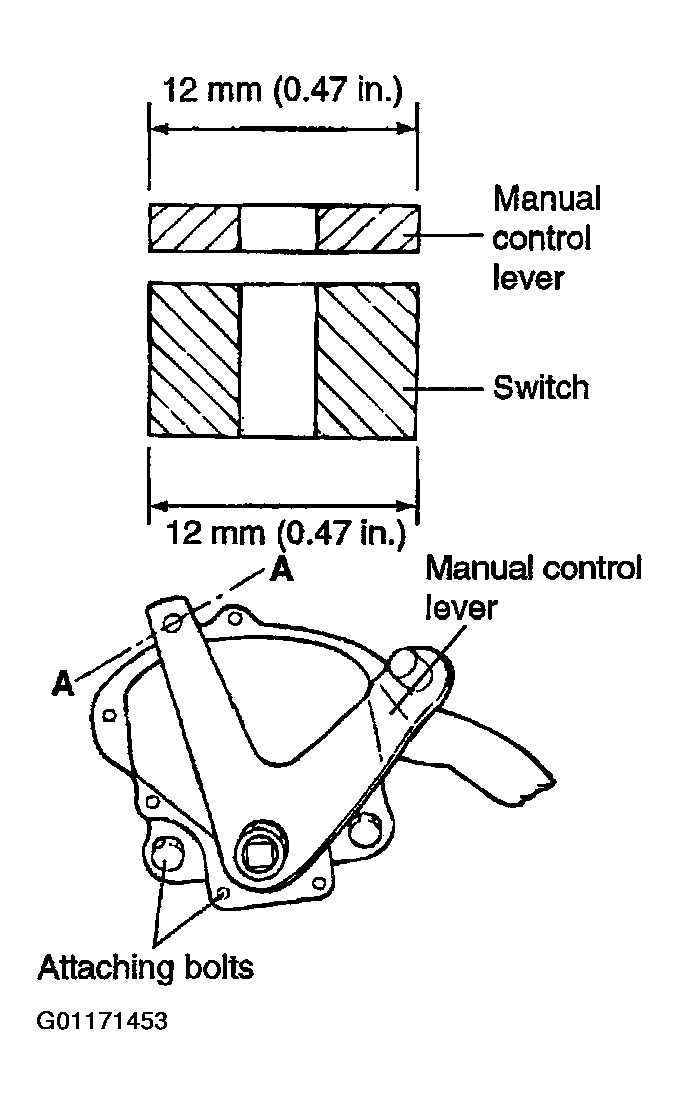

    Fig 2: Aligning Transaxle Range Switch & Control Lever
    G01171453Courtesy of HYUNDAI MOTOR CO.
  6. Make sure that the selector lever is in the "N" (Neutral) position.
  7. Adjust the flange nut so that there is no slack in the control cable and make sure that the selector lever operates smoothly.
  8. Run the vehicle and confirm that the transaxle is set in each range when the selector lever is shifted to each position.

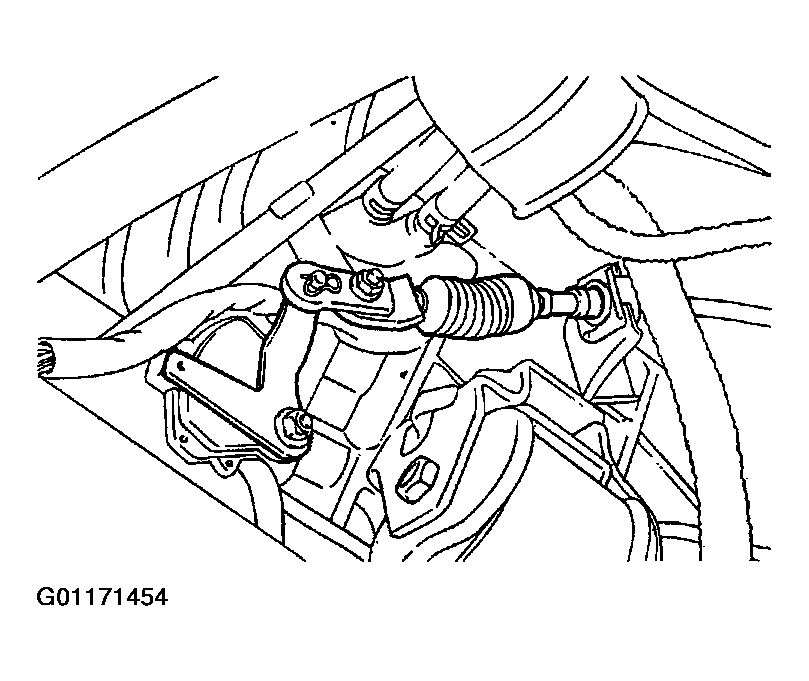

    Fig 3: View Of Transaxle Range Switch
    G01171454Courtesy of HYUNDAI MOTOR CO.
