DTC P0720: Output Shaft Sensor System

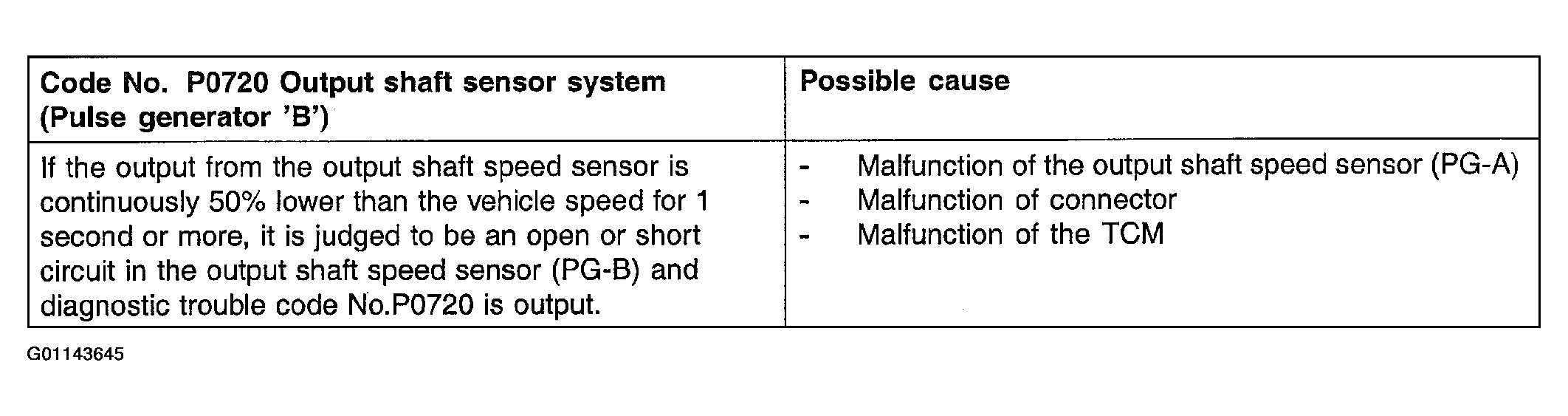

Fig 1: DTC P0720 Detecting Conditions & Probable Causes
G01143645Courtesy of HYUNDAI MOTOR CO.

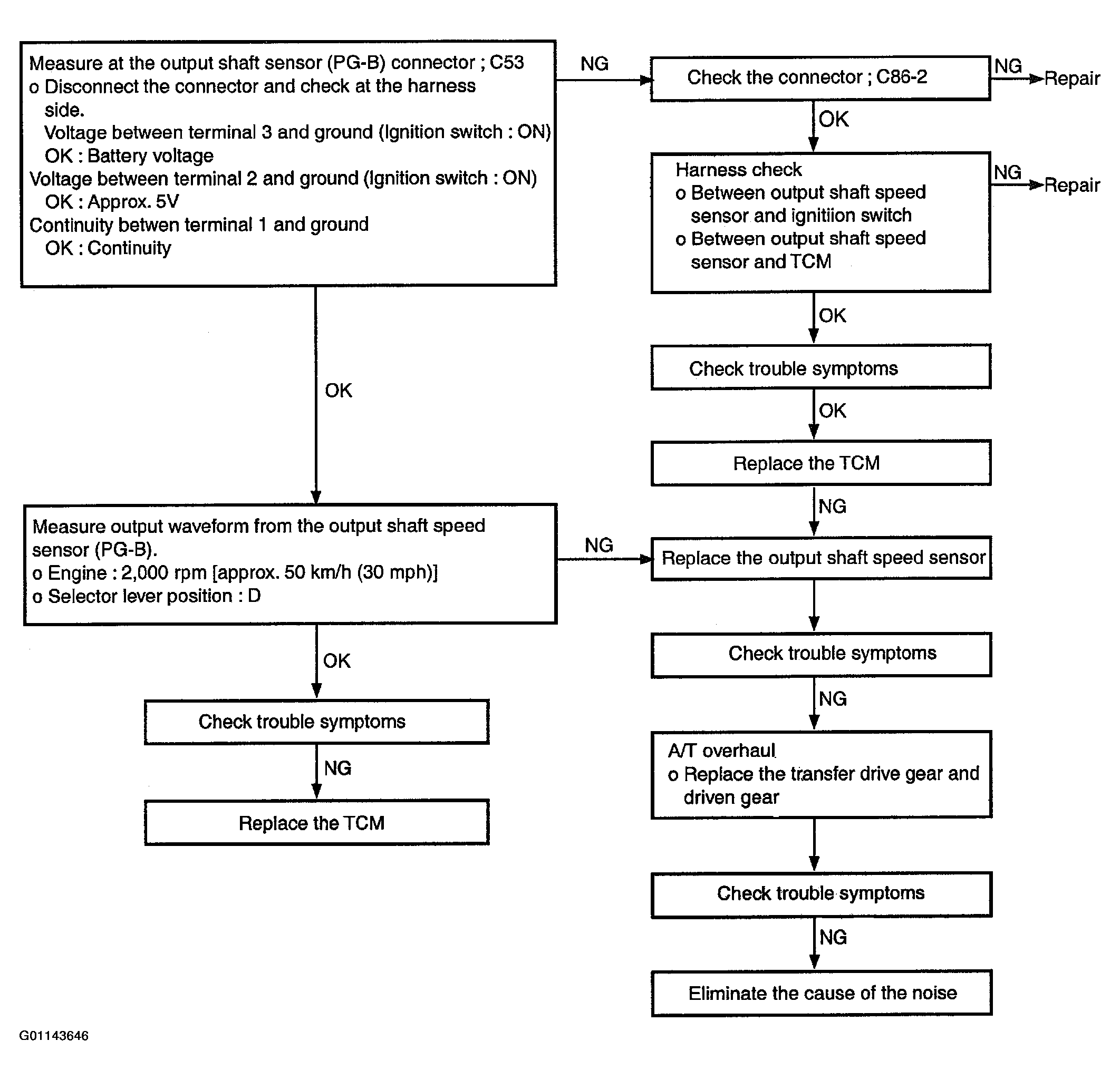

Fig 2: DTC P0720 Diagnostic Flow Chart
G01143646Courtesy of HYUNDAI MOTOR CO.
