Transaxle Range Switch Continuity Check

WARNING: This page is about a different variant/trim than selected.

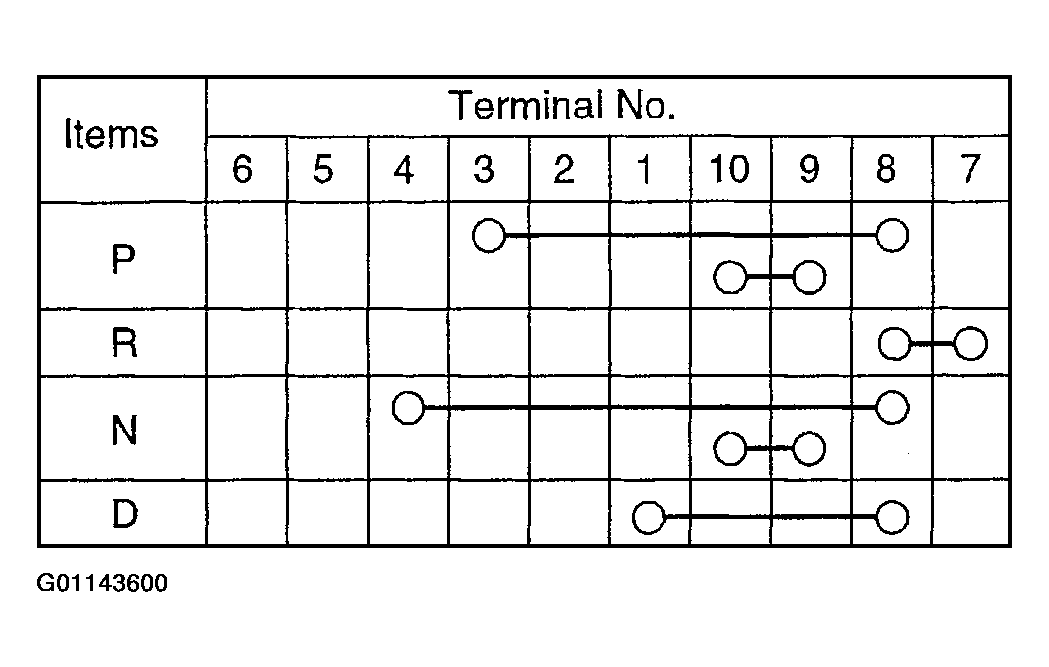

Fig 1: Transaxle Range Switch Continuity Table
G01143600Courtesy of HYUNDAI MOTOR CO.

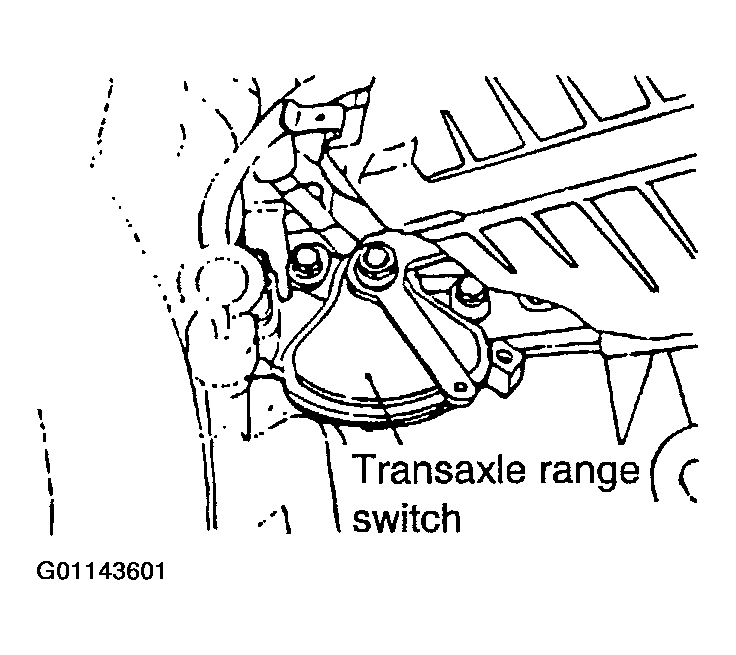

Fig 2: Identifying Transaxle Range Switch
G01143601Courtesy of HYUNDAI MOTOR CO.
Fig 3: Identifying Transaxle Range Switch Positions
G01143602Courtesy of HYUNDAI MOTOR CO.
