Diagnostic Trouble Code Description

WARNING: This page is about a different variant/trim than selected.

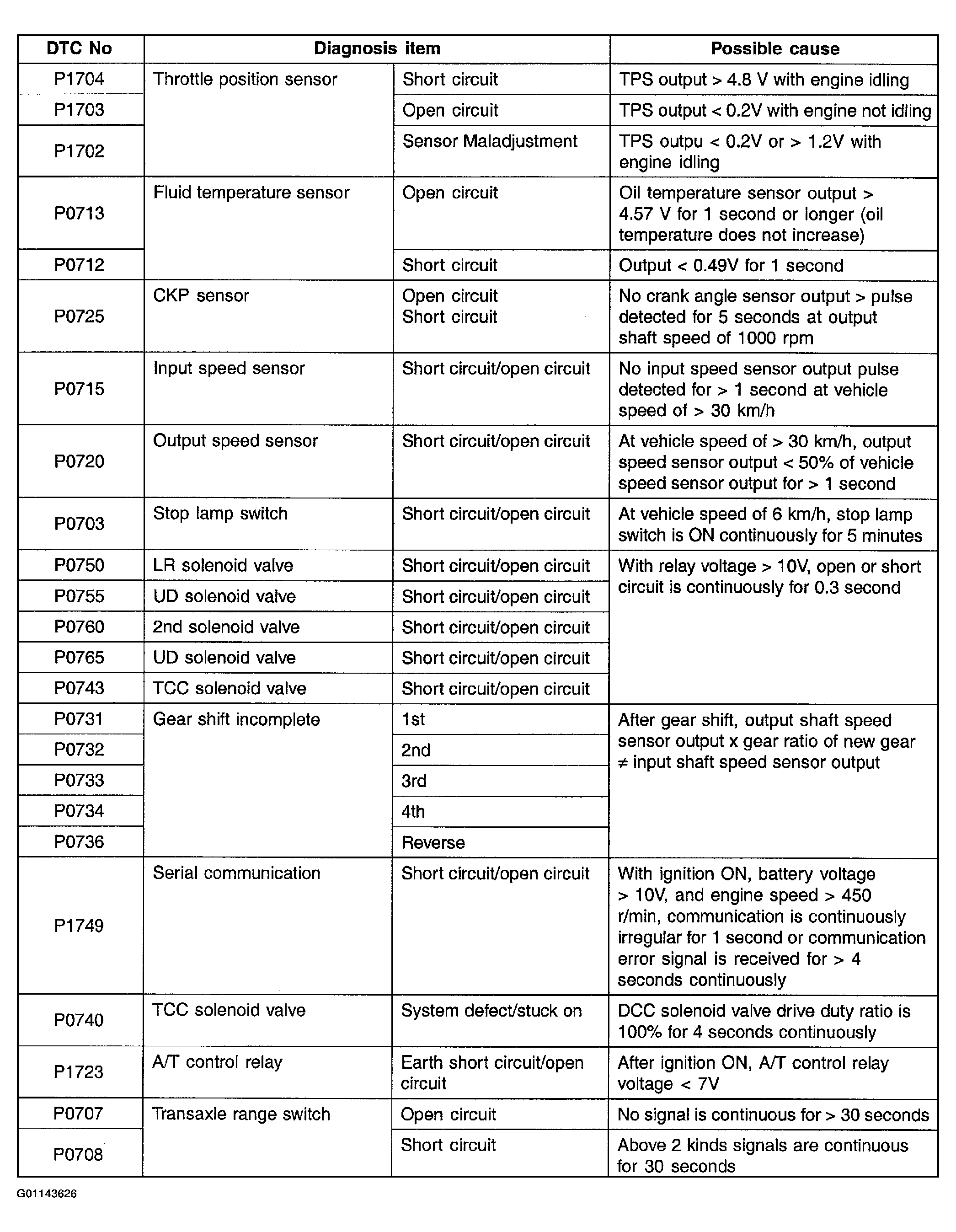

Fig 1: DTC Description Table (1 Of 2)
G01143626Courtesy of HYUNDAI MOTOR CO.

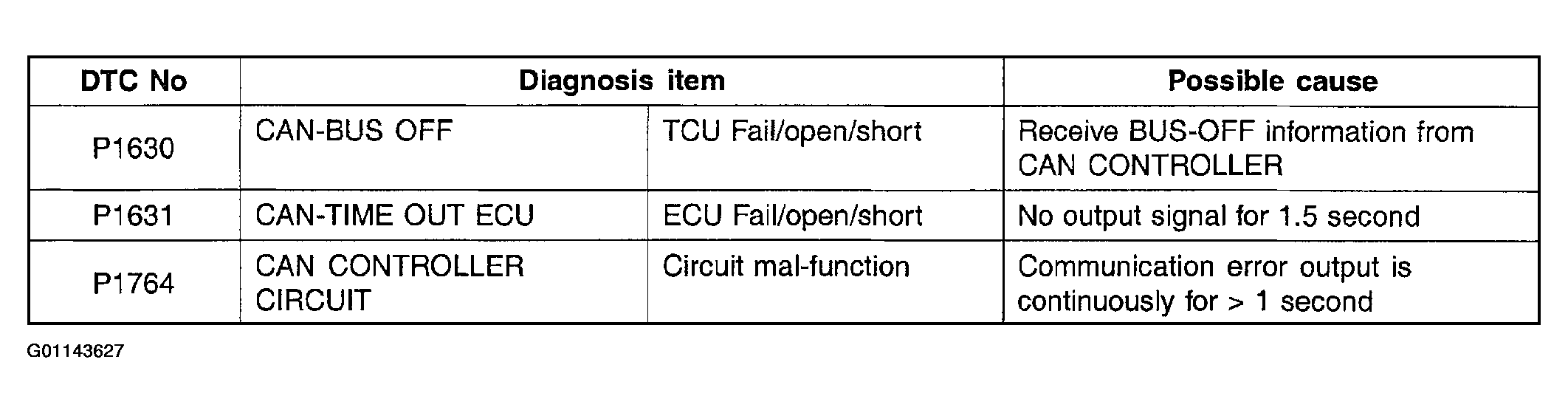

Fig 2: DTC Description Table (2 Of 2)
G01143627Courtesy of HYUNDAI MOTOR CO.
