Operating Elements & Their Function

WARNING: This page is about a different variant/trim than selected.

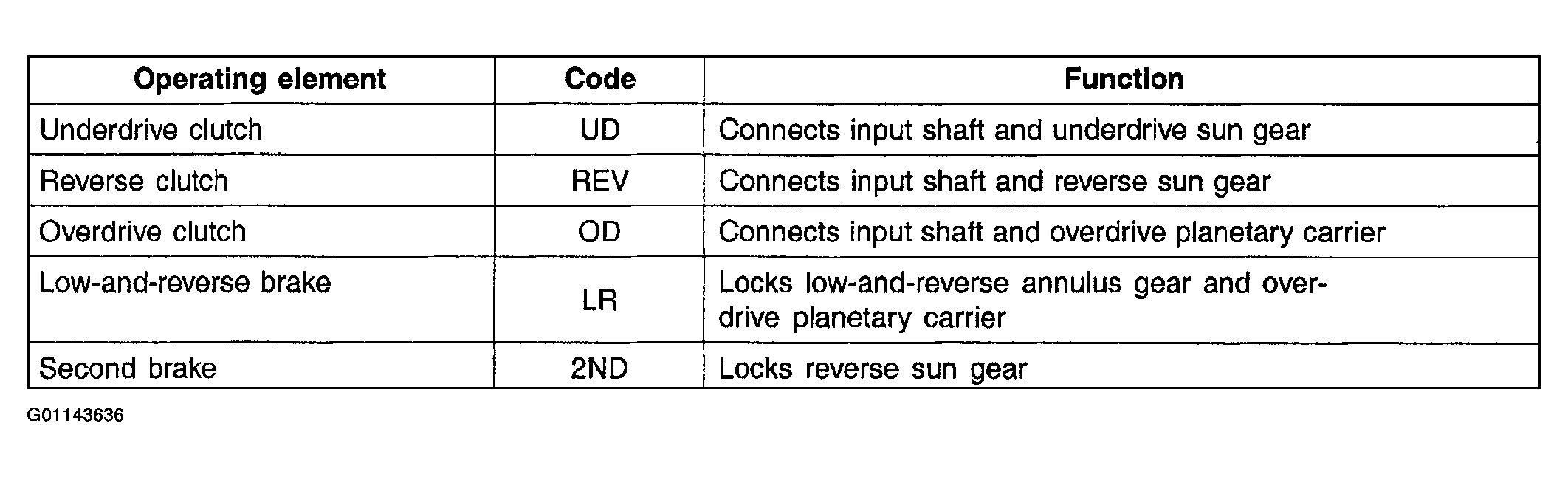

Fig 1: Operating Elements & Their Function Table
G01143636Courtesy of HYUNDAI MOTOR CO.
