Automatic Transaxle System
>>
Inspection Process For Trouble Symptoms
>>
Inspection Procedure 11
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Inspection Procedure 11

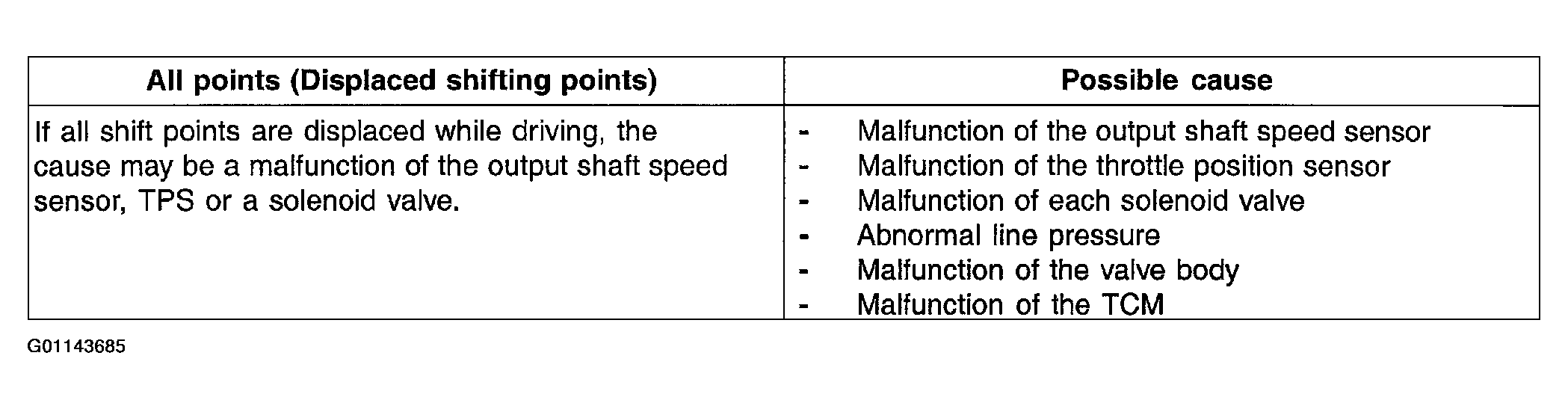

Fig 1: All Points (Displaced Shifting Points) Possible Causes Table
Courtesy of HYUNDAI MOTOR CO.

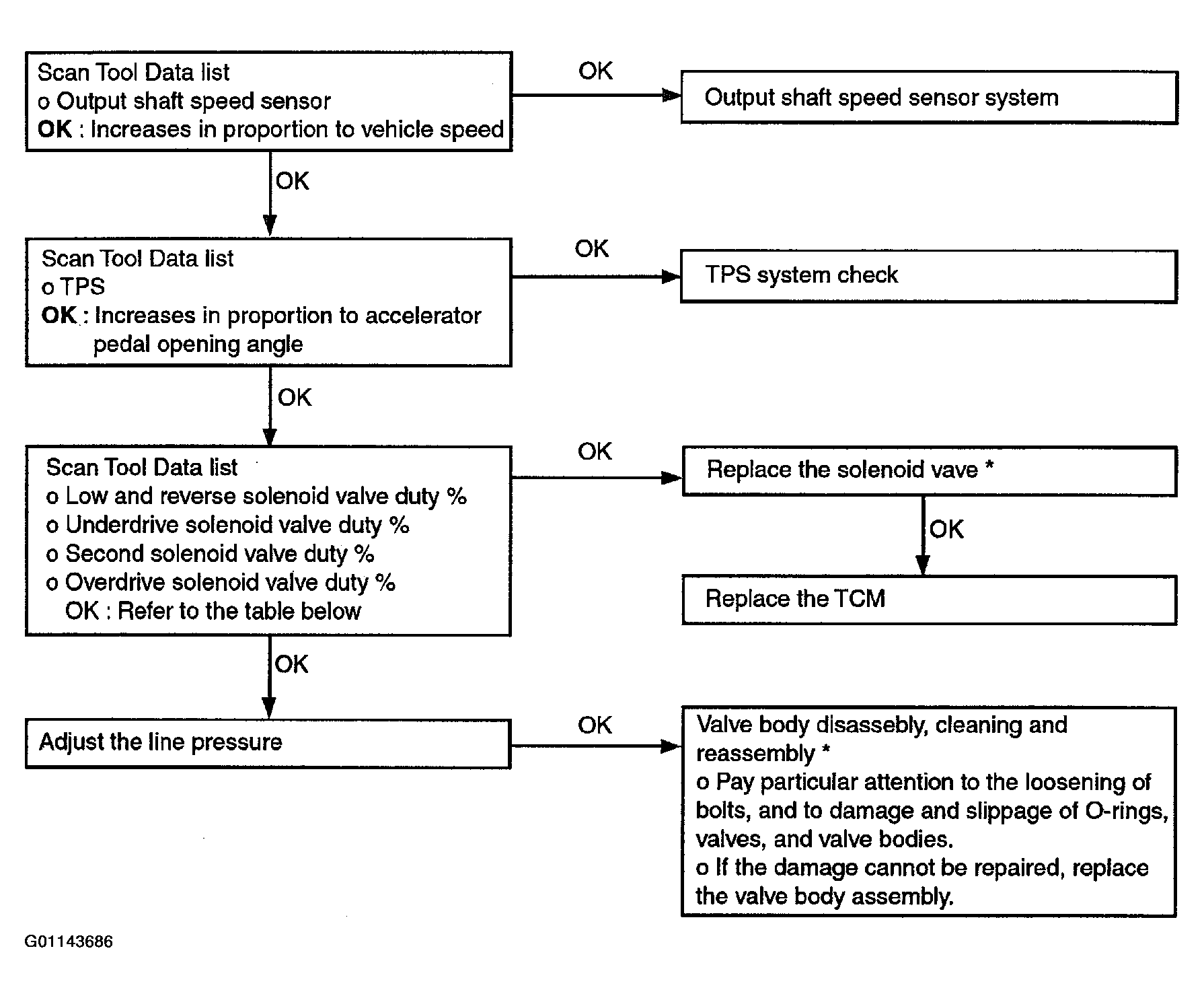

Fig 2: All Points (Displaced Shifting Points) Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
