Transfer Case Assembly
>>
Transfer Case
>>
Section View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Section View

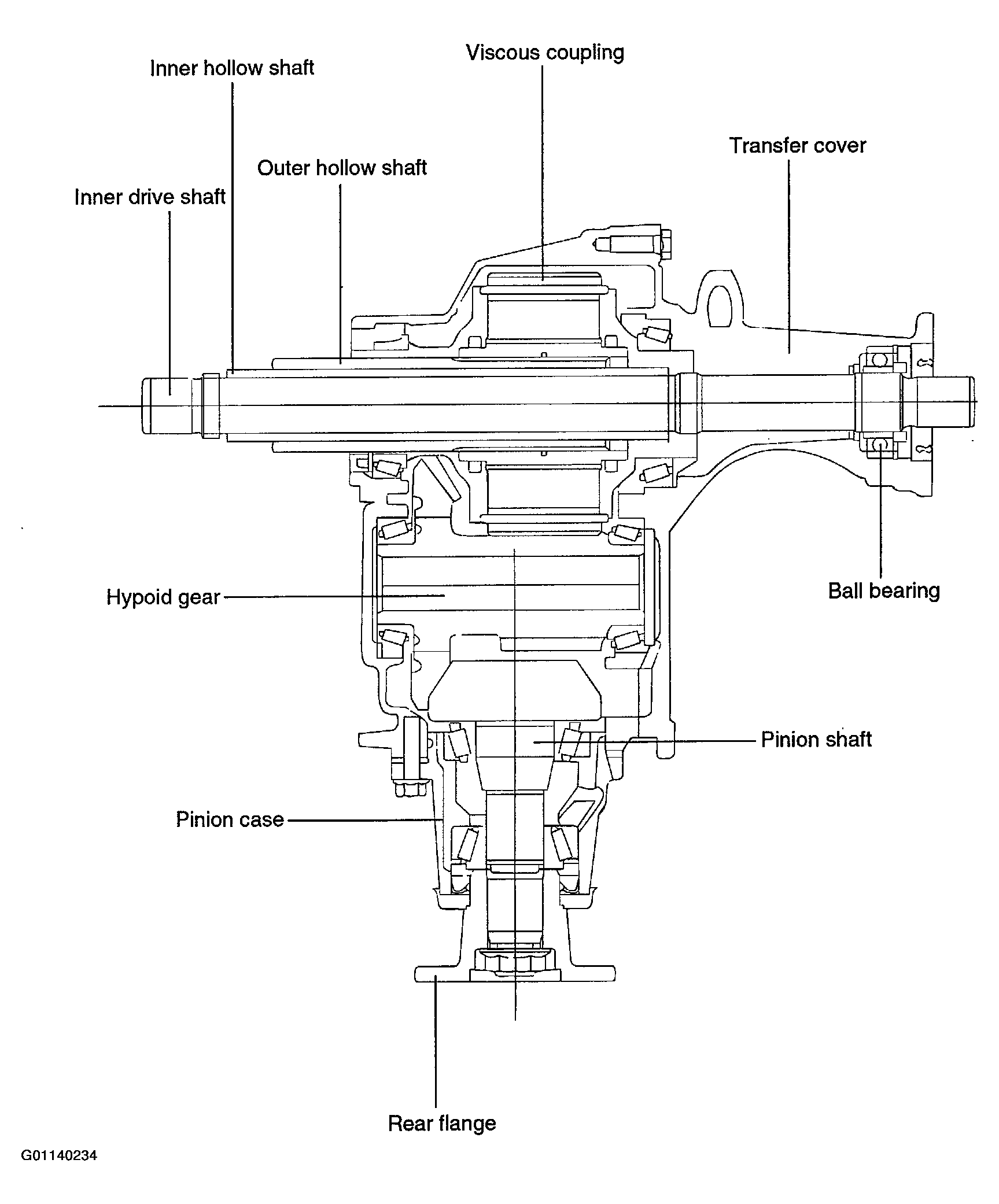

Fig 1: Section View Of Transfer Case
Courtesy of HYUNDAI MOTOR CO.
