Service Specifications: Audio

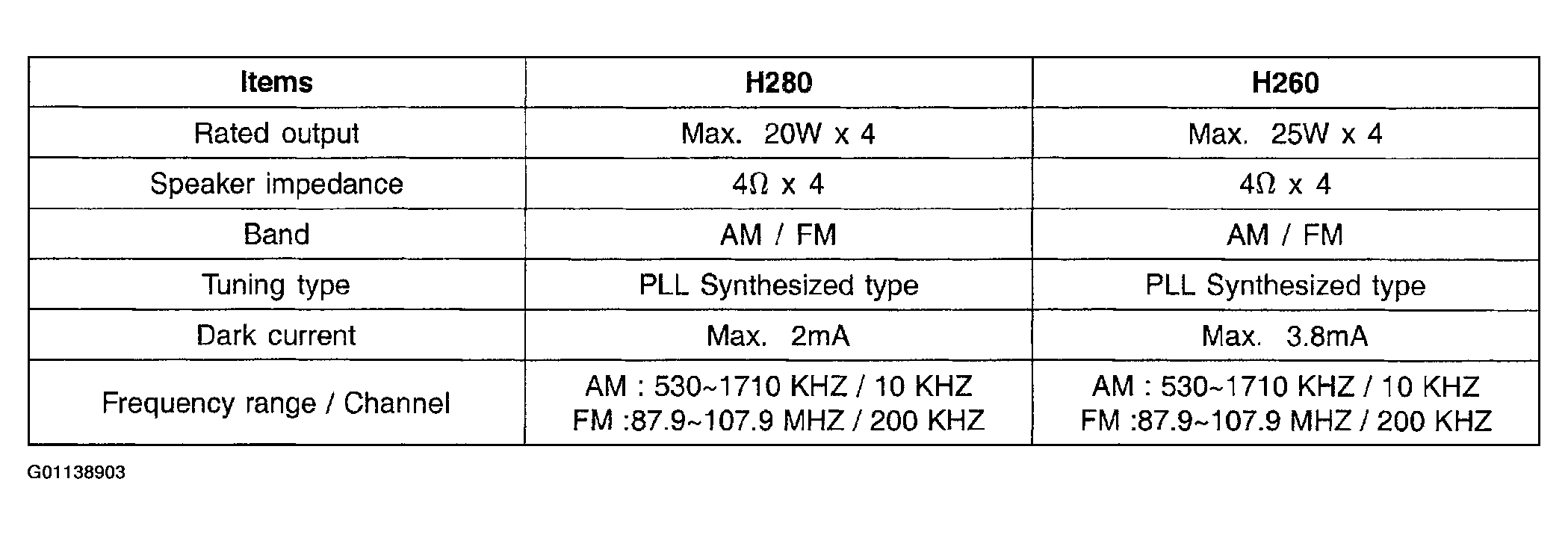

Fig 1: Audio Service Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
