Instruments And Warning System

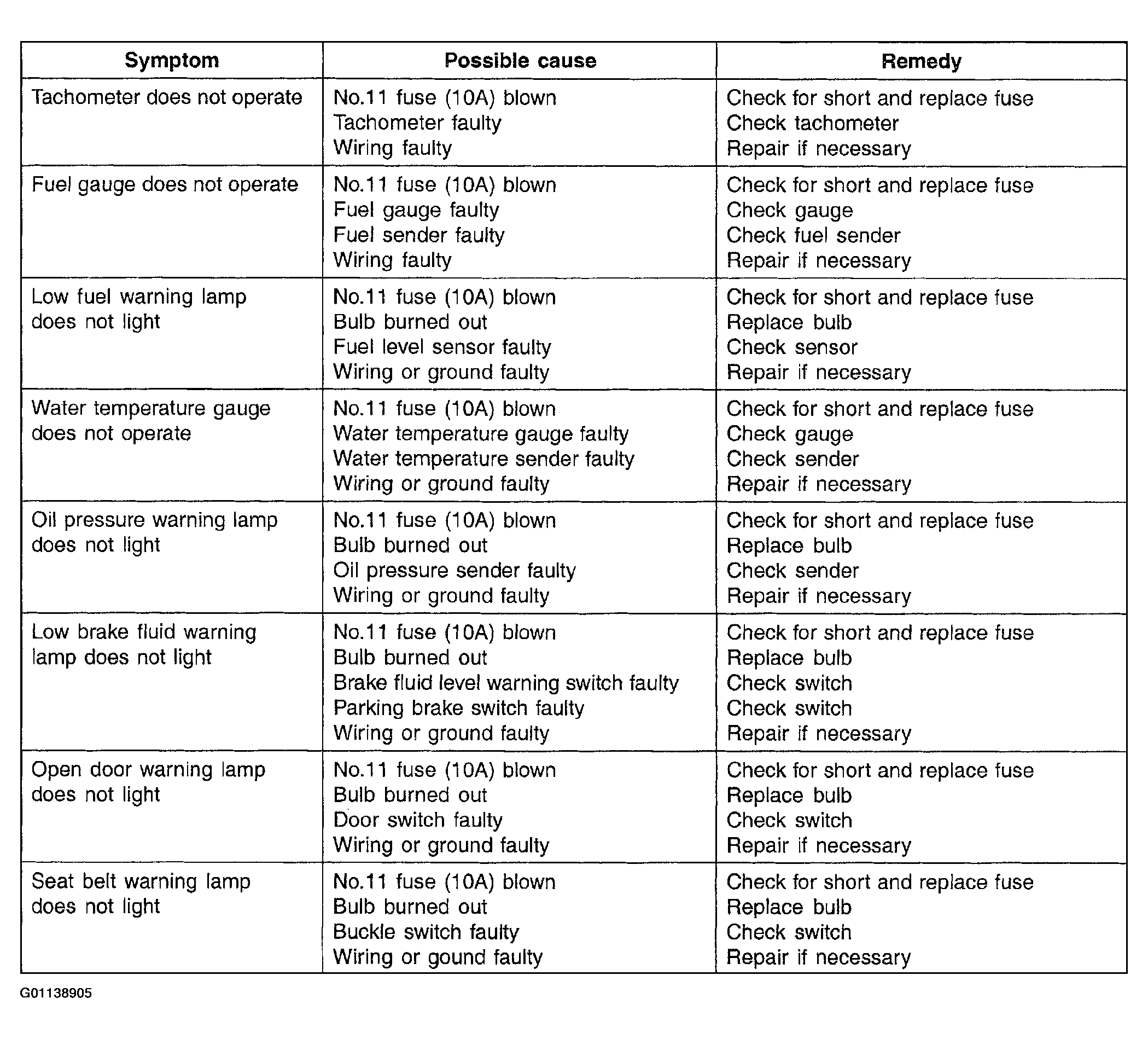

Fig 1: Instruments & Warning System Troubleshooting Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
