Fuse Block: Application and ID

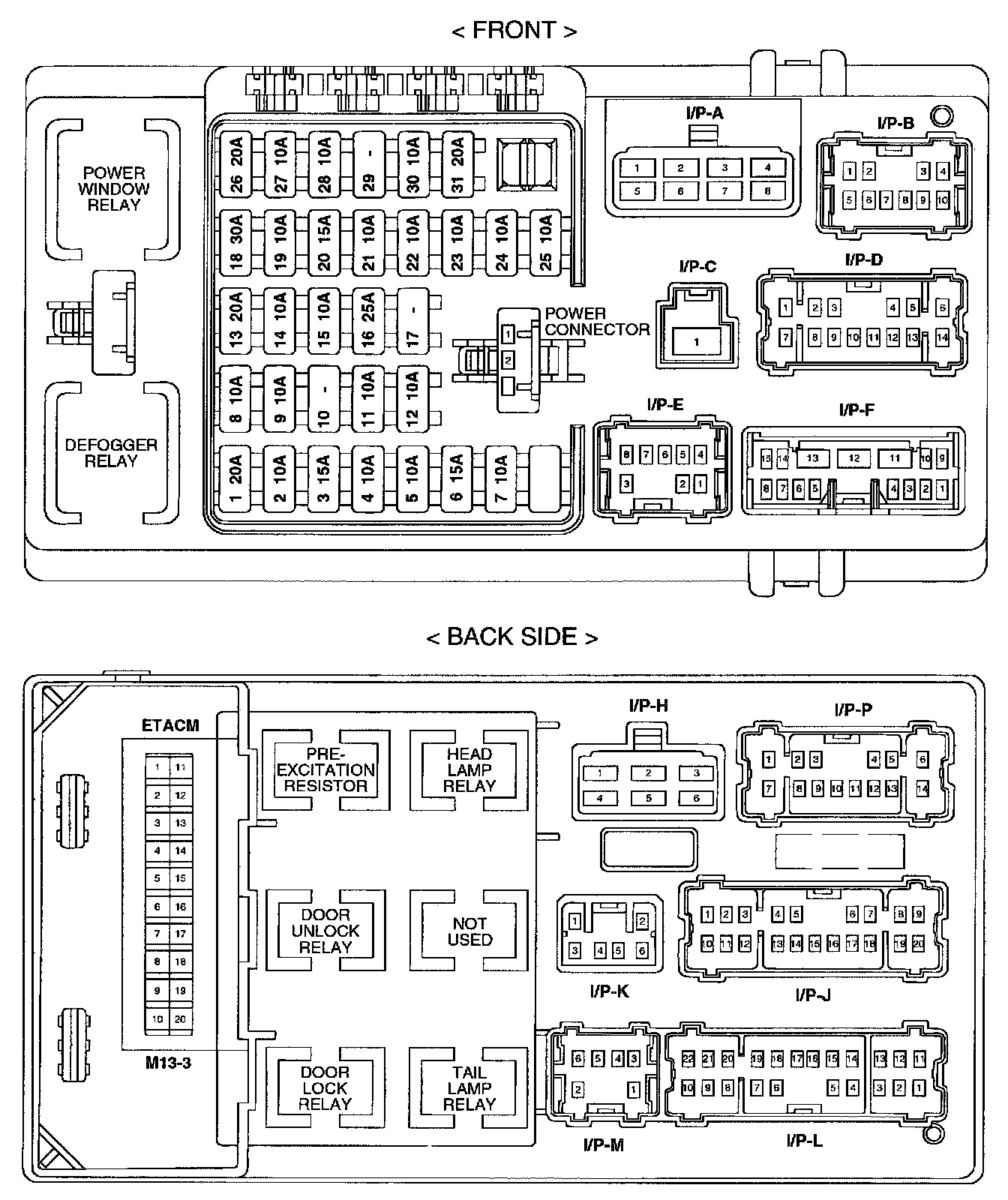

Passenger Compartment Junction Block Layout:

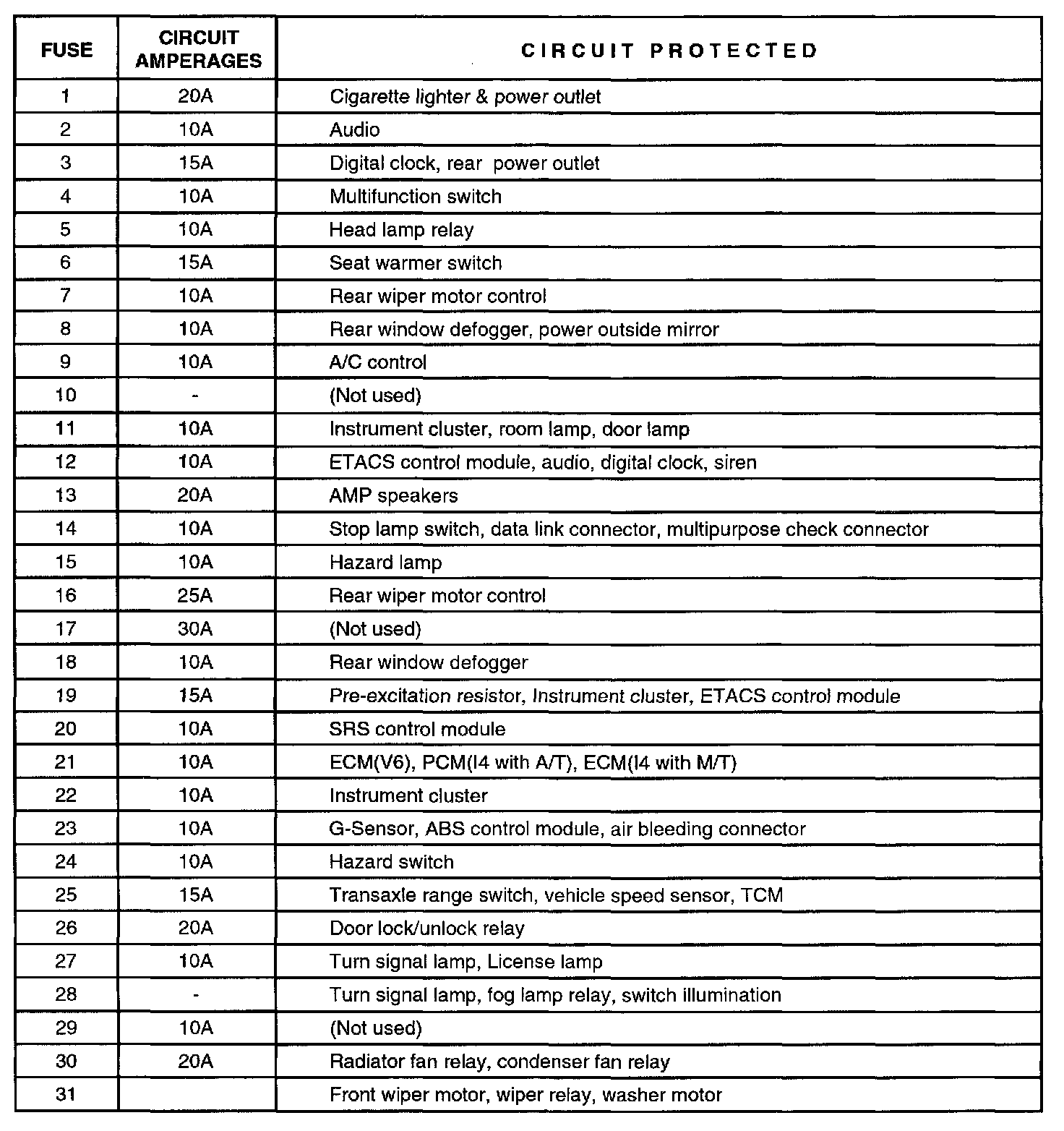

Passenger Compartment Junction Block Circuit:

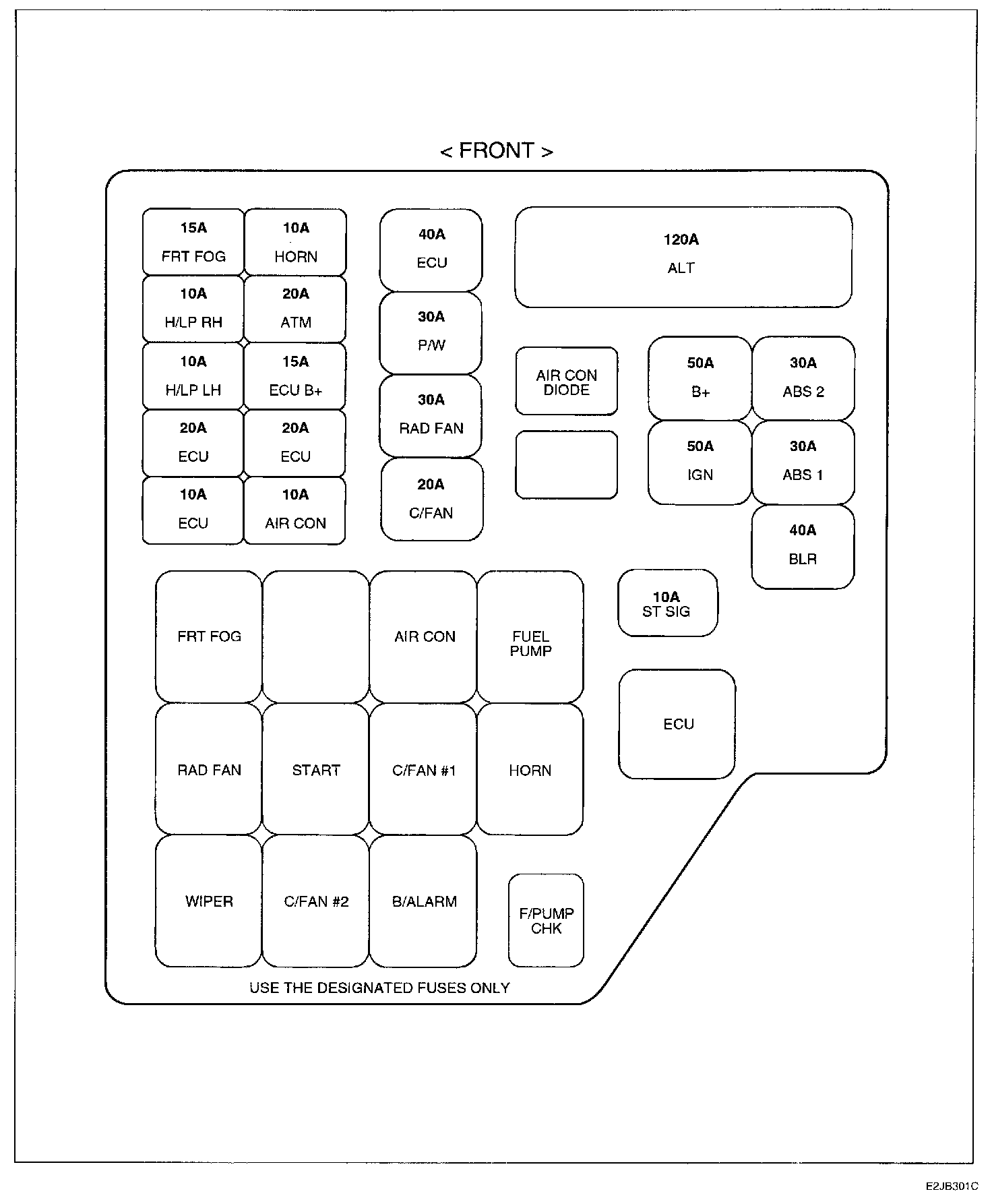

Engine Compartment Junction Block Layout <Front>:

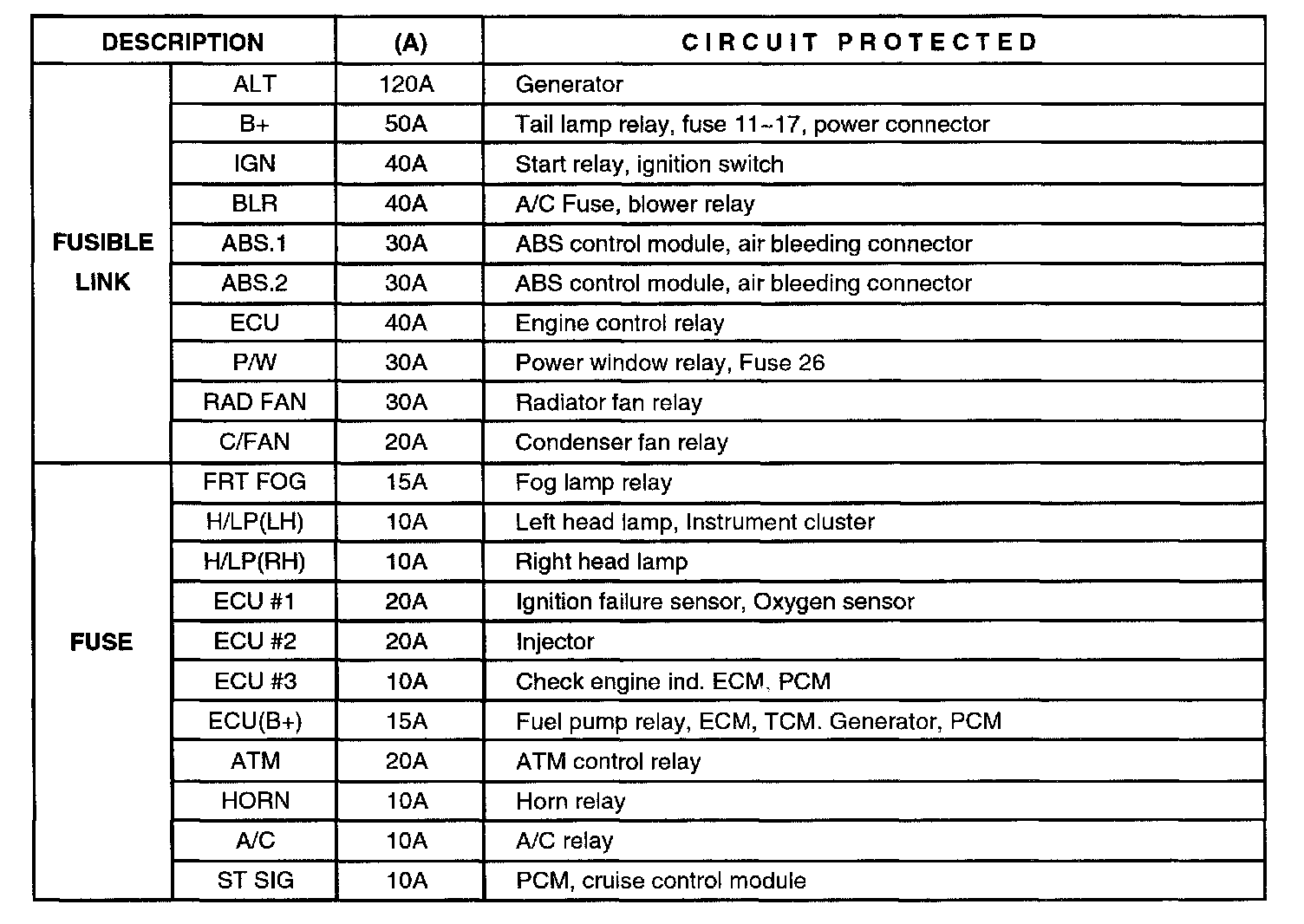

Engine Compartment Junction Block Circuit <Front>:

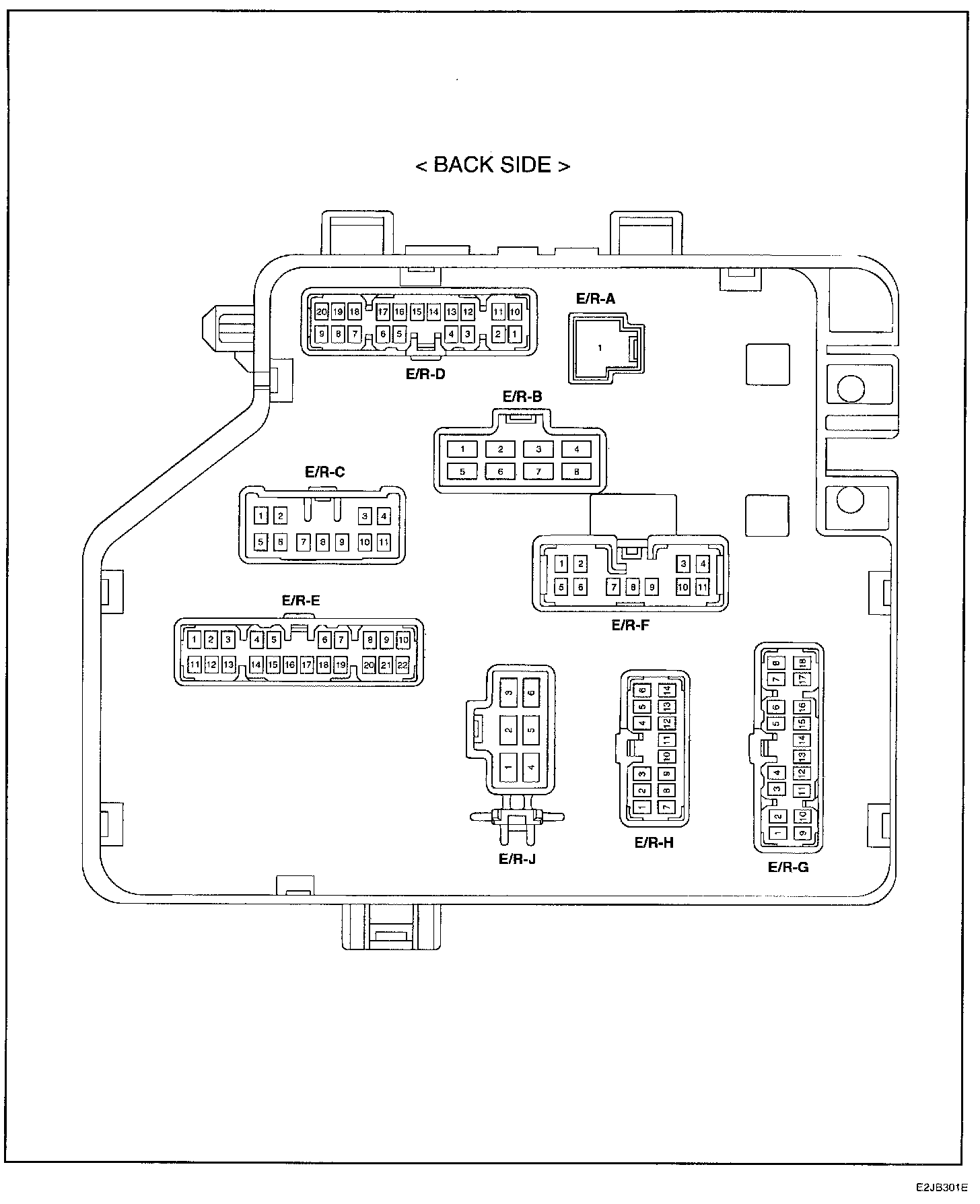

Engine Compartment Junction Block Layout <Backside>:
