Connector Locations

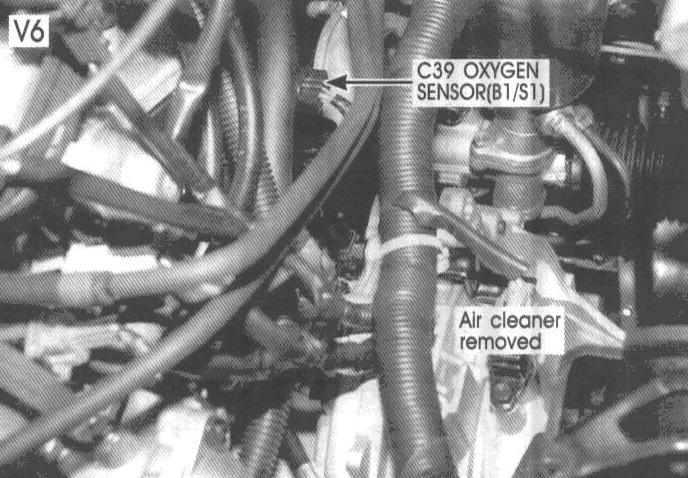

C39 Oxygen Sensor (B1/S1):

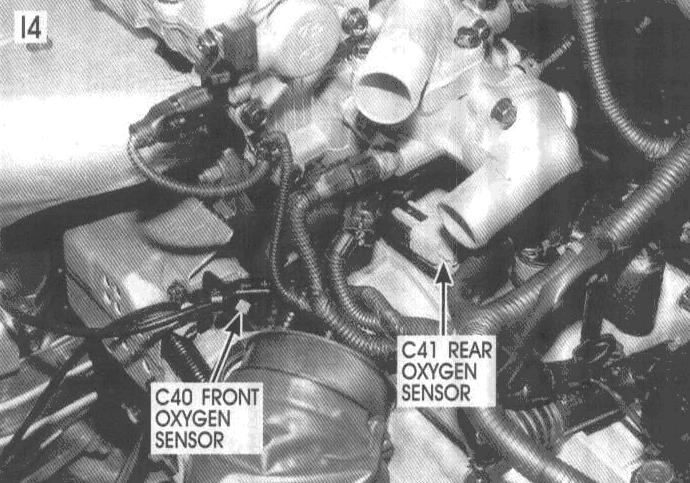

C40 Front Oxygen Sensor, C41 Rear Oxygen Sensor:

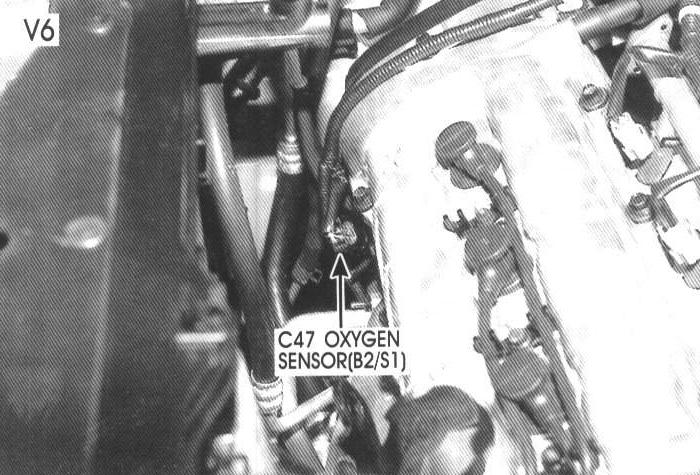

C47 Oxygen Sensor (B2/S1):

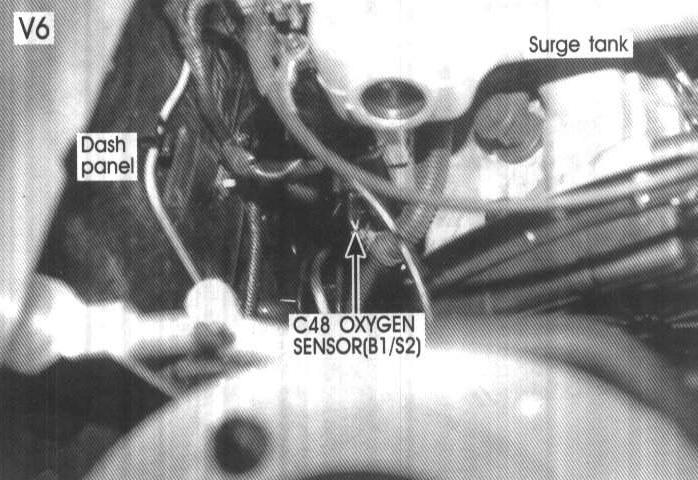

C48 Oxygen Sensor (B1/S2):

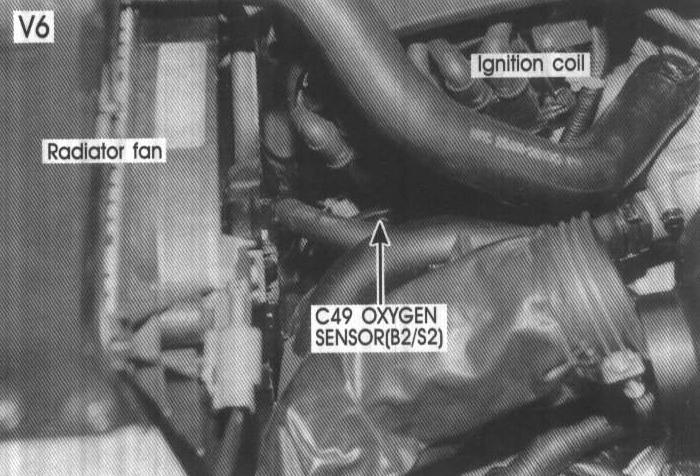

C49 Oxygen Sensor (B2/S2):
