Inspection Procedure 3

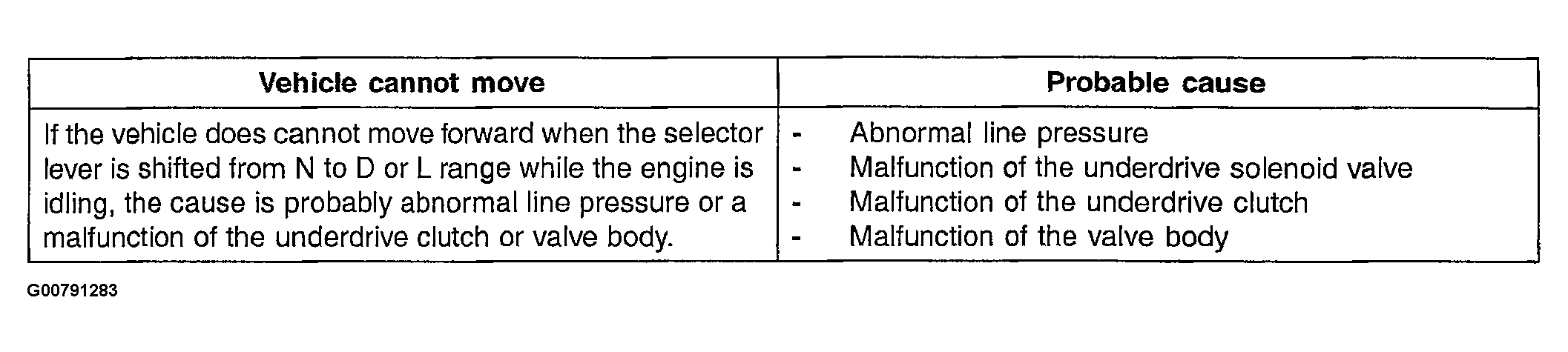

Fig 1: Inspection Procedure 3 Definitions & Probable Causes
G00791283Courtesy of HYUNDAI MOTOR CO.

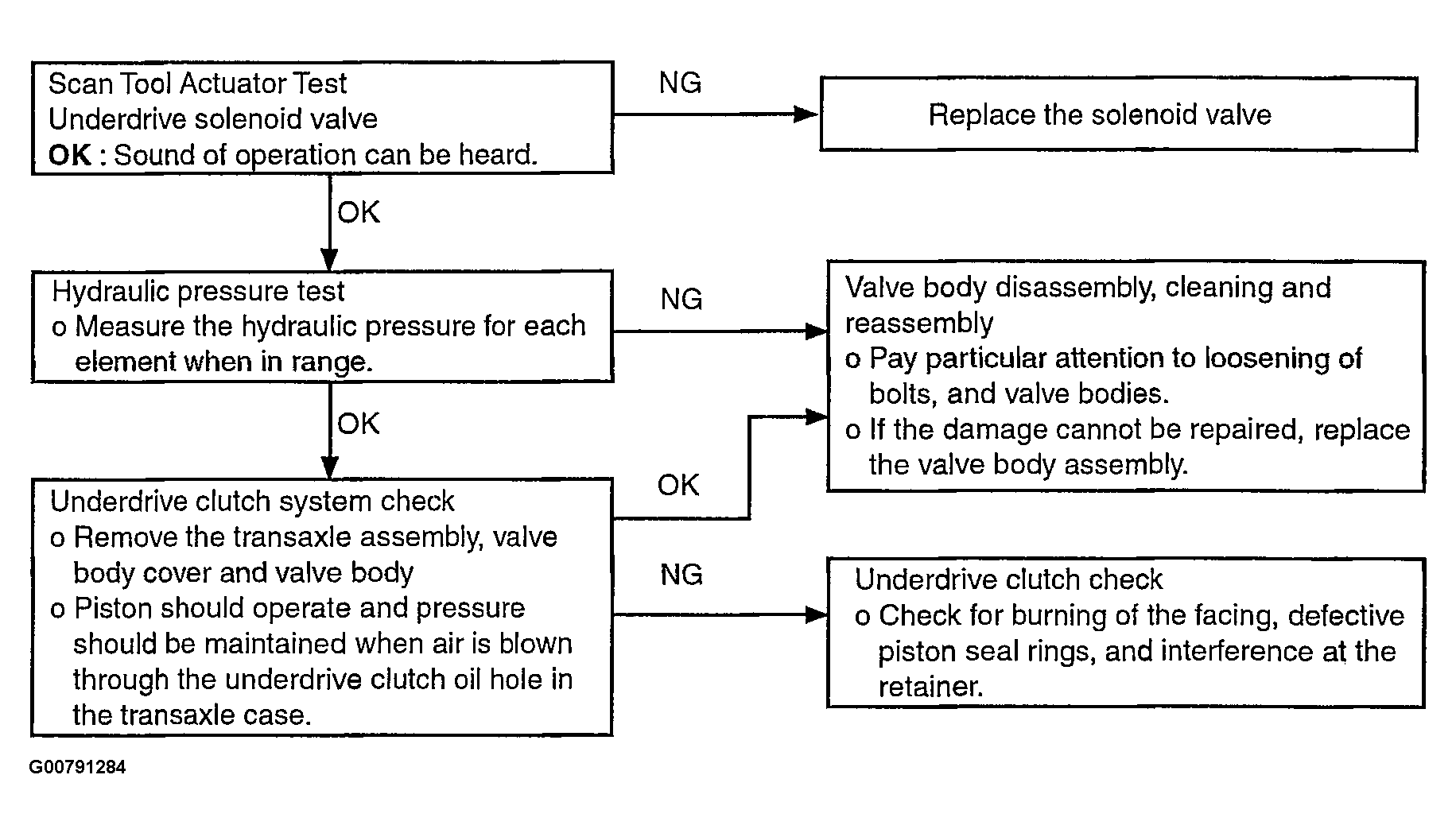

Fig 2: Inspection Procedure 3 Diagnostic Flow Chart
G00791284Courtesy of HYUNDAI MOTOR CO.
