Electrical Diagrams

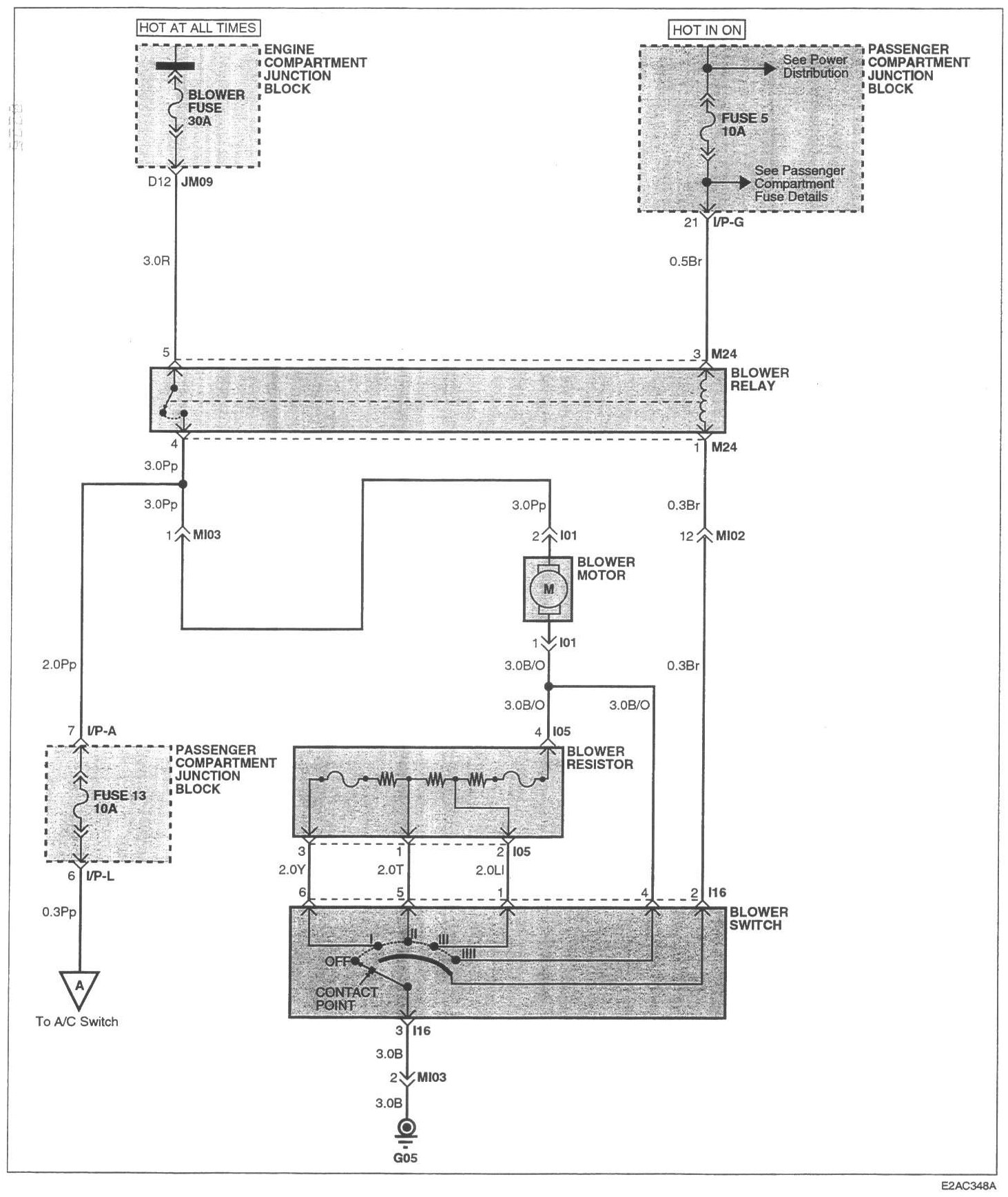

Image SD-210 Blower And A/C Controls (Manual) (1):

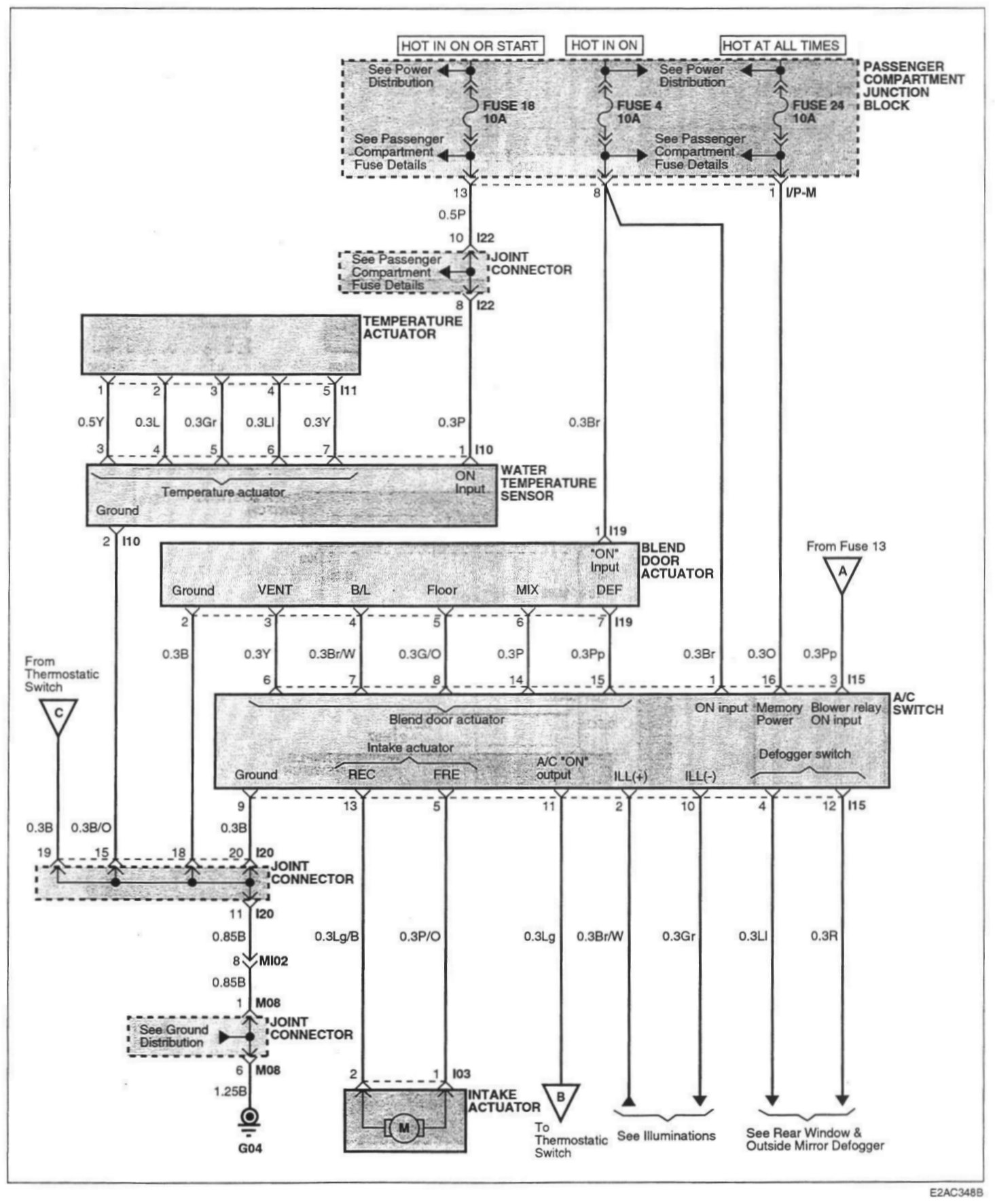

Image SD-211 Blower And A/C Controls (Manual) (2):

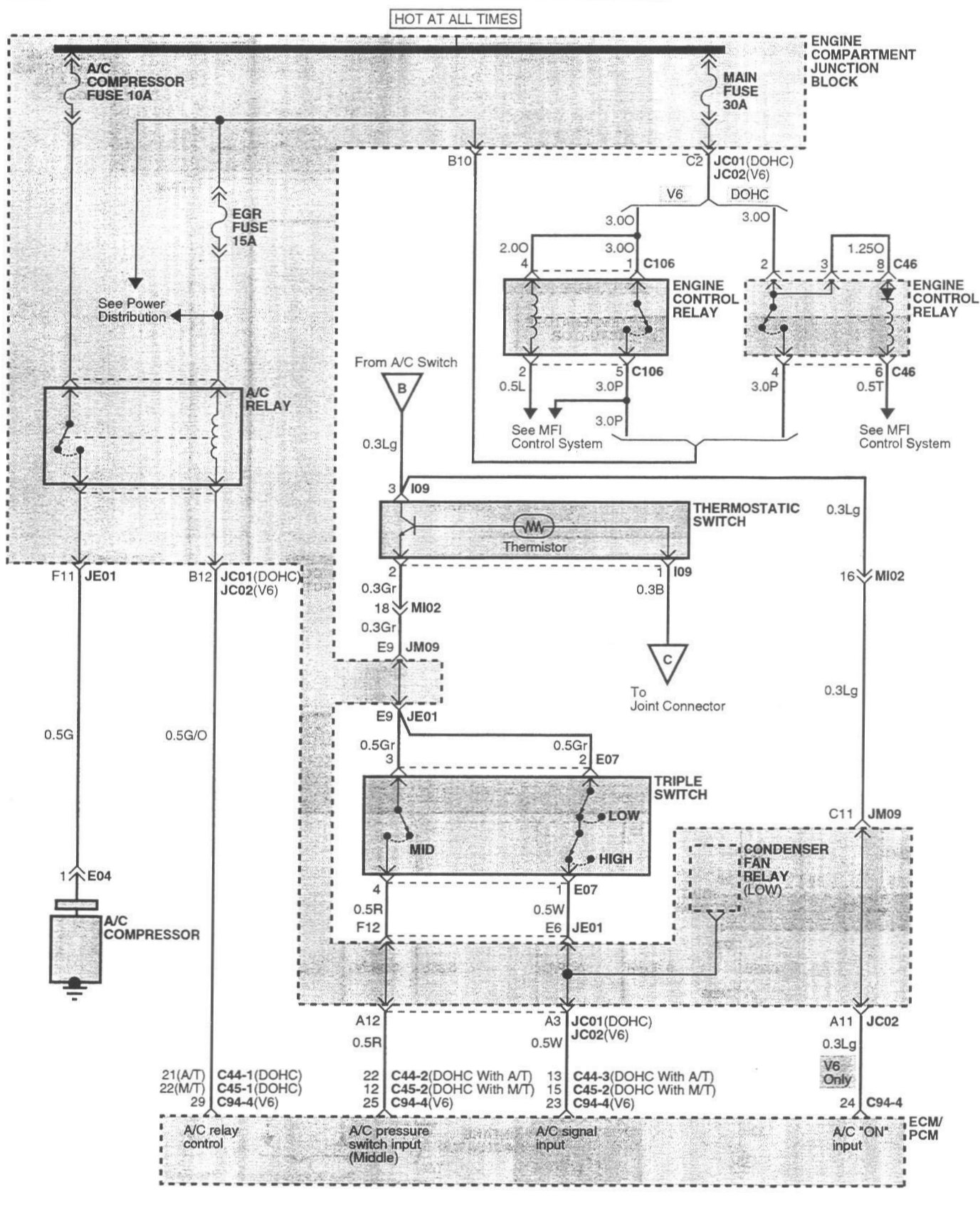

Image SD-212 Blower And A/C Controls (Manual) (3):

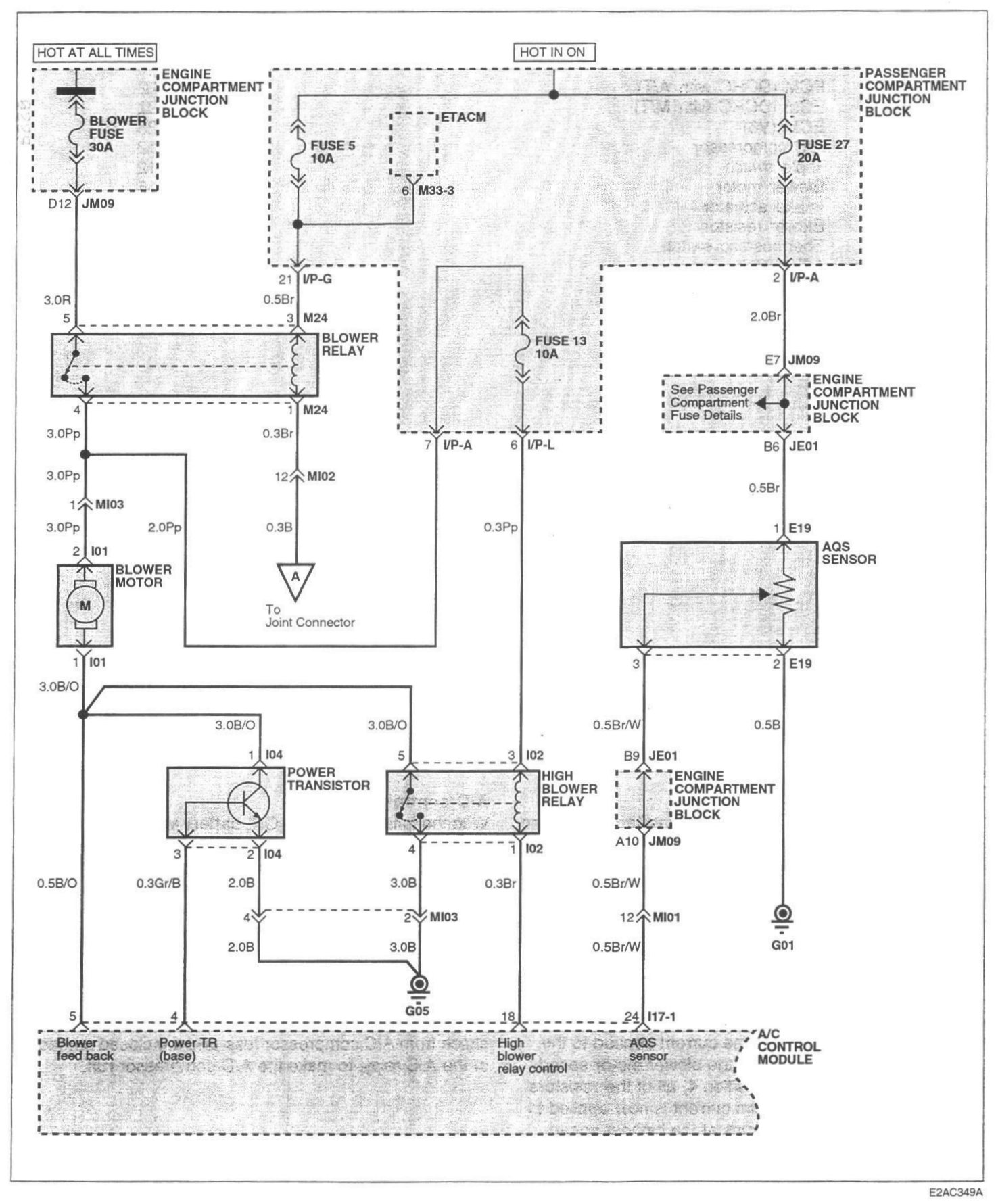

Image SD-214 Blower And A/C Controls (Automatic) (1):

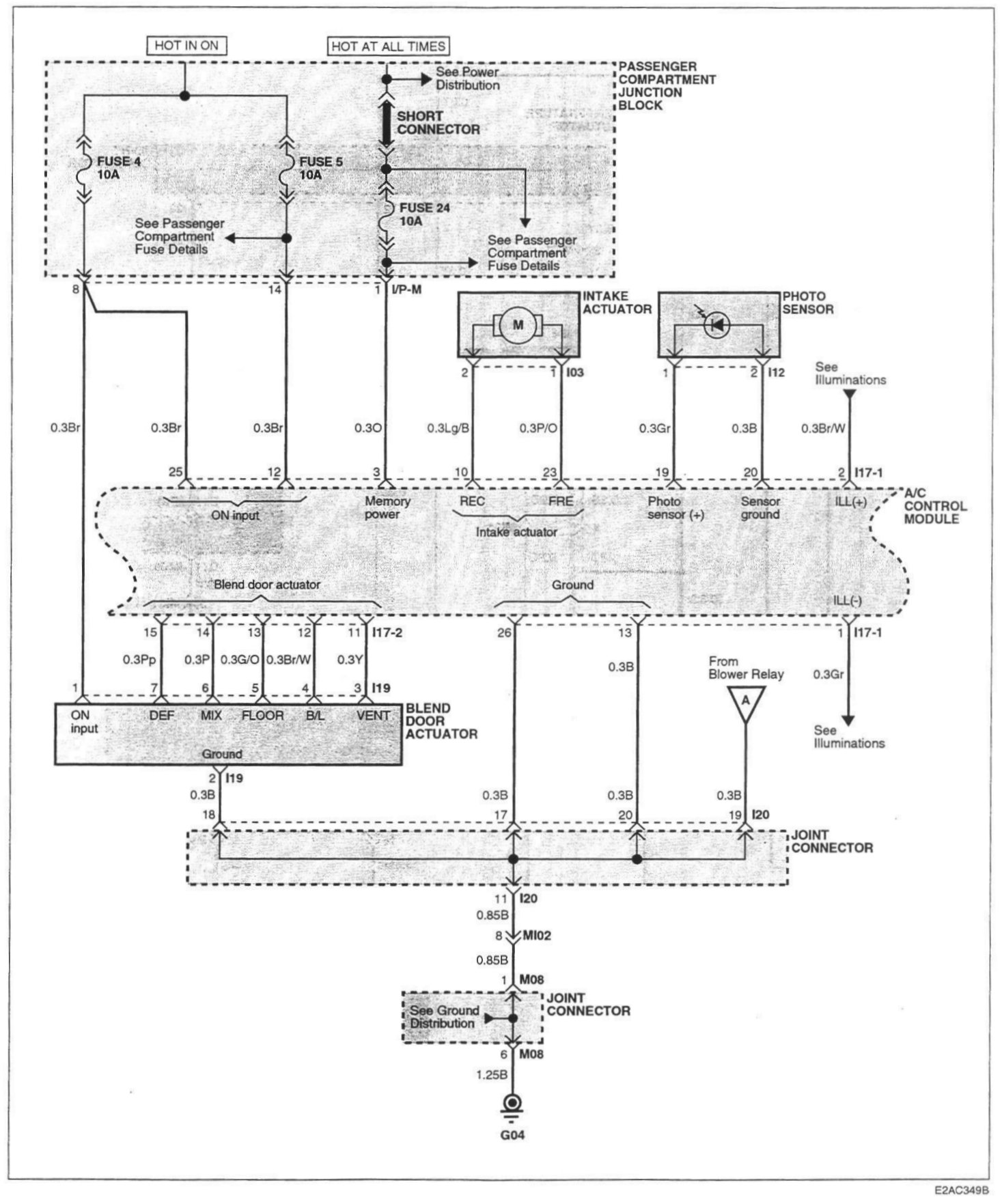

Image SD-215 Blower And A/C Controls (Automatic) (2):

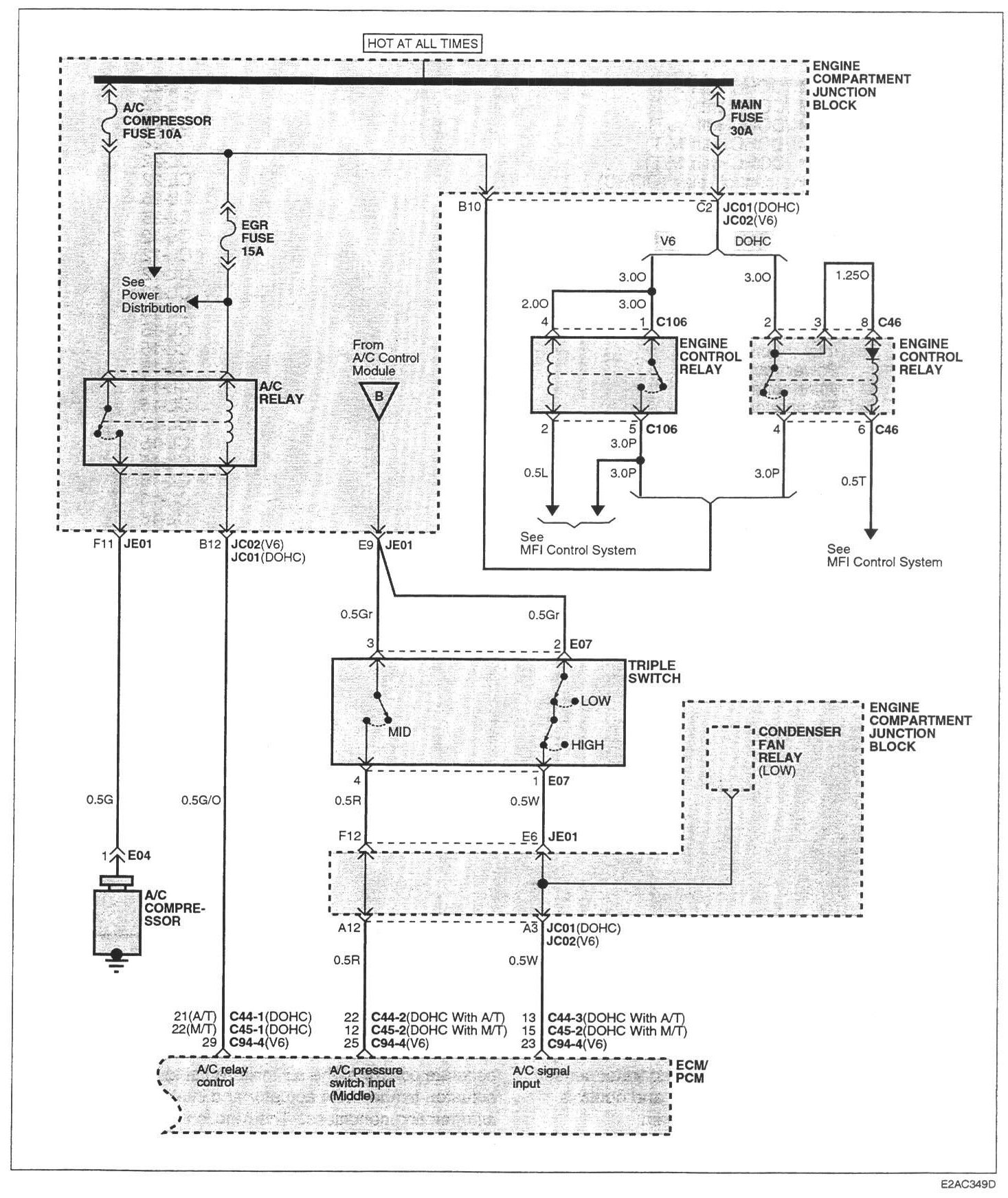

Image SD-216 Blower And A/C Controls (Automatic) (3):

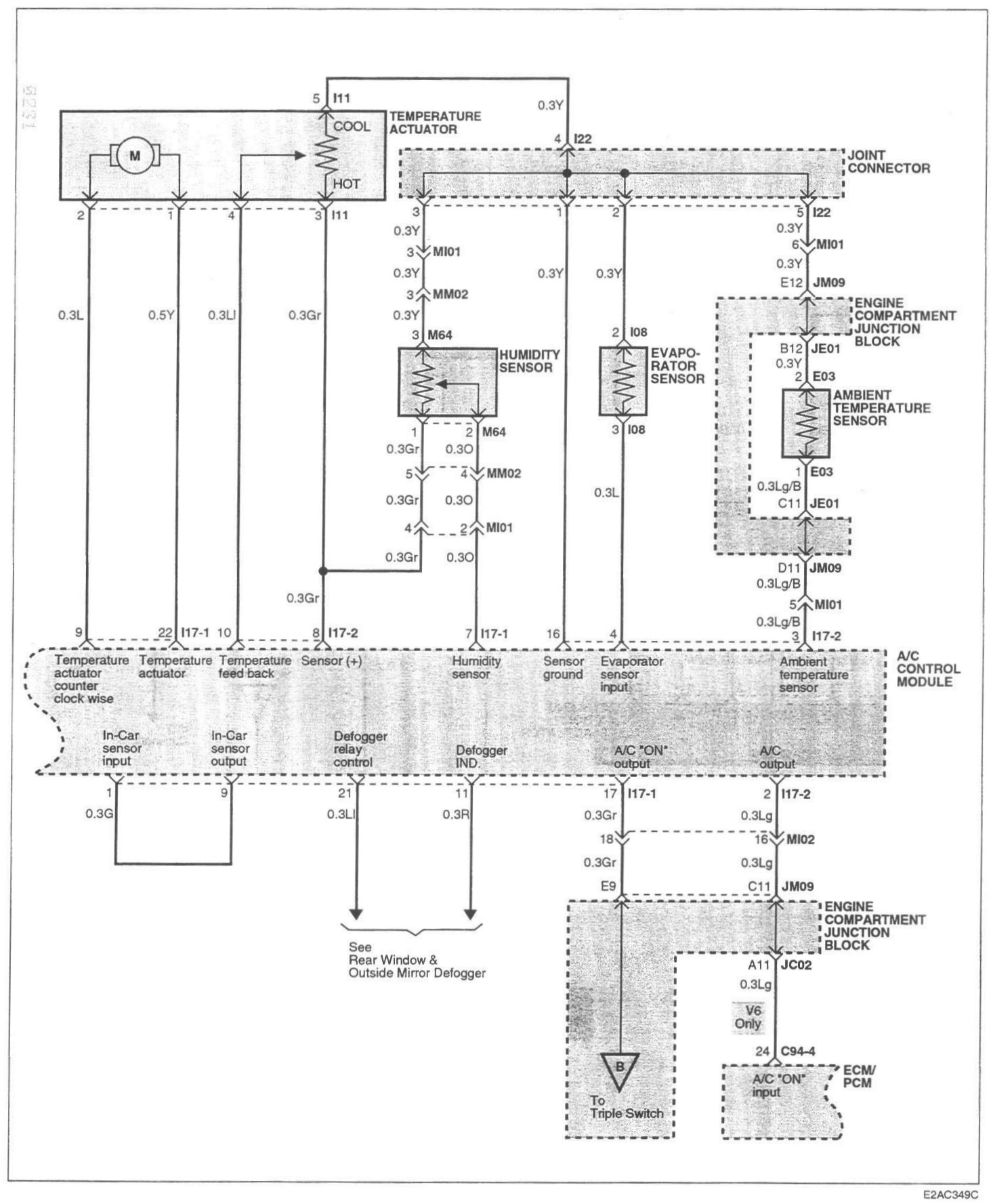

Image SD-217 Blower And A/C Controls (Automatic) (4):
