System Control Features

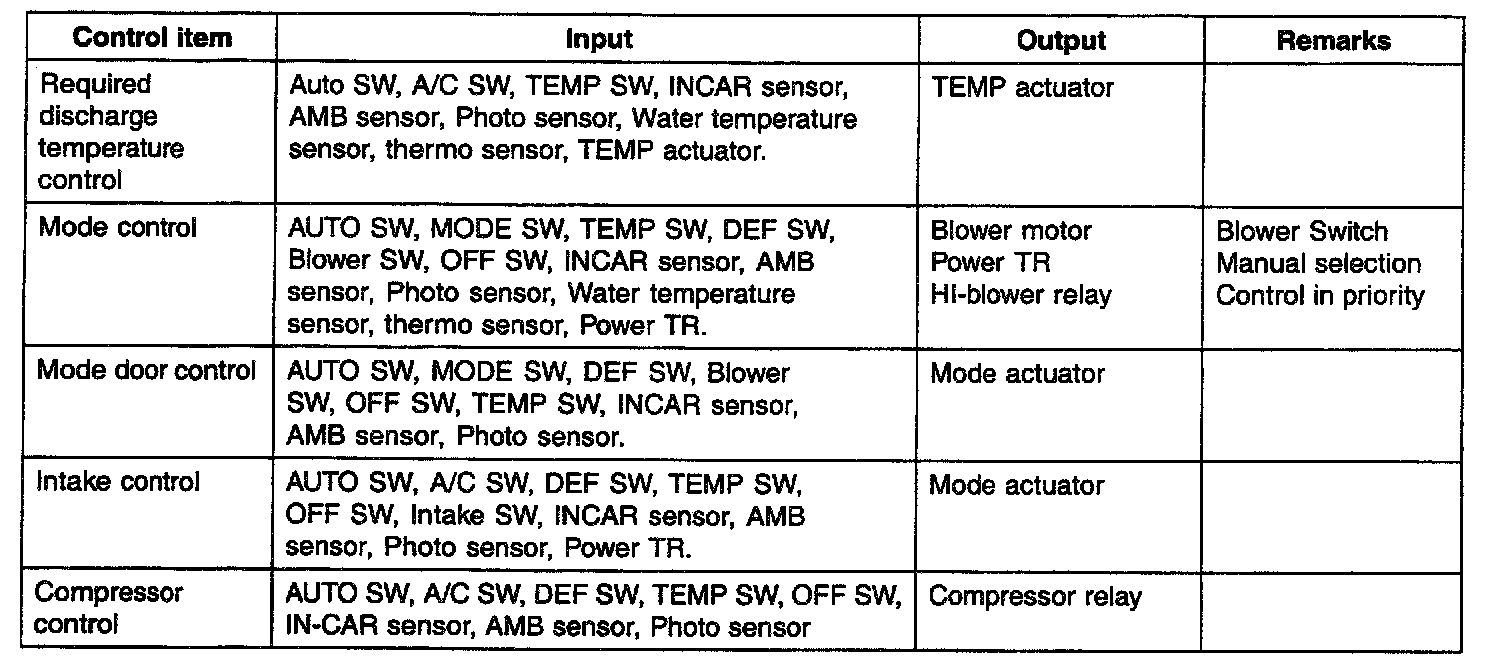

SIGNAL I/0 FOR EACH CONTROL FEATURE
- During mode control, the A/C may operate during DEF or MIX mode. In order to enable dehumidification, the driver may select A/C OFF during the A/C on condition.

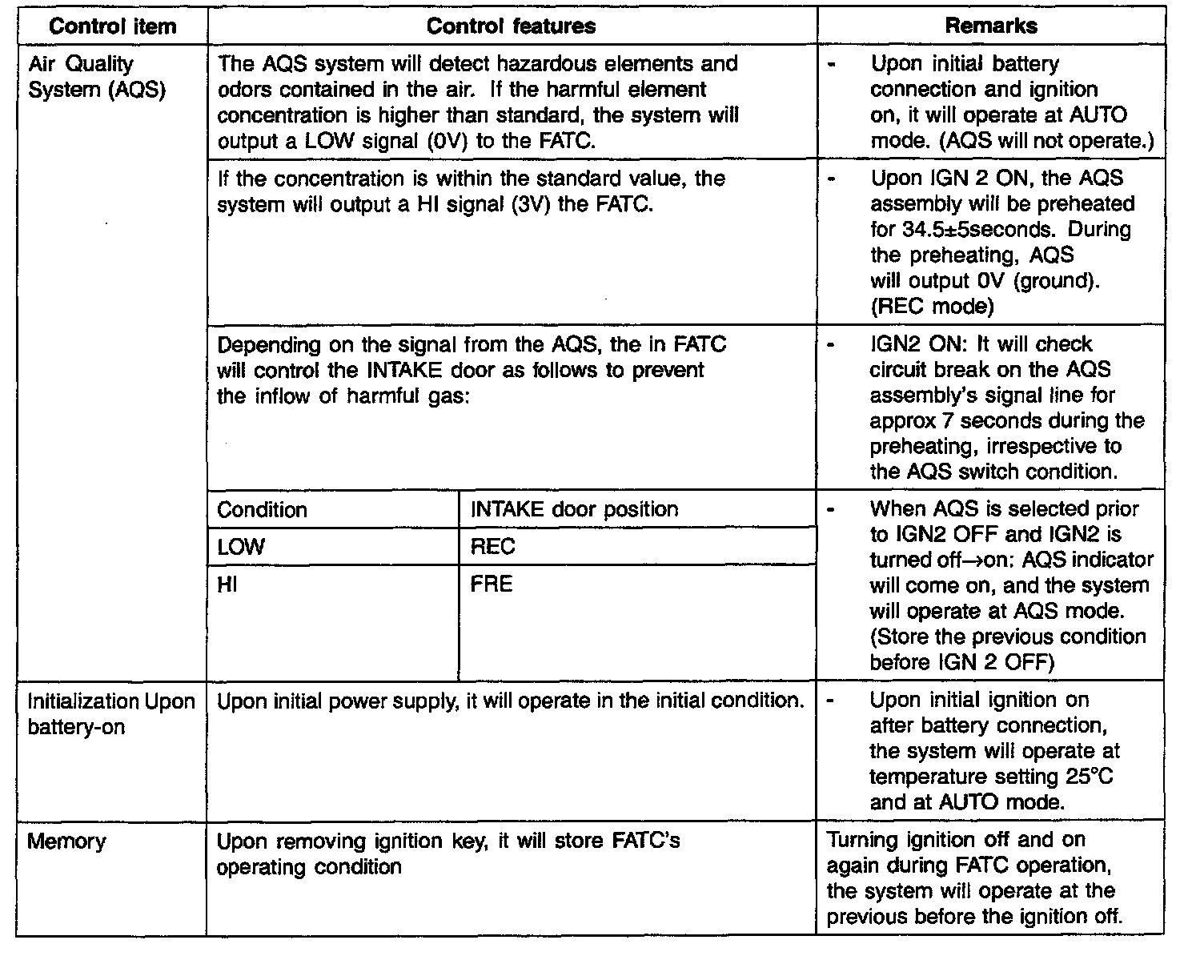

Part 1:

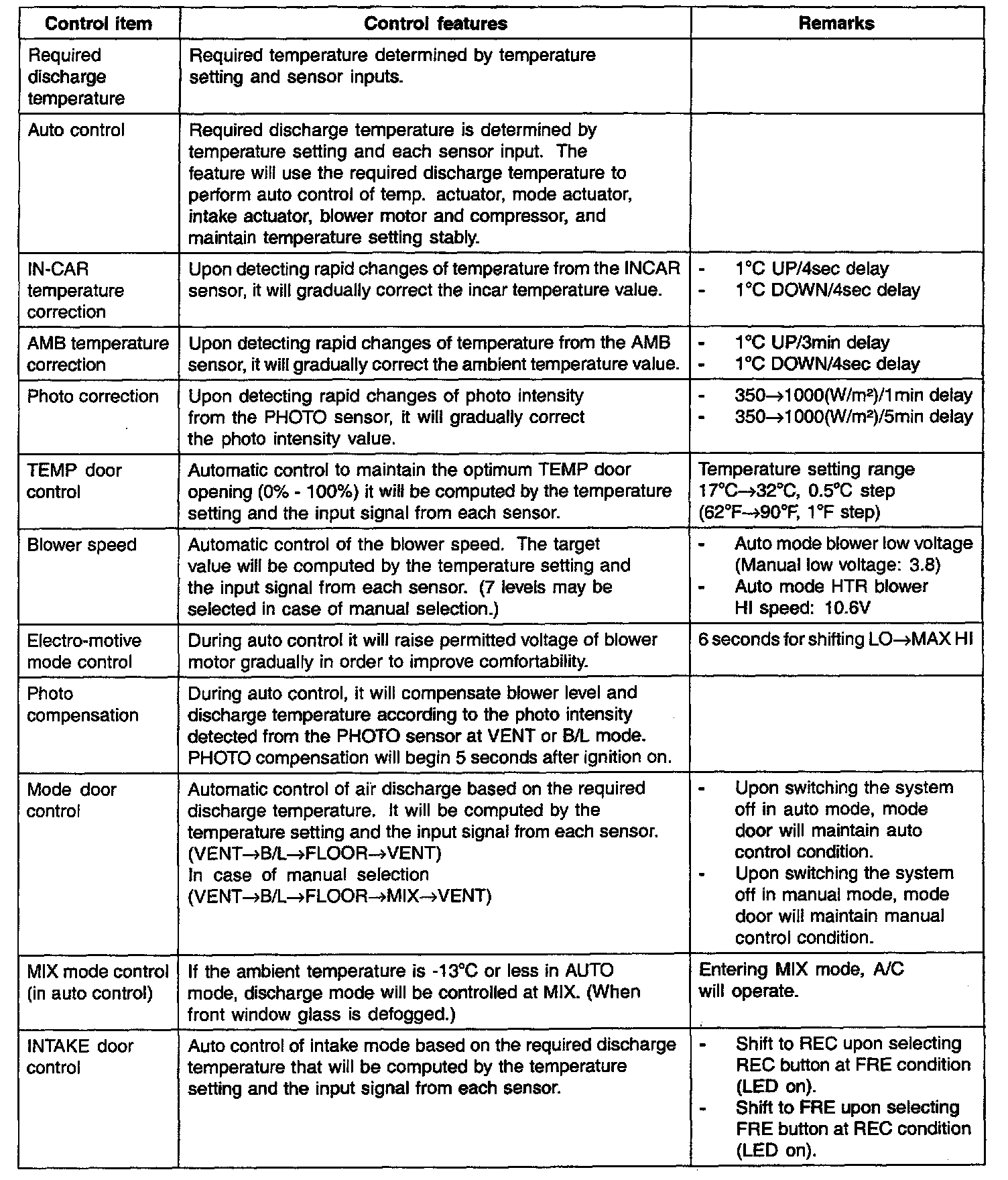

Part 2:

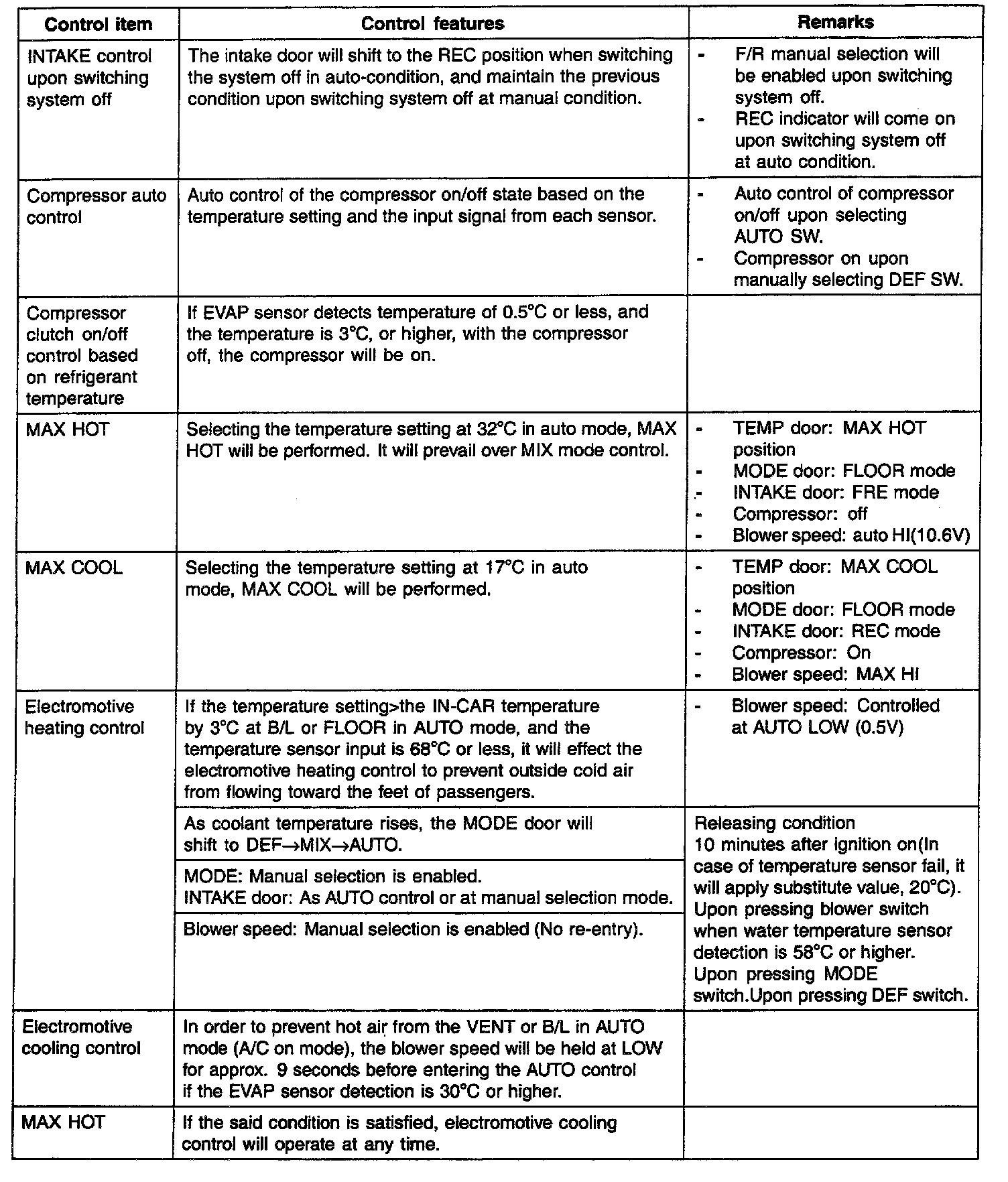

Part 3:

CONTROL SPECIFICATION
