Connector Locations

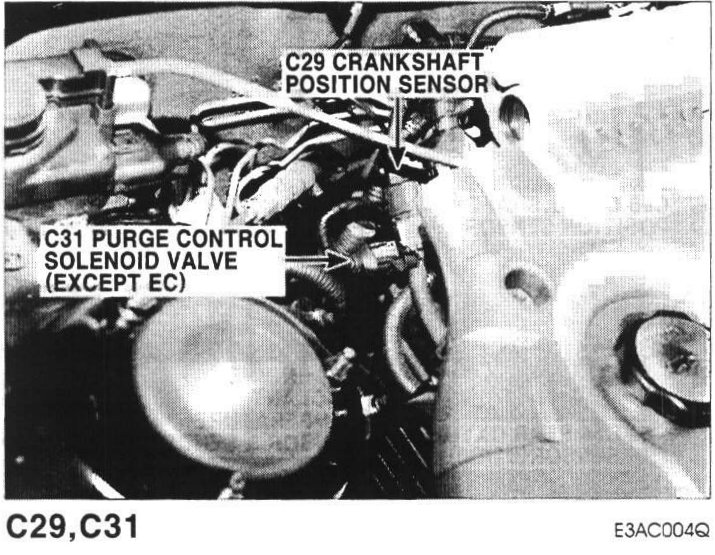

C29 Crankshaft Position Sensor, C31 Purge Control Solenoid Valve:



C61 Engine Coolant Temperature Sensor & Sender, C63 Ignition Coil, C65 Crankshaft Position Sensor, C66 Rear Oxygen Sensor (BANK 2 / SENSOR 2):
