Inspection Chart For Trouble Symptoms: Notes

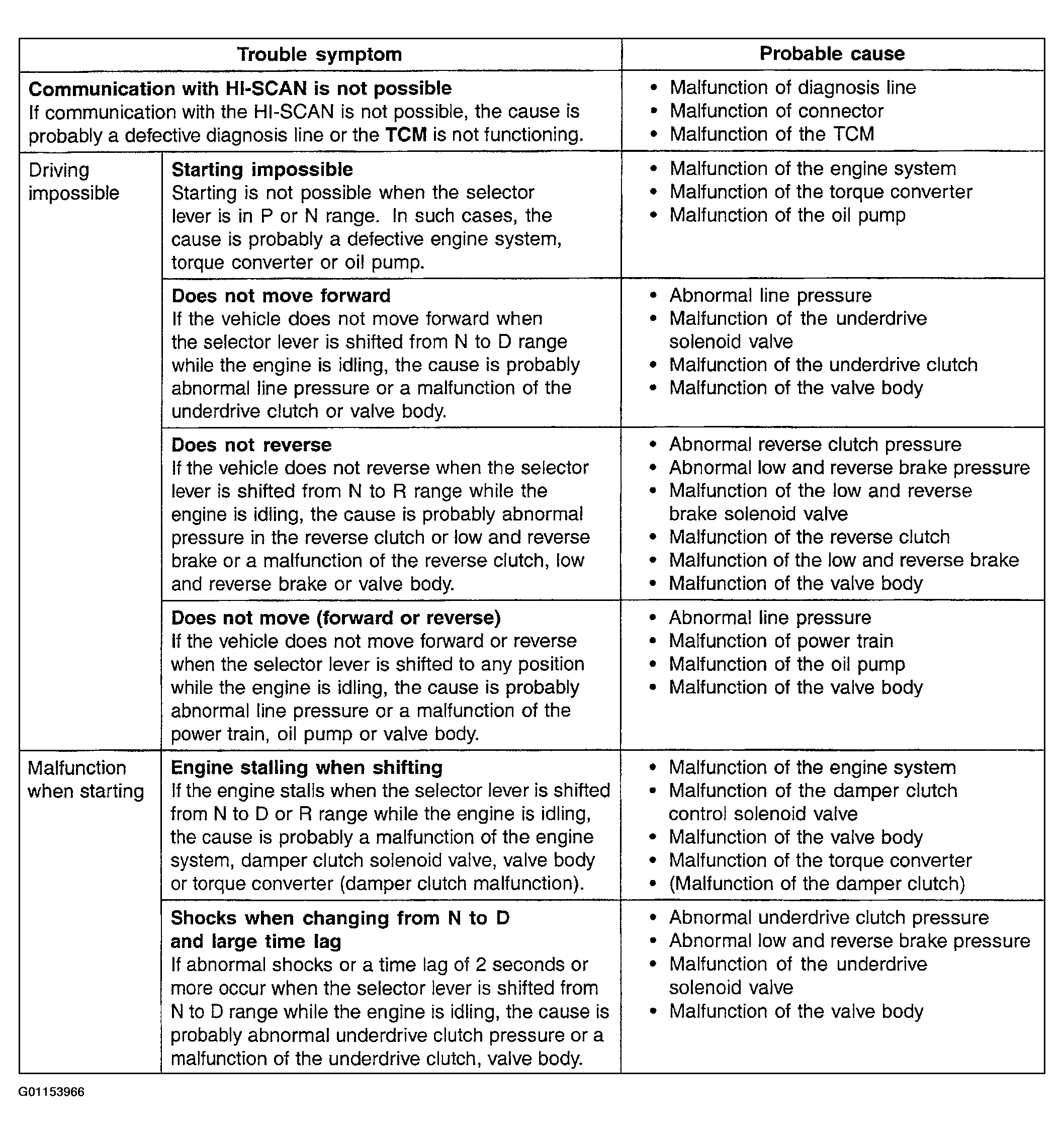

Fig 1: Inspection Chart For Trouble Symptoms (1 Of 3)
G01153966Courtesy of HYUNDAI MOTOR CO.

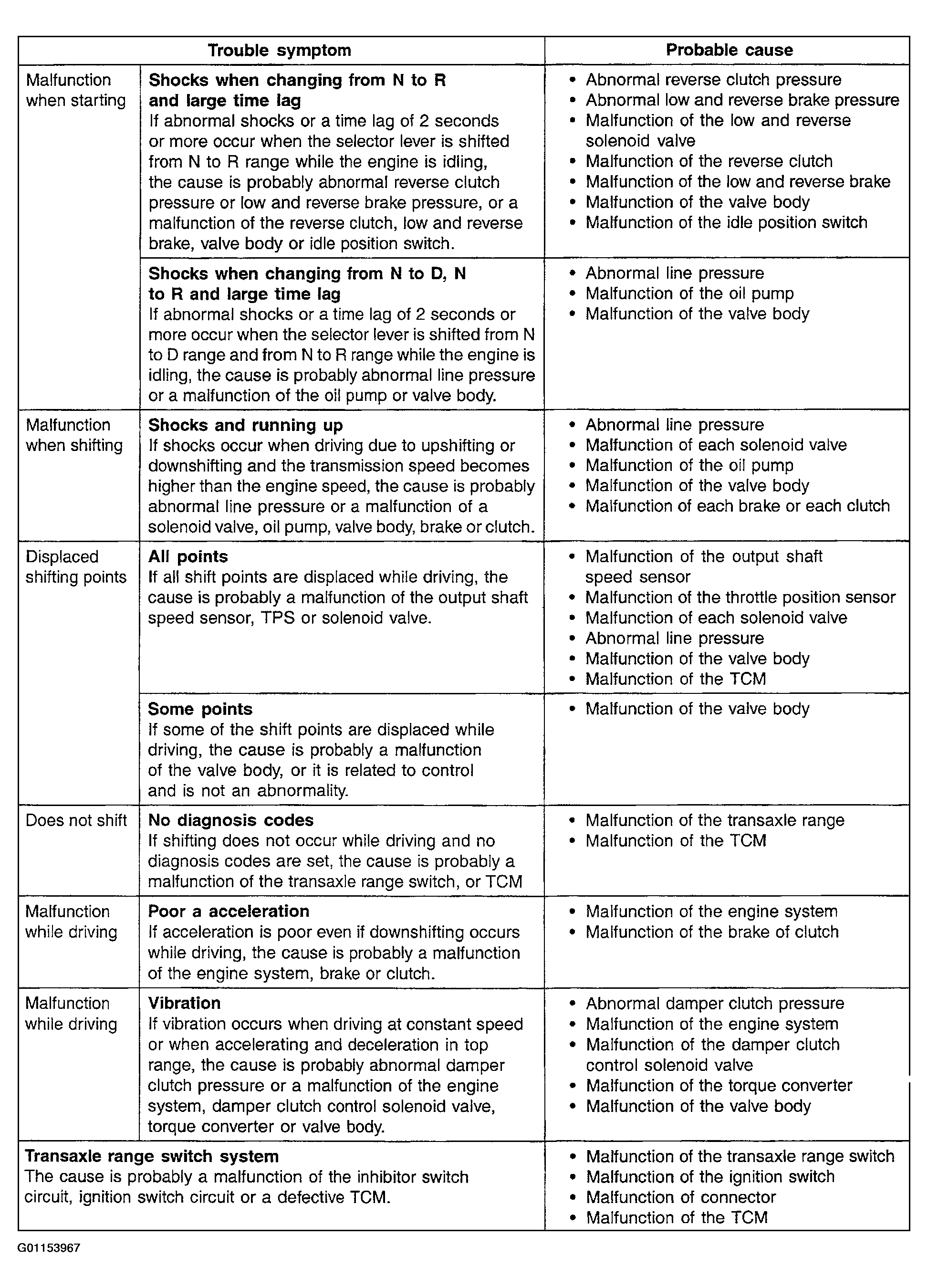

Fig 2: Inspection Chart For Trouble Symptoms (2 Of 3)
G01153967Courtesy of HYUNDAI MOTOR CO.

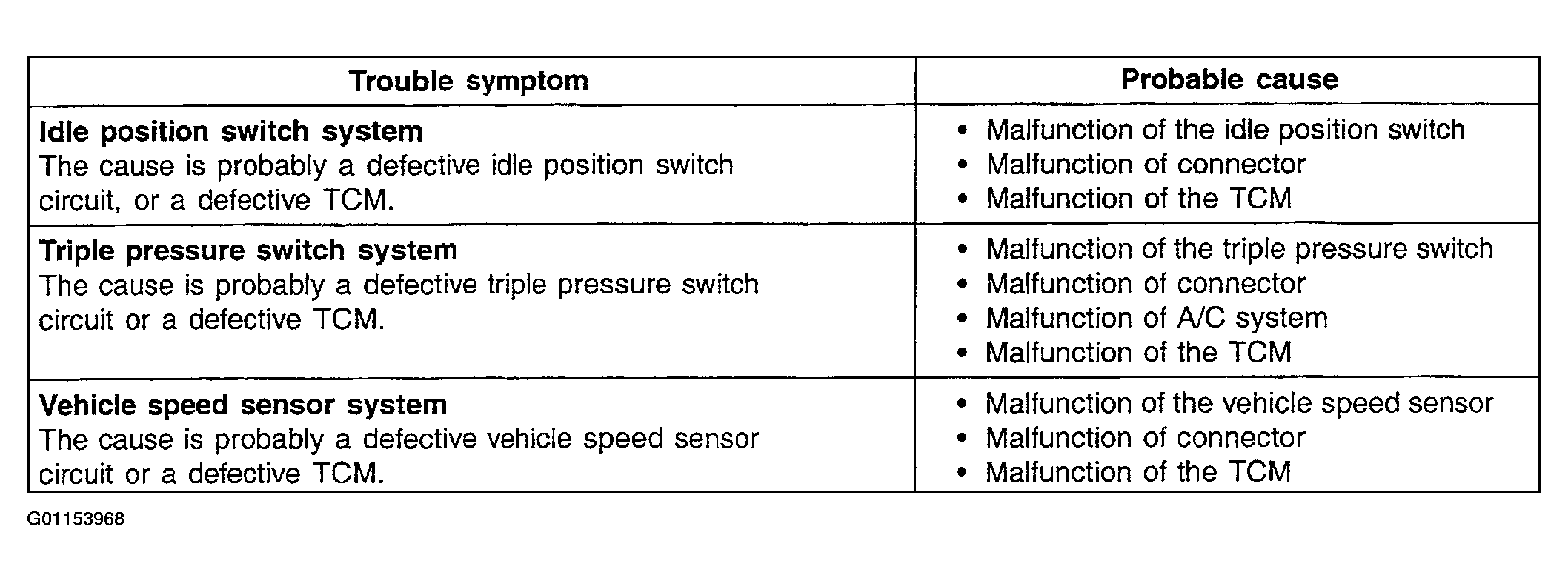

Fig 3: Inspection Chart For Trouble Symptoms (3 Of 3)
G01153968Courtesy of HYUNDAI MOTOR CO.
