Vehicle Speed Sensor: Locations

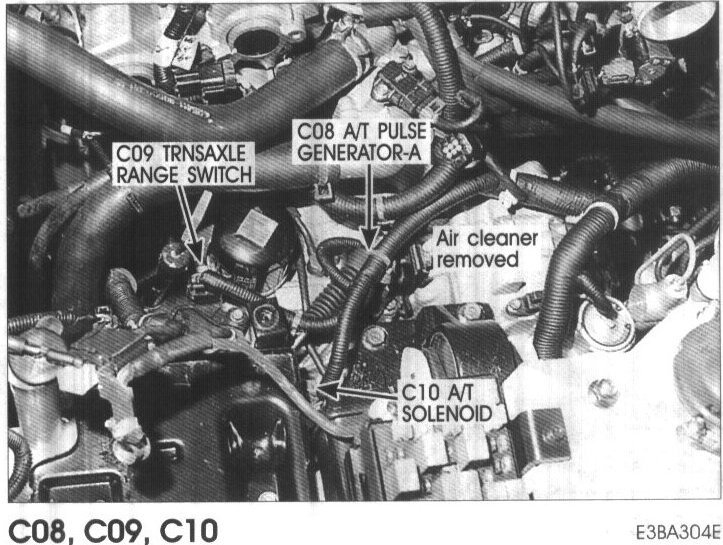

C08 A/T Pulse Generator A, C09 Transaxle Range Switch, C10 ATM Solenoid Assembly:

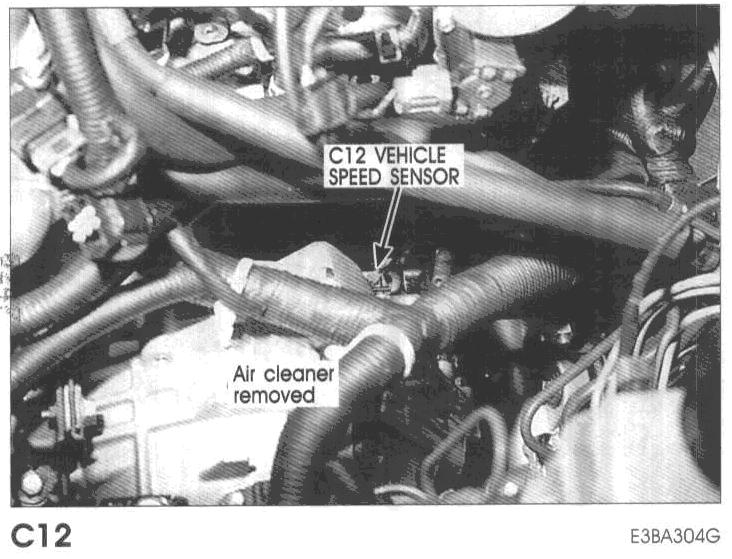

C12 Vehicle Speed Sensor:

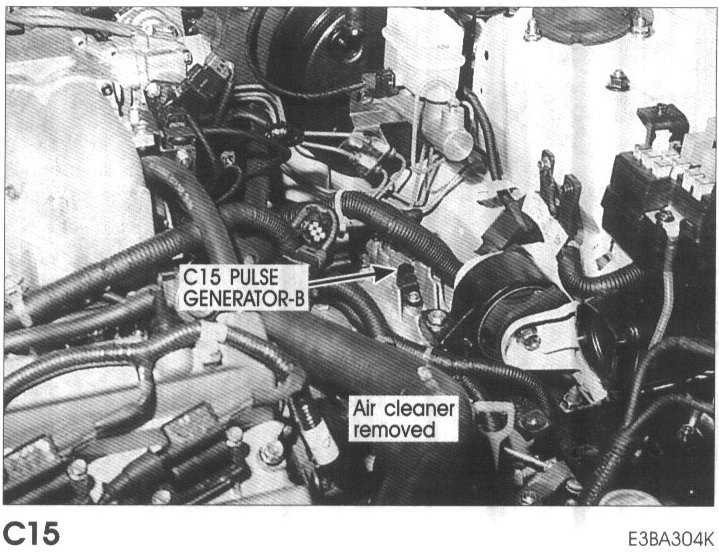

C15 A/T Pulse Generator -B:
