Ignition Cable Routing







INSTALLATION OF SPARK PLUG CABLE
Improper arrangement of spark plug cables will induce flashover between the cables, causing misfiring and surging at acceleration in high-speed operations.

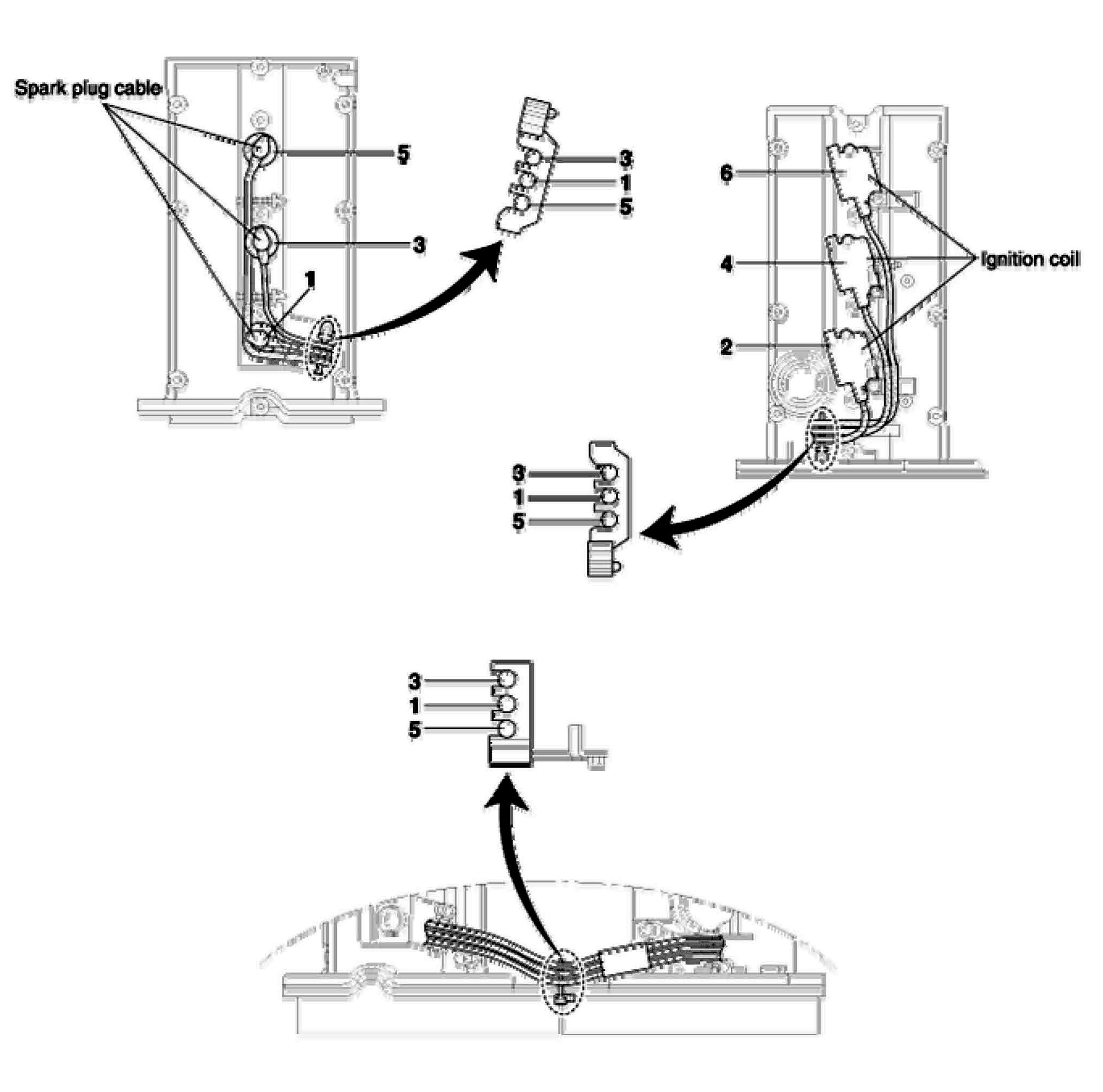

Therefore, be careful to arrange the spark plug cables properly as shown in the illustration.
