Key Registration

ID Code registration sequence

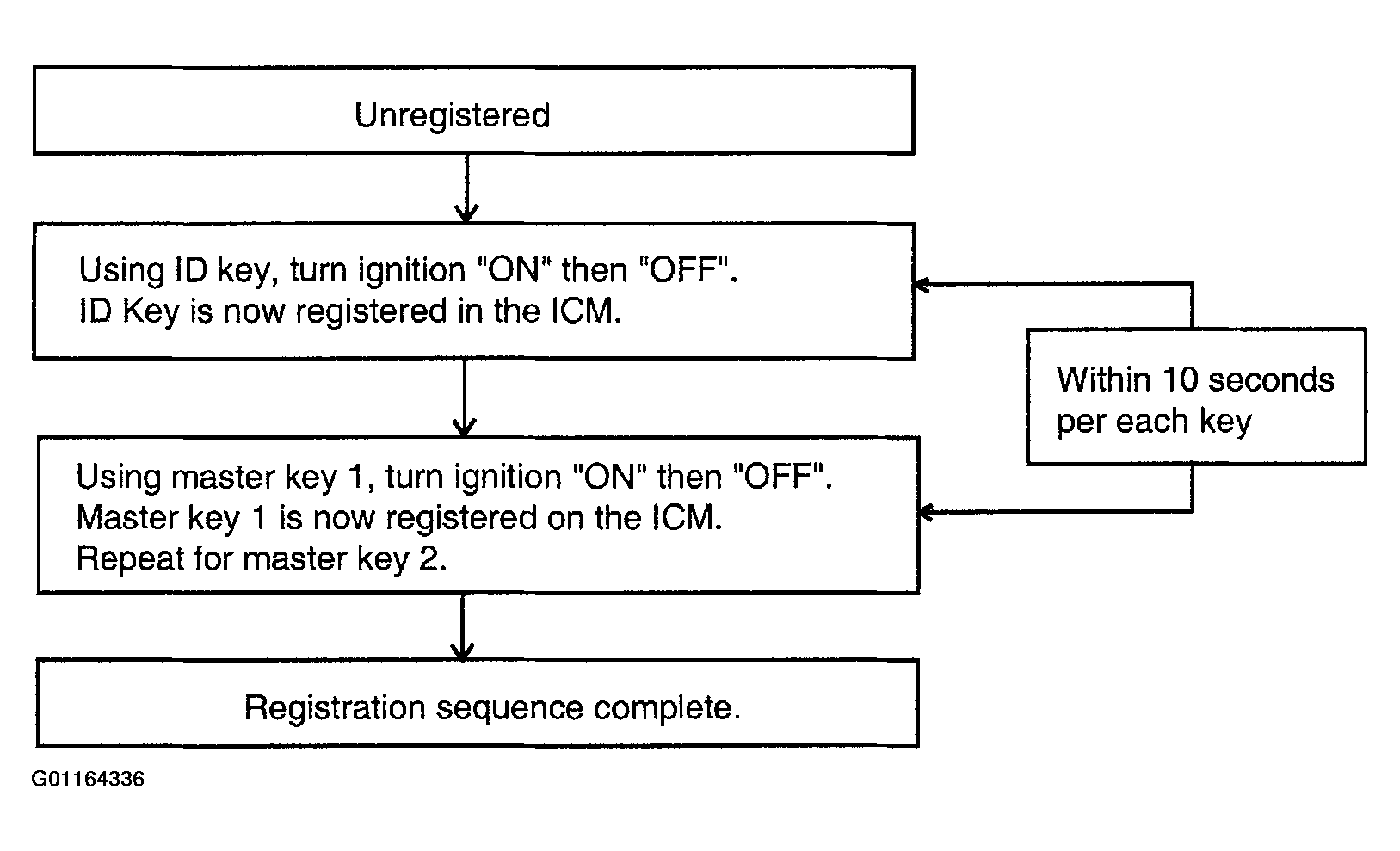

Fig 1: ID Code Registration Flow
Courtesy of HYUNDAI MOTOR CO.
Master key correction
If a new set of master keys needs to be produced, it can be done by two methods:
1. Using ID key

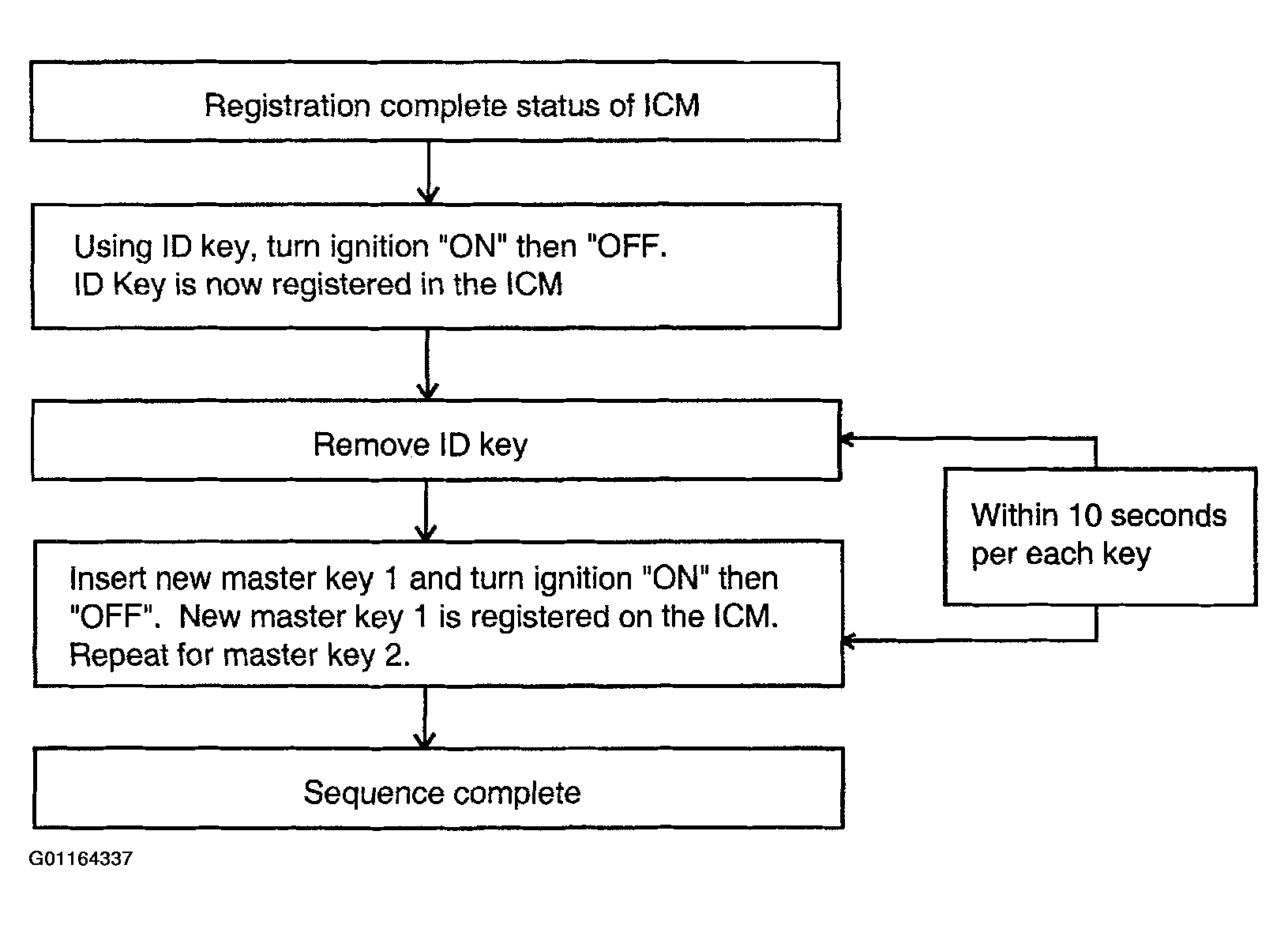

  Fig 2: Master Key Registration Flow Using ID Key
  Courtesy of HYUNDAI MOTOR CO.
2. Using password

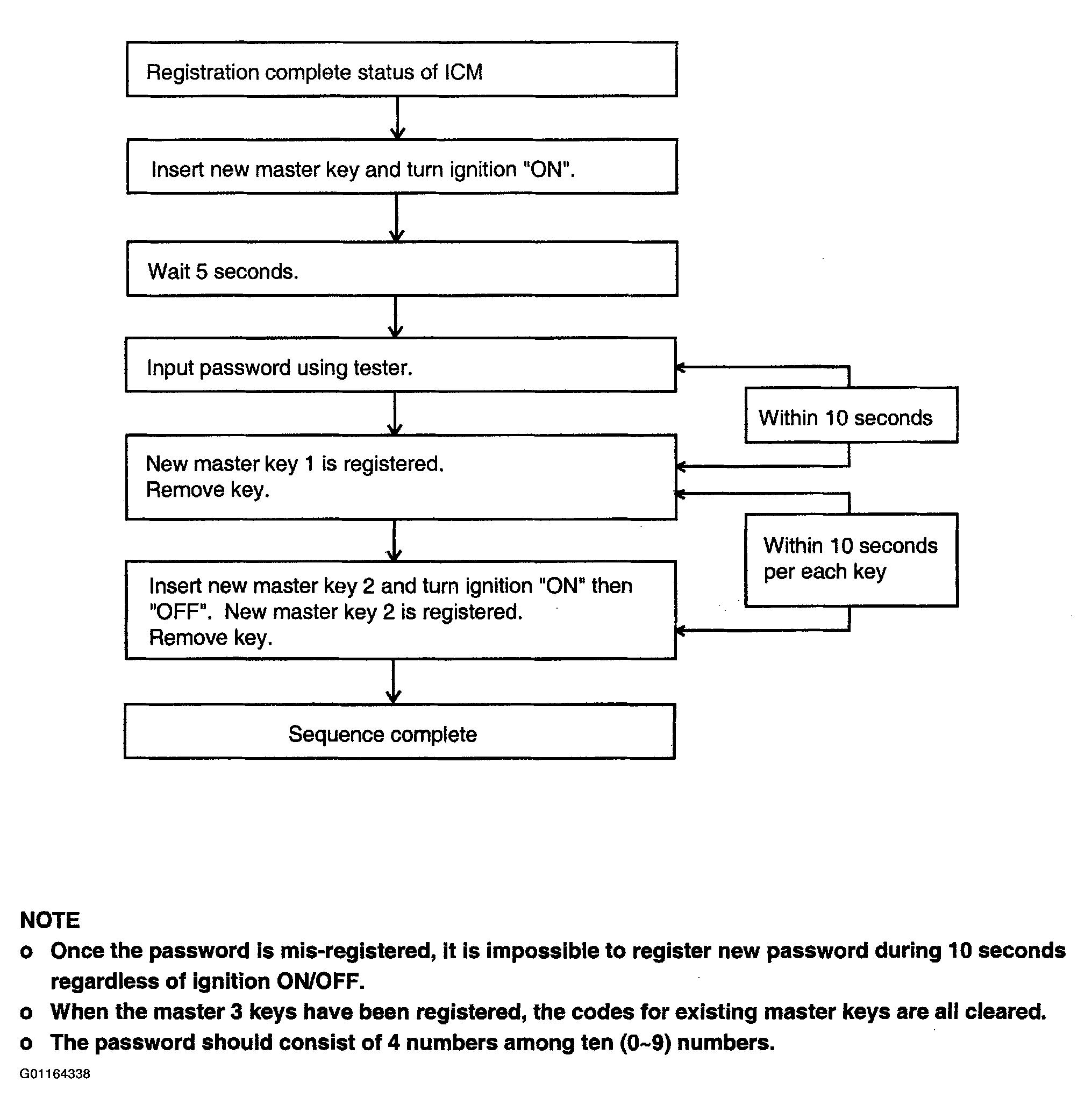

Fig 3: Master Key Registration Flow Using password
Courtesy of HYUNDAI MOTOR CO.
