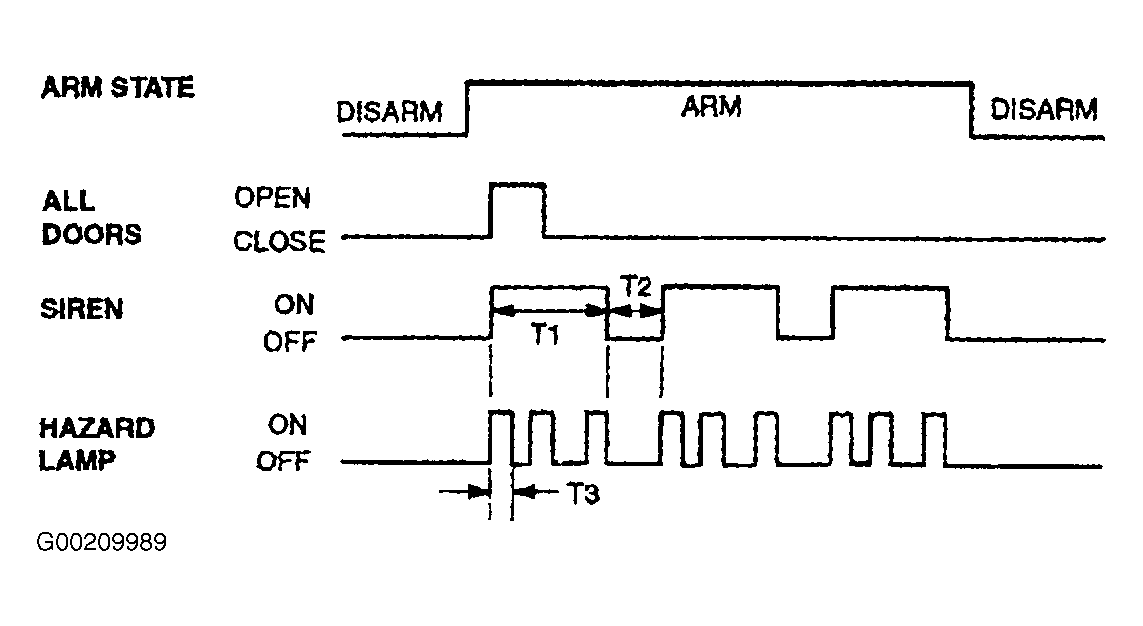

Alarm Function

Time specification:
T1: 27 sec.

T2: 10 sec.

T3: 0.4-0.6 sec. See Fig 1 .

Fig 1: Checking Alarm Function
Courtesy of HYUNDAI MOTOR CO.

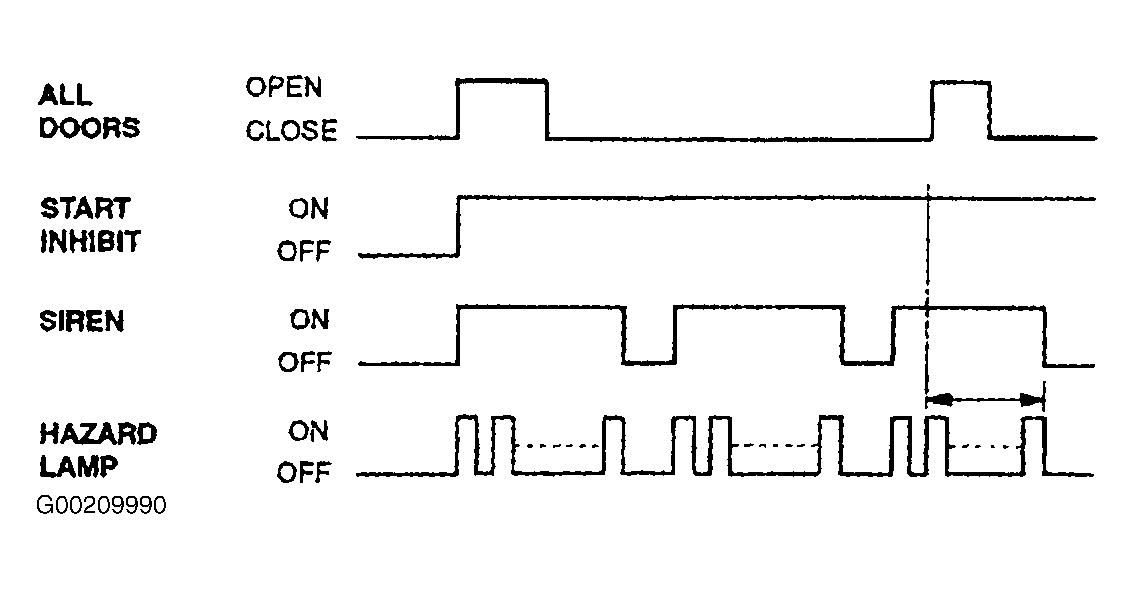

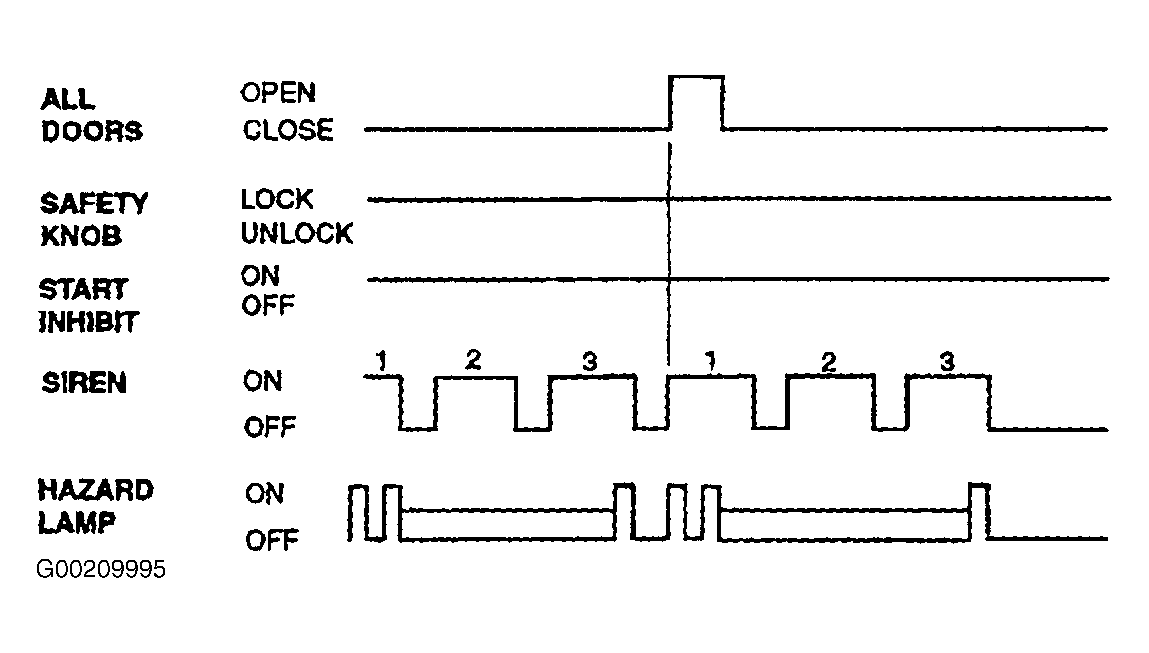

New alarm occurs while the alarm is sounding. See Fig 2 .

Fig 2: New Alarm Occurs While Alarm Is Sounding
Courtesy of HYUNDAI MOTOR CO.

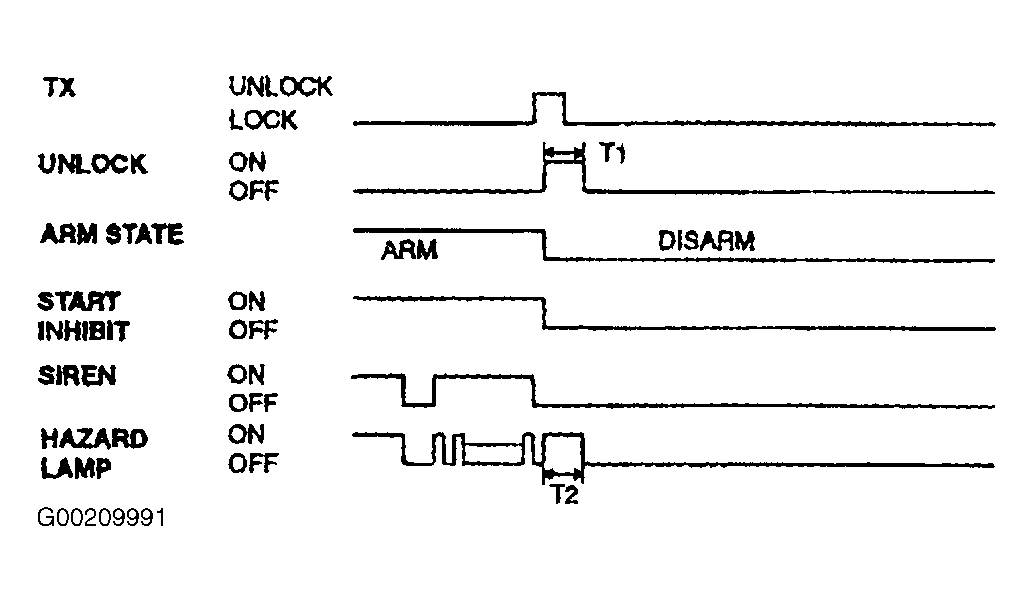

Disarmed with transmitter (TX) while alarm is sounding. Time specification:
T1: 0.5 sec.

T2: 1 sec. See Fig 3

Fig 3: Disarmed Transmitter While Alarm Sounding
Courtesy of HYUNDAI MOTOR CO.

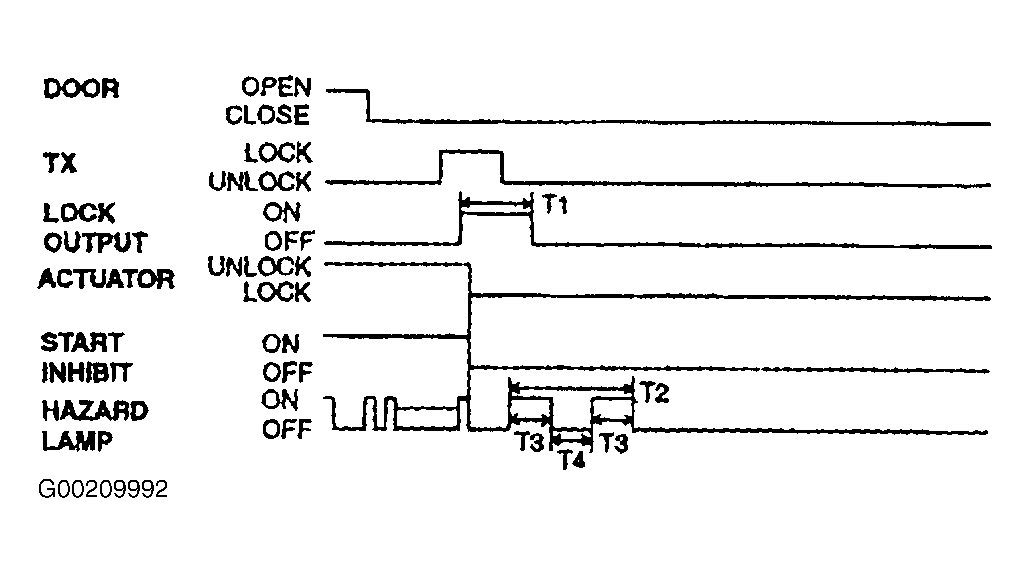

Transmitter (TX) lock button pressed when door closed while alarm is sounding. Time specification:
T1: 0.5 sec.

T2: Max. 2 sec.

T3, T4: 0.4-0.6 sec. See Fig 4 .

Fig 4: Transmitter Lock Button Pressed When Door Closed With Alarm
Courtesy of HYUNDAI MOTOR CO.

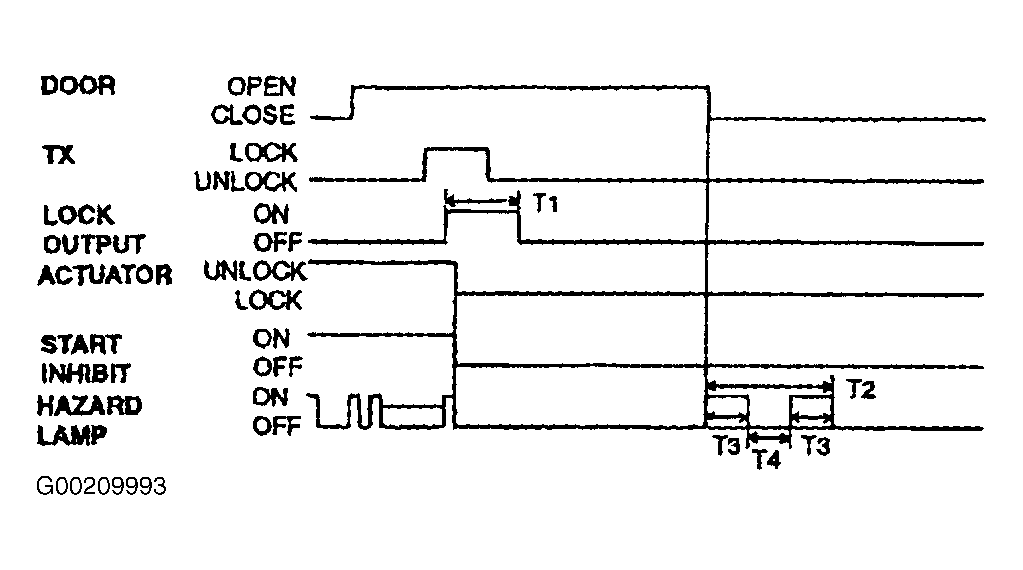

Transmitter (TX) lock button pressed when door opened while alarm is sounding. Time specification:
T1: 0.5 sec.

T2: Max. 2 sec.

T3, T4: 0.4-0.6 sec. See Fig 5

Fig 5: Transmitter Lock Button Pressed When Door Open With Alarm
Courtesy of HYUNDAI MOTOR CO.

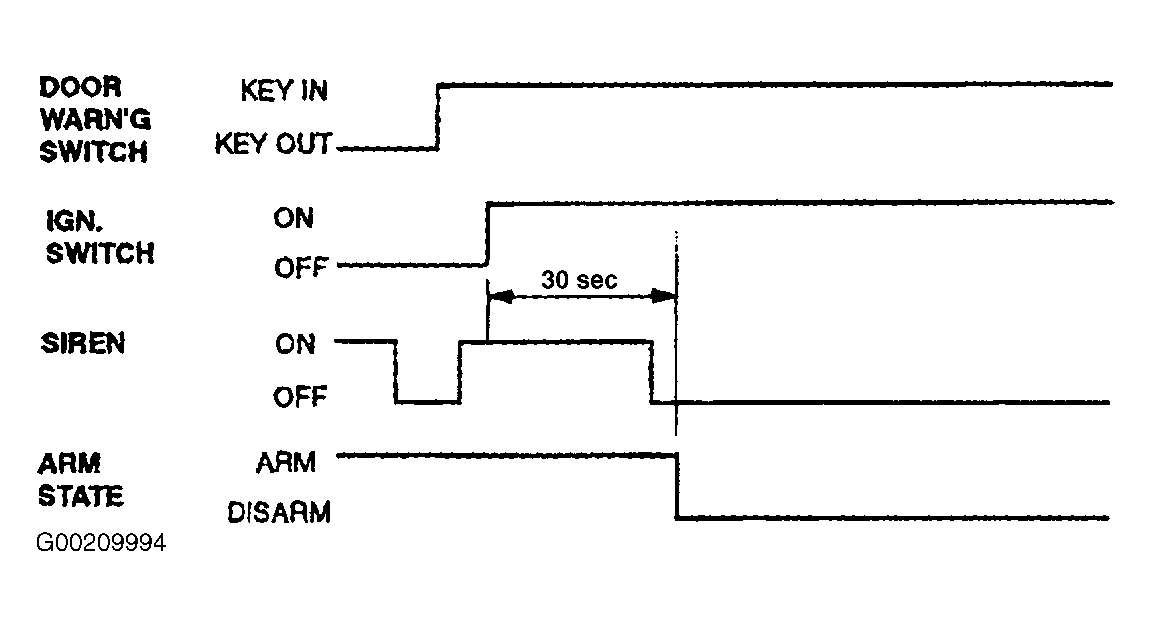

Disarmed after 30 sec when the ignition switch is turned on while the alarm is sounding. See Fig 6 .

Fig 6: Disarmed After When Ignition Switch Is Turned ON With Alarm
Courtesy of HYUNDAI MOTOR CO.
After finished siren 3 times (120 sec.), start inhibit is ON if door is opened and door latch lock state. See Fig 7 .

Fig 7: After Siren Start Inhibit ON Door Opened & Door Latch Lock State
Courtesy of HYUNDAI MOTOR CO.

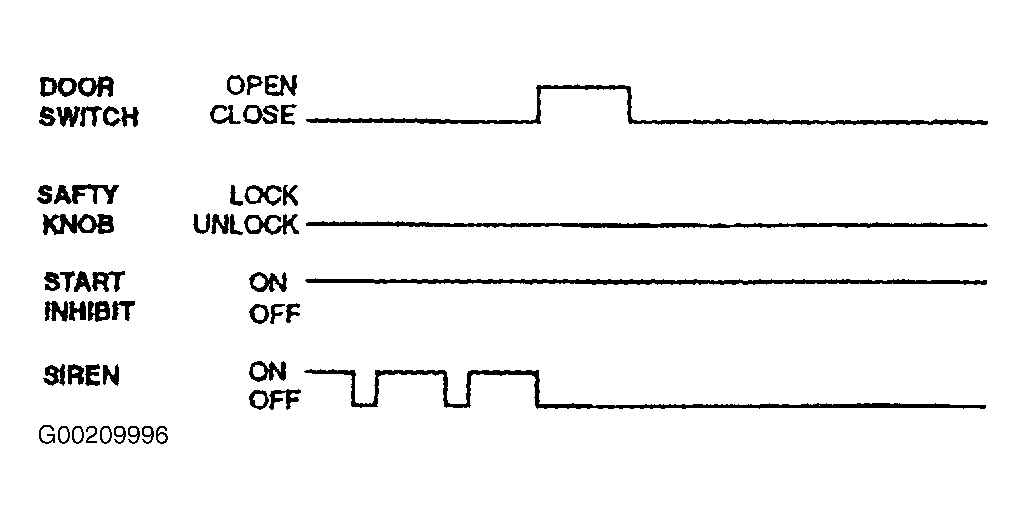

After finished siren 3 times (120 sec.), start inhibit is ON if door is opened and door latch unlock state. See Fig 8 .

Fig 8: After Siren Start Inhibit ON Door Opened & Door Latch Unlock State
Courtesy of HYUNDAI MOTOR CO.

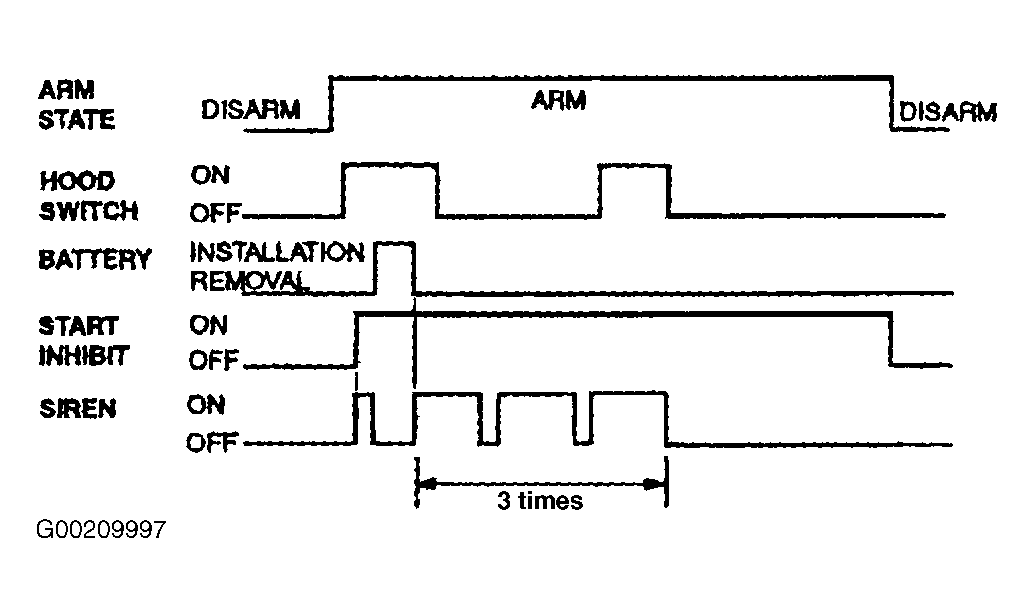

Battery is disconnected during the alarm state. See Fig 9 .

Fig 9: Battery Disconnected During Alarm State
Courtesy of HYUNDAI MOTOR CO.

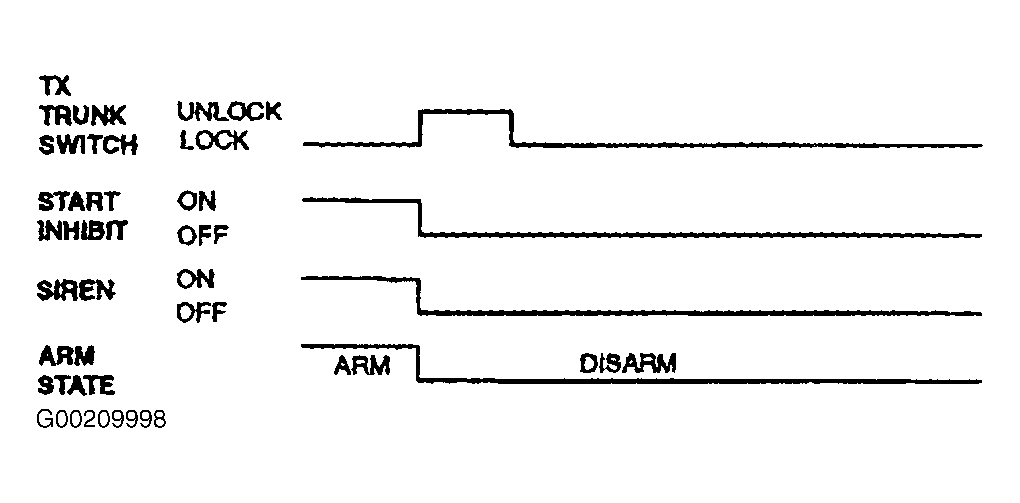

Trunk unlock with transmitter (TX) while the alarm is sounding. See Fig 10 .

Fig 10: Trunk Unlock With Transmitter While Alarm Is Sounding
Courtesy of HYUNDAI MOTOR CO.
