Code Saving Method

  1. Remove lower crash pad panel. See Fig 1 .

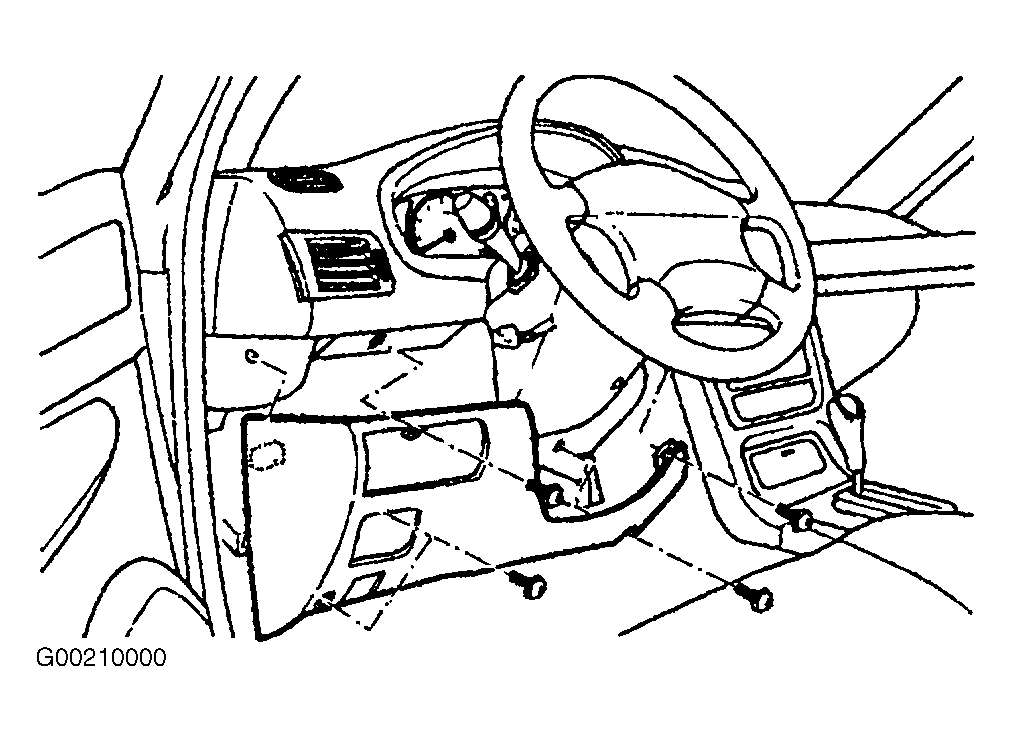

    Fig 1: Removing Lower Crash Pad Panel
    G00210000Courtesy of HYUNDAI MOTOR CO.
    NOTE: DO NOT disconnect the negative (-) battery terminal.
  2. To store new codes:

    Activate keyless entry/receiver unit and change code saving switch of the receiver unit from OFF to SET.

    Secret codes from transmitter will be stored into the receiver unit when the door lock button or unlock button is pressed on transmitter.

    Save the second transmitter codes in the same manner. See Fig 2

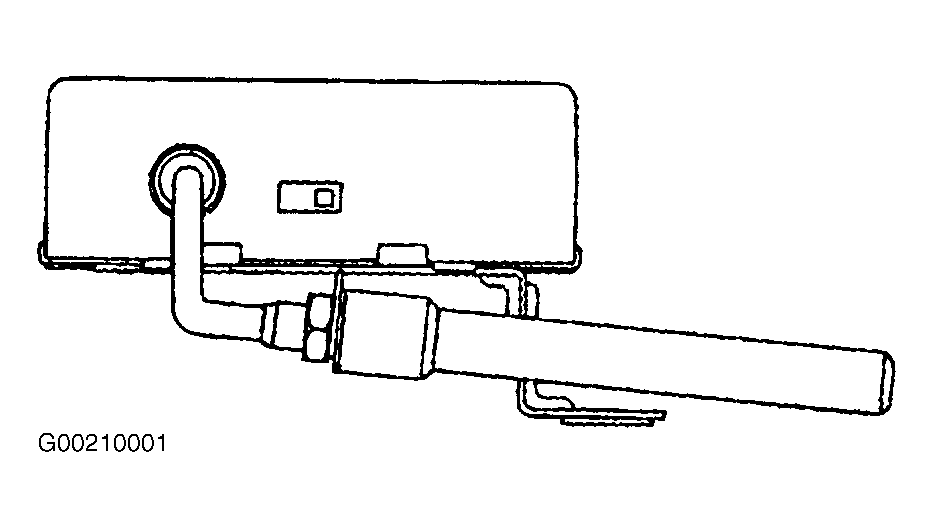

    Fig 2: Saving Transmitter Codes
    G00210001Courtesy of HYUNDAI MOTOR CO.
  3. Return code saving switch of receiver unit from SET to OFF. See Fig 3

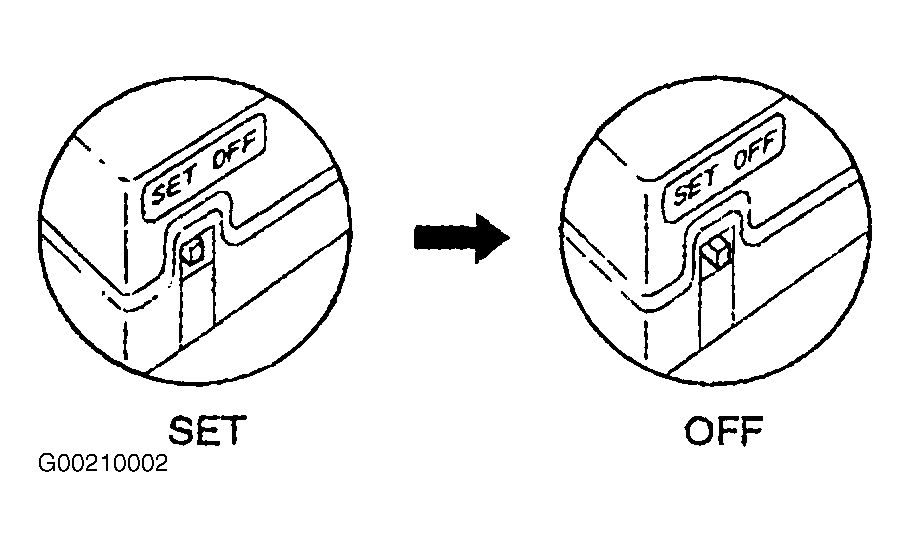

    Fig 3: Returning Code Saving Switch From SET To OFF
    G00210002Courtesy of HYUNDAI MOTOR CO.
  4. Install lower crash pad panel.
