Memory Function

Prohibition condition of memory:

After 5 sec. when memory switch ON.

Seat manual switch ON.

Ignition switch OFF.

Stop switch ON.

Memory finish. See Fig 1

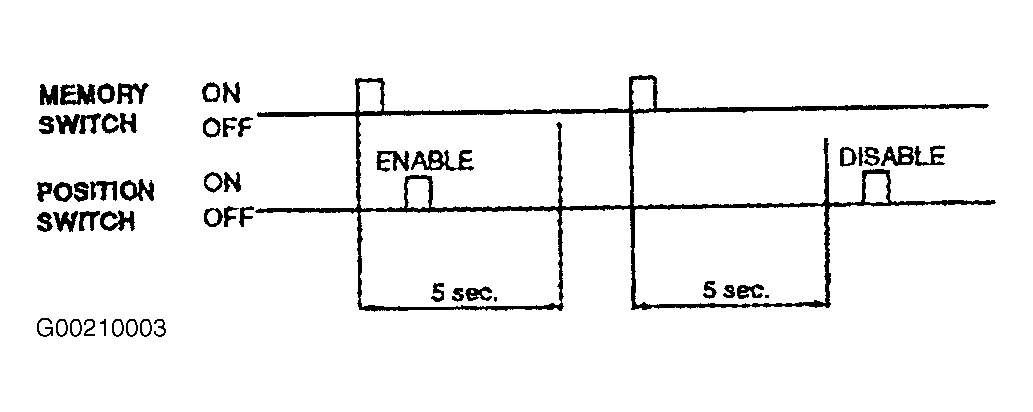

Fig 1: Checking Memory Function
G00210003Courtesy of HYUNDAI MOTOR CO.
