Integrated Memory System (IMS) Control Module

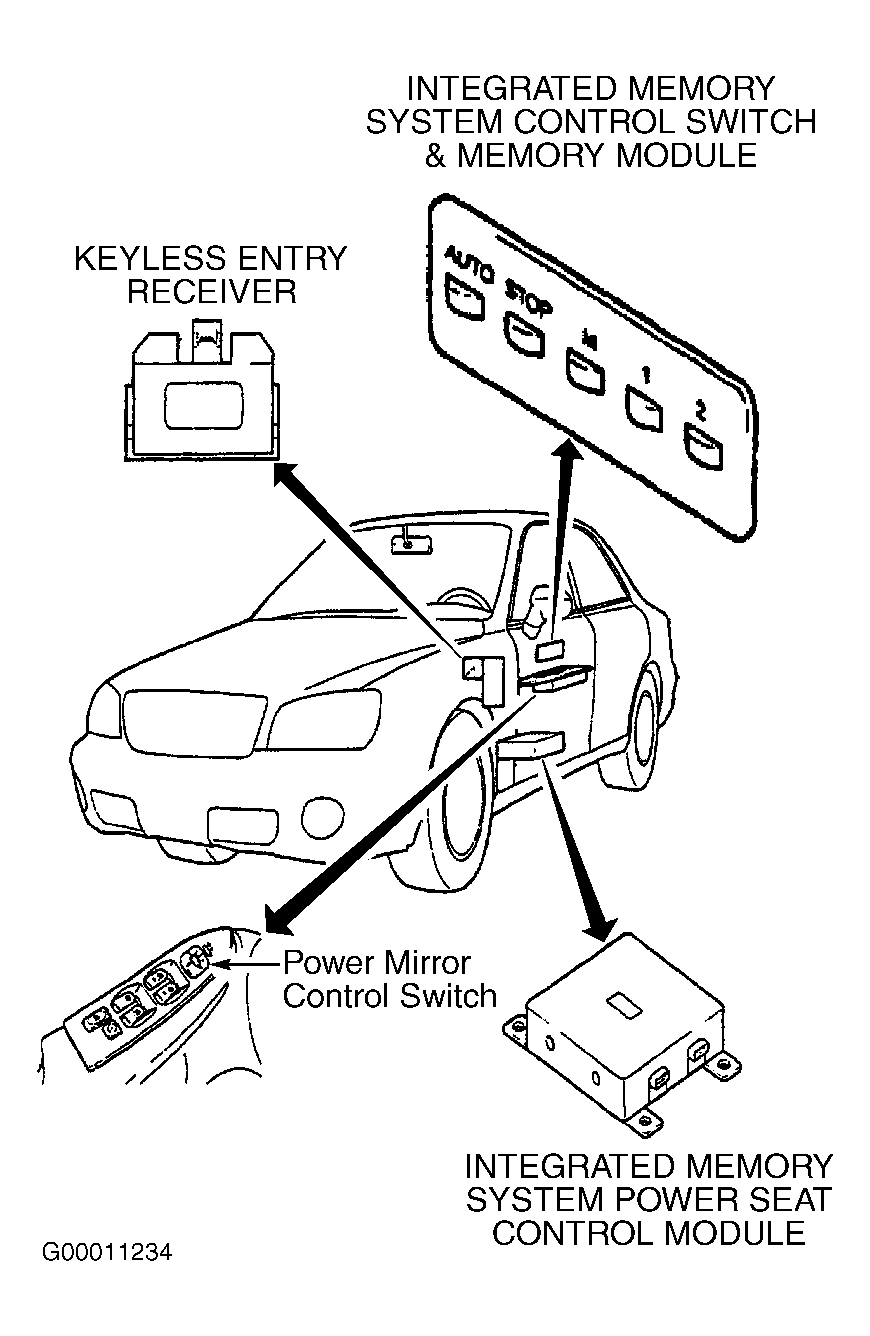

The Integrated Memory System (IMS) control module controls the operation of the driver's power seat and power outside mirrors. The IMS switch has a STOP button and 4 function buttons: AUTO, "M", "1" and "2". See Figure . When the ignition switch is ON and the IMS switch button "1" or "2" is pressed, the driver's seat and outside mirrors will be adjusted automatically to the memorized position. When the AUTO button is pressed, the driver's seat will move backward and forward so driver can get in or out more easily. Driver's power seat and power outside mirrors can be controlled independently by using appropriate manual switch.
