Chart 3

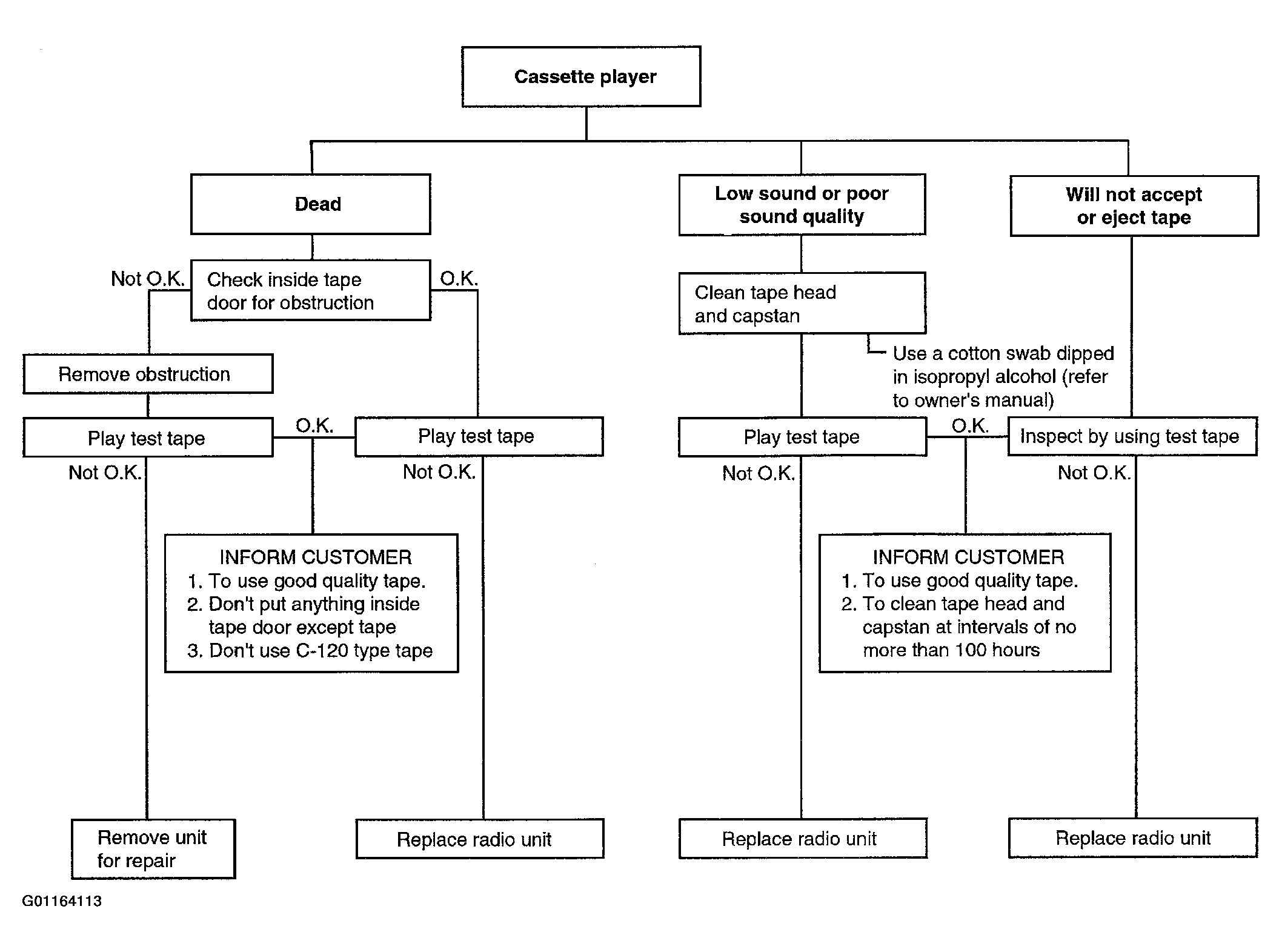

Fig 1: Troubleshooting Flow Chart - Cassette Player

G01164113

Courtesy of HYUNDAI MOTOR CO.
