Overhead Console

  1. Remove the ceiling light cover.

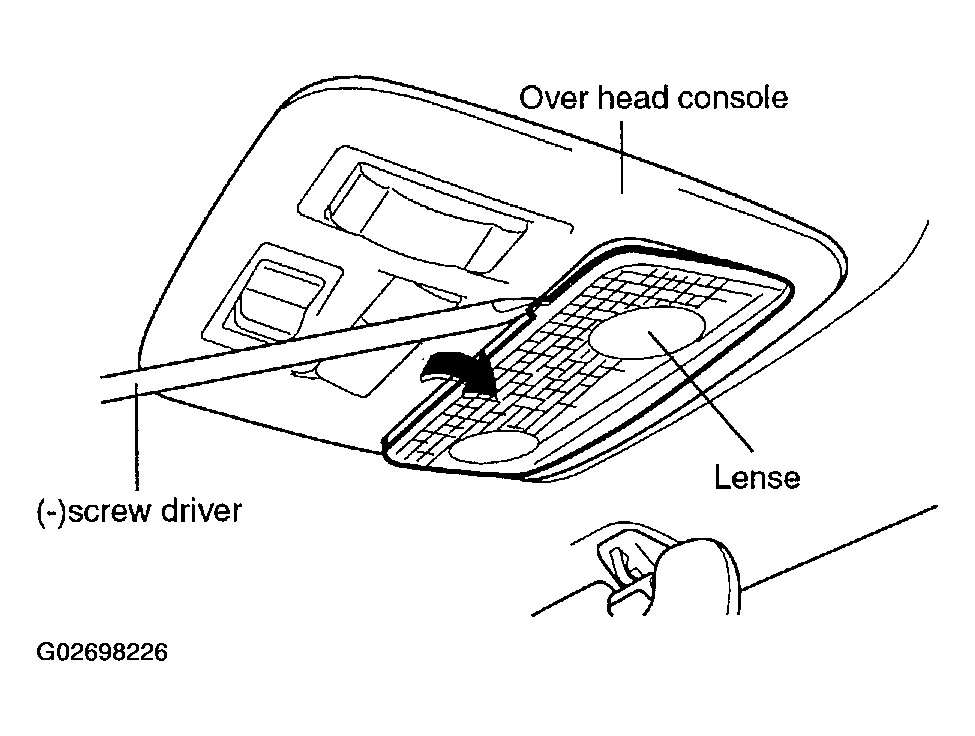

    Fig 1: Removing Ceiling Light Cover
    G02698226Courtesy of HYUNDAI MOTOR CO.
  2. Loosen the 2 mounting screws, disconnect the connector, and then remove the overhead console.

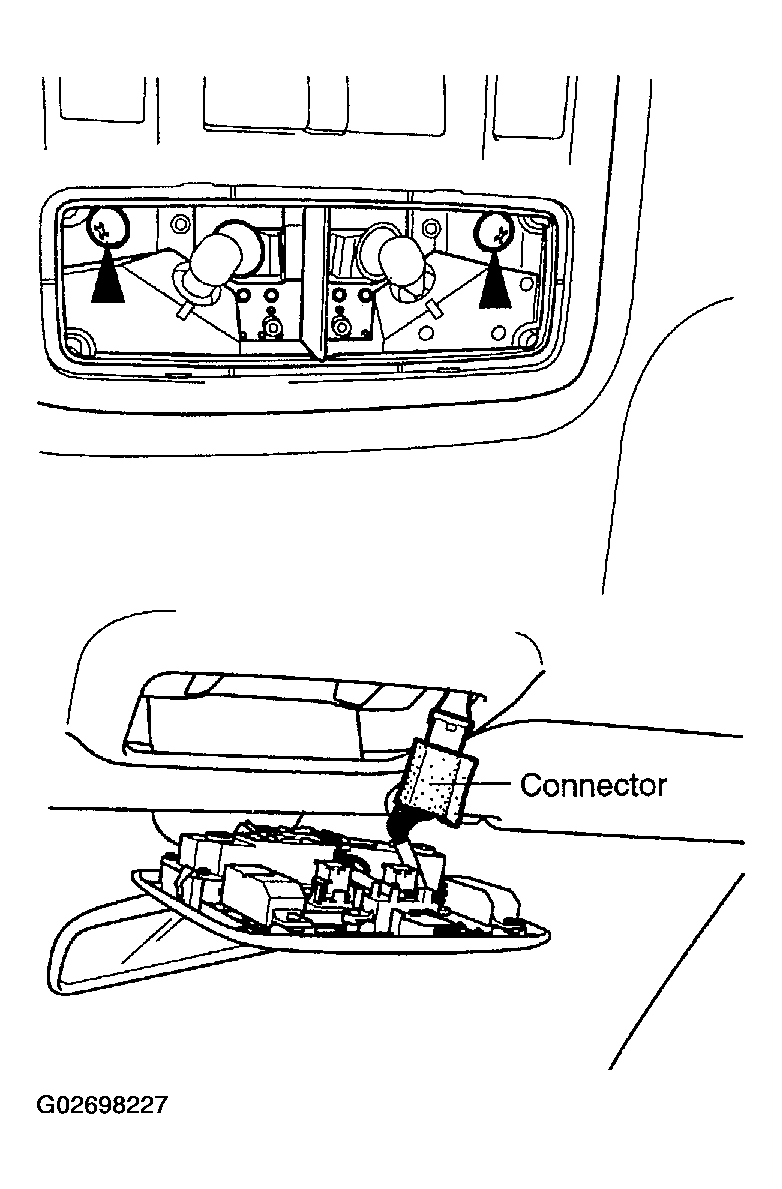

    Fig 2: Removing Overhead Console
    G02698227Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
