| Alternator Brace Bolt |
15-21 (20-28) |
| Alternator Lock Bolt |
11-16 (15-22) |
| Alternator Support Fasteners |
15-18 (20-25) |
| Camshaft Bolt |
15-20 (20-27) |
| Camshaft Sprocket Bolt |
59-74 (80-100) |
| Connecting Rod Cap Nut |
24-26 (32-35) |
| Coolant Outlet Fitting Bolt |
13-15 (17-20) |
| Coolant Temperature Sensor |
11-15 (15-20) |
| Crankshaft Bearing Cap Bolt |
41-44 (55-60) |
| Crankshaft Sprocket Bolt |
103-111 (140-150) |

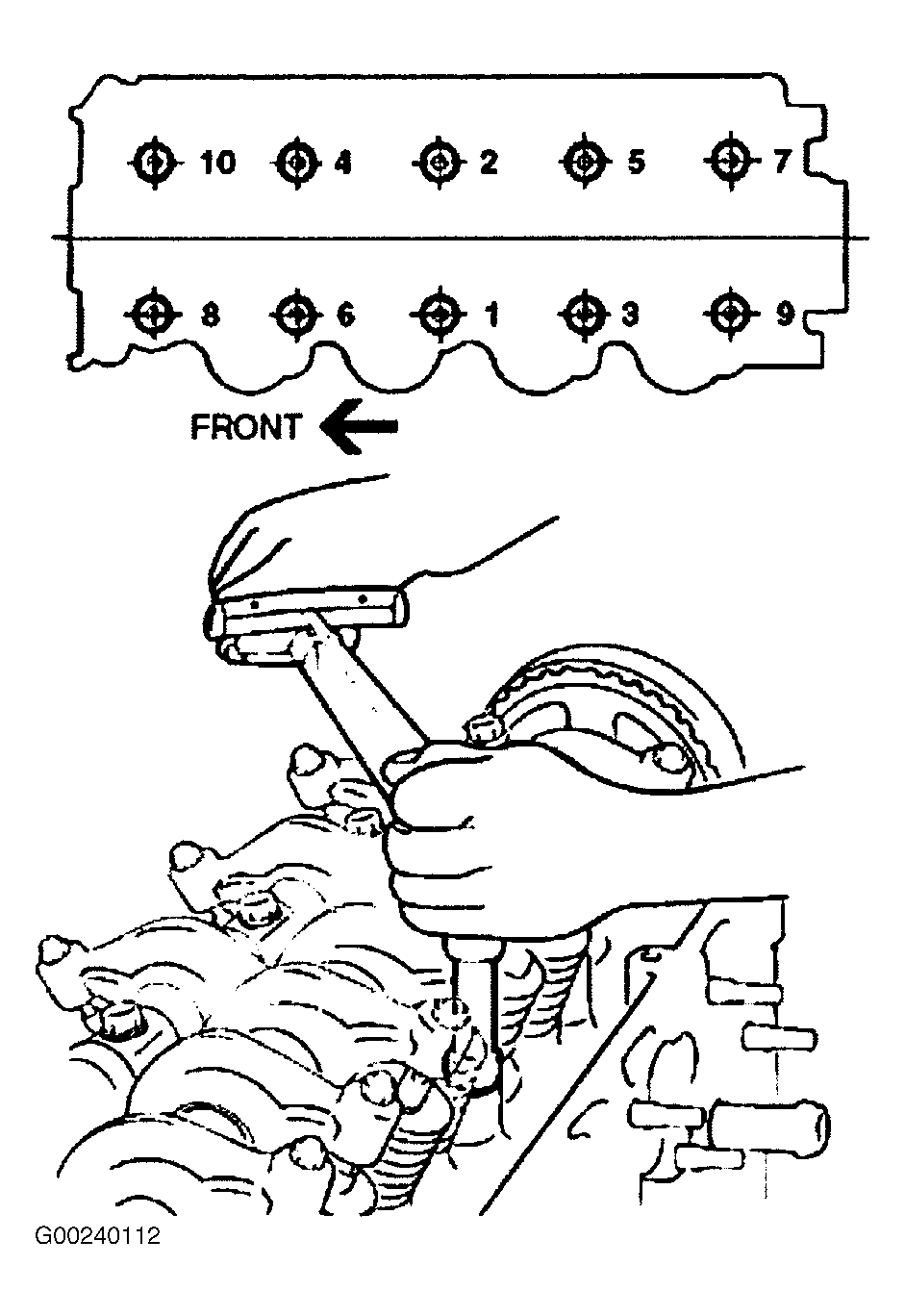

| Cylinder Head Bolts |
| Step 1 |
17-20 (23-27) |
| Step 2 |
Tighten An Additional 60 Degrees |
| Step 3 |
Tighten An Additional 45 Degrees |
| Driveplate/Flywheel Bolts |
96-103 (130-140) |
| Engine Mounting Components |
| Engine Mounting Bracket-To-Engine Nuts & Bolts |
37-48 (50-65) |
| Engine Mounting Insulator Bolt |
66-81 (90-110) |
| Front Roll Stopper Bracket-To-Sub Frame |
22-30 (30-40) |
| Front Roll Stopper Insulator Bolt |
33-44 (45-60) |
| Rear Roll Stopper Bracket Subframe Bolts |
22-30 (30-40) |
| Rear Roll Stopper Insulator Nut |
33-44 (45-60) |
| Transaxle Insulator Bracket-To-Side Member Nut |
22-30 (30-40) |
| Transaxle Mount Insulator Bolt |
66-81 (90-110) |
| Exhaust Components |
| Exhaust Pipe-To-Catalytic Converter |
30-40 (40-60) |
| Exhaust Pipe-To-Exhaust Manifold Nut |
22-30 (30-40) |
| Exhaust Manifold Nut |
11-15 (15-20) |
| Front Exhaust Bracket Bolts |
22-30 (30-40) |
| Intake Manifold Bolts & Nuts |
11-15 (15-20) |
| Left Engine Support Bracket Bolt |
22-31 (30-42) |
| Oil Filter |
9-12 (12-16) |
| Oil Pan Drain Plug |
25-33 (35-45) |
| Oil Screen Bolts |
11-16 (15-22) |
| Oxygen Sensor |
37-44 (50-60) |
| Rocker Arm Shaft Bolt |
15-20 (20-27) |
| Surge Tank Stay-To-Inlet Manifold Nuts & Bolts |
11-15 (15-20) |
| Thermostat Housing Bolt |
11-15 (15-20) |
| Timing Belt Tensioner Bolt |
15-20 (20-27) |
| INCH Lbs. (N.m) |
| Air Cleaner Body Mounting Bolts |
71-89 (8-10) |
| Alternator Lock Bolt |
106-133 (12-15) |
| Coolant Pump Pulley Bolt |
71-89 (8-10) |
| Cylinder Head Cover Bolts |
71-89 (8-10) |
| Coolant Pump Bolt |
106-133 (12-15) |
| Coolant Temperature Gauge Unit |
89-106 (10-12) |
| Front Case Bolt |
106-133 (12-15) |
| Oil Pan Bolts |
53-71 (6-8) |
| Oil Pressure Switch |
115-133 (13-15) |
| Rear Plate Bolt |
71-89 (8-10) |
| Resonator Mounting Bolt |
35-53 (4-6) |
| Rocker Cover Bolt |
71-89 (8-10) |
| Throttle Body-To-Surge Tank Bolts |
35-53 (4-6) |
| Timing Belt Cover Bolt |
62-80 (10-12) |
