Standard Oil Pressure Table

WARNING: This page is about a different variant/trim than selected.

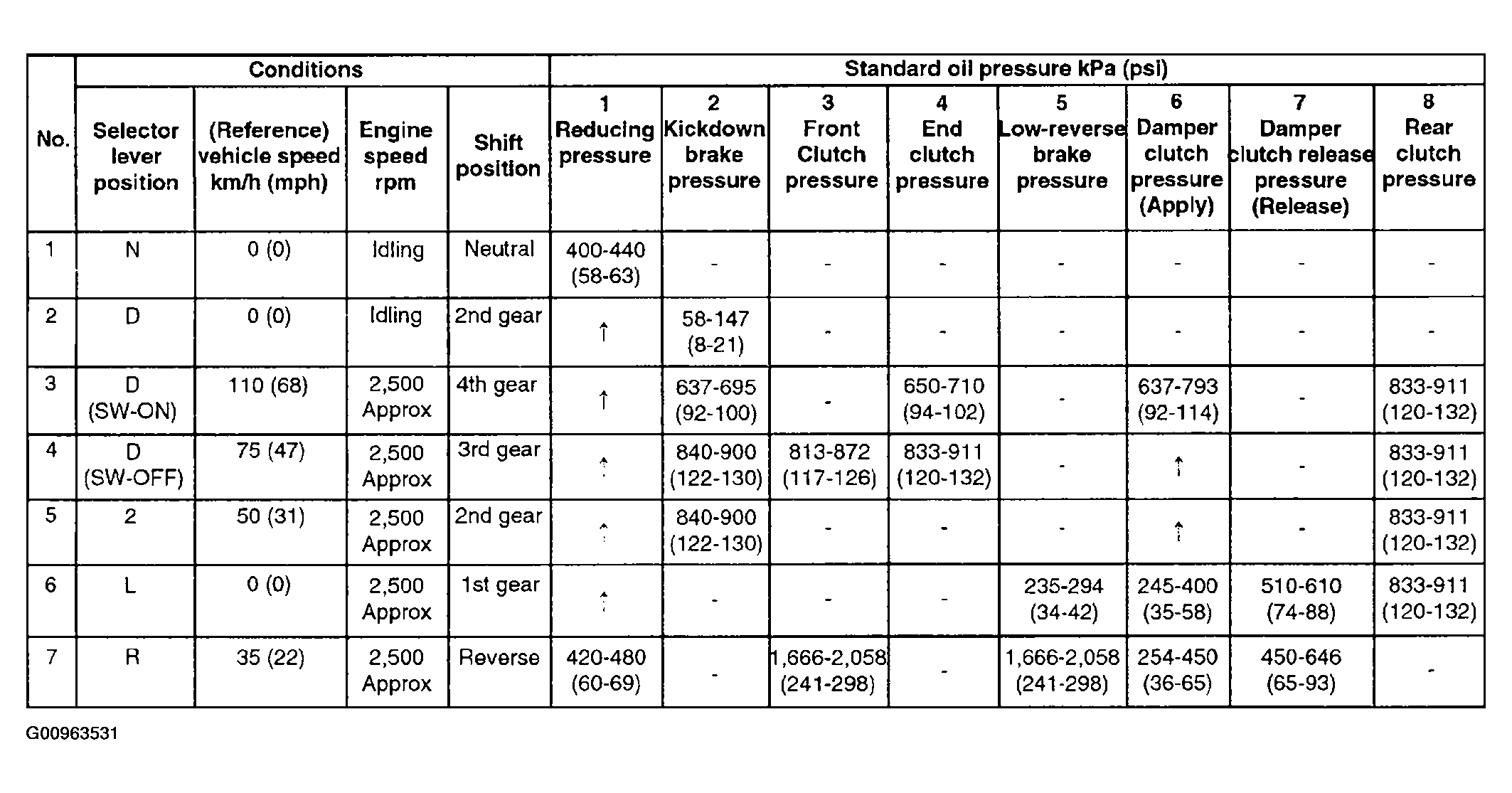

Fig 1: Standard Oil Pressure Table
G00963531Courtesy of HYUNDAI MOTOR CO.
