Power Steering Gear Box: Components

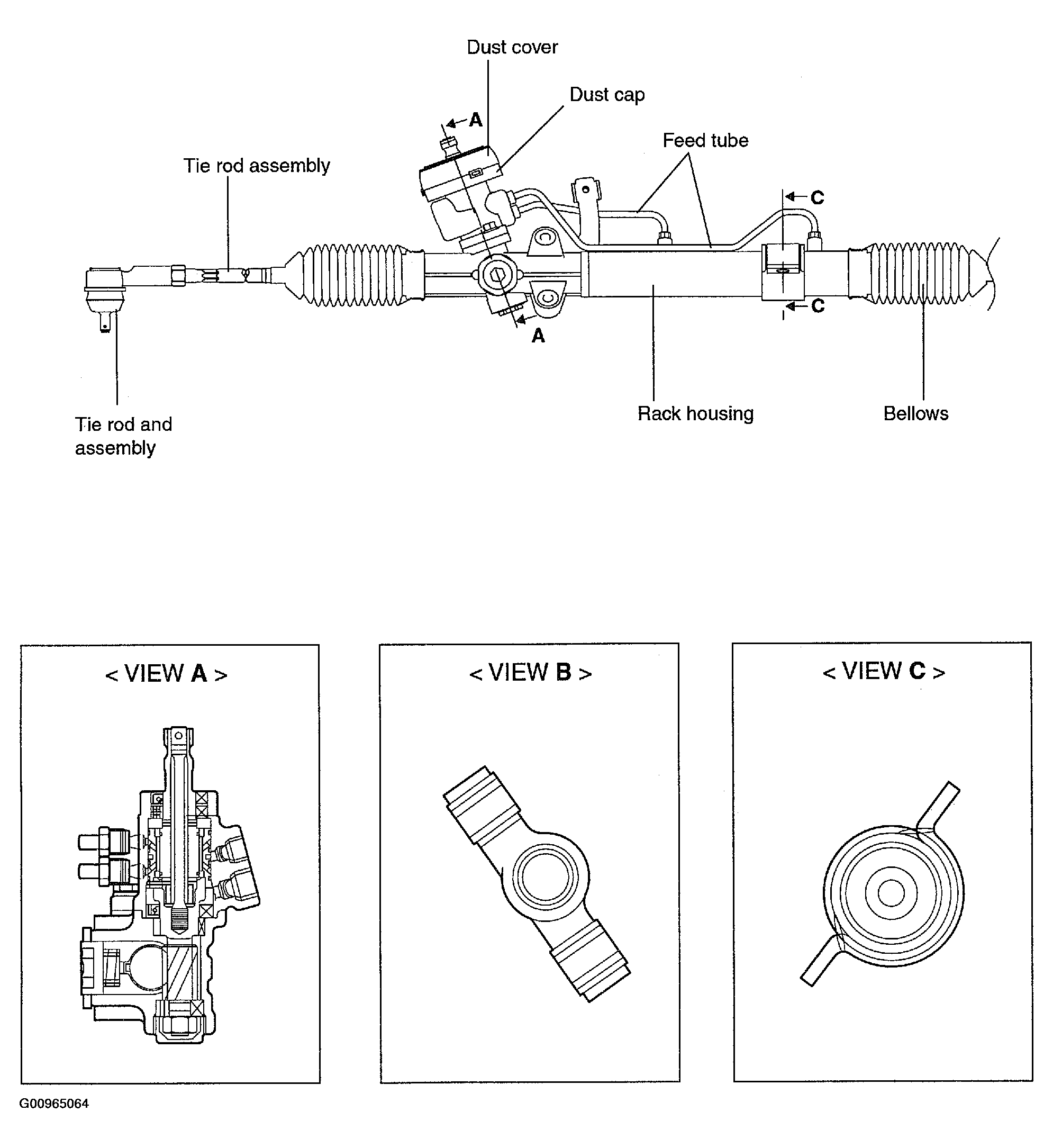

Fig 1: Power Steering Gear Box Components (1 Of 2)
G00965064Courtesy of HYUNDAI MOTOR CO.

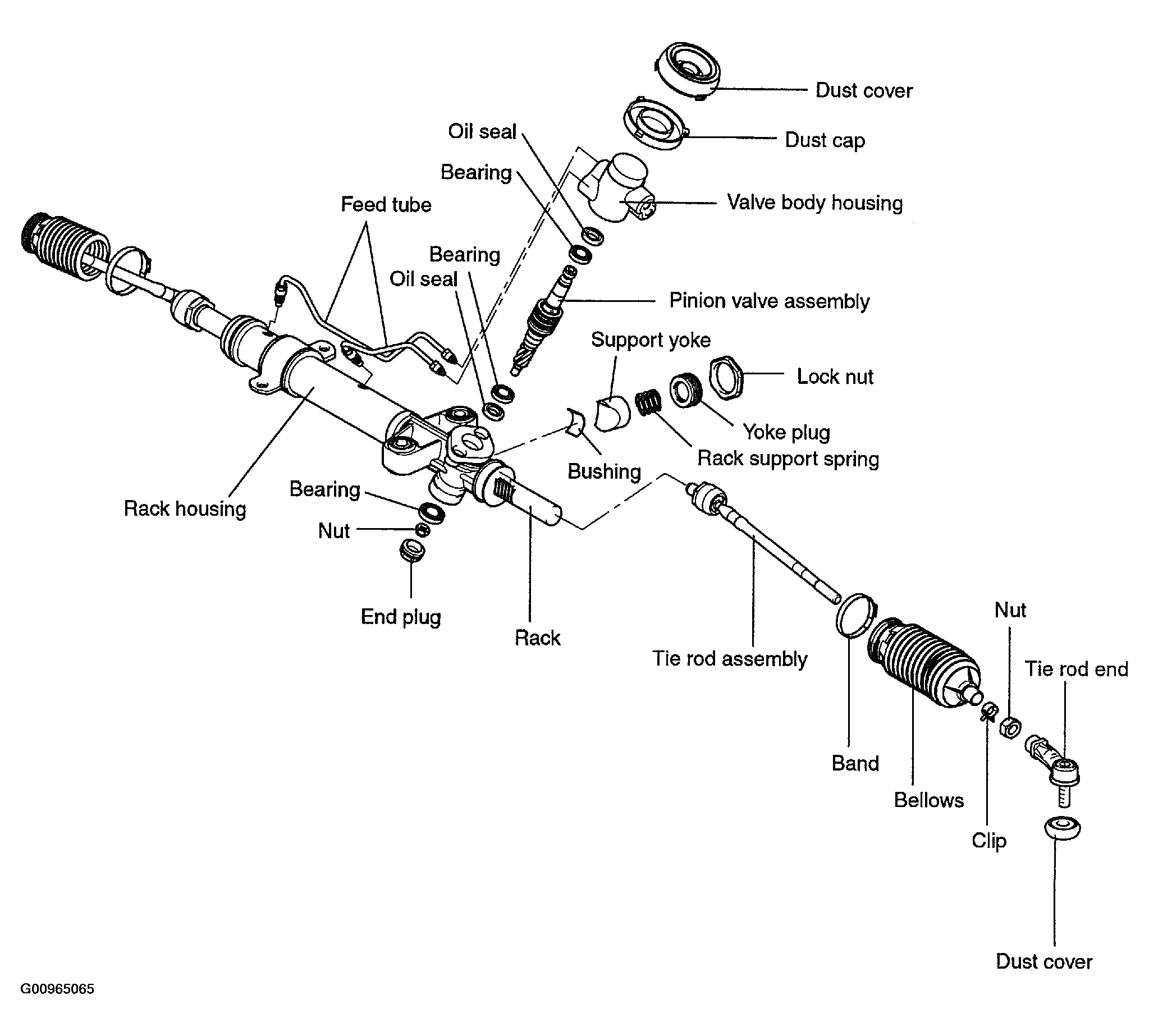

Fig 2: Power Steering Gear Box Components (2 Of 2)
G00965065Courtesy of HYUNDAI MOTOR CO.
