Shift & Key Lock Control System: Components

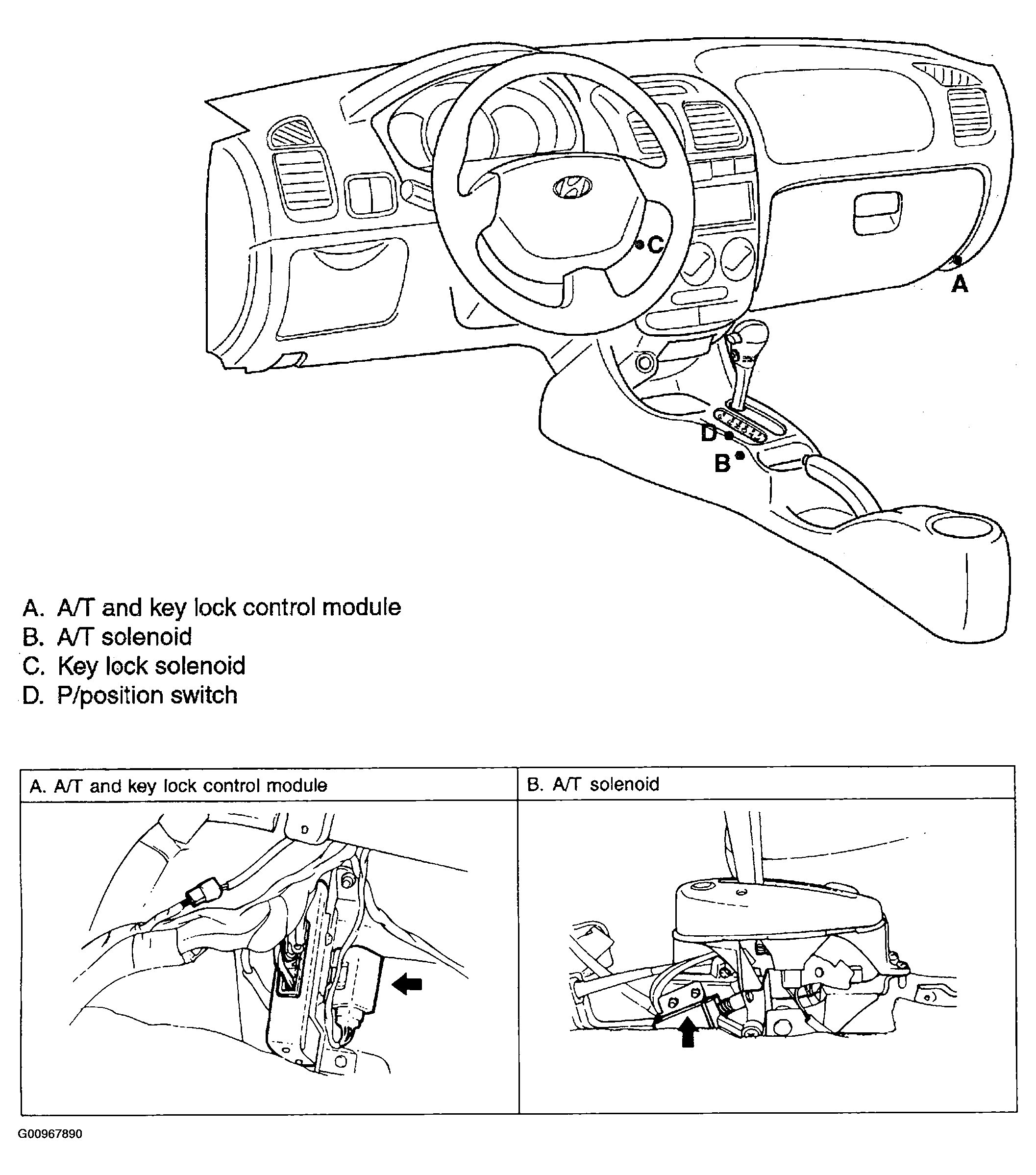

Fig 1: Shift & Key Lock Control System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

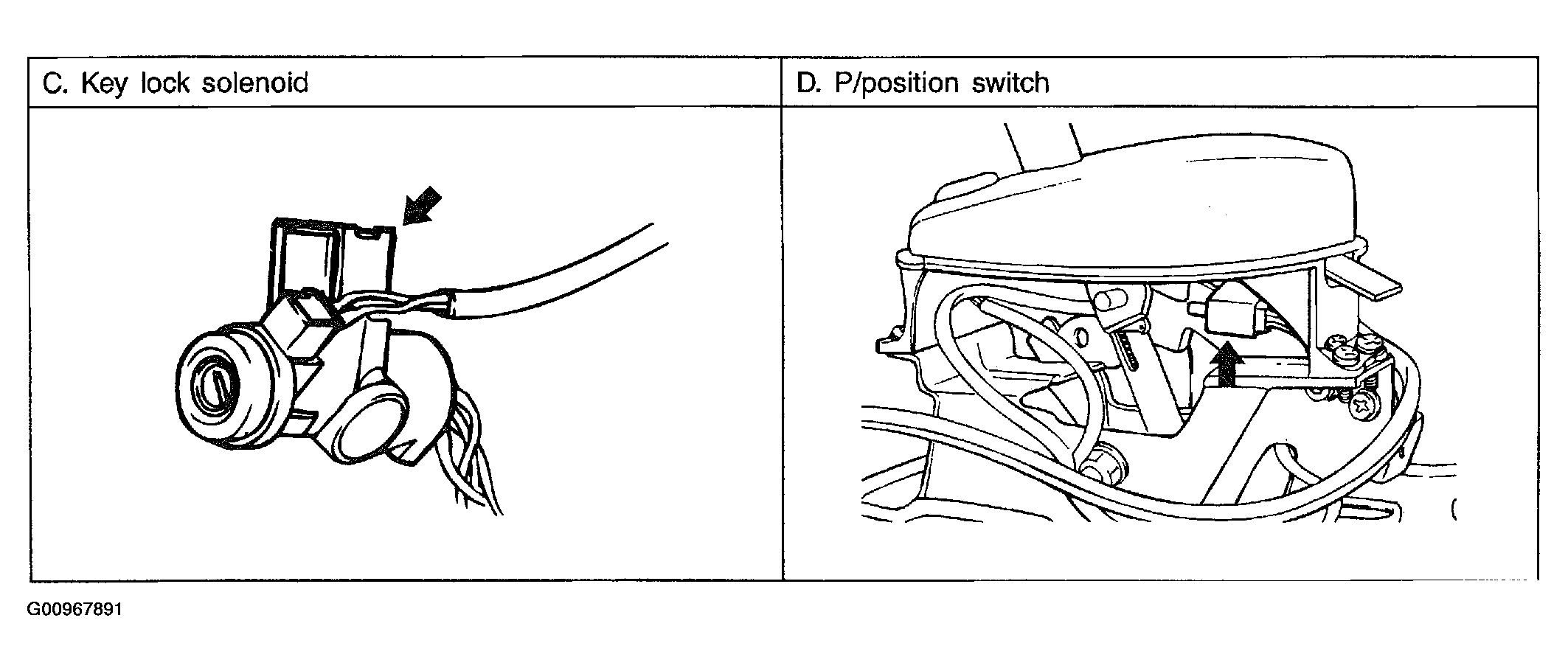

Fig 2: Shift & Key Lock Control System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
