Steering Gear

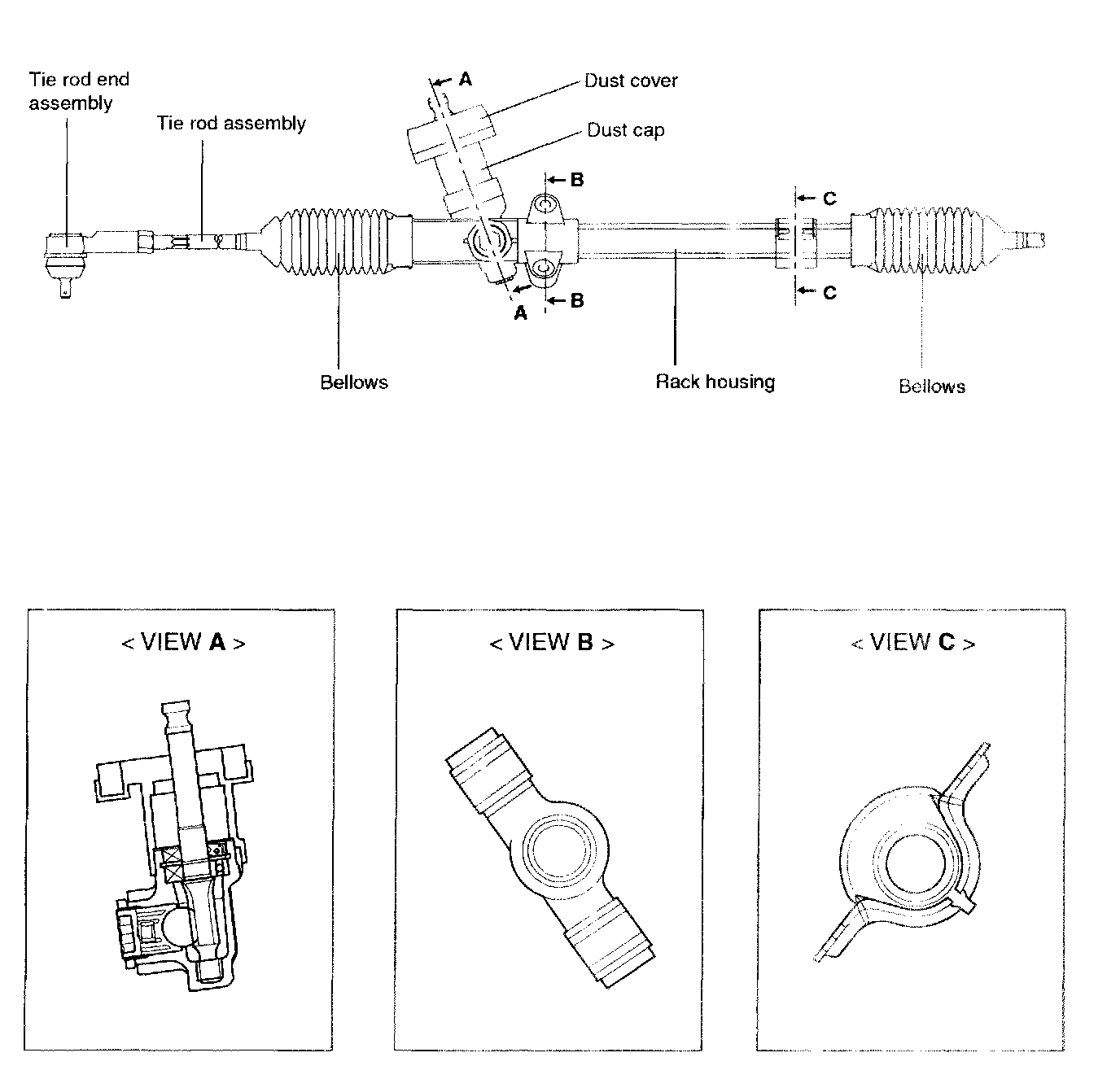

MANUAL STEERING GEAR BOX 1 Of 2:

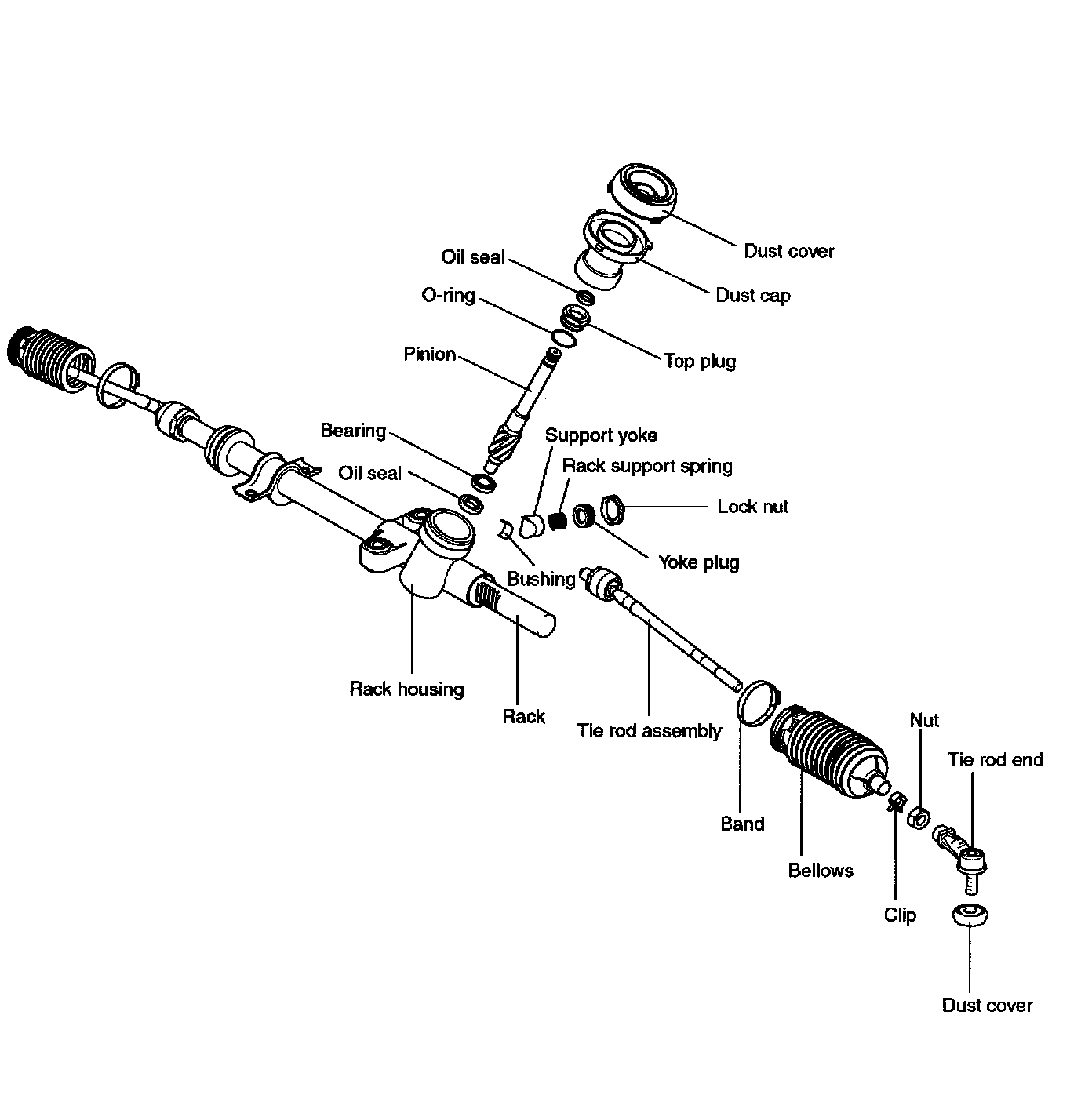

MANUAL STEERING GEAR BOX 2 Of 2:

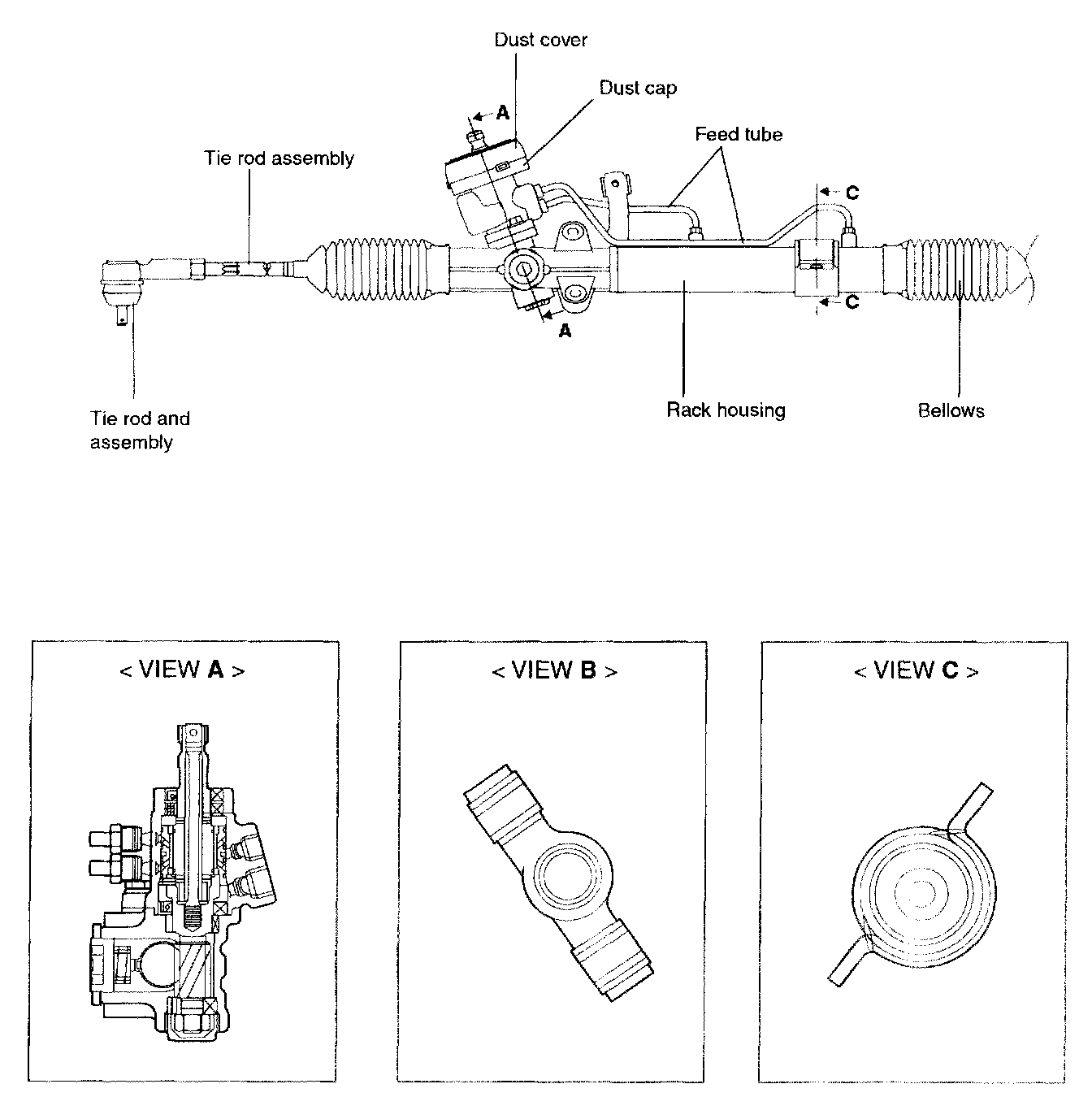

POWER STEERING GEAR BOX 1 Of 2:

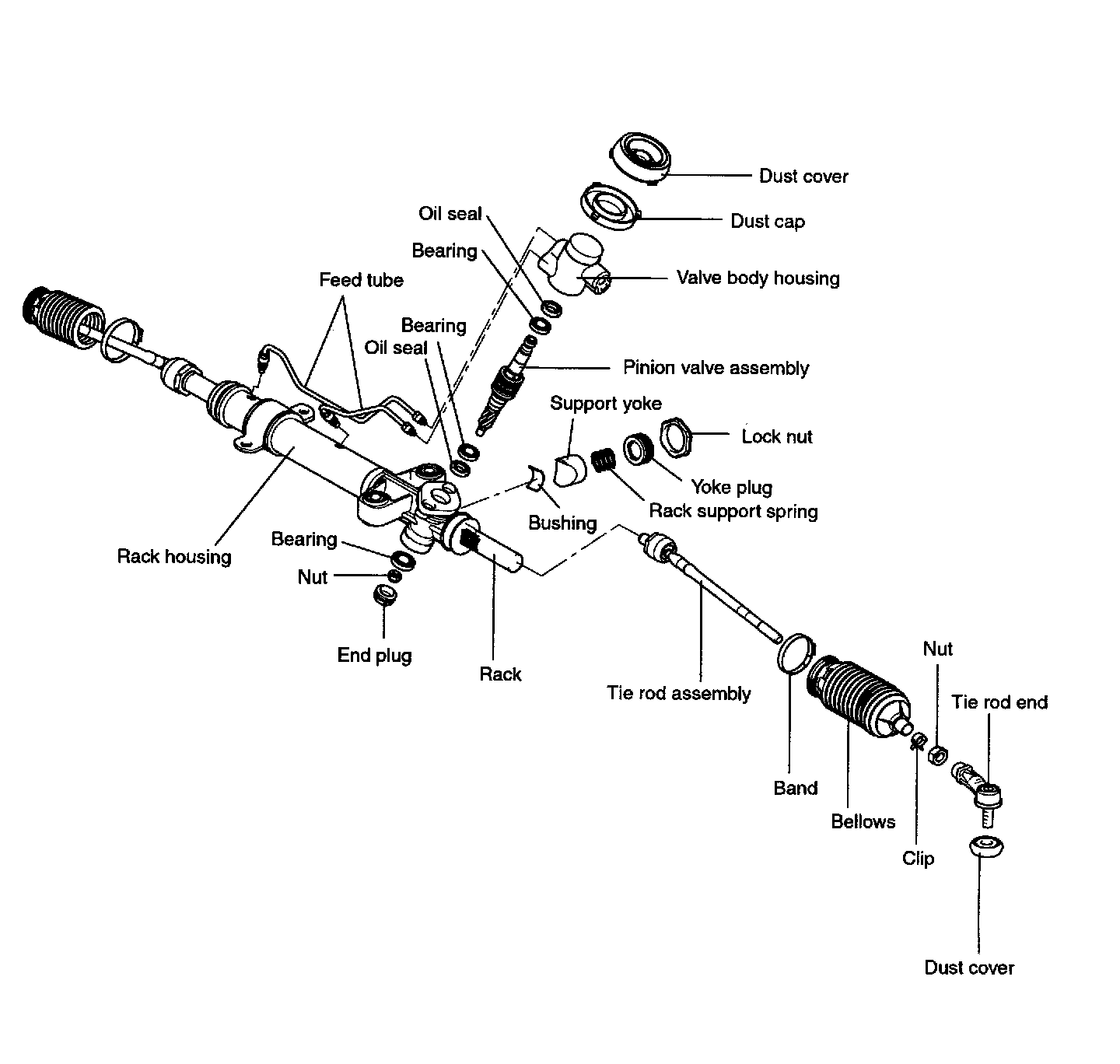

POWER STEERING GEAR BOX 2 Of 2:
