Home >> Hyundai >> 2003 >> Accent L4-1.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

Compressor HVAC: Locations

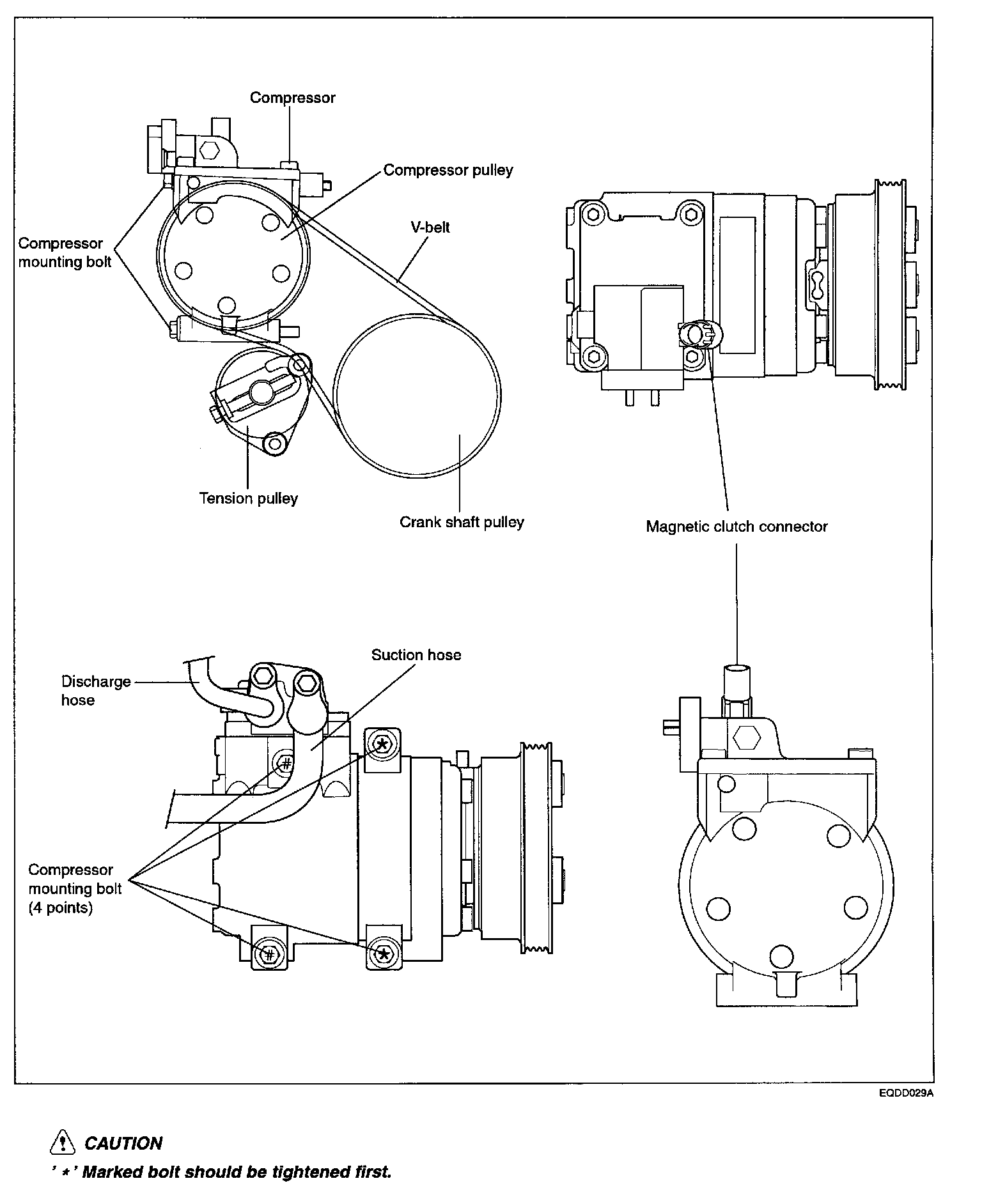

Compressor Part 1:



Compressor:

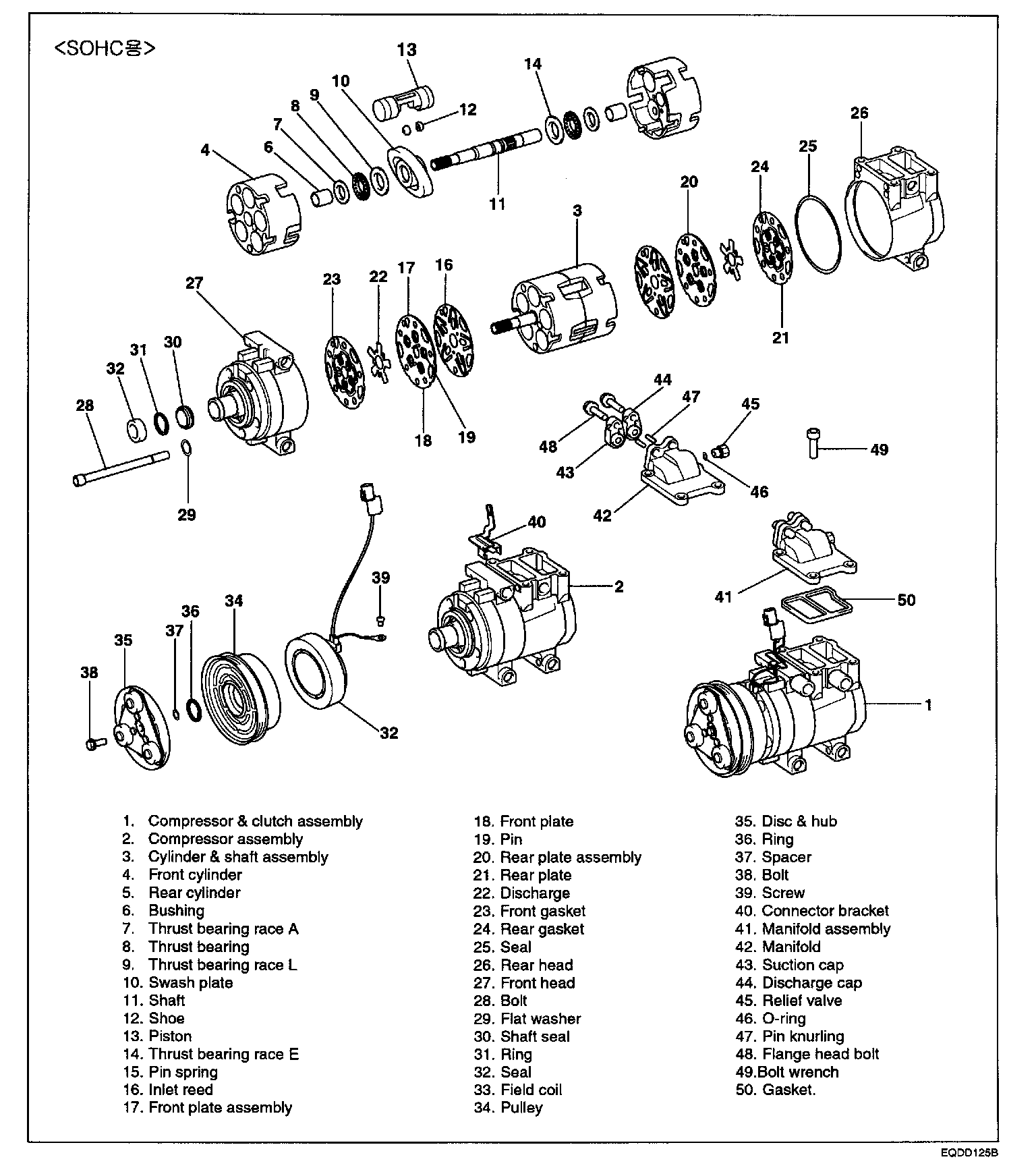

Compressor Configuration:
