Engine Compartment Relay/Fuse Box

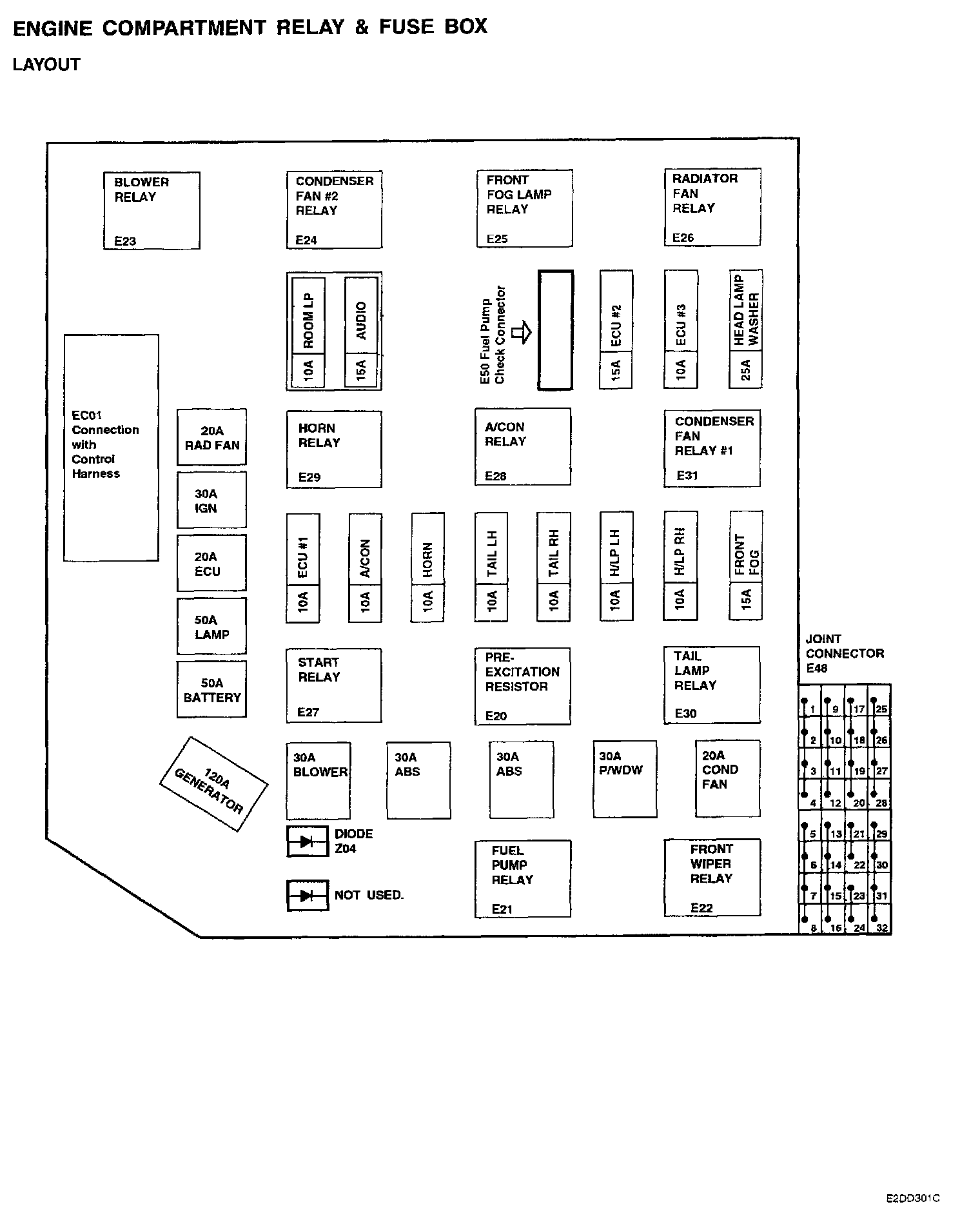

Engine Compartment Relay & Fuse Box Layout:



Engine Compartment Junction Block Circuit Details:
