Rough Road Sensor: Testing and Inspection

ACCELERATION SENSOR





The acceleration sensor is used to sense rough road conditions. The sensor's signal is used by the Engine Control Module (ECM) to prevent wrongful misfire detection.

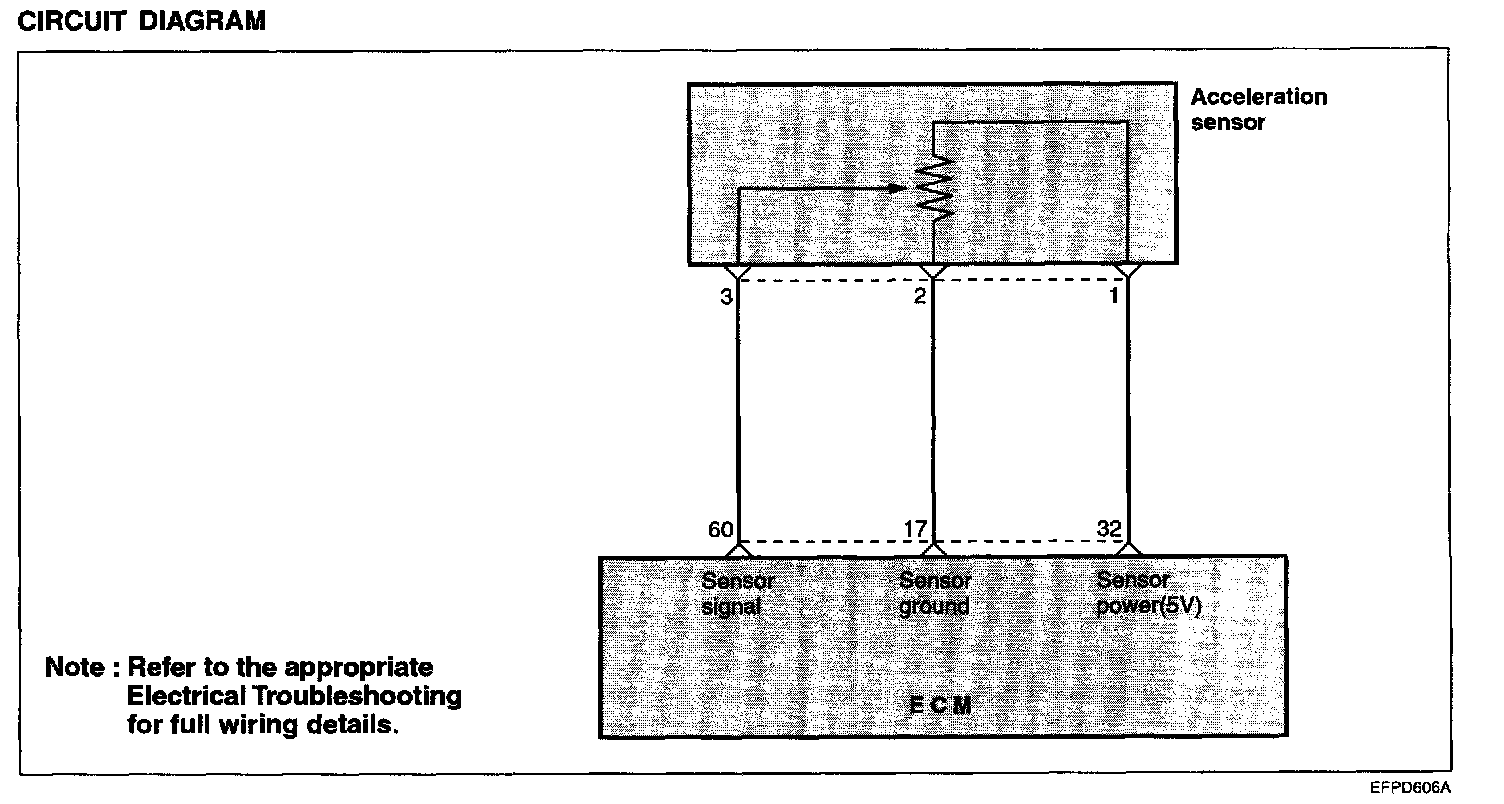

Circuit Diagram:






Using Voltmeter:

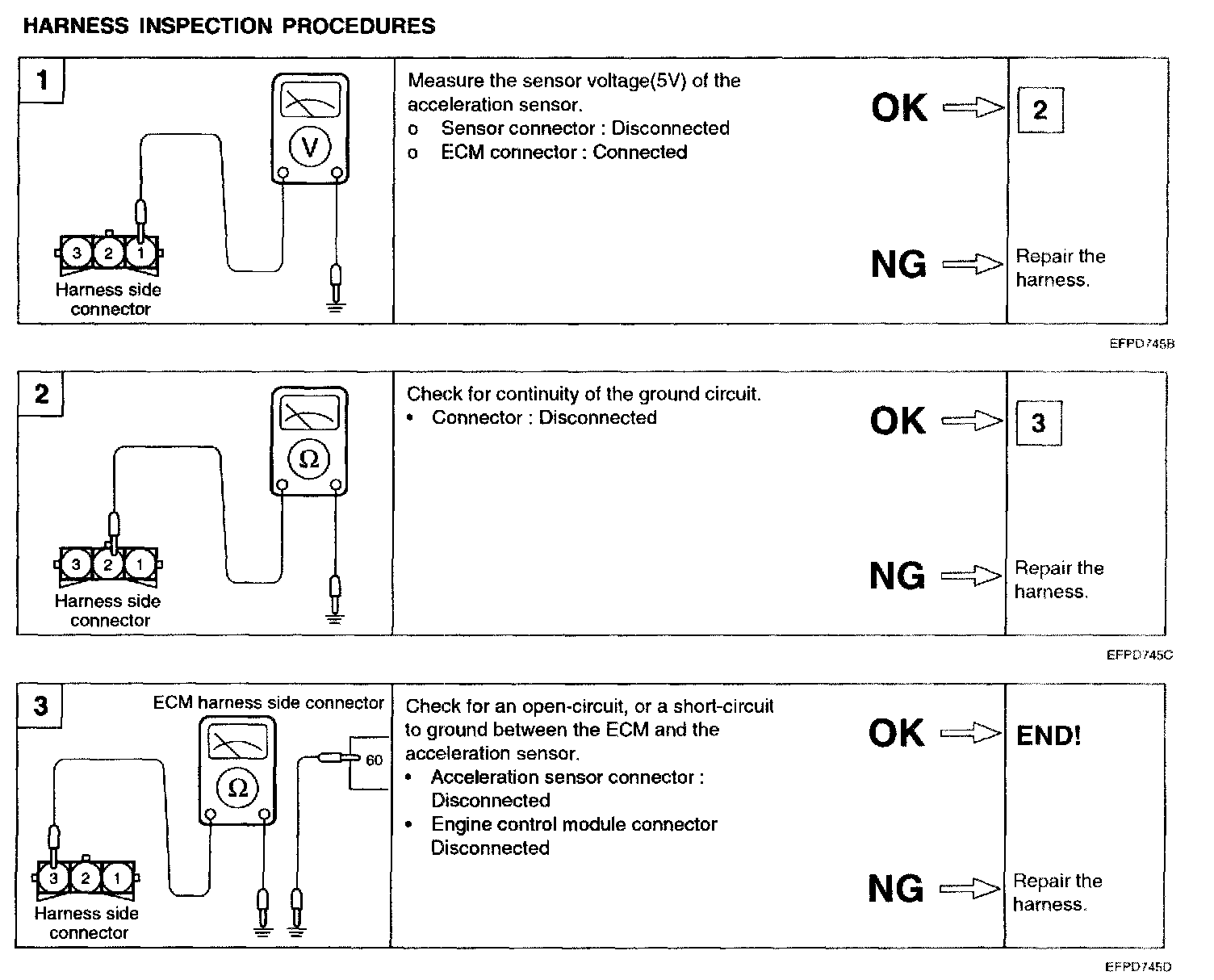

Harness Inspection Procedures:
