MULTIFUNCTION Switch: Specification

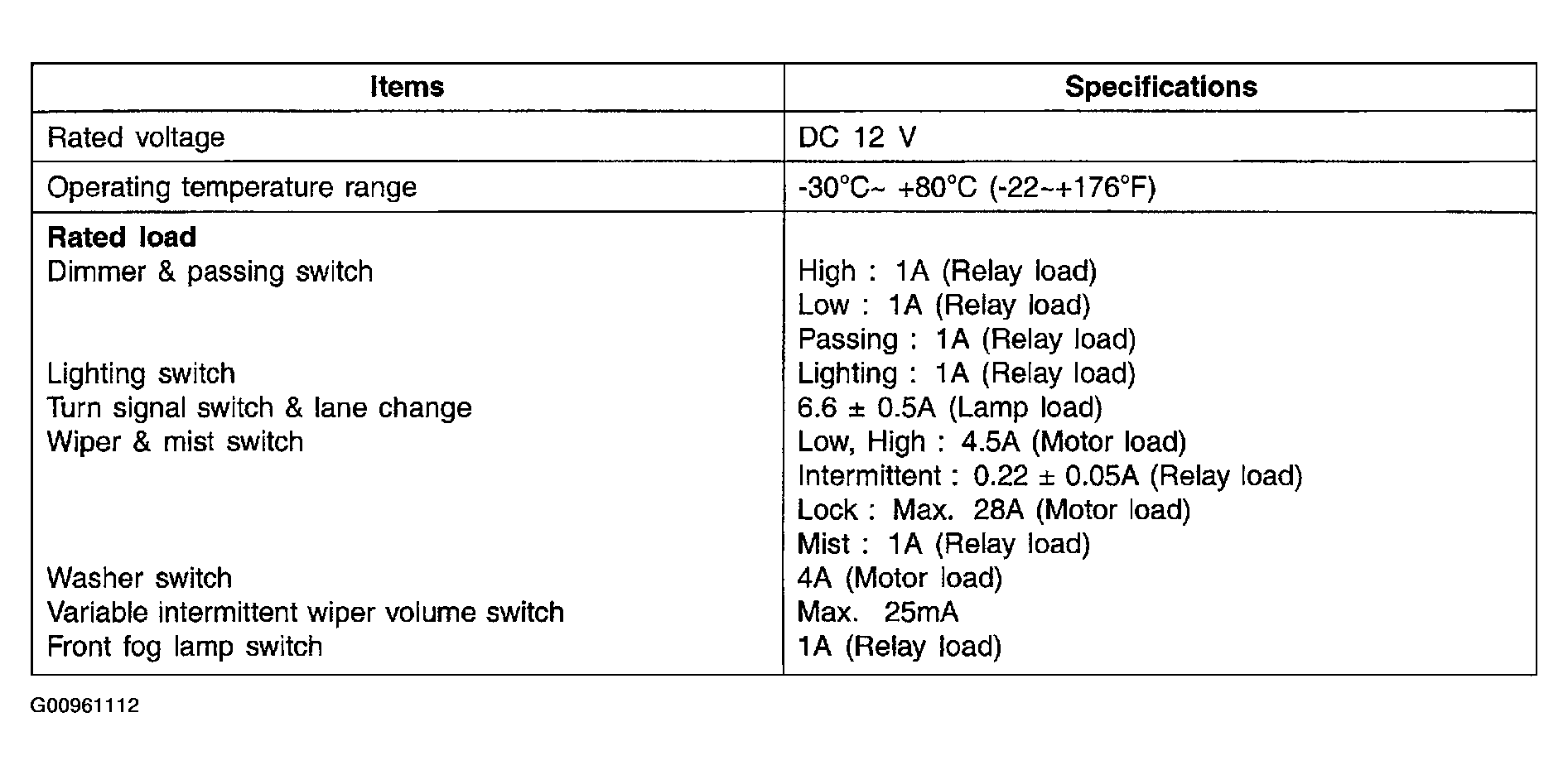

Fig 1: Multifunction Switch Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
