Inspection Procedure 4

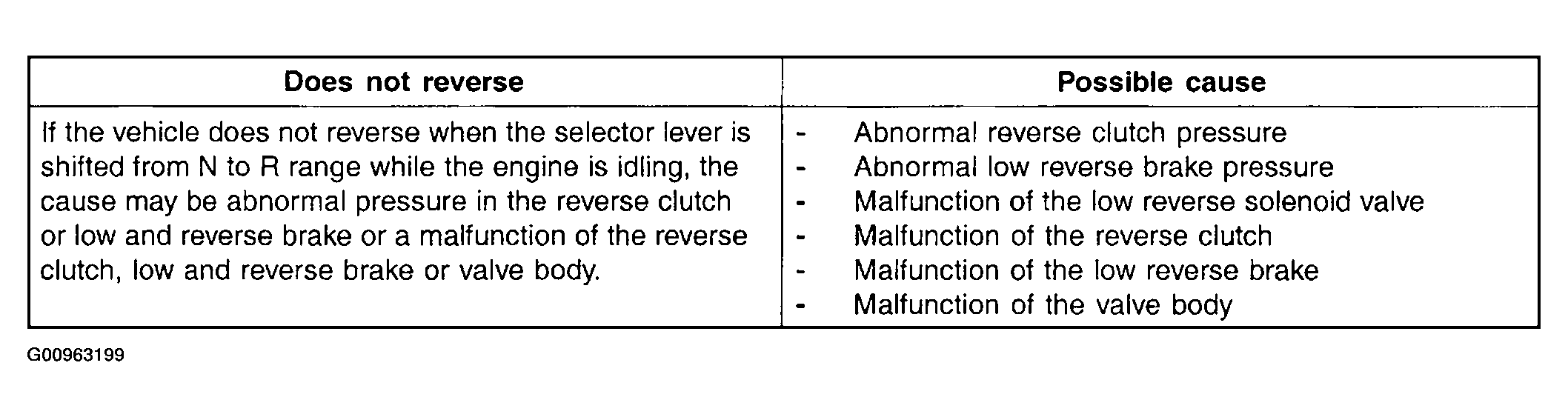

Fig 1: Vehicle Will Not Reverse Possible Causes Table
G00963199Courtesy of HYUNDAI MOTOR CO.

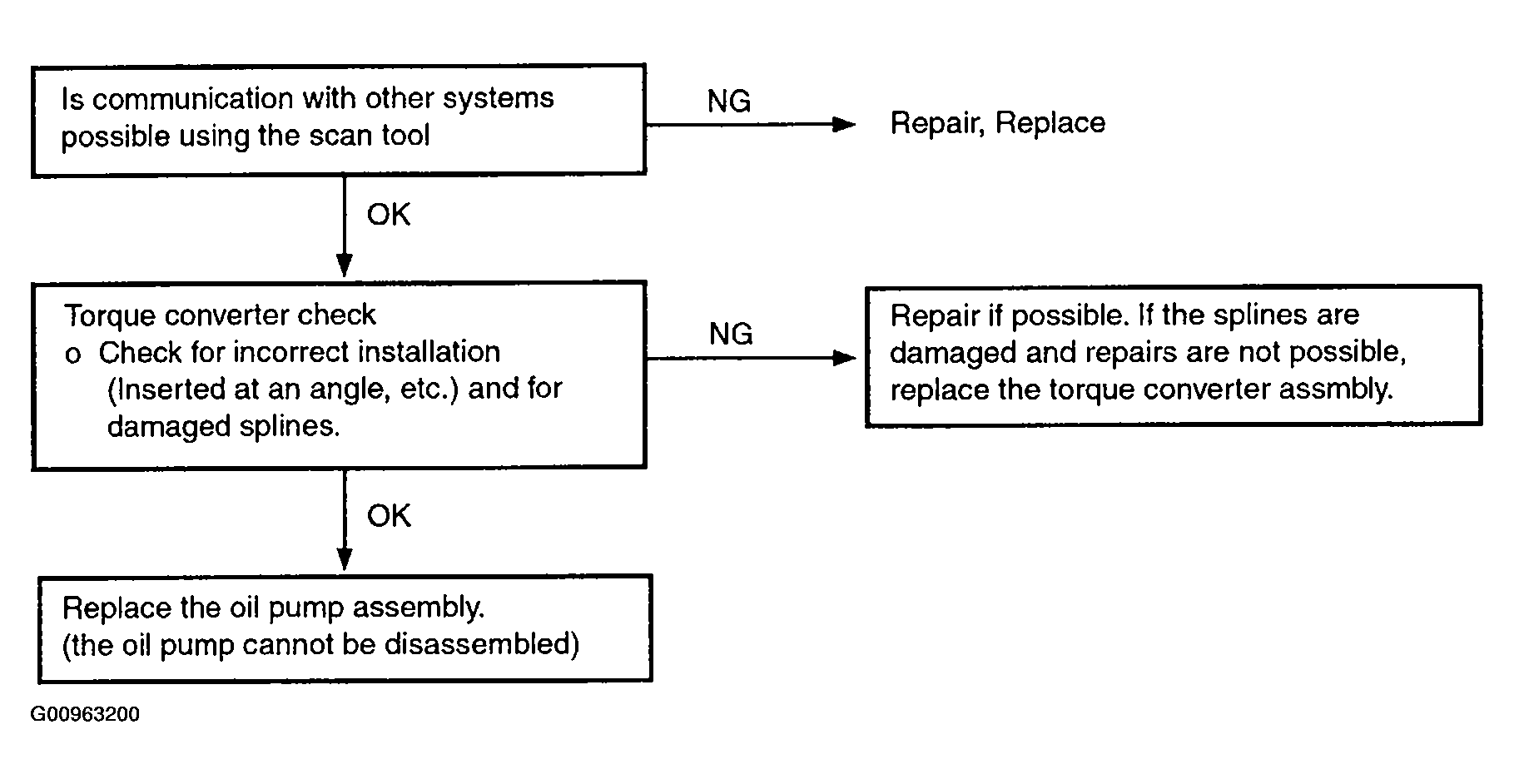

Fig 2: Vehicle Will Not Reverse Diagnostic Flow Chart
G00963200Courtesy of HYUNDAI MOTOR CO.
